10KW Water Turbine Controller for Hydro Generator

1 / 5

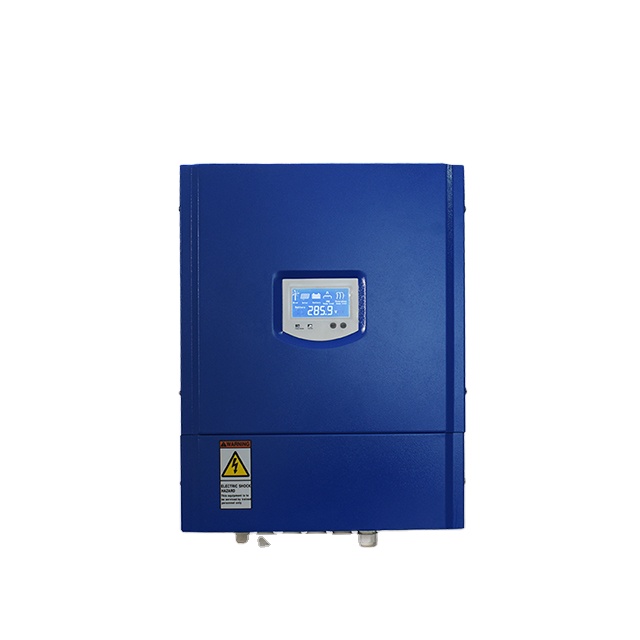

10KW Water Turbine Controller for Hydro Generator

Send Inquiry

Product Description

PWM Wind Solar Hybrid Charge Controller With Dump Load 2KW 24V/48V/96V

Off-Grid PWM Wind Turbine (Wind generator) Controller

FKJ-B model off grid PWM wind turbine controller Product Characteristics

1 The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T19115.1-2003 national standard also with users' technical requirements.

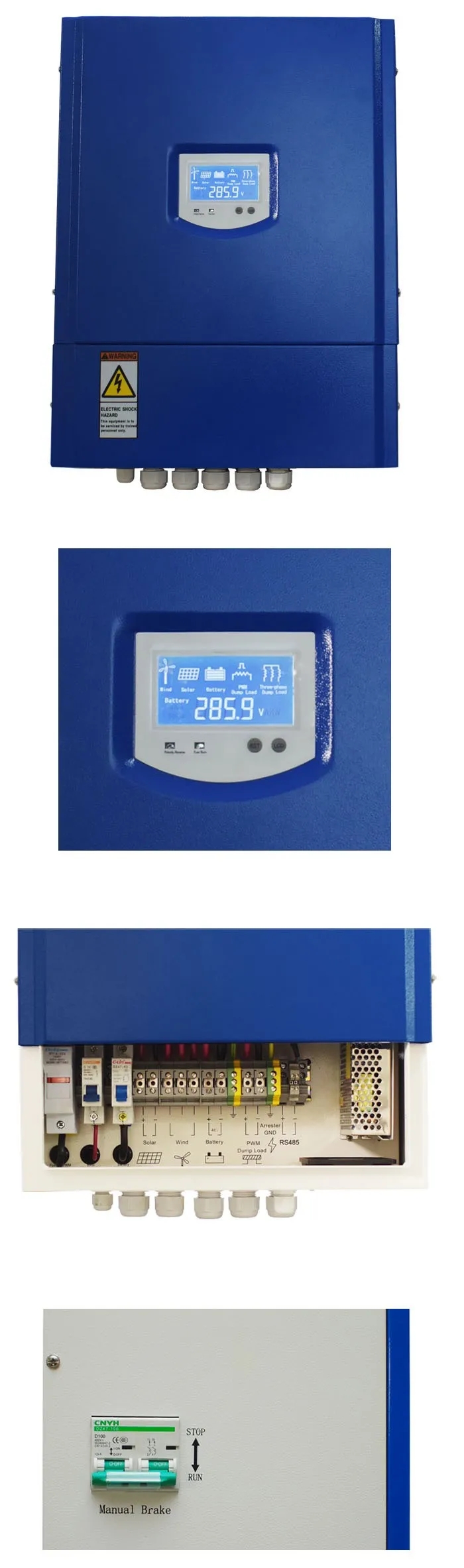

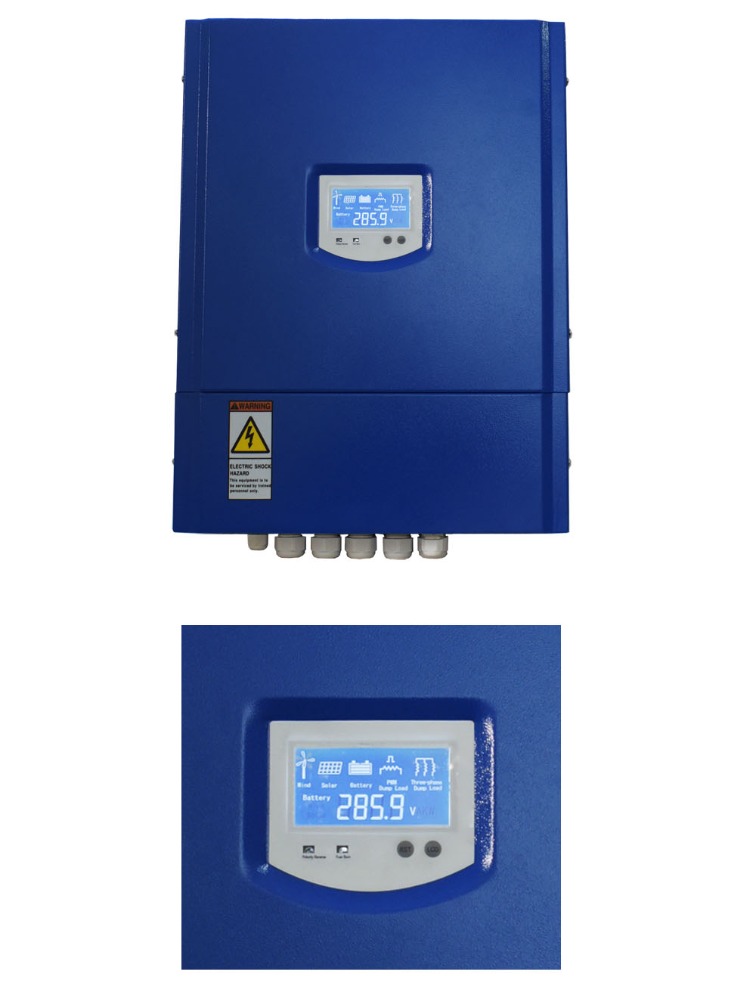

2 Big LCD display. The images tell working state visually. Various data show: real-time wind turbine voltage, current, power; solar panel voltage, current, power; battery group voltage, charge current.

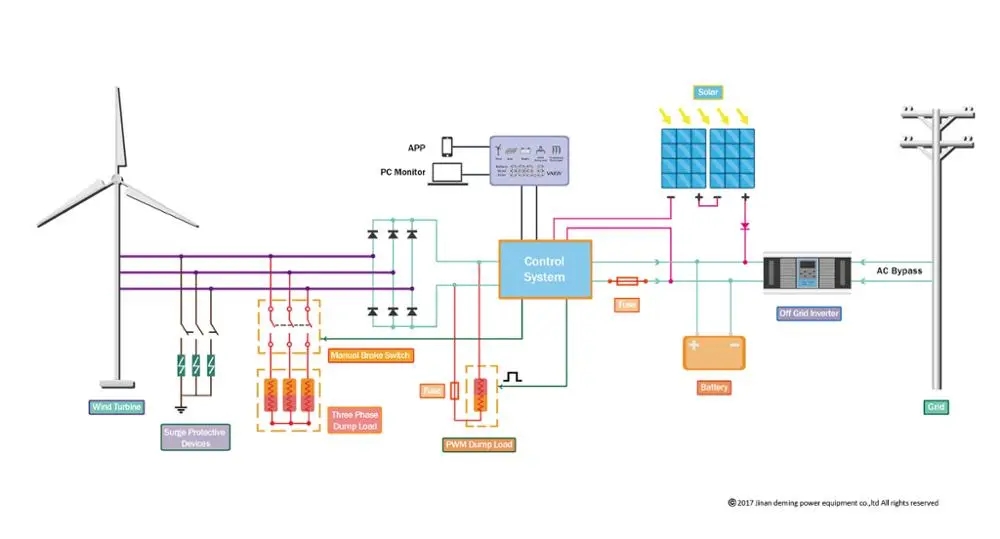

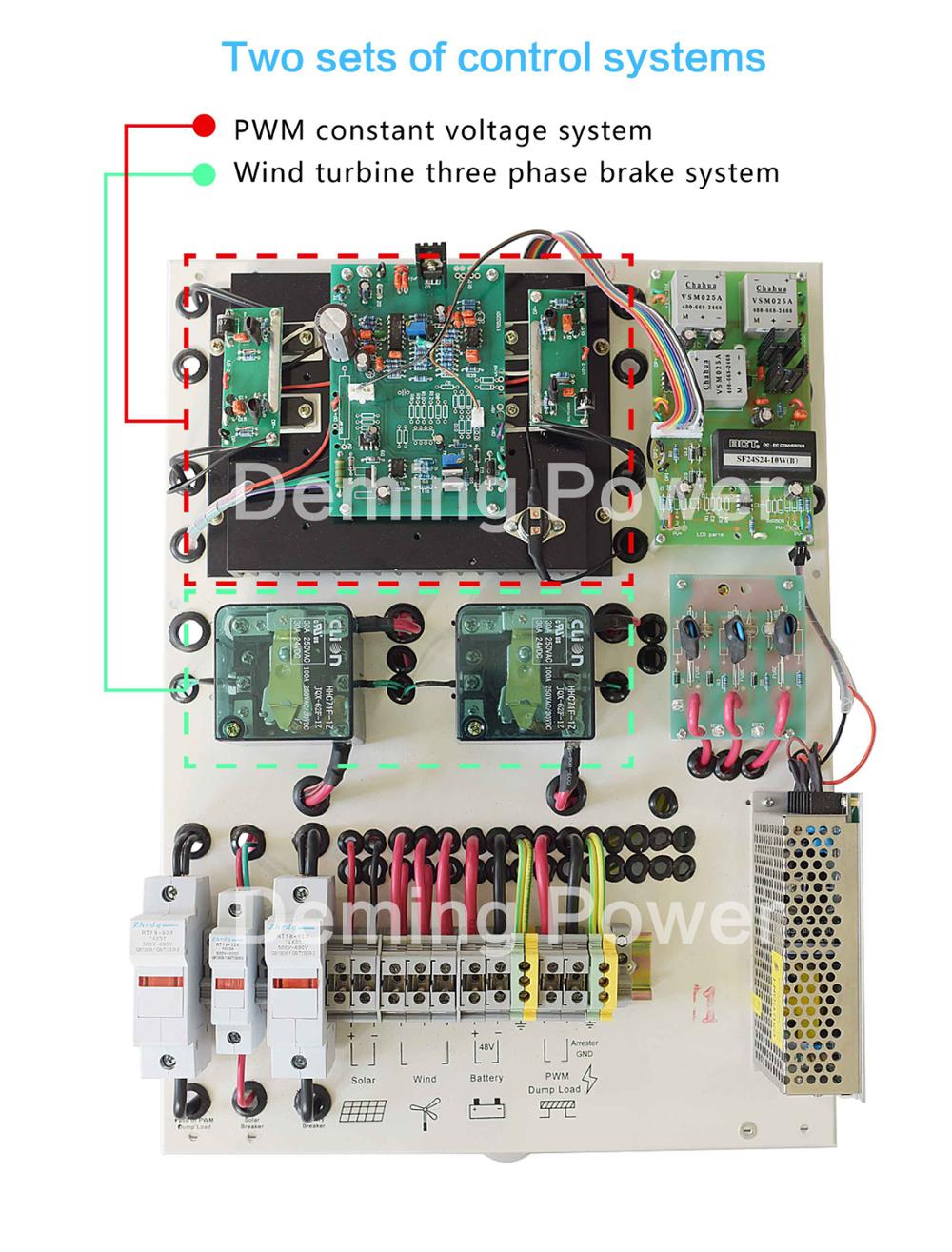

3 Two sets of control systems: PWM constant voltage system and three-phase dump load system.

4 When the strong or super-strong wind conditions, PWM control to ensure battery charged by the wind turbine with constant voltage and current.

5 When the battery disconnects or is damaged, the three-phase dump load will start automatically to avoid the wind turbine idling and runaway accident.

6 The protection function of battery: polarity reverse protection, disconnection and damage protection.

7 Over-charging protection of the battery: When the battery is full, the three-phase dump load will work, the wind turbine will brake and stop charging the battery.

8 Auto recharging of battery: When the battery voltage reduces to 108% of the rated voltage, it stops three-phase dump load to recharge battery automatically.

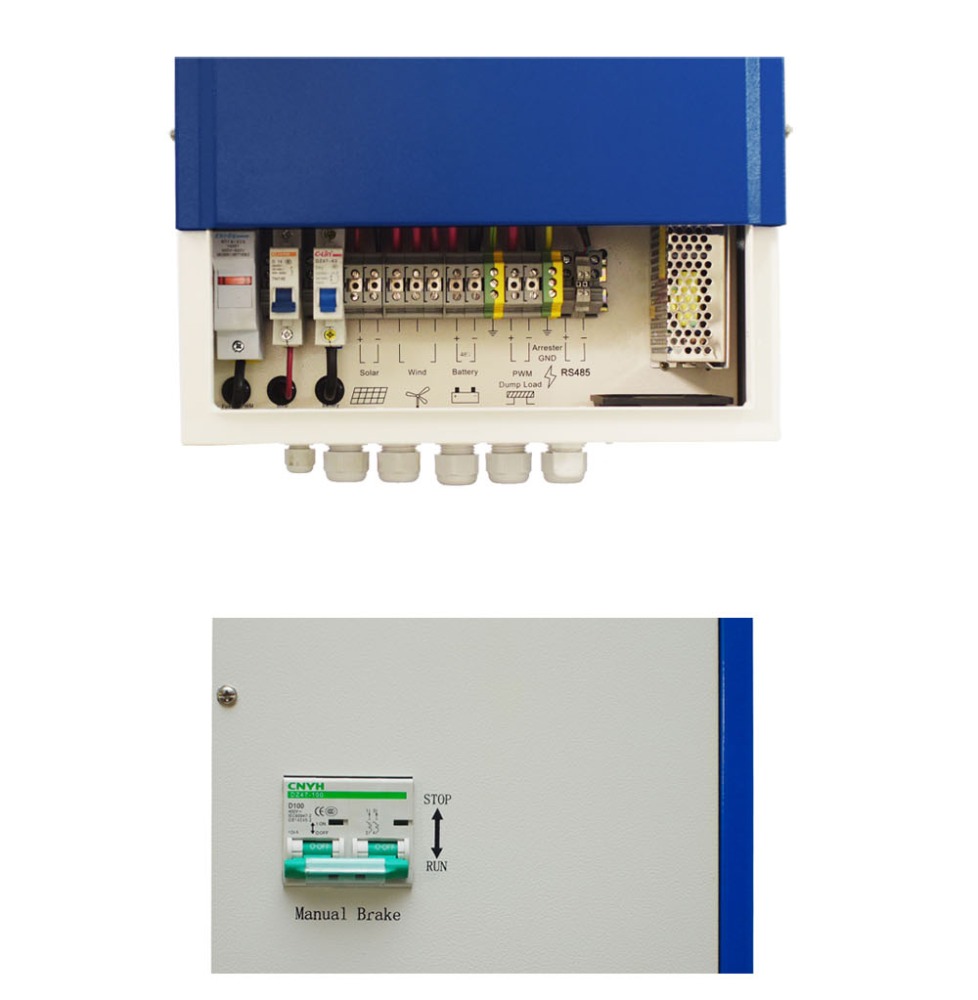

9 The controller is equipped with a manual brake switch. Using this switch, the wind turbine will carry out three-phase dump load forcibly.

10 The inside of the controller is equipped with a surge arrester. It contains the over-voltage in the wind turbine under the bearable voltage of the equipment or system, and conducts the strong lightning current into the earth directly to avoid damage.

11 Solar panel control system is optional, based on customers' requirement.

12 Diesel generator port is optional. Controls the generator start and stop automatically.

13 Adopt Modbus Communication protocol. Convenient to carry out the secondary development.

15 Adjusting the technical specification via RS485 is available. Convenient to adjust for different wind turbines for professional customers.

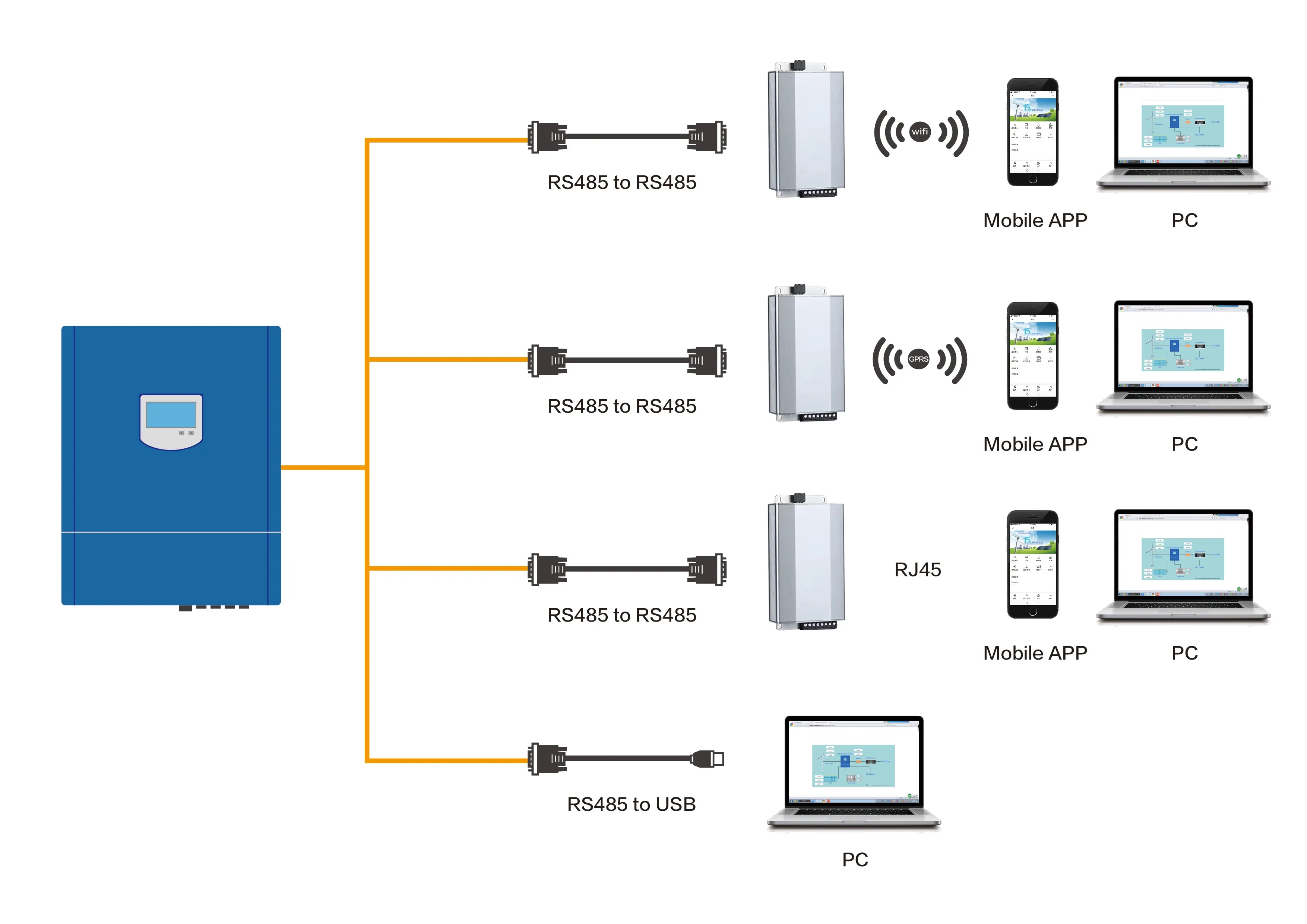

16 Support WIFI and GPRS. Customers can monitor the real-time working state of the on-grid wind power system via PC and mobile, and query history working state (Android and iOS compatible).

17 For different wind turbines, the controller can be equipped with mechanical yawing, rotate tail control, furled empennage, mechanical brake, hydraulic brake, electromagnetism brake and other brake functions.

Technical Parameters of 3KW 24V/48V/96V Controller For Wind Generator Wind Turbine Controller Wind Charge Controller

Type	3KW-24Vdc	3KW-48Vdc	3KW-96Vdc
Wind turbine rated power	3KW	3KW	3KW
Wind turbine max. power	6KW	6KW	6KW
Solar panel	900W	900W	900W
Battery	24Vdc	48Vdc	96Vdc
Function	Rectifier, charge, control
Display mode	LCD
Display content	Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current
PWM constant pressure voltage	>28Vdc	>56Vdc	>110Vdc
3-phase load voltage of the wind turbine	29±1Vdc	58±1Vdc	116±2Vdc
Recovery charging voltage of the wind turbine	27±1Vdc	54±1Vdc	108±2Vdc
Stop charge voltage of solar panel	29±1Vdc	58±1Vdc	116±2Vdc
Recovery charging voltage of solar panel	<28Vdc	<56Vdc	<110Vdc
Low-voltage of the battery	20±1Vdc	40±1Vdc	80±2Vdc
Self-provided connecting wire of the battery	>30mm²	>12mm²	>6mm²
PWM fuse	125A	80A	32A
Charging fuse	160A	100A	50A
Work environment temperature	-30-60°C
Relative humidity	<90% No condensation
Noise (1m)	<40dB
Degree of protection	IP20(Indoor)
Cooling method	Forced air cooling
*Communication interface (optional)	RS485/USB/GPRS/Ethernet
*Temperature compensation (optional)	-4mv/°C/2V, -35°C~+80°C, Accuracy: ±1°C
Size of the controller (mm)	655480320	575430320	575430320
Weight of the controller	27 Kg	21Kg	21Kg

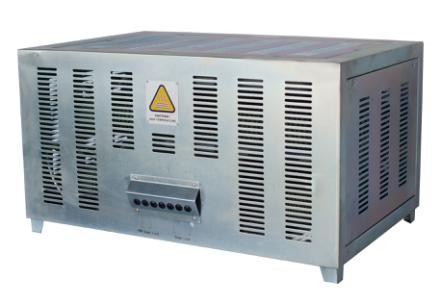

Size of the load (mm)	495460320	495460320	495460320
Weight of the load	16Kg	16 Kg	16 Kg
