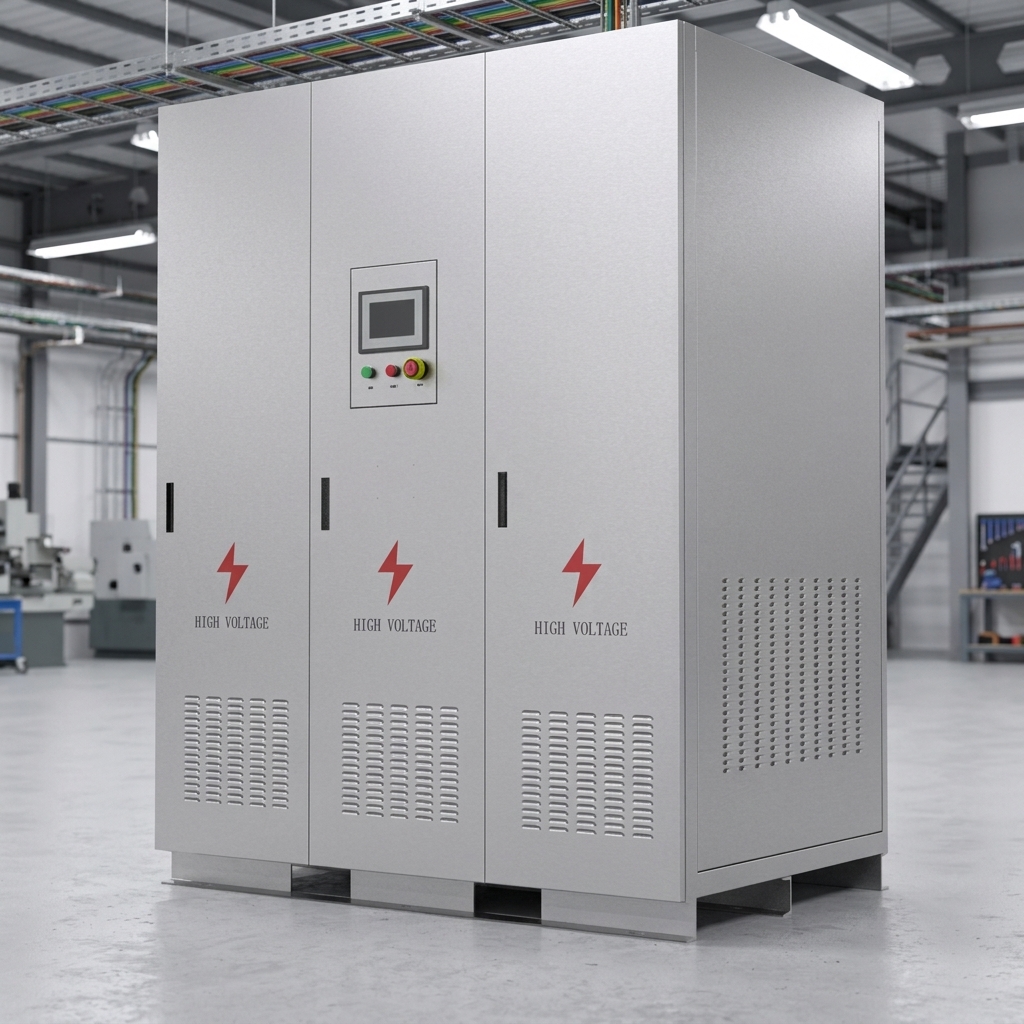

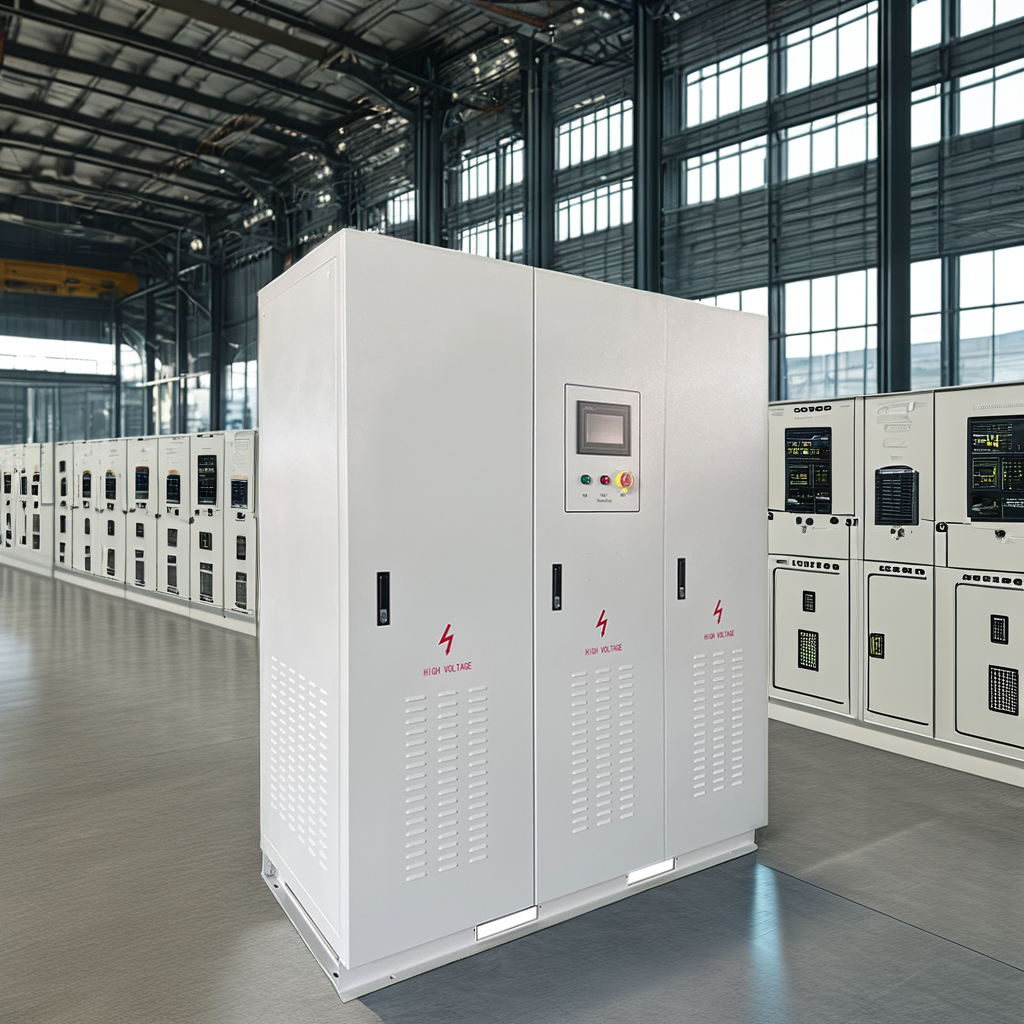

500KW 1000KW Hydroelectric Generator Voltage Stabilizer for Stable Voltage and Frequency in Grid-Connected and Off-Grid Systems

Send Inquiry

Product Description

On Grid Generator Power System

Off Grid Generator Power System

The on grid generator converter adopts AC-DC-AC PWM rectification plus PWM full-bridge inverter two-stage circuit technology. The core control adopts dual DSP full digital control, and realizes the stator magnetic field oriented vector control strategy on the rotor side converter of power generation. The grid-side converter implements the grid voltage directional vector control strategy; the system has the functions of adjustable input and output power factor, automatic soft grid connection and maximum power point tracking control. The power module uses high switching frequency IGBT power devices to ensure a good output waveform. This rectifier inverter device has the advantages of simple structure and less harmonic content.

Adopt PWM rectification plus PWM full-bridge inverter two-stage circuit, which can achieve the characteristics of wide output voltage range, high precision and fast dynamic response;
Adopt the principle of PWM rectification + PWM inverter, power factor > 0.99;
THD and injected harmonic current meet the national standard GB/T14549-93;
Complete measurement functions: voltage, current, current peak, frequency, etc .;
Save the fault function: support historical data query, automatically record the power status and alarm code at the time of alarm, greatly reducing maintenance time;
Touch screen, user-friendly design, no operation for 5 minutes, automatic black screen, parameter setting requires password entry, to prevent misuse;
7inch color touch screen display, operating system data, fault information at a glance, convenient parameter setting;
Support RS485, WiFi, GPRS, Ethernet and other communication methods. You can monitor the working status in real time through the PC or mobile phone, and you can also query the historical working status. The mobile terminal is compatible with Android and IOS. All data can be connected to the Internet of Things.

Specifications Table

Generator power converter		DMGC500KSZ
Generator rated power		500KW
Rated voltage of generator (AC)		400V
Input voltage range (AC)		0-550V
Rated output power (AC)		500KW
MPPT Voltage range (AC)		250-500V
Max. Input current (AC)		793.8A
Rated current (AC)		721.7A
THD Current harmonic		<3% (At rated power)
Power factor		>0.99
Max. efficiency		96%
Allowable grid voltage range (AC)		400V (Three-phase) ±15%
Allowable grid frequency range		50Hz±10%
Automatic operation conditions		AC input and power grid meet the requirements, and the power converter operates automatically
Restart time after power failure		2min (Adjustable)
General parameters
Function	Rectification, wind turbine curve setting, adjustable output power
Automatic protection	Reverse connection protection, short circuit protection, island effect protection, LVRT, overheat protection, overload protection, ground fault protection, lightning arrester, etc
Display	Touch screen
Monitoring content	Generator voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time
Protection level	IP20 (Indoor)
Telematics	RS485/USB/GPRS/WIFI/Ethernet (Optional)
Environment	Operating amb. Temp. & Hum -30-60°C, <90% no condensation
Noise (1m)	<40dB
Refrigeration mode	Forced air cooling
size / weight		-

*Above parameter only for reference. Could be custom made to user specifications.

Parts

Service Guarantee

As our corporate users, you enjoy the following service:

(1) The machine warranty for free in 2 year;

(2) Technical support;

(3) Within 24 hours for respond after receiving notification;

(4) Cost maintenance forever.

When you confirm the failure of equipment, please promptly contact the support center and provide the equipment model and complete description of the problem.

However, any of the following situations happened, are not included in the warranty:

(1) Non-permitted by the manufacturer, went ahead with repair and damage;

(2) Install or modify arbitrarily;

(3) Incorrect operation or use;

(4) Do not depending on the manual to do cleaning or maintenance;

(5) Abnormal environment condition exceed the specifications, result in damage;

(6) The deliberate destruction of man-made;

(7) Irresistible natural disasters.

Payment

Application Cases

Certifications

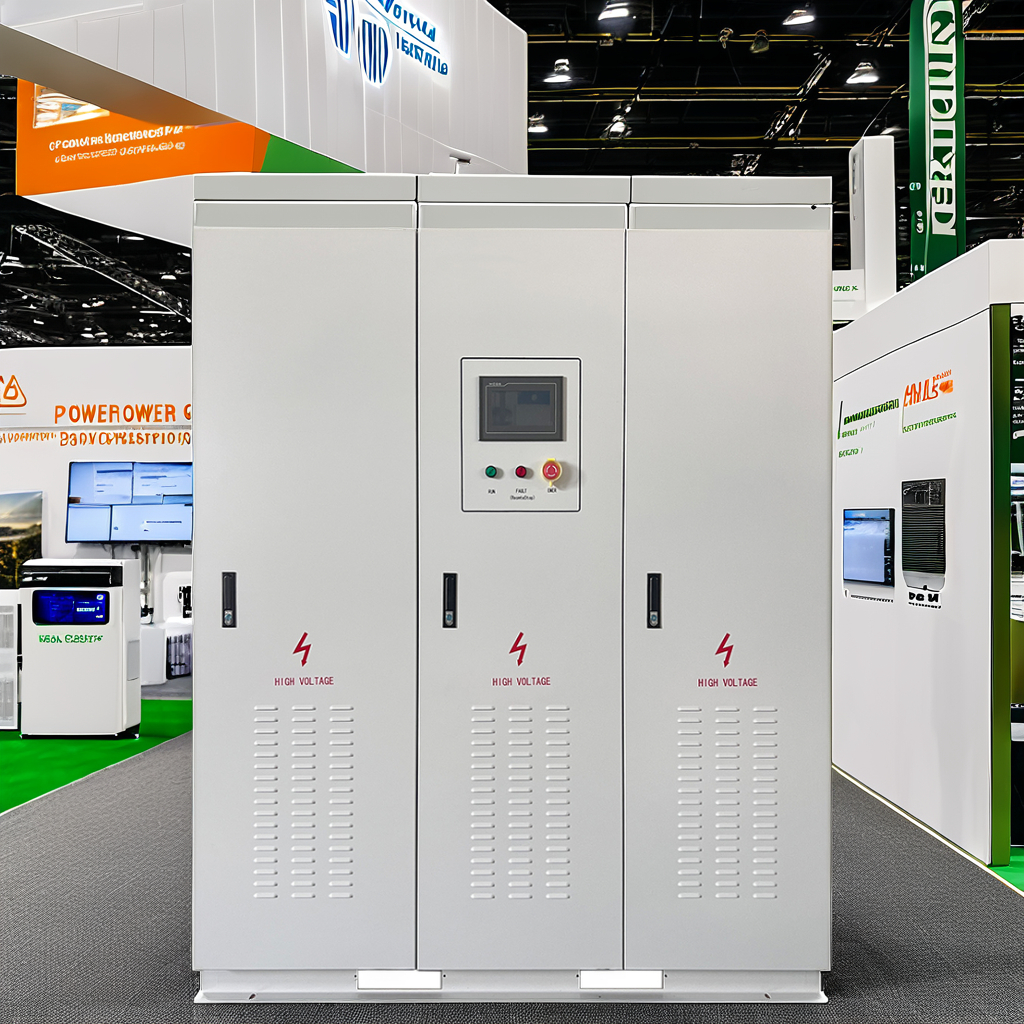

Exhibitions

More Products

Frequently Asked Questions

What circuit technology does this generator converter adopt?

The converter adopts a advanced AC-DC-AC PWM rectification plus a PWM full-bridge inverter two-stage circuit technology, with dual DSP full digital control.

Does this system support remote monitoring?

Yes, it supports multiple communication methods including RS485, WiFi, GPRS, and Ethernet. Users can monitor system status in real time via PC or mobile applications (compatible with Android and iOS).

What is the power factor rating of the converter?

Thanks to the PWM rectification and inverter principle, the power factor is maintained greater than 0.99 for high efficiency.

What automatic protection functions are integrated into the system?

The system features robust safety protocols including reverse connection protection, short circuit protection, island effect protection, LVRT (Low Voltage Ride Through), overheat protection, overload protection, ground fault protection, and built-in lightning arresters.

What is the warranty period and coverage for this system?

A free 2-year warranty is provided for the machine. We also guarantee technical support with a respond time within 24 hours after receiving notifications, alongside lifetime cost maintenance.

Can these system specifications be customized?

Yes. While the standard parameters listed are for reference, the entire system configuration can be custom-made to meet specific user requirements and site conditions.
