50KW 100KW 200KW 300KW 500KW Bidirectional DC DC Converter on Grid off Grid Inverter

Product Description

Bidirectional DC DC converter
50KW 100KW 200KW 300KW 500KW Bidirectional DC DC converter On grid off grid inverter
DC DC Converter Display
Key Features
Using IGBT from Mitsubishi company as the power components
Using American ATEMEL company microprocessor as figure controller
Perfect protection and warning functions
Circuit frame compact, Max. Efficiency ≥ 90%
With wide input voltage range
RS232/485/WIFI/GPRS communication
Touch screen English LCD, perfect display, interface-friendly

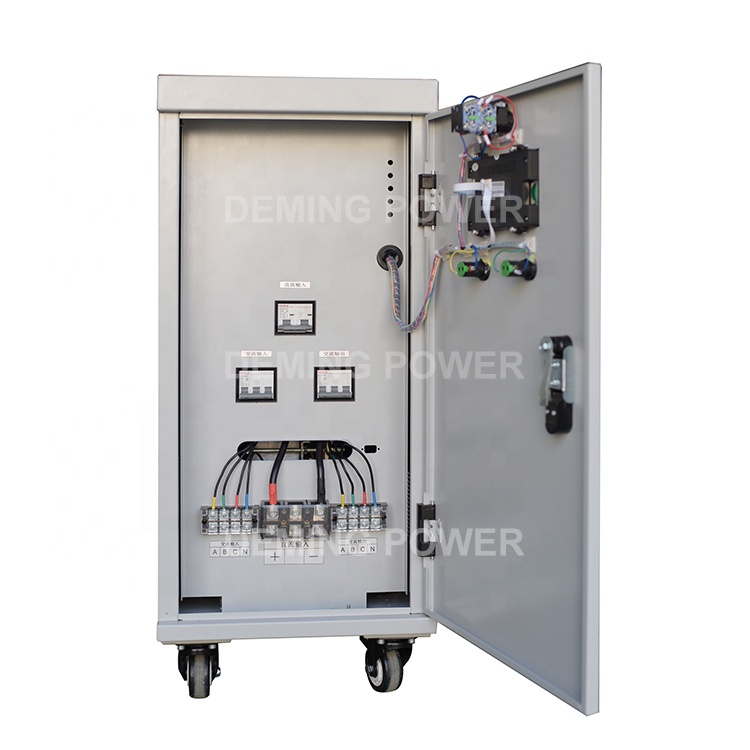

Inverter Internals
Device Installation 1 Device Installation 2 Device Installation 3

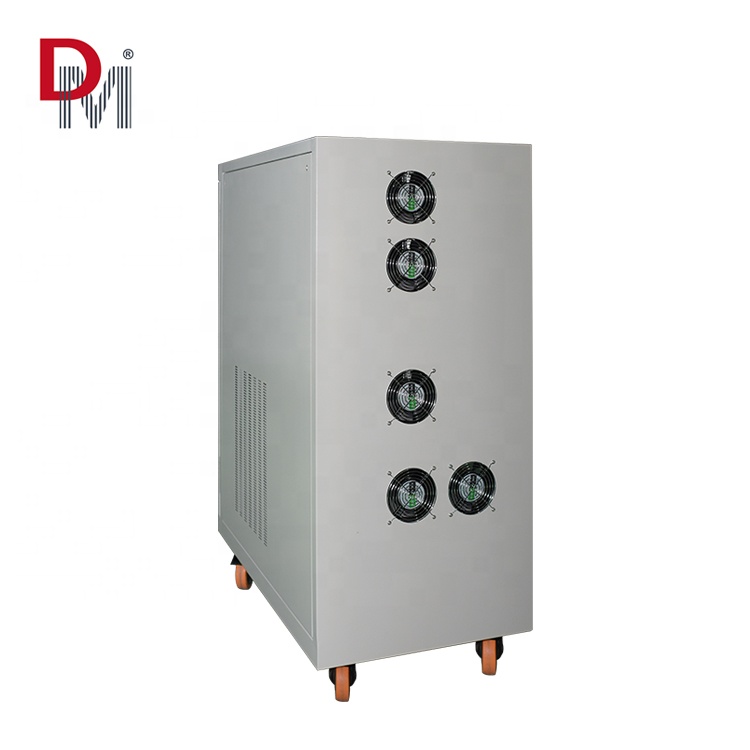

Product Views 1 Product Views 2 Product Views 3
Off-grid Inverter Overview
Off-grid inverter converts the DC to AC for the loading. We can according to user requirements, increase the utility charge, mains bypass, and other functions.
Off-grid inverters include two types: high frequency off grid inverters and industry frequency off grid inverters (with isolated transformer), applied to different territories. Industry inverters (with isolated transformer) includes single phase off grid inverter and three phase off grid inverter.
Applications
For desolate area like mountain, island, pasturing area, etc.
For transportation system like beacon light, traffic light, street light, etc.
For communication system: unattached operation microwave middle station, optical cable maintenance station, etc.
For photovoltaic power station, wind-solar (diesel) power station, park charging station, family power house, factory power station, etc.
For solar building: has good business future.
For the new technology application project
Off Grid Inverter In The New Energy Power System & Off-grid Wind Solar Hybrid System

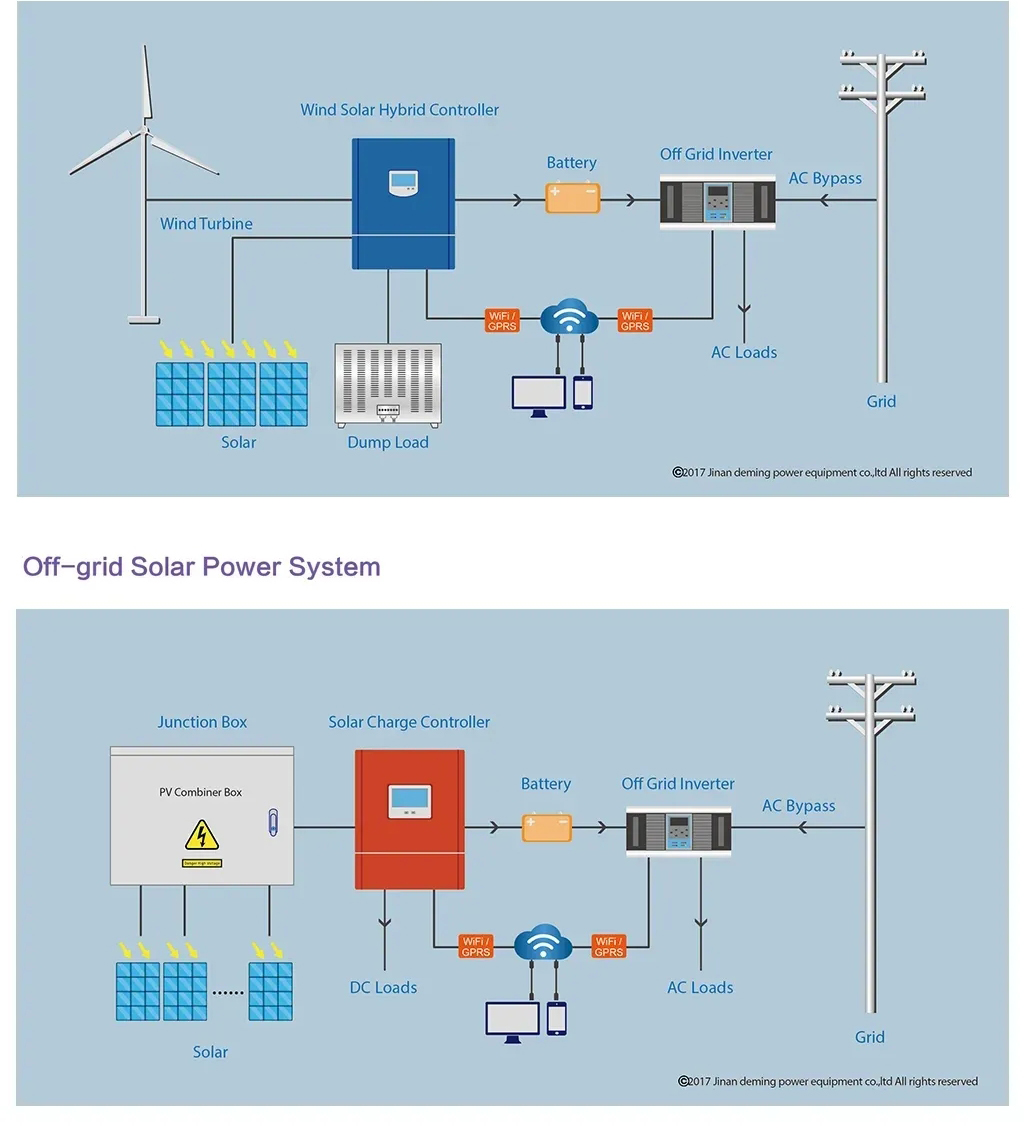

Hybrid Power System

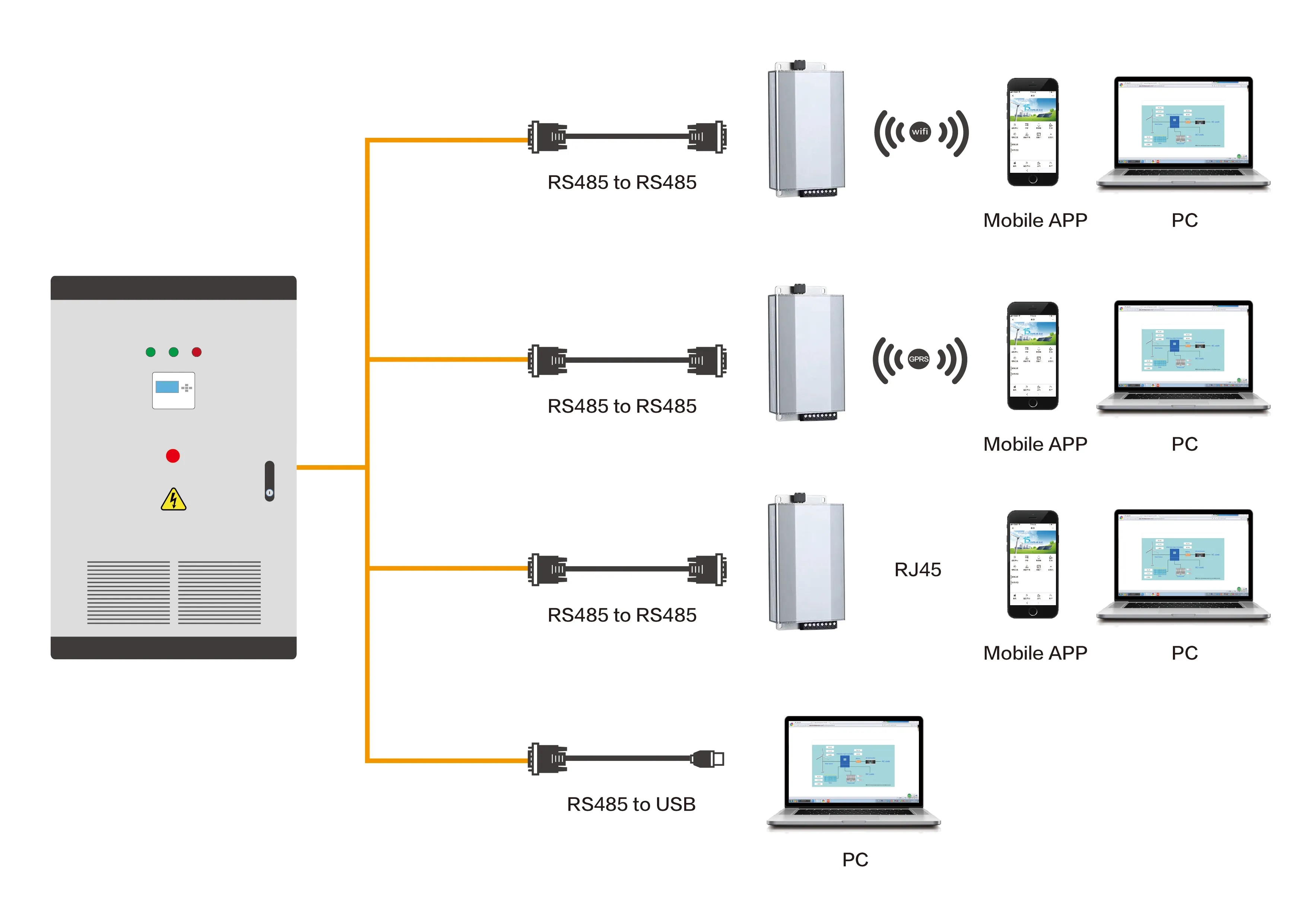

System Connection Diagram

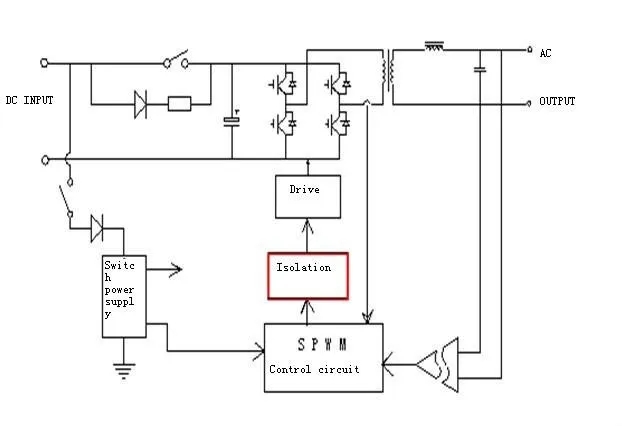

Inverter power supply system drawing
Power Supply Drawing 1
Power Supply Drawing 2
Technical Specifications
Type NB220-50KSZ NB240-50KSZ NB380-50KSZ
DC input Input rated voltage 220Vdc 240Vdc 380 VDC
Input rated current 227A 208A 132 A
Input DC voltage range 180-300 200-335 300-490VDC
AC input (AC Bypass) Allow input voltage range 220 VAC / 380 VAC / 400 VAC ± 15% VAC
Input rated current 139A / 76A / 72.5A
Bypass transfer time ≤4 ms
AC output Rated capacity 50KVA
Output rated power 40KW
Output rated voltage and frequency 220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
Output rated current 139A / 76A / 72.5A
Output voltage accuracy 220 VAC / 380 VAC / 400 VAC ± 2%
Output frequency accuracy 50Hz / 60Hz ±0.05%
Waveform distortion (THD) (Linear load) ≤3%
Dynamic response time (Load 0←→100%) 5%
Power factor (PF) 0.8
Overload capacity 120%, 3 minutes, 150%, 10 second
Crest factor (CF) 3:1
Inverter efficiency 90%
Working Environment Dielectric strength 1500VAC, 1minute
Noise (1m) ≤50dB
Ambient temperature -10℃ ~ +50℃
Humidity 0~90%, No condensation
Altitude ≤5000 m
Pure Sine Wave Yes
Equipped with copper transformer Yes
If solar charger available Yes
AC Charger Optional
Protection function Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Size (mm) 760*1400*1600mm
Weight (kg) 550kg
Testing Area 1 Testing Area 2 Testing Area 3
