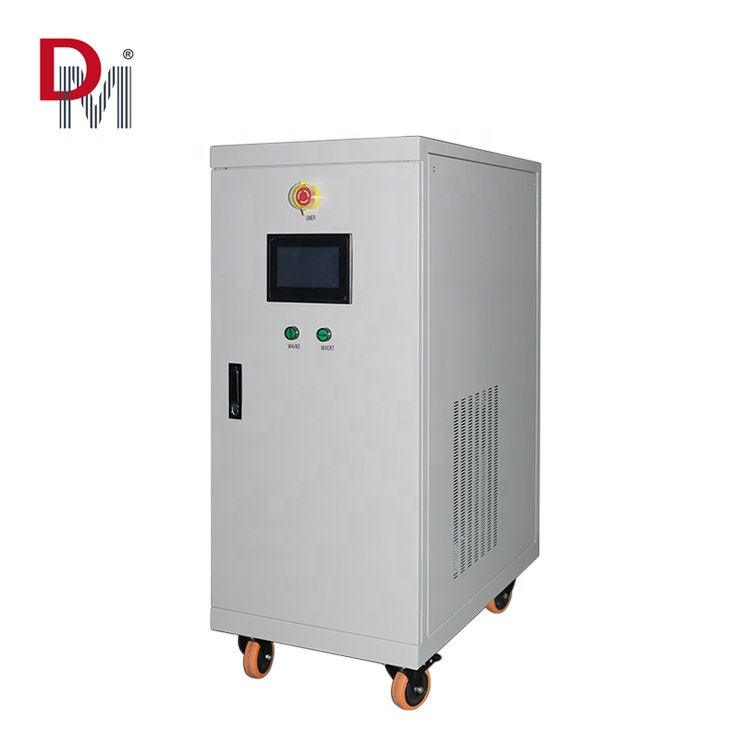

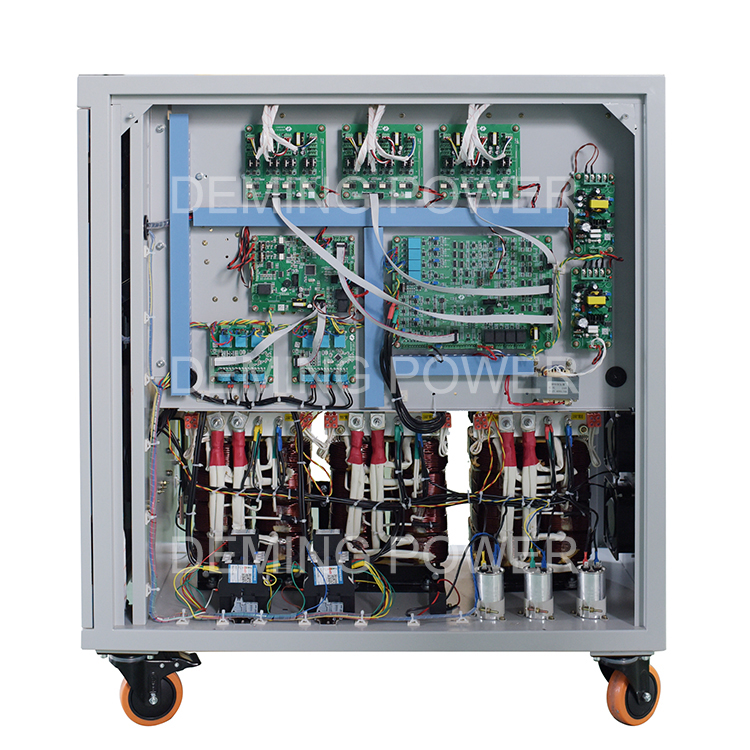

One-stop Service Custom Design Bidirectional DC-DC Converter 66KW Wave off Grid Solar Inverter for Lithium Battery

Product Description

Product Presentation Banner 1
Product Presentation Banner 2
Product Features Banner 1
Product Features Banner 2
Smart grid design
Specially designed for smart grid and smart micro-grid, accepting grid dispatching, peak cutting and valley filling
Bidirectional inverter
Bidirectional inverter, a variety of battery charging and discharging modes
Working mode setting
It has the function of setting working mode in time period, can set reasonable working mode according to the characteristics of local power grid
Working mode parameters
It has the function of setting working mode in time period, can set reasonable working mode according to the characteristics of local power grid
Operation modes
It has two operation modes: gridconnected (charge-discharge) operation and independent isolated network operation.
Communication interface
RS485, CAN bus and other communication interface are optional, standard MODBUS_RTU communication protocol, remote monitoring
AC Side parameters
AC wiring mode Three phase four wire
Rated output power 10KW 20KW 30KW
Output overload capacity 11KW 22KW 33KW
Rated grid voltage (AC) 220V / 380V / 440V 220V / 380V / 440V 220V / 380V / 440V
Grid voltage range ±20% ±20% ±20%
Rated grid frequency 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz
Grid frequency range ±10% ±10% ±10%
Rated power (THD) <3% (Standard grid)
Power factor 0.8leading-1-0.8lagging, adjustable
DC Battery Side Parameters
Maximum DC power 11KW 22KW 33KW
DC voltage range Vdc 200-700Vdc 200-700Vdc 200-700Vdc
Recommended battery nominal voltage 240V / 384V / 420V / 480V
Rated charge current 50A 100A 150A
Max input current 55A 110A 165A
Voltage/Steady flow accuracy ±1% ±1% ±1%
DC current ripple <1% Irms <1% Irms <1% Irms
* DC Solar Panels Side Parameters
Solar Panels Power 10KWp 20KWp 30KWp
Solar Panel Vmp ≥290V / ≥470V / ≥500V / ≥580V
Solar Maximum Voc <850V <850V <850V
PV Rated charging current 42A 26A 24A 21A 83A 52A 48A 42A 125A 78A 72A 63A
Independent inverter mode
Rated output voltage (AC) 220V / 380V / 440V±1%
Output voltage distortion <3% (resistive load)
Rated output frequency 50Hz / 60Hz ±1%
Voltage transition range <10% (Resistance load 0% <=>100%)
System Parameters
Operating Mode Manual Mode, Auto Mode, *EMS Mode
Charging and discharging mode Constant current, Constant voltage, Constant power
On/off grid switching time 0ms
Max. conversion efficiency 97% / 95% (Include isolation transformer)
Noise <60dB
Protection Degree IP21
Working Temperature -25℃ ~ +45℃
Cooling method Air cooling
Working humidity 0 ~ 95%
Working altitude ≤6000m (Reduced usage for more than 2000m)
Emergency stop Yes (via emergency stop button)
Display Touch screen
Communication mode RS485, WIFI, GPRS, Ethernet (Modbus protocol)
Dimensions 500*500*900mm 550*550*1000mm 550*550*1100mm
Weight 65KG 85KG 95KG

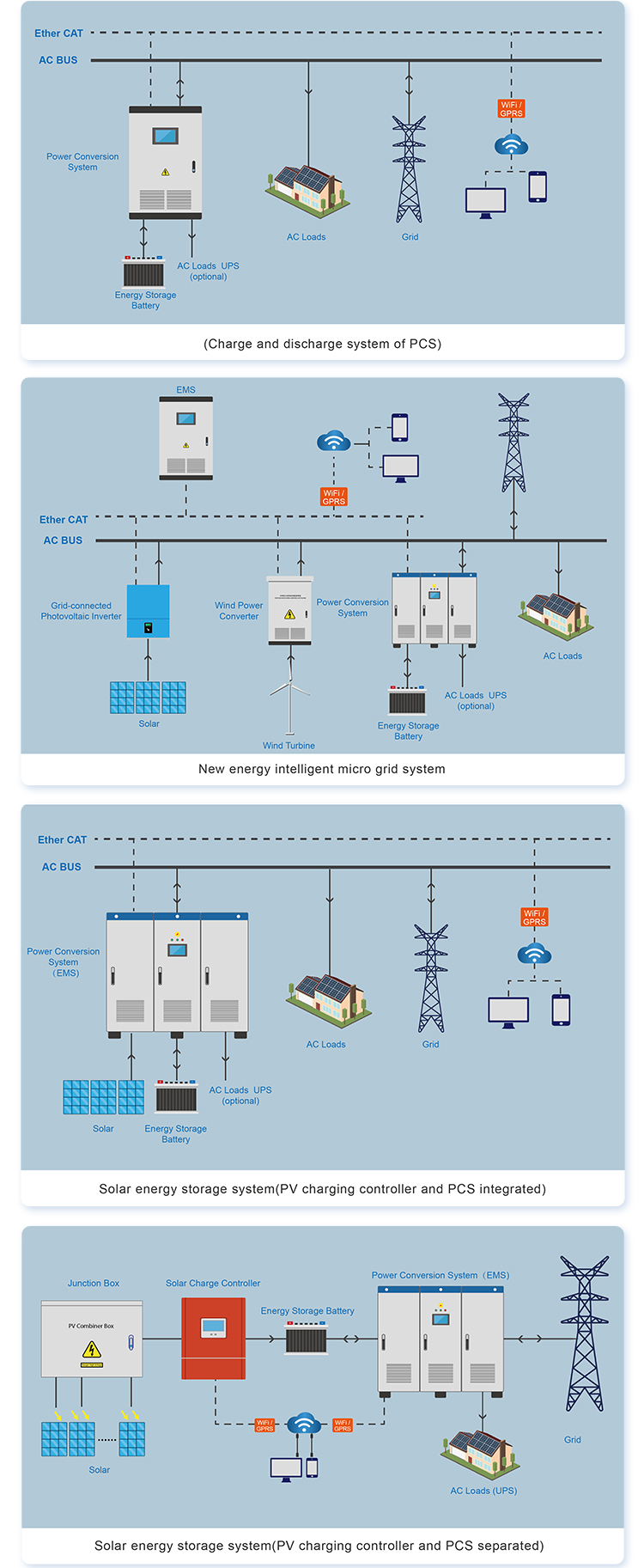

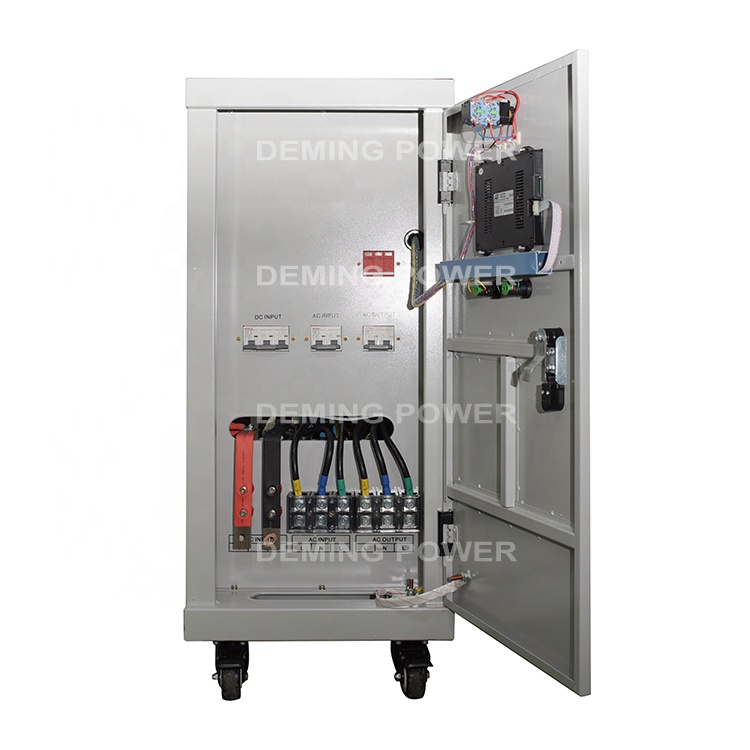

System Connection Diagram

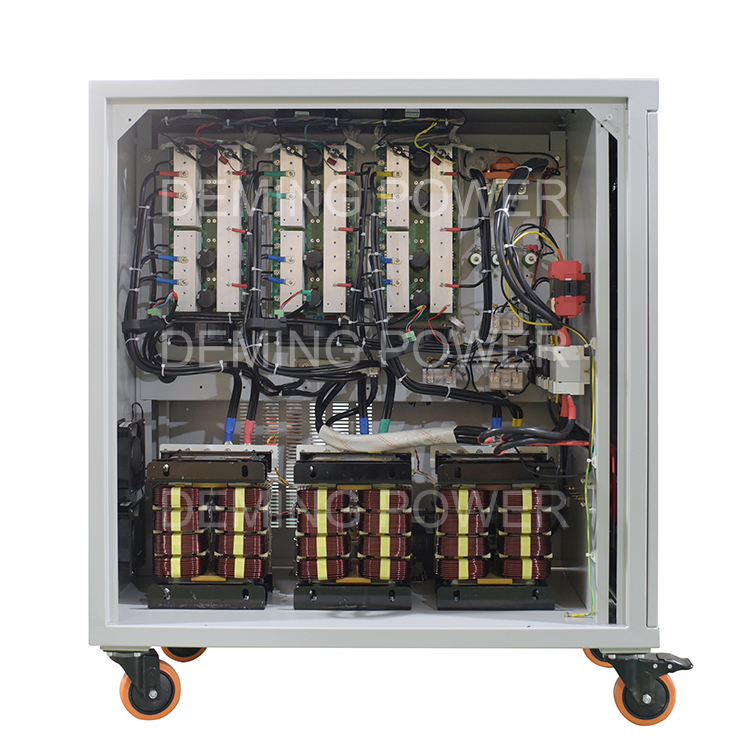

Product Structure Diagram
