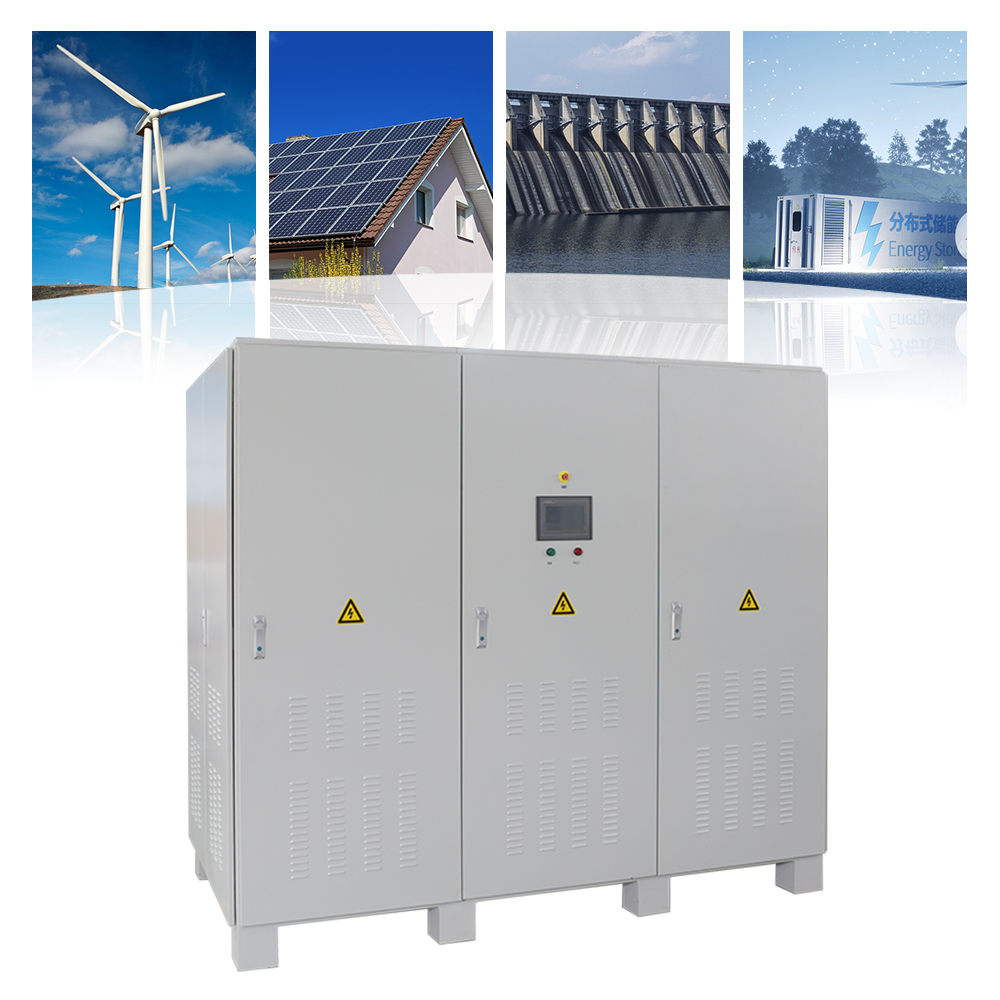

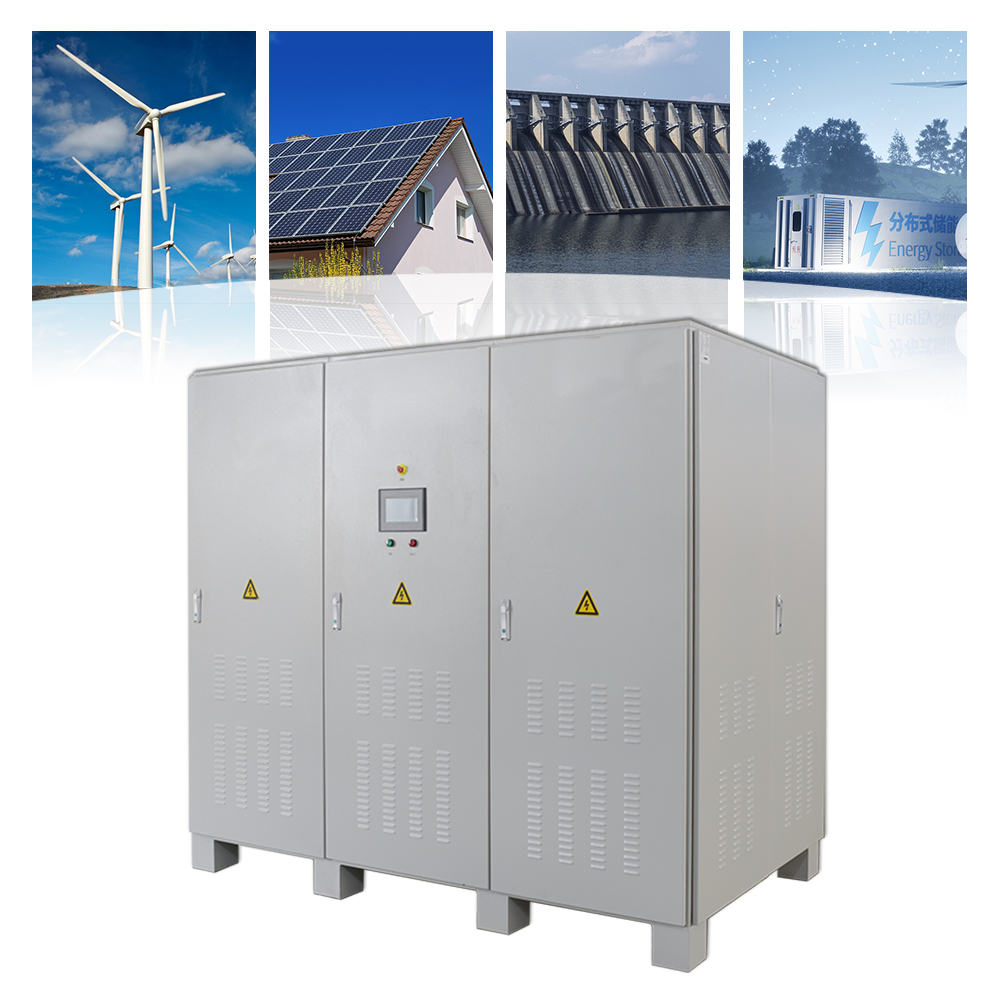

Customized 300KW On-Grid Hydroelectric Power Converter Hydraulic Inverter Hydro Generator

Product Description

On Grid Generator Power System

Off Grid Generator Power System

The on grid generator converter adopts AC-DC-AC PWM rectification plus PWM full-bridge inverter two-stage circuit technology. The core control adopts dual DSP full digital control, and realizes the stator magnetic field oriented vector control strategy on the rotor side converter of power generation. The grid-side converter implements the grid voltage directional vector control strategy; the system has the functions of adjustable input and output power factor, automatic soft grid connection and maximum power point tracking control. The power module uses high switching frequency IGBT power devices to ensure a good output waveform. This rectifier inverter device has the advantages of simple structure and less harmonic content.

Adopt PWM rectification plus PWM full-bridge inverter two-stage circuit, which can achieve the characteristics of wide output voltage range, high precision and fast dynamic response;
Adopt the principle of PWM rectification + PWM inverter, power factor > 0.99;
THD and injected harmonic current meet the national standard GB/T14549-93;
Complete measurement functions: voltage, current, current peak, frequency, etc .;
Save the fault function: support historical data query, automatically record the power status and alarm code at the time of alarm, greatly reducing maintenance time;
Touch screen, user-friendly design, no operation for 5 minutes, automatic black screen, parameter setting requires password entry, to prevent misuse;
7inch color touch screen display, operating system data, fault information at a glance, convenient parameter setting;
Support RS485, WiFi, GPRS, Ethernet and other communication methods. You can monitor the working status in real time through the PC or mobile phone, and you can also query the historical working status. The mobile terminal is compatible with Android and IOS. All data can be connected to the Internet of Things.

Technical Specifications

On grid wind turbine inverter		DMWG300K		DMWG500K
Rated output power (AC)		300KW		500KW
Max. Output power (AC)		330KW		550KW
Input voltage range (DC)		0-800V		0-800V
MPPT Voltage range (DC)		150V-700V		150V-700V
Max. Input current (DC)		573A		955A
Rated current		520.8A		868A
THD Current harmonic		<3% (at rated power)
Power factor		>0.99
Max. efficiency		96%
Allowable grid voltage range (AC)		220V/380V/440V/480V (Three-phase) ±20%
Allowable grid frequency range		50Hz/60Hz ±10%
Automatic operation conditions		DC input and power grid meet the requirements, and the inverter operates automatically
Restart time after power failure		30s (adjustable)
General parameters
Function	Wind turbine curve setting
Automatic protection	Polarity reverse connection protection, short circuit protection, island effect protection, LVRT, overheat protection, overload protection, ground fault protection, etc
Display	Touch screen, LCD
Monitoring content	DC input voltage, current, power, inverter output power, cumulative power generation, power generation at any time, rotational speed, wind speed
Protection level	IP20 (Indoor) / IP65 (Outdoors)
Telematics	RS485/USB/GPRS/WIFI/Ethernet (optional)
Environment	Operating amb. Temp. & Hum -30-60°C, <90% no condensation
Noise (1m)	<40dB
Refrigeration mode	Forced air cooling
Size / weight
Inverter size / weight		201010602100mm 1.8t	201012002090mm 2.5t

*Above parameter only for reference. Could be custom made to user specifications.

Parts

Service Guarantee

Standard Services

Free machine warranty for 2 years;
Technical support;
Response within 24 hours after receiving notification;
Lifetime cost maintenance.

Upon confirming equipment failure, please contact support promptly with the equipment model and a detailed problem description.

Warranty Exclusions

Unauthorized repair or damage;
Arbitrary installation or modification;
Incorrect operation or use;
Failure to follow cleaning or maintenance manuals;
Damage due to abnormal environmental conditions exceeding specifications;
Deliberate or man-made destruction;
Force majeure and natural disasters.

Payment

Cases

Certifications

Exhibitions

More Products

Frequently Asked Questions

What technology does the on-grid generator converter utilize?

The converter adopts a advanced AC-DC-AC PWM rectification plus PWM full-bridge inverter two-stage circuit. The control core leverages dual DSP full digital control, executing a stator magnetic field oriented vector control strategy on the rotor side.

What are the main performance benefits of this converter?

Key benefits include a wide output voltage range, high precision, rapid dynamic response, a power factor greater than 0.99, and total harmonic distortion (THD) within standard requirements (under 3% at rated power).

How is the equipment monitored and managed?

The device features a 7-inch color touch screen interface. It supports multiple communication protocols including RS485, WiFi, GPRS, and Ethernet, allowing remote monitoring via PC or mobile applications compatible with Android and iOS.

What kind of automatic protection functions are built-in?

The system features comprehensive built-in protections, including polarity reverse connection protection, short circuit protection, islanding effect protection, Low Voltage Ride Through (LVRT), overheat protection, overload protection, and ground fault protection.

Can the specifications of the converter be customized?

Yes, while standard models like the 300KW and 500KW are reference specifications, the system configurations and parameters can be custom-made according to user requirements and site conditions.

What does the service and warranty package cover?

The standard service package includes a 2-year free warranty, permanent cost-price maintenance, online technical support, and a commitment to respond within 24 hours after a problem is reported.
