Upgrade Professional Technology 50KW 60KW 100KW Bidirectional DC DC Converters for Lithium Battery DC Power Supply

Product Description

Bidirectional DC DC Converter
Upgrade professional technology 50KW 60KW 100KW Bidirectional DC DC Converters For lithium battery DC Power Supply
DC DC Converter Specifications

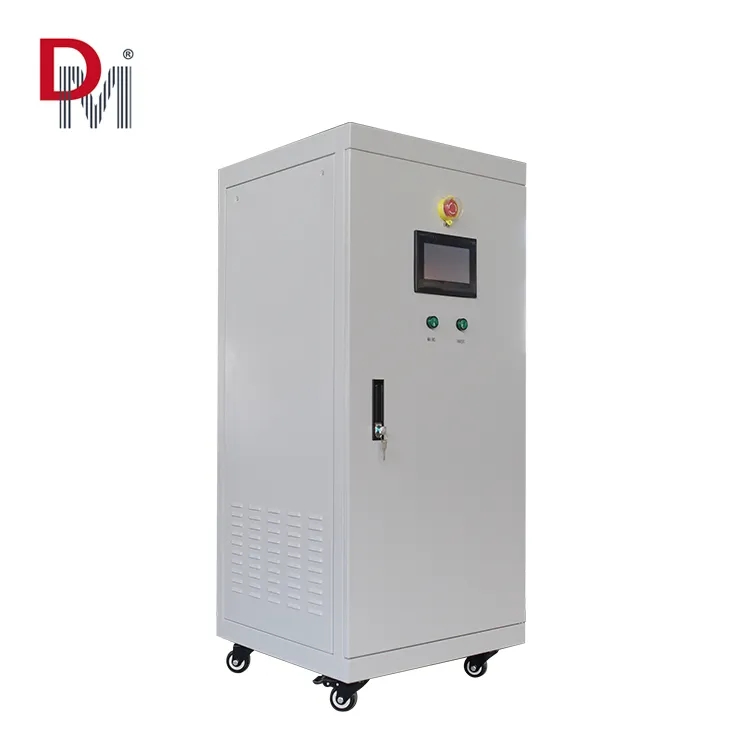

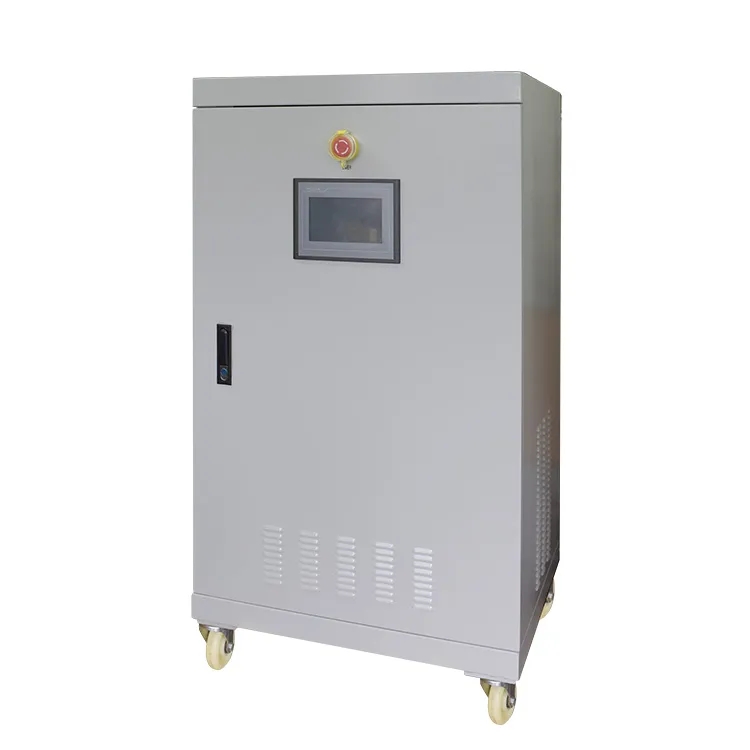

Product Display 1 Product Display 2

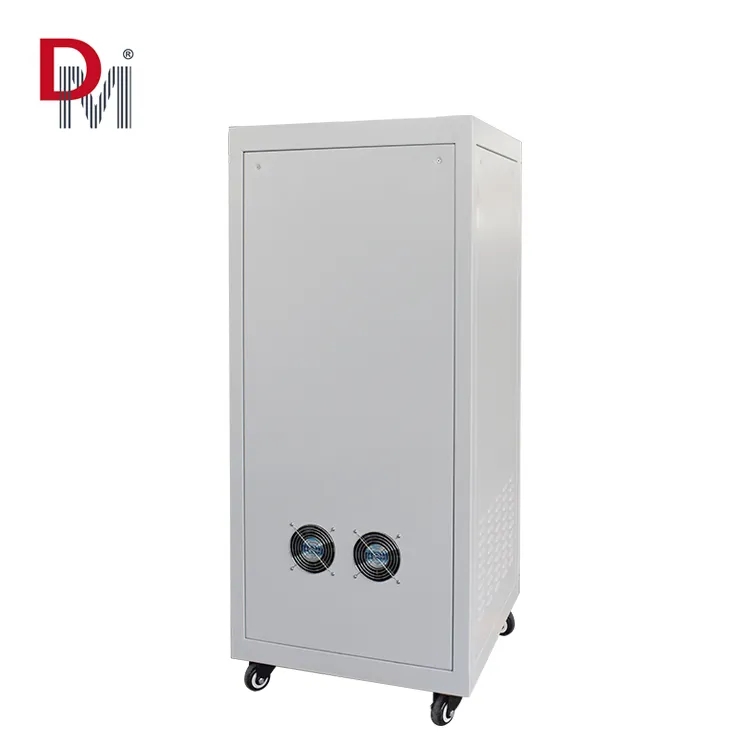

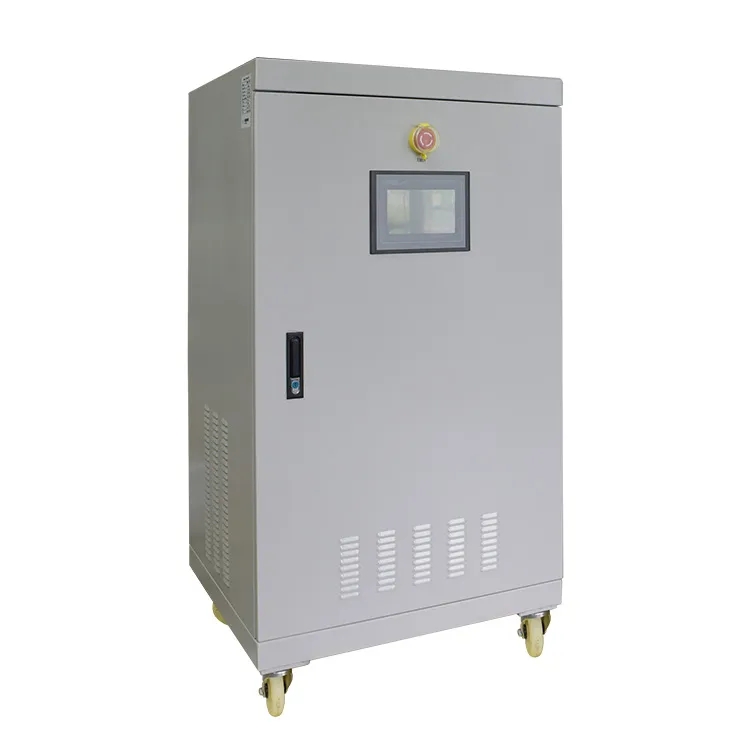

Product Details 1 Product Details 2
50KW Bidirectional DC/DC Converter DC power supply parameters
Rated power 50KW
LV rated current 500A (MAX: 550A)
LV voltage range 90~120Vdc
Ripples coefficient HV side < 1% F.S.
LV side < 2% F.S.
Control accuracy < 1% (Remote and local control, @ full load)
Max. efficiency 96% @ full load
Switching frequency on IGBTs 6kHz
HV Voltage range 430~470Vdc
Dynamic response time < 2ms
Protection function Reverse polarity, overheating, overload, overvoltage, overcurrent, undervoltage, etc
Display Touch screen
Time propagation 200ms
Communication interface and protocol Modbus_ TCP, RJ45
Modbus_ RTU, RS485
RS485 interface number one
Working temperature -10°C to +50°C
Relative humidity 0~95%, No condensation
Altitude ≤ 2000m (More than 2000 meters need to be reduced)
Cooling mode Air cooling
Noise ≤ 65dB
Emergency stop switch yes
Level of protection IP20
Product Description
  • Energy flows bi-directionally, i.e. it can discharge from the battery side to the DC grid or charge from the DC grid side to the battery.
  • Fully automatic protection functions for overheating, overload, short circuit, overcurrent, etc.
  • Selection of original imported power devices.
  • Fully digital circuit design.
  • All the chips are industrial grade and can operate normally in cold, high temperature and humid environment.
  • The main circuit adopts DSP chip produced by TI of America, Infineon IGBT module and Infineon movement for driving and protection, which is safe and reliable.
  • The output is automatically synchronized with the grid, the current harmonic content is low, and there is no pollution and impact on the grid.
  • Closed loop control of grid connected current, controllable and adjustable.
  • Wide input voltage range, suitable for different occasions.
  • The system has all-round power protection scheme and perfect self-test and protection function. In case of system failure, it will stop working.
  • The circuit structure is compact and the maximum efficiency ≥ 96%.
  • Protection level can be customized according to the user's needs.
  • Provide Ethernet interface, standard Modbus TCP communication protocol.

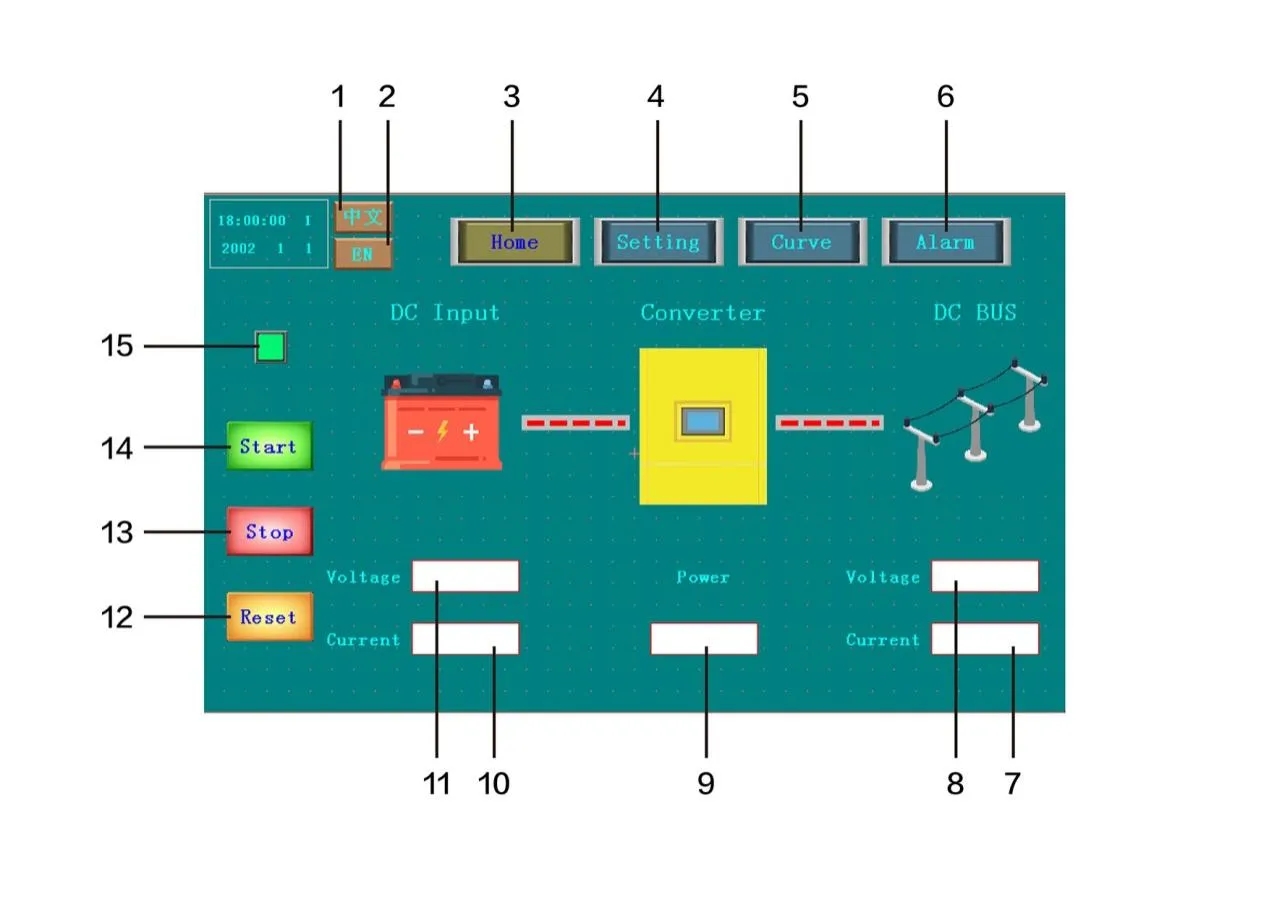

Product Architecture
Production Process
Quality Standards
Technical Specifications
Converter Options
Solar & Wind Power Systems
Renewable Energy Inverters
BUYERS FEEDBACK
Feedback Review
COMPANY PROFILE
Company Growth
The company was established in 2004 and acquired two registered trademarks in the same year. After five years of accumulation in 2009, the company gradually matured steadily. The company purchased factory buildings with independent property rights, and the company relocated to start a new journey. In 2012, the Ministry of Foreign Trade was established to open up markets and begin to expand foreign markets. In 2015, the company achieved rapid development, with 2 invention patents, 6 utility model patents, 1 appearance patents, obtained the "high-tech enterprise certificate" recognition, and obtained the ISO 9001 quality management system certification. In 2018, the company continued to innovate, with four invention patents, six utility model patents, and two software registration rights, and again successfully recognized high-tech enterprises. On July 10, 2019, it passed the certification of intellectual property management system. In 2020, three patents for invention and six patents for utility models were applied for.
Company Milestones
1. Our main products are off grid wind turbine controller, On grid wind turbine controller, solar charging controller, wind-light complementary controller, wind-light complementary street lamp controller, On grid inverter, off grid inverter, frequency converter, stabilized frequency power supply, etc.

2. With first-class manufacturing technology, advanced technology and equipment, strong technical force, perfect testing means and personnel management, the manufacturer has carried out 17 research and development projects in the last three years, completed 16 transformation of scientific and technological achievements, and invested all by itself to implement the transformation, averaging 5.3 transformation of scientific and technological achievements each year.

3. The manufacturer takes technological innovation as the basis of enterprise development, annual R&D cost is not less than 20% of sales revenue, and continuously explores advanced technologies in the field of new energy power sources, such as electromagnetic control technology for wind turbines, MPPT technology, yaw wind turbines control technology, wind and solar complementary system Internet of Things monitoring, etc. Now it has five national invention patents for core technologies, twelve utility model patents, and the control technology for wind turbines has reached the advanced international level.

4. The manufacturer has a complete product quality assurance system and 9001 certification. Perform comprehensive quality control, rigorous test one by one, each performance is superior to the relevant national standards, all products have passed the EU CE certification. Ensure user safety and reliable use. Now the company's products have been the preferred supporting products for the well-known domestic manufacturers. The products export to more than 120 countries and regions, such as Germany, Japan, the United States, the United Kingdom, Canada, Australia, Egypt, Brazil, Saudi Arabia, and have established a good image in the domestic and foreign markets.

5. We are based on the market, pay attention to customers, provide high-quality products, adhere to technological progress, scientific management and standardized operation are the key to our success. We will jointly meet the challenges of the new century, shape a good image outside, and construct the blueprint of a modern enterprise in an all-round and three-dimensional way.
OUR FACTORY
Factory Workshop 1 Factory Workshop 2 Factory Workshop 3 Factory Workshop 4 Factory Workshop 5 Factory Workshop 6 Factory Workshop 7 Factory Workshop 8
Frequently Asked Questions
Can you provide OEM service?
Yes, we can.
Can you design the complete solar wind power system?
Yes, we can design the system according to your requirements.
Factory or trading company?
We are a manufacturer of wind turbine solar controllers and various inverters.
Is customization acceptable?
Yes, we can make products according to customers' requirements.
May I visit the factory?
Yes, welcome to our factory.
Can you provide samples?
Yes, we can provide samples for testing.
