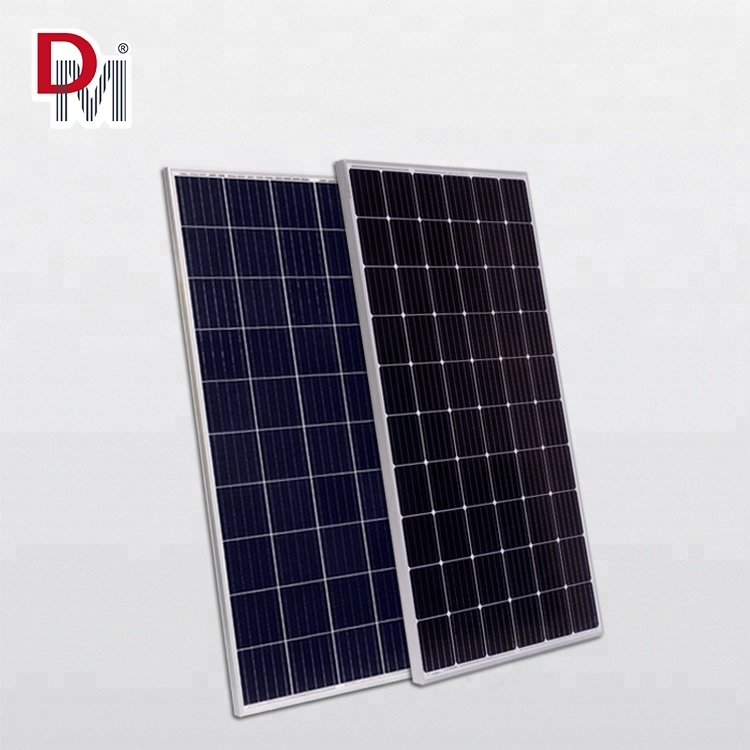

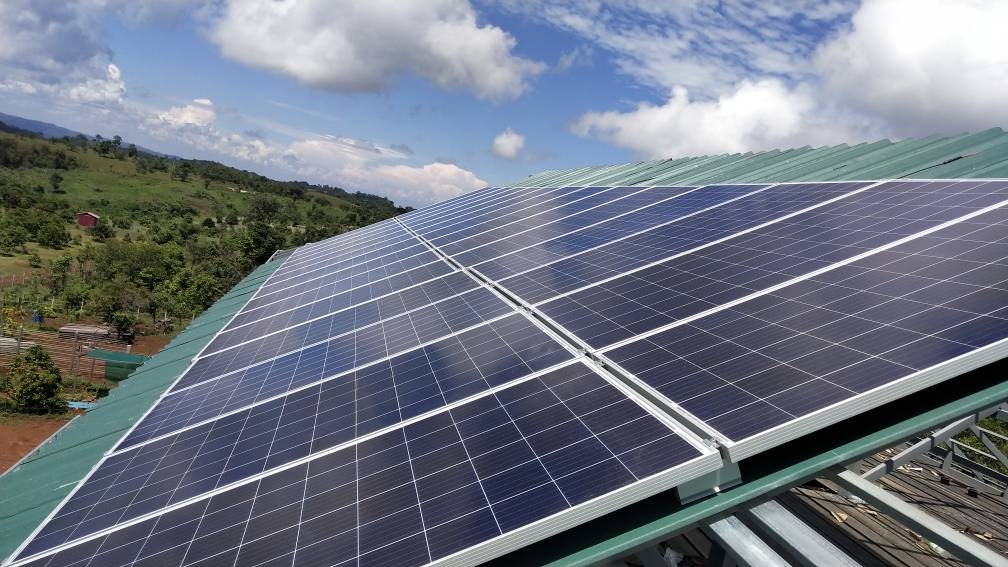

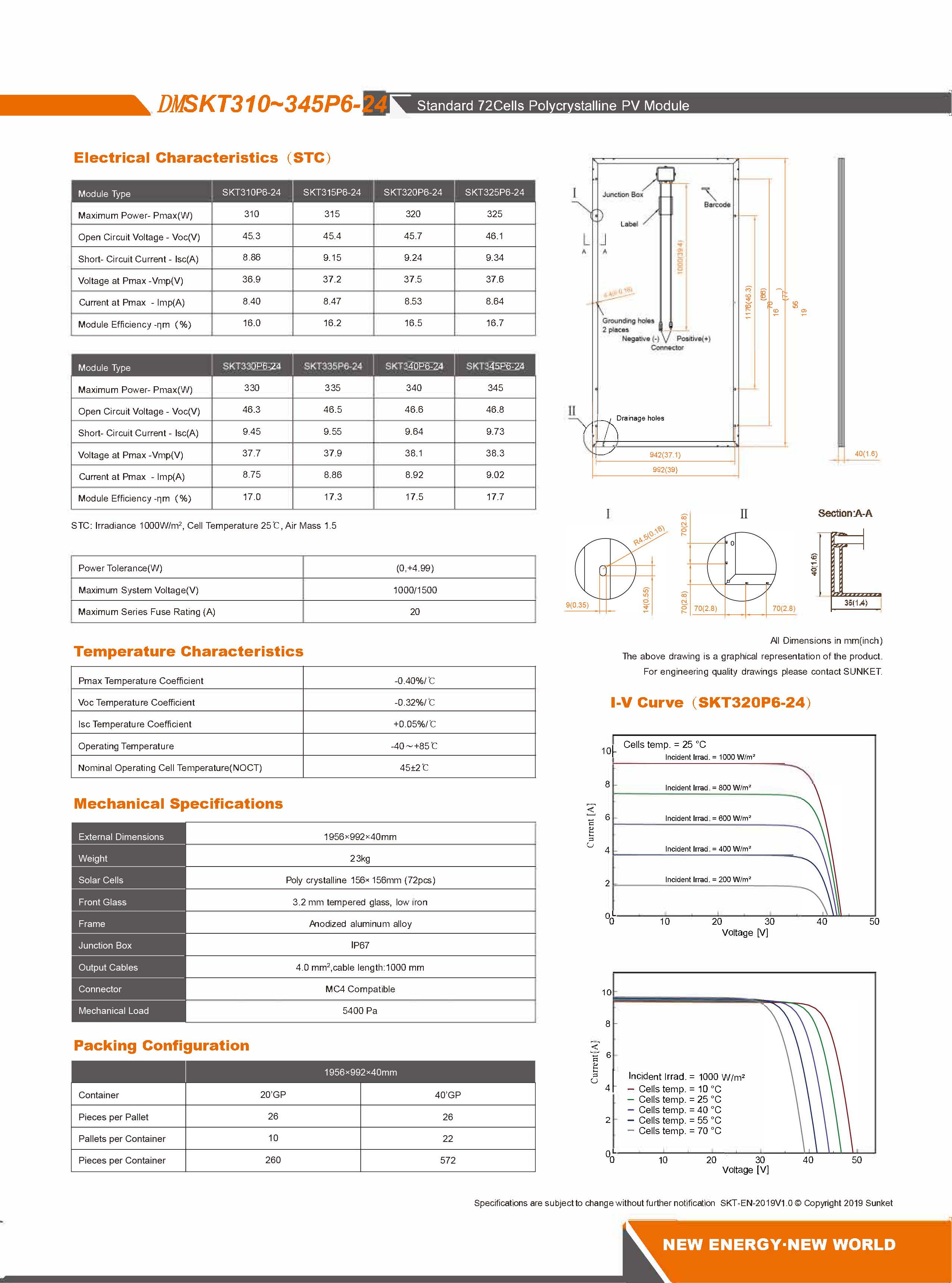

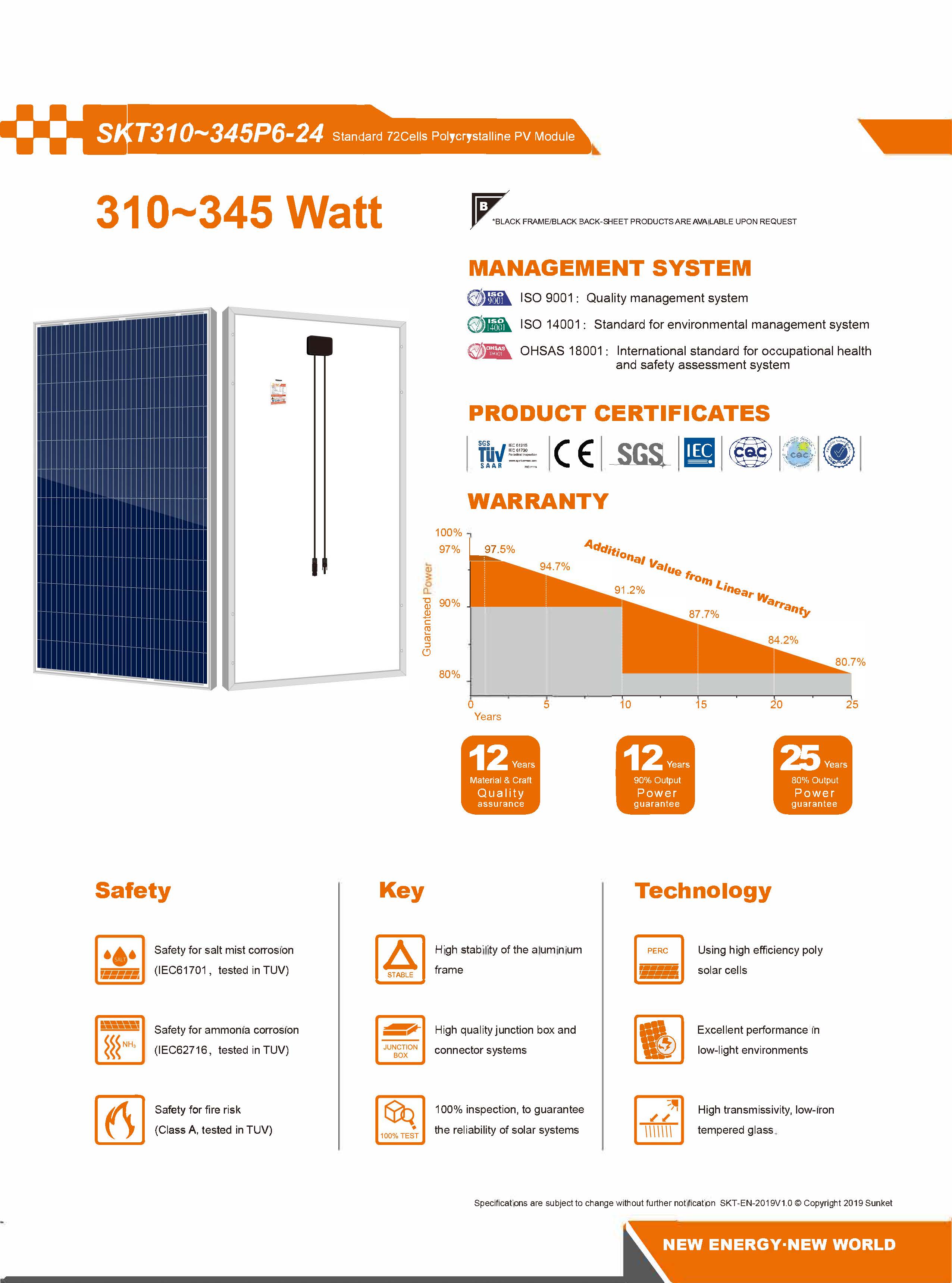

| Solar Panel Technical Parameter [Poly 325W] | ||
|---|---|---|
| Model | DMPV72-325 | |
| Max power(W) | 325 | |
| The voltage of the MAX power point(Vmp/V) | 37.49 | |
| The current of the MAX power point(Imp/A) | 8.67 | |
| Open circuit voltage (Voc/V) | 46.48 | |
| Short circuit current(A) | 9.14 | |
| The efficiency of the component(%) | 16.75 | |
| Quantity | 1548 pcs | |
| Connection Way | 18 pcs panels in series as a string, 86 strings in parallel | |

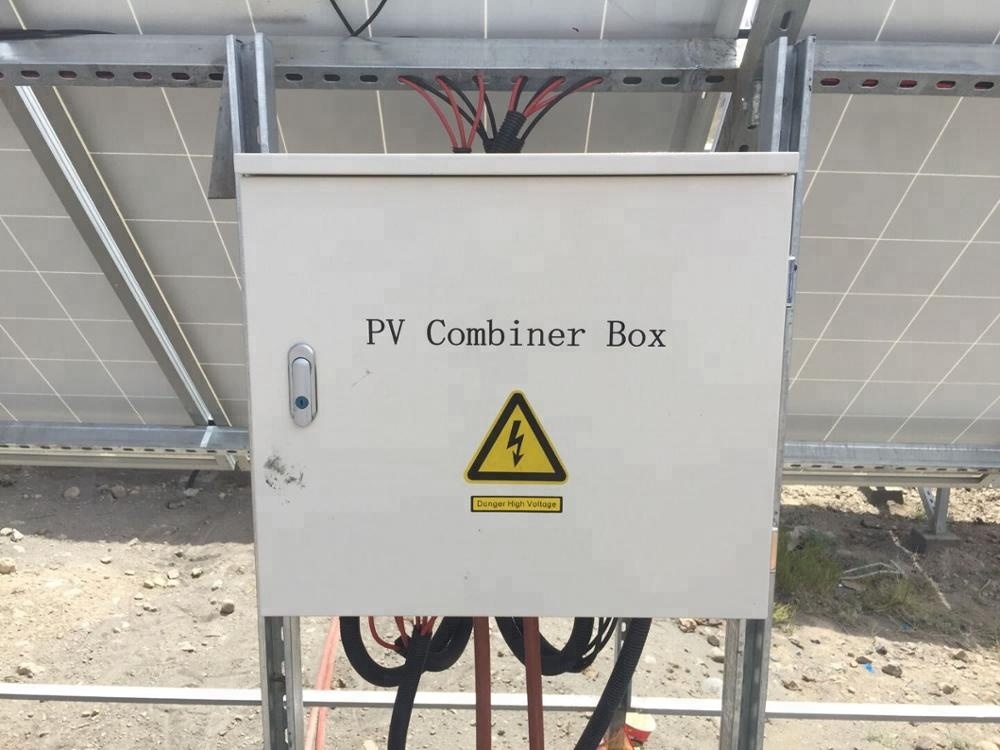

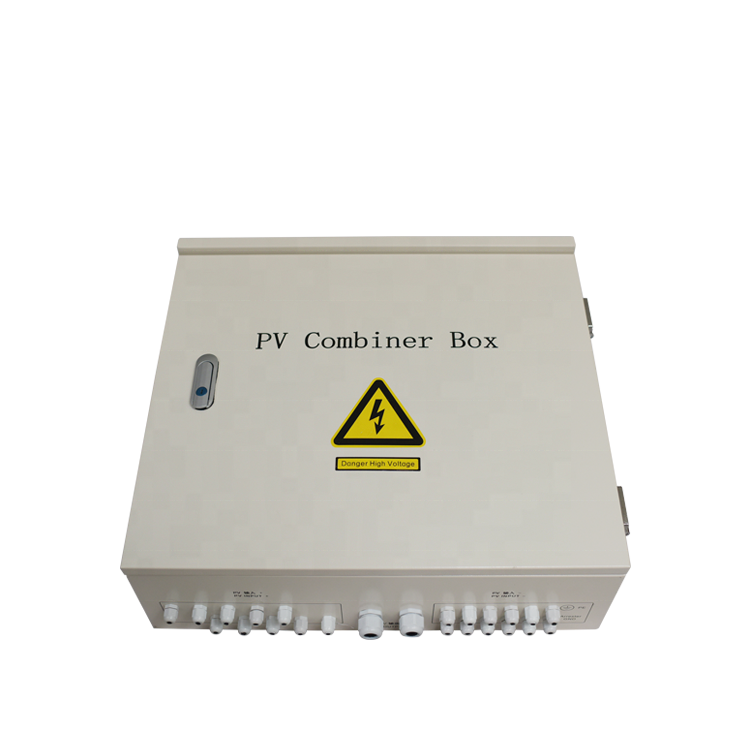

| PV Combiner Box Technical Parameters | ||
| Model | DM-CB4 | |
| Max.PV Array Voltage | 1000V | |
| Max. PV Array parallel Inputs | 4 | |
| Rated fuse current(replaceable) | 10A/15A | |
| Allowable input current | 10A | |
| Output Circuit Breaker | 50A | |
| Max. Output current | 40A | |
| PV dedicated SPD | Yes | |
| Anti-reverse | Yes | |

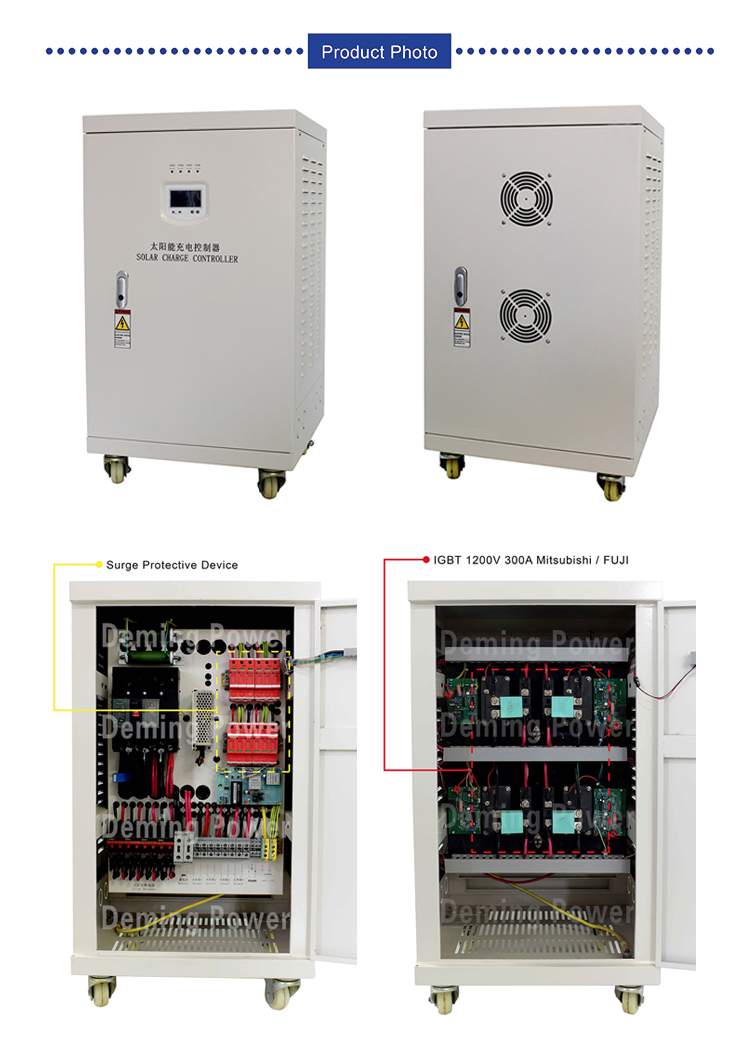

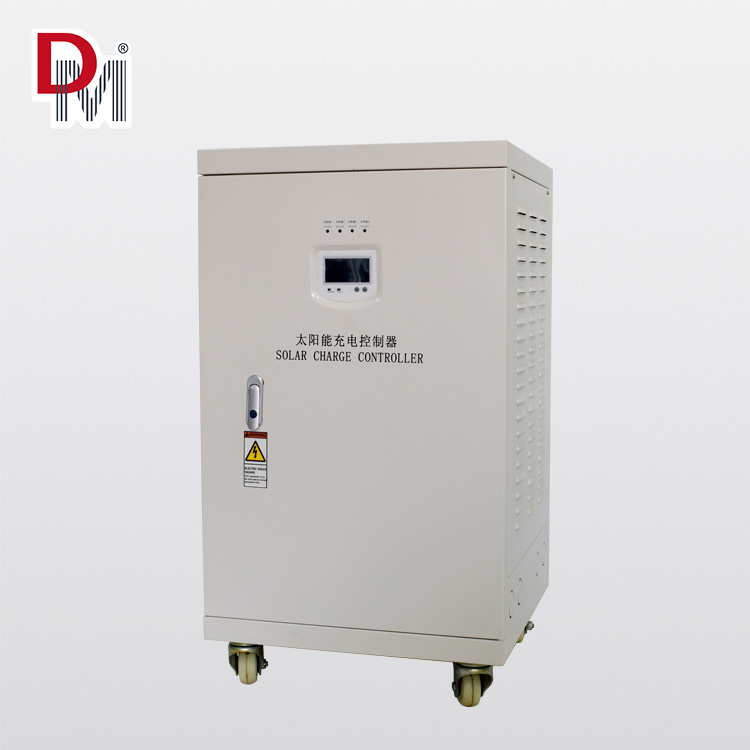

| Solar Charge Controller Technical Parameters | ||
| Model | SCDC-480V200A | |
| Battery group rated voltage | 480V | |
| PV Rated current | 200A | |
| PV Max. power | 100KW | |
| Function | Auto stop charge, auto recharge voltage; Protection: connecting contrary, over current, short circuit, over heat etc. | |
| Display mode | LCD | |
| Display content | solar panel voltage, solar panel current, solar panel power, battery voltage, charge current | |

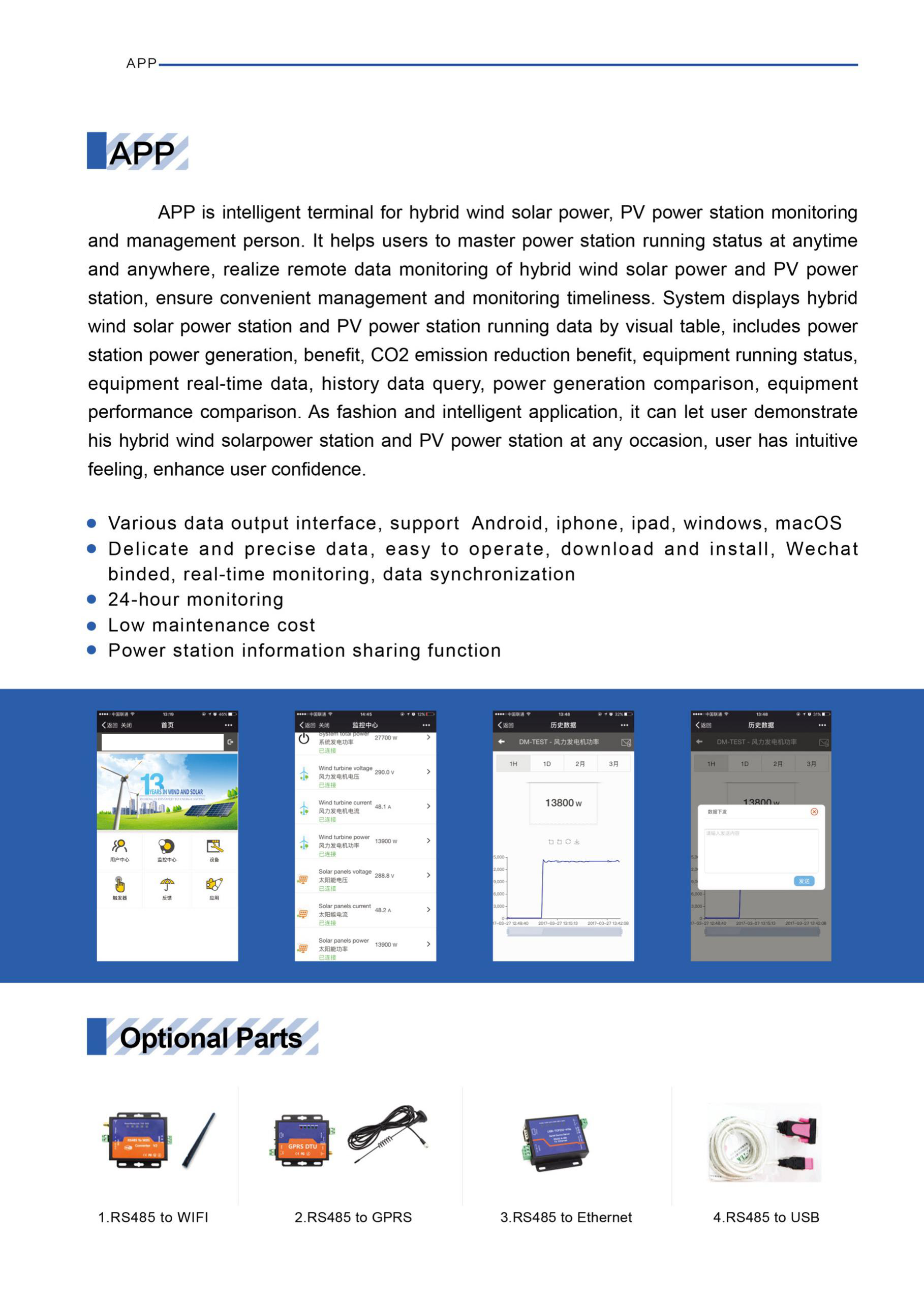

| *Communication interface (optional) | RS485/USB/GPRS/WIFI/Ethernet | |

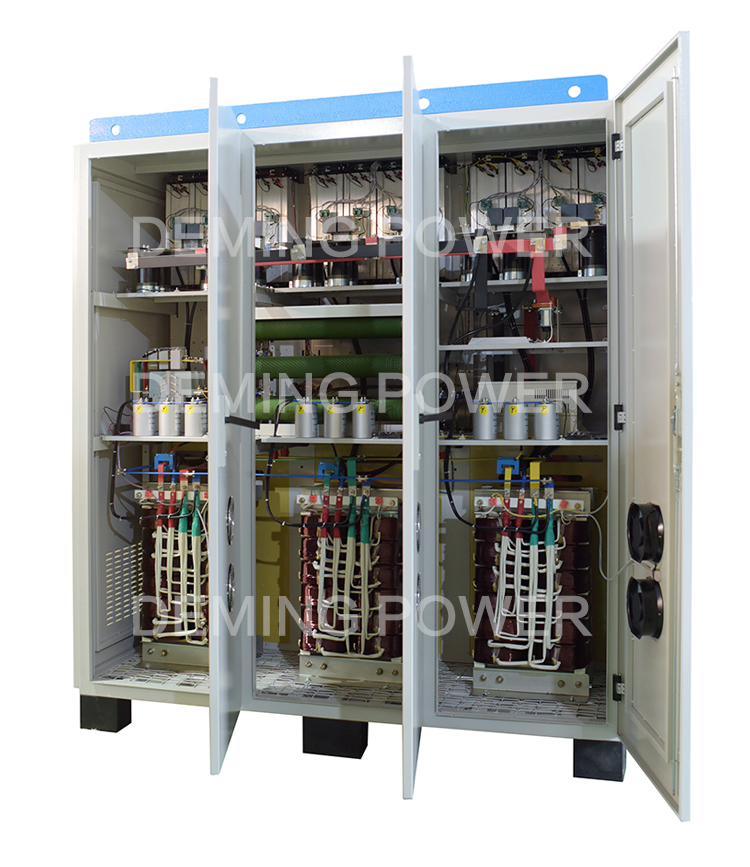

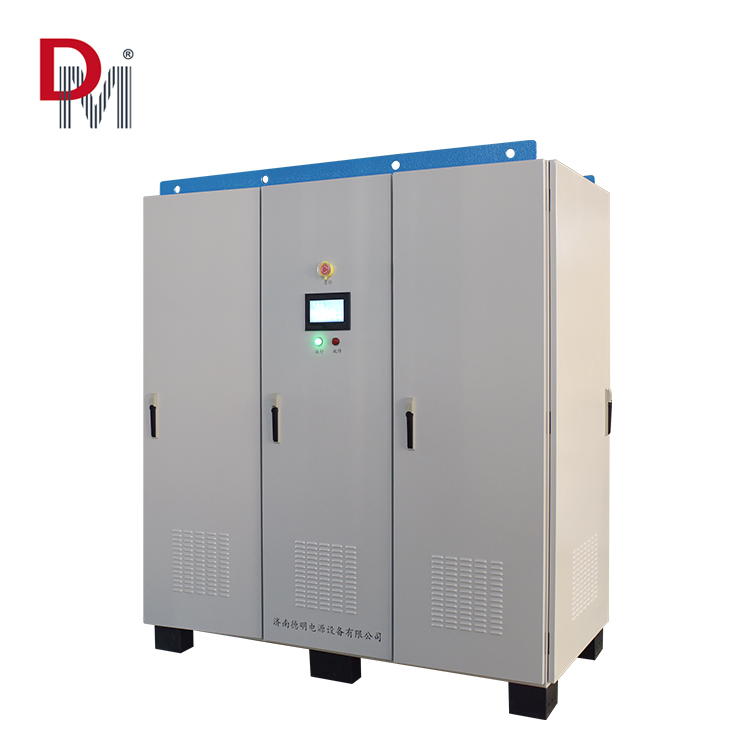

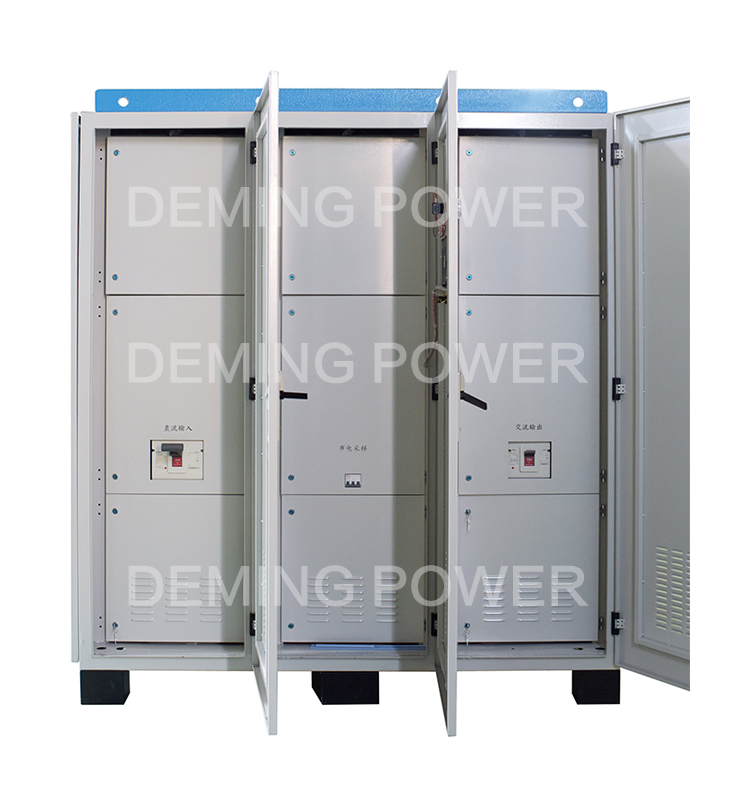

| Inverter Technical Parameters | ||
| Model | NB480-500KSZ | |
| DC input | Input rated voltage | 480 VDC |
| Input rated current | 1157A | |
| Input DC voltage allowing range | 400-620 VDC | |
| AC bypass | Allow input voltage range | 220VAC/380 VAC ± 15%(Three phase) |
| Input rated current | 1312A /760 A | |
| Bypass transfer time | ≤100 ms (4ms optional) | |
| AC output | Rated capacity | 500KVA |
| Output rated power | 400KW | |
| Output rated voltage and frequency | 220 VAC / 380 VAC, 50Hz / 60Hz | |
| Output rated current | 1312A / 760A | |

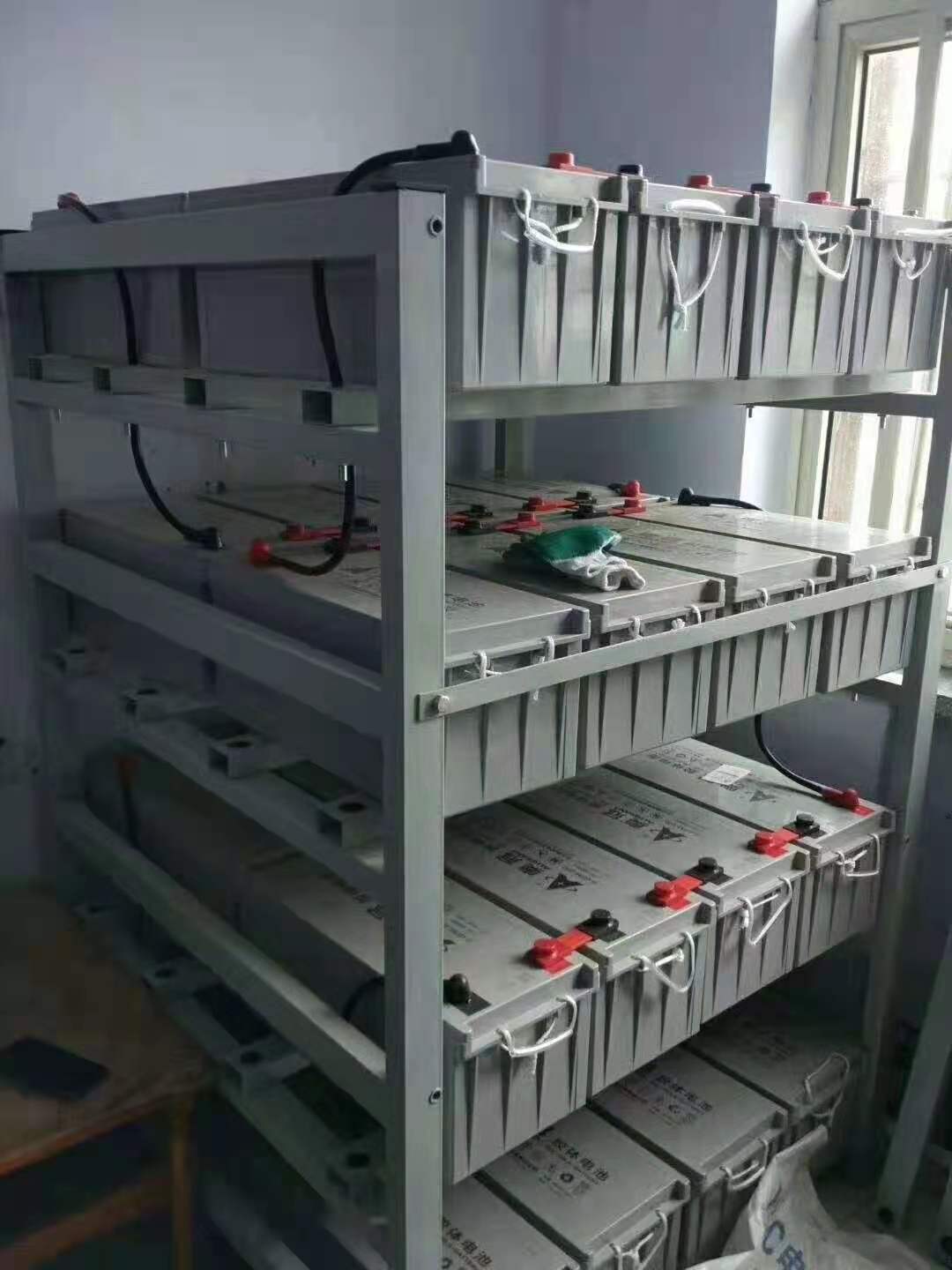

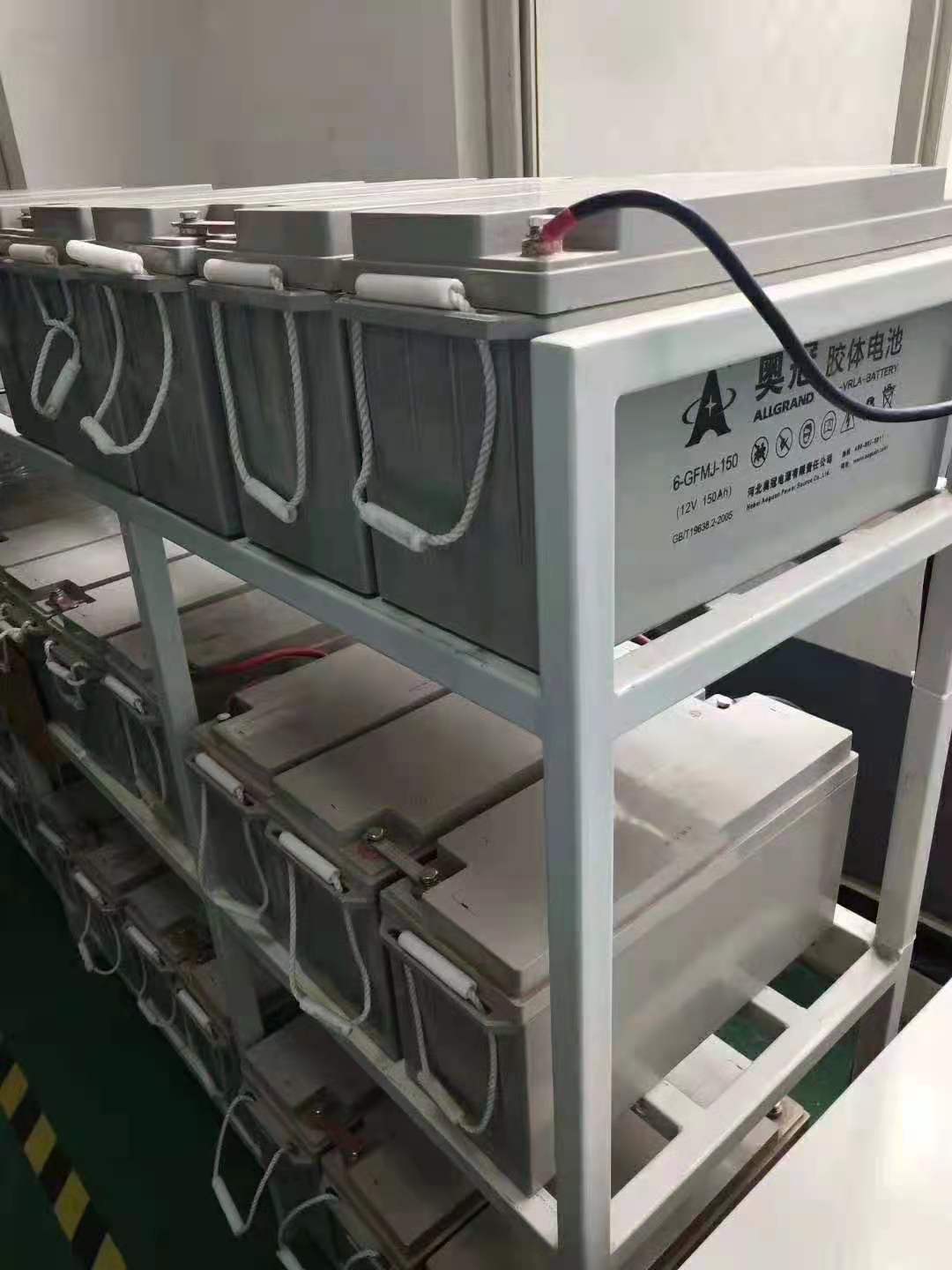

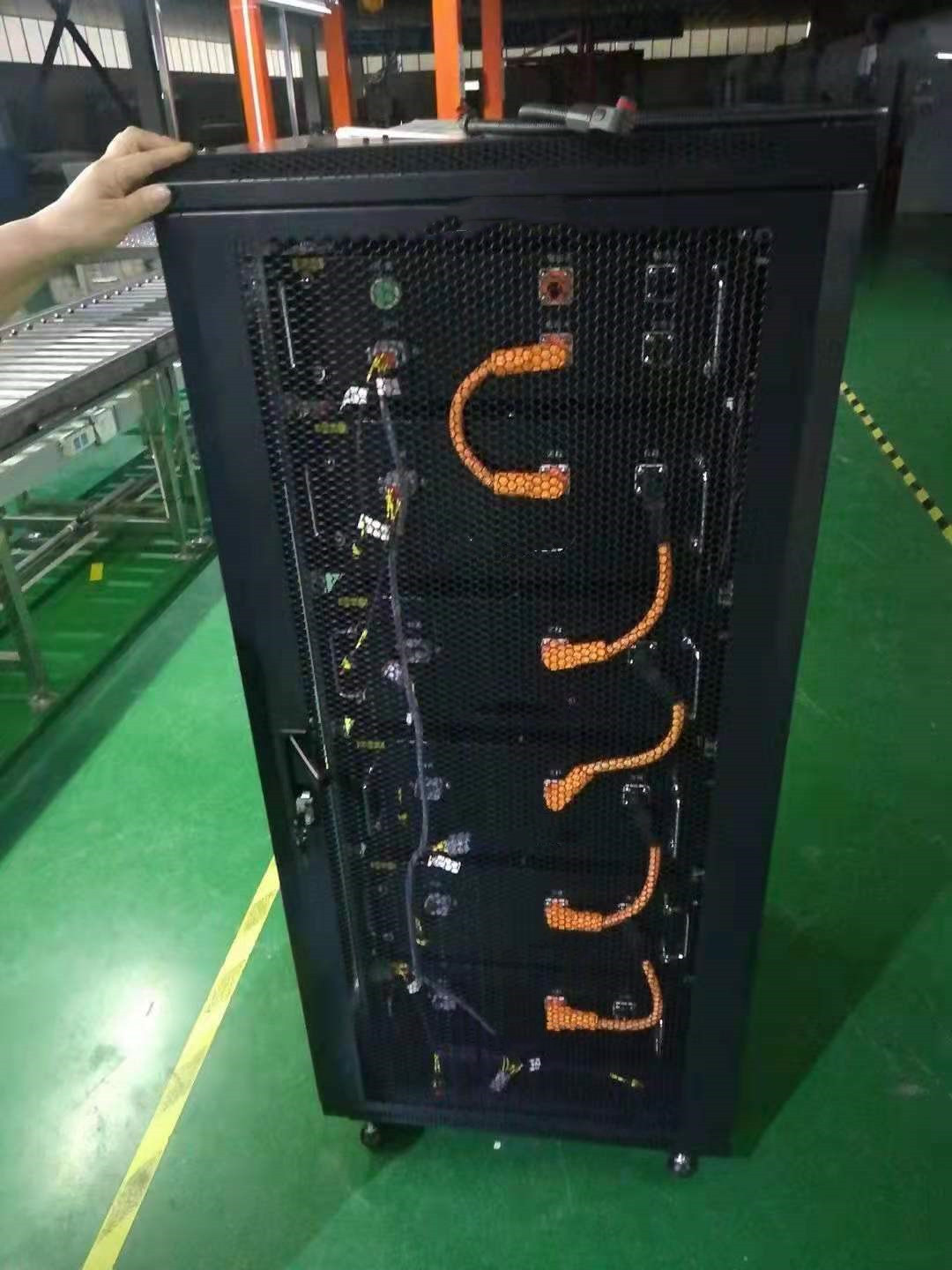

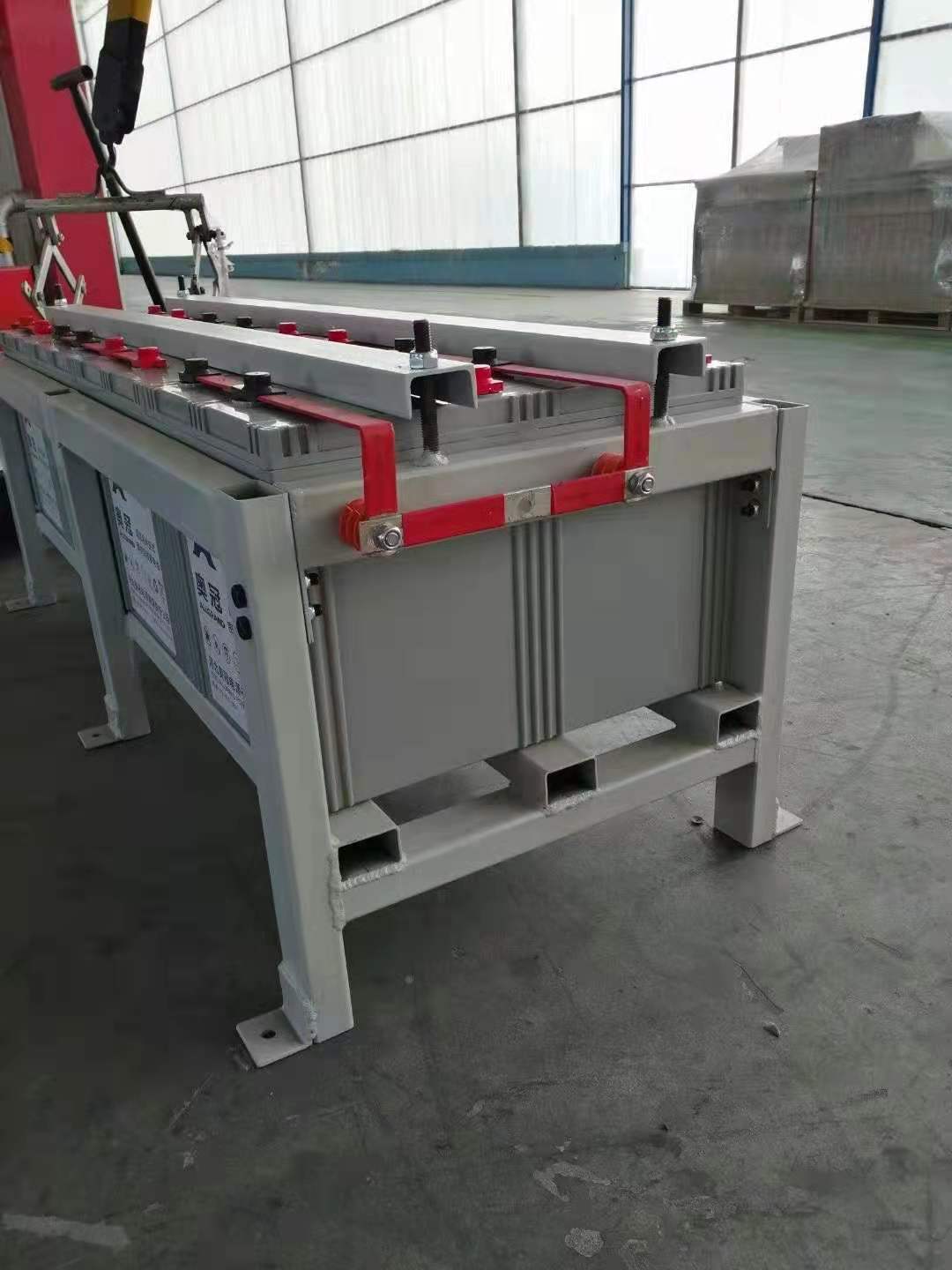

| Battery Technical Parameters | ||
| Model | DMB-2V2500AH | |
| Quantity | 480 pcs | |
| Connection Way | 240 pcs panels in series as a string, 2 strings in parallel | |
