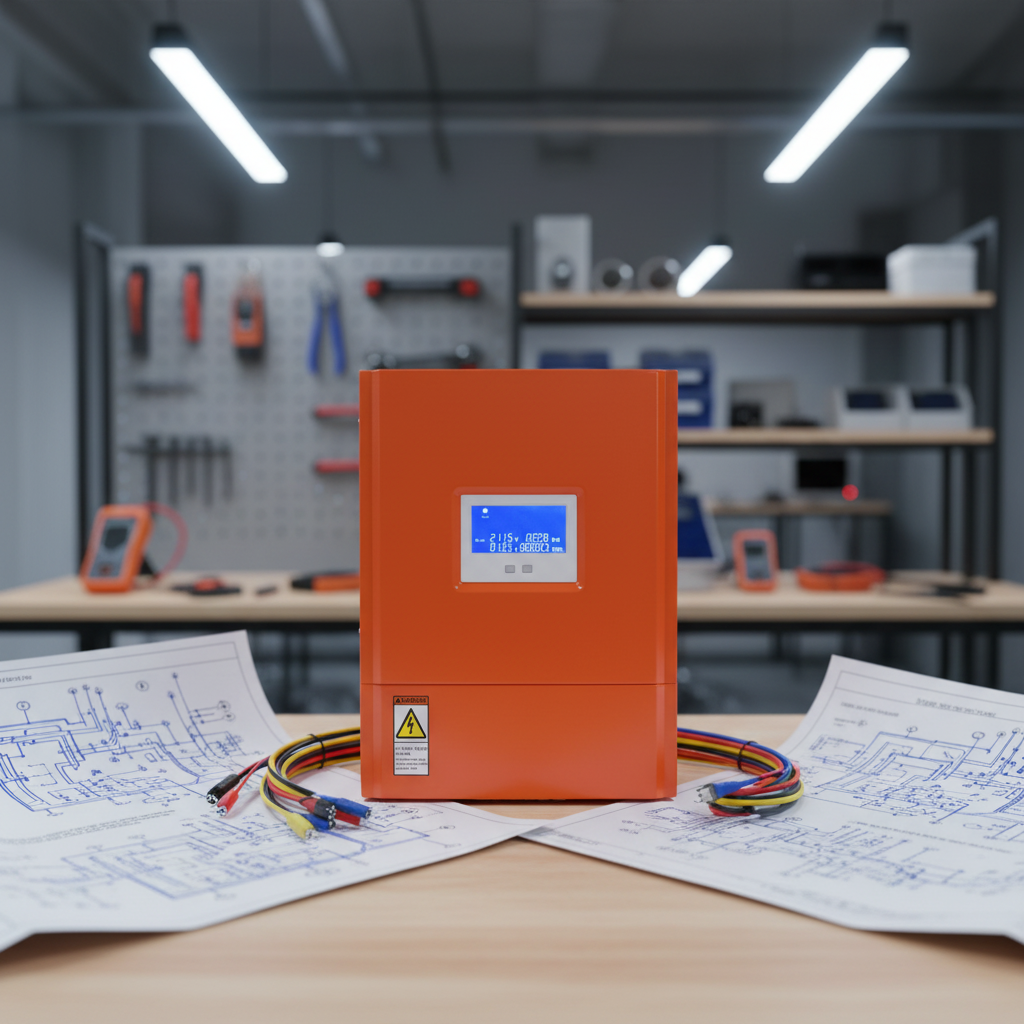

MPPT Solar Charge Controller for Solar Systems 24H Work Time

Product Description

Solar Charger Controller Header
Bedienungsanleitung PWM Solar Charger Controller for Home Use Solar Power System 24V 48V 96V 120V 220V 240V 30A 50A 60A 80A

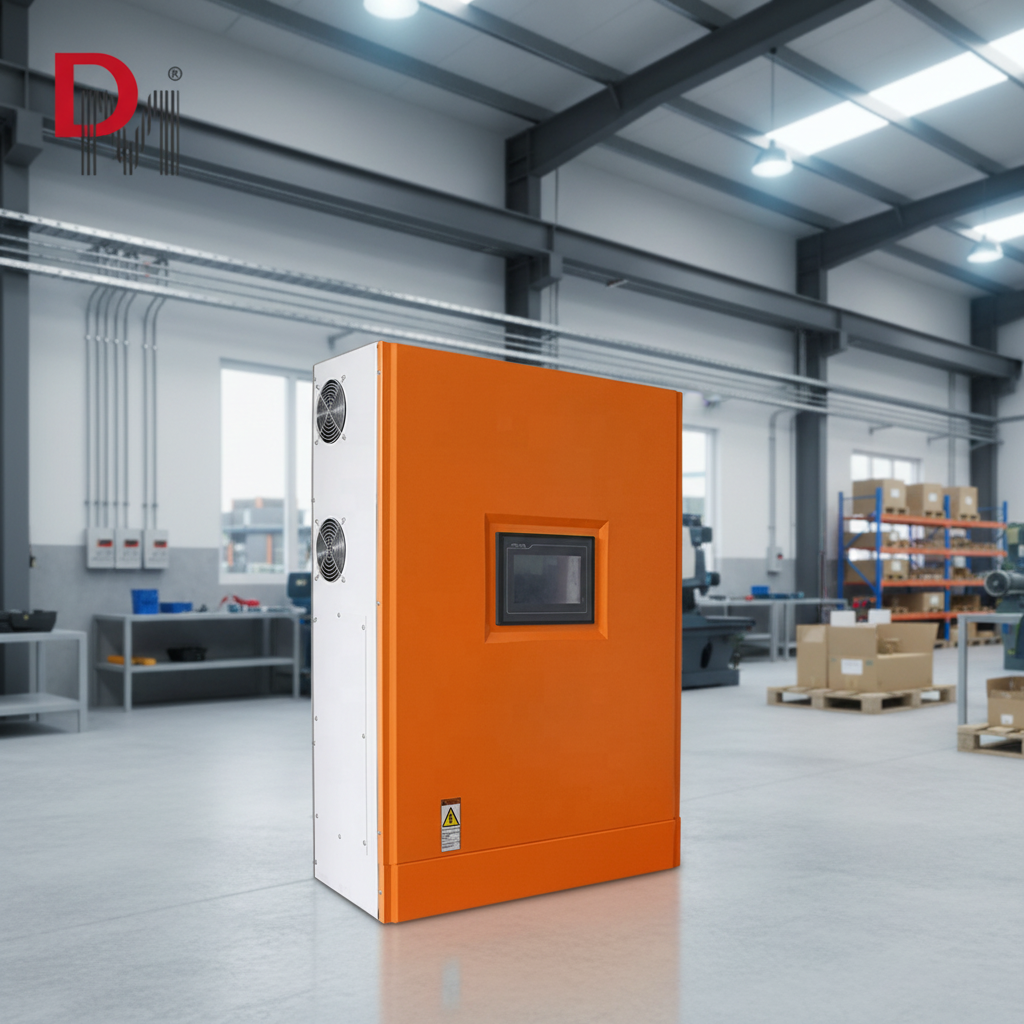

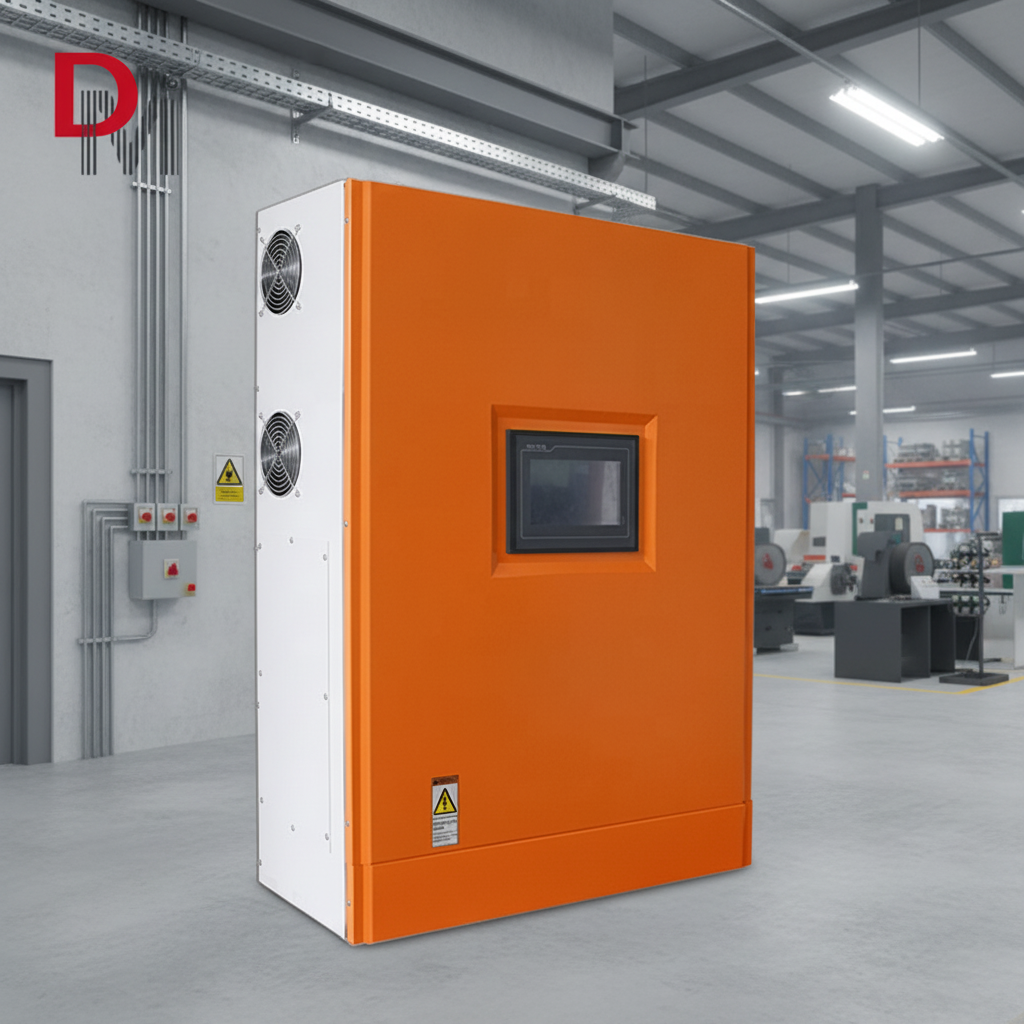

Solar Charger Controller Product Display
Product introduction

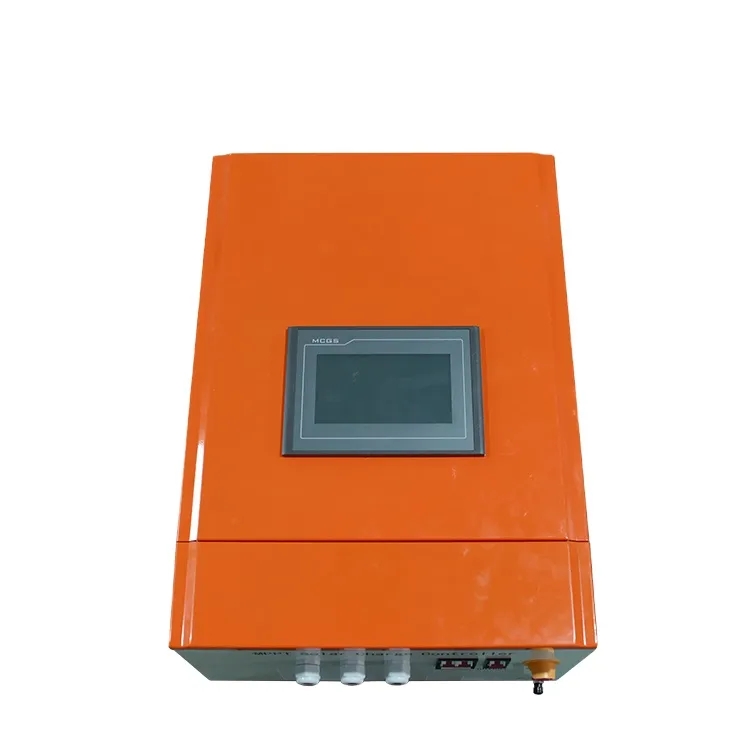

Product introduction details 1

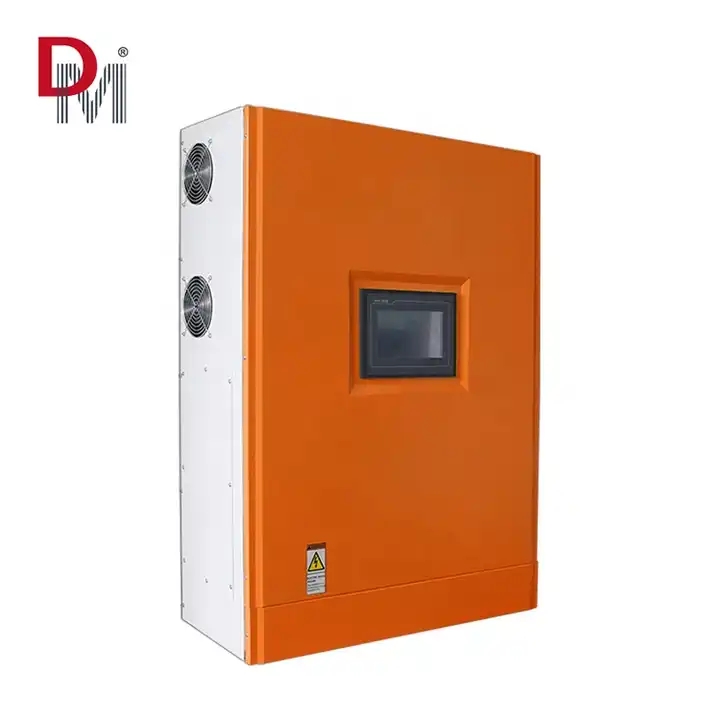

Product introduction details 2
Properties of the solar charge controller
  • 1Design for off-grid solar power system.
  • 2Applicable to different kinds of batteries.
  • 3Modular design with simple structure and easy maintenance.
  • 4Automatic power control function.
  • 5LCD display: Solar panel current, solar panel voltage, solar panel power, battery group voltage, charge current.
  • 6MODBUS protocol. The problem that the protocol cannot be compatible with other devices is solved. It is convenient to do secondary development.
  • 7Add the protection function of charge module. When batteries are broken or open circuit, inverter power the loads directly via controller, the charge module won't be damaged.
  • 8Battery protection is added. When there is fault on charge module, disconnect the battery, to prevent the over-charge of battery (high voltage is optional).
  • 9Perfect protection function: Solar reverse charge protection, Solar reverse connection protection, Battery reverse connection protection, Battery overcharge protection, Battery over current protection etc., thus the system has higher reliability.

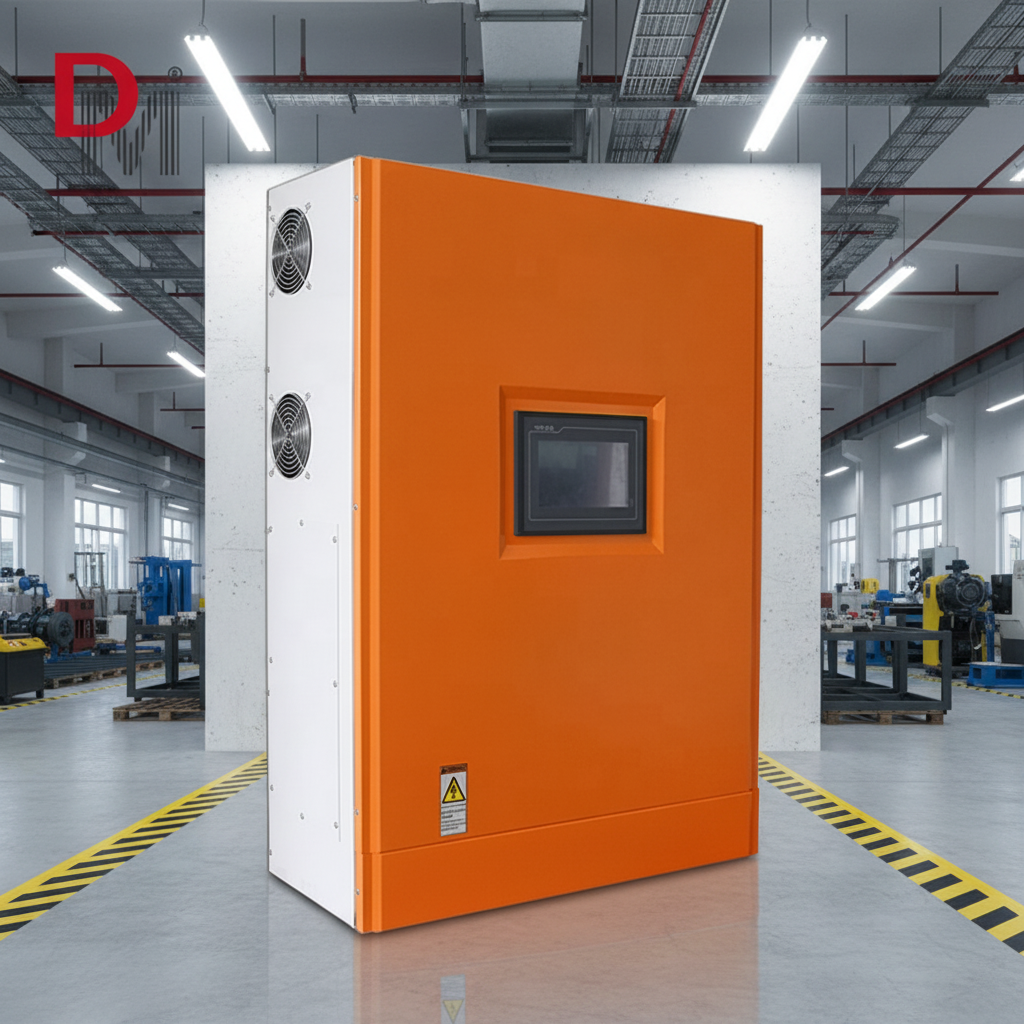

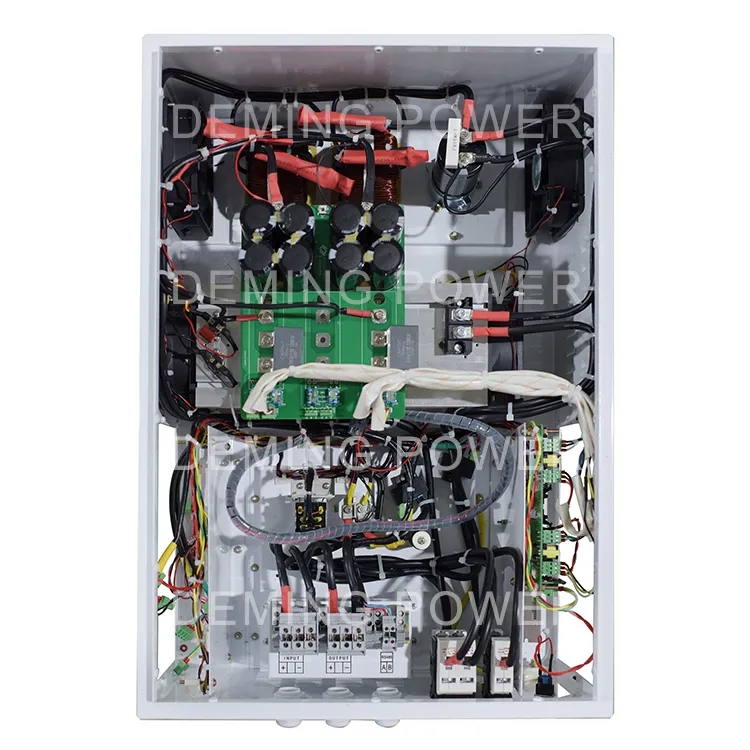

Controller detailed view 1 Controller detailed view 2
Operating Principle
Solar power is the generation effect of a solar panel pack that converts solar energy into direct current energy and stores it in a battery. Solar power supply system consists of solar panel, solar charge controller, battery, inverter, AC load, etc. A solar panel converts solar energy into electricity in the presence of light while charging the battery; in the absence of light, the battery supplies power to the load.
The solar charging controller adopts the step-by-step current-limiting charging method and automatically controls the turn-on or cut-off of the multi-channel solar panels according to the change trend of voltage at the battery bank end, which can make full use of precious solar energy resources and guarantee the safe and reliable operation of the battery bank.

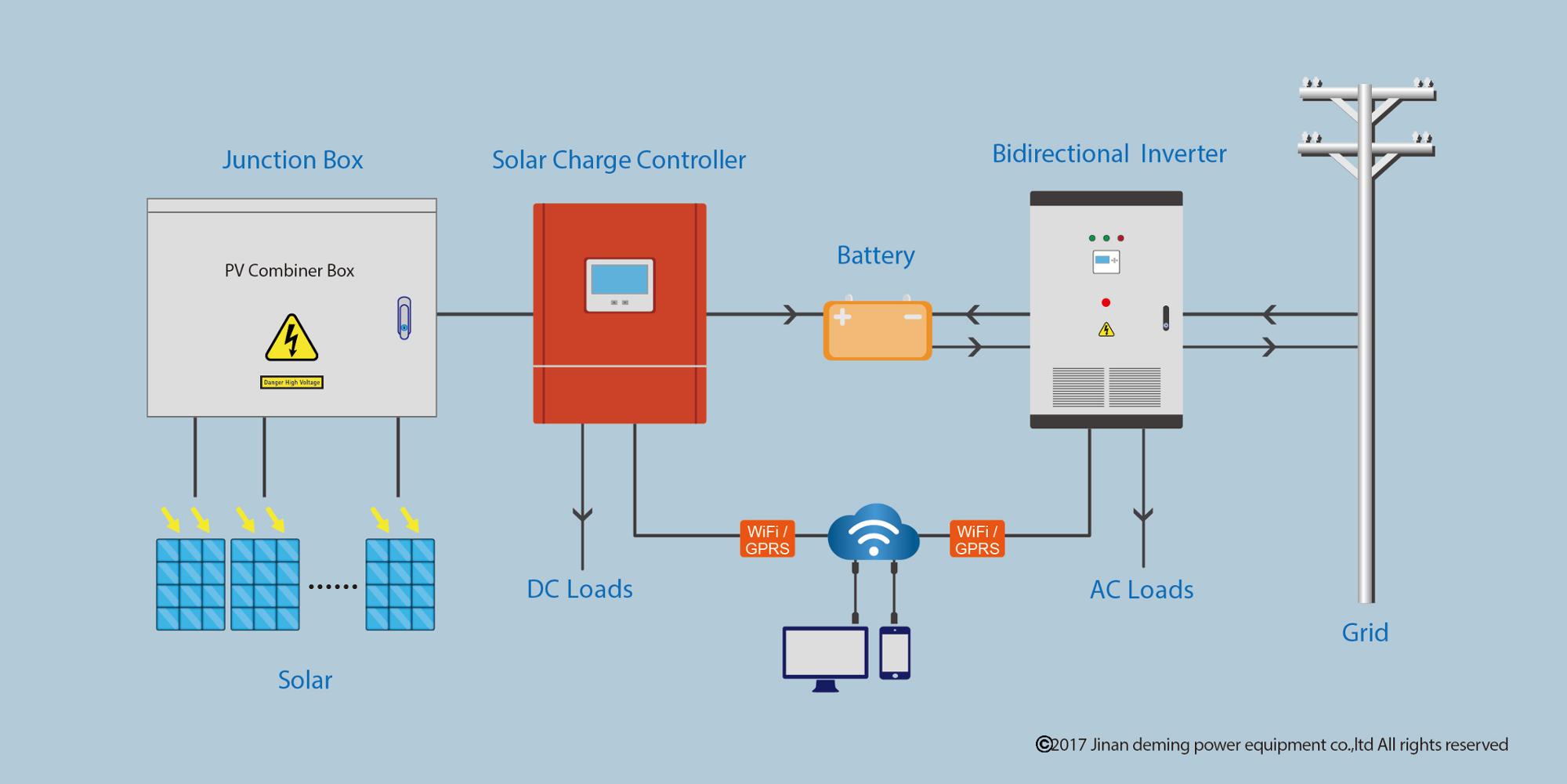

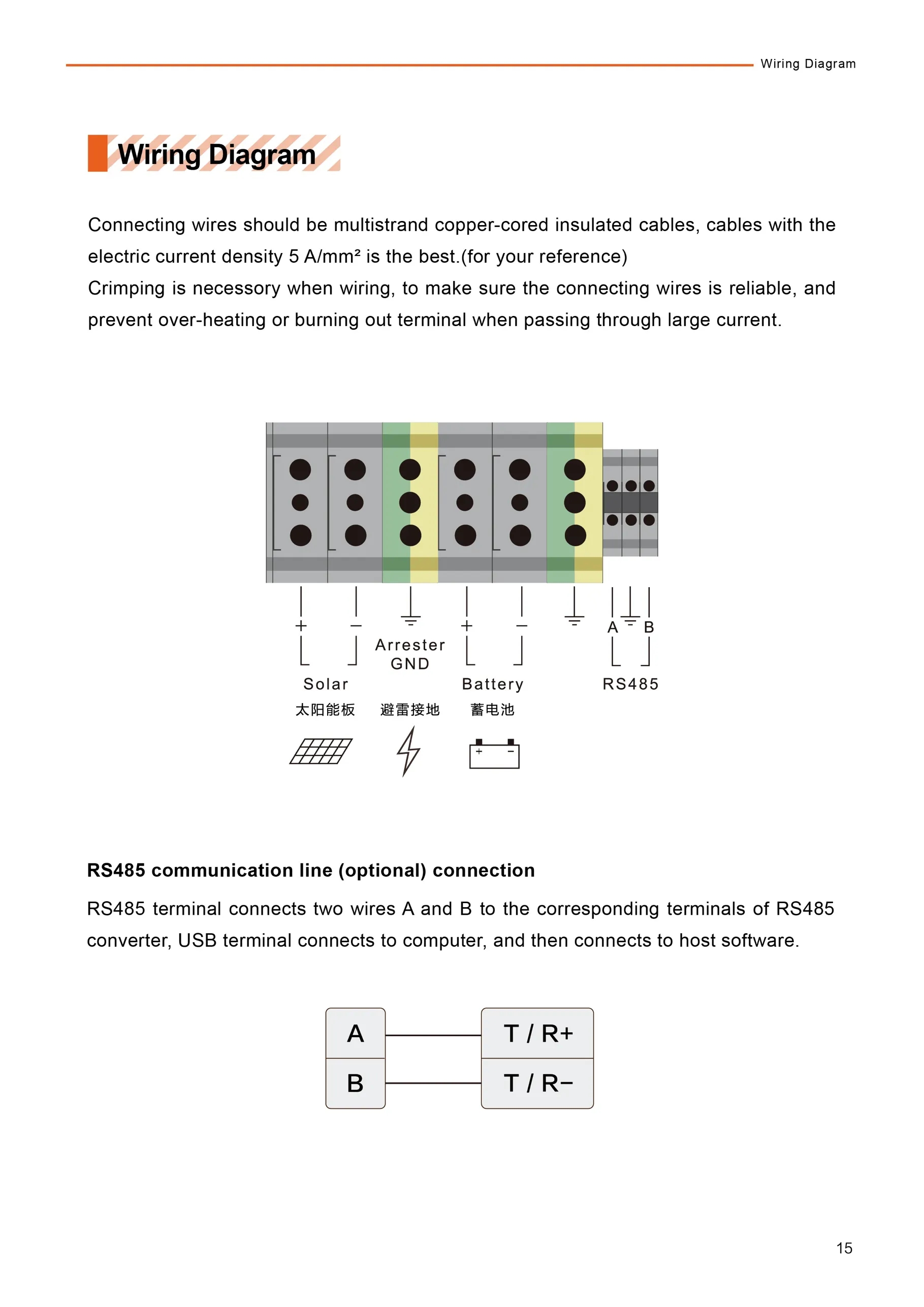

System Connection Diagram

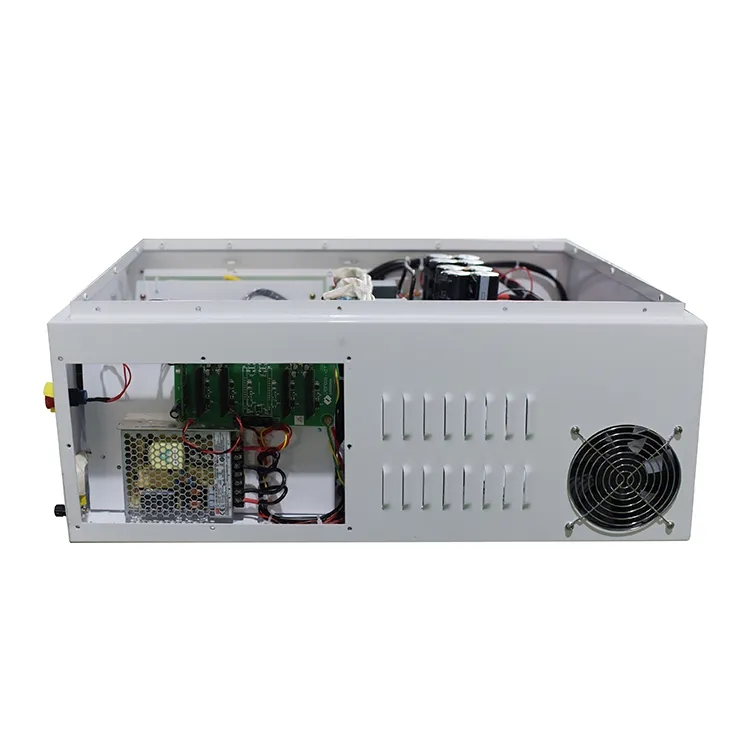

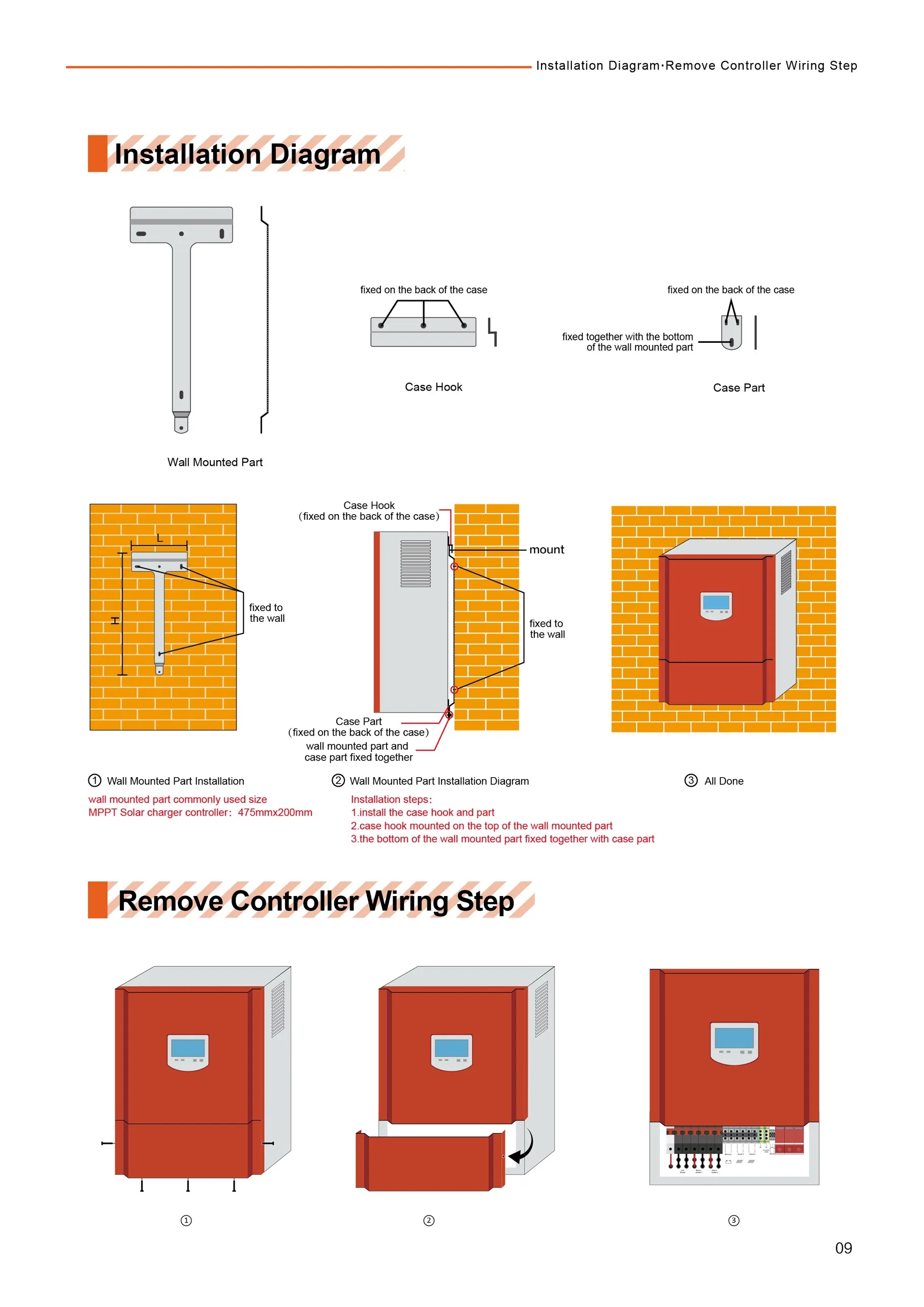

Internal components view 1

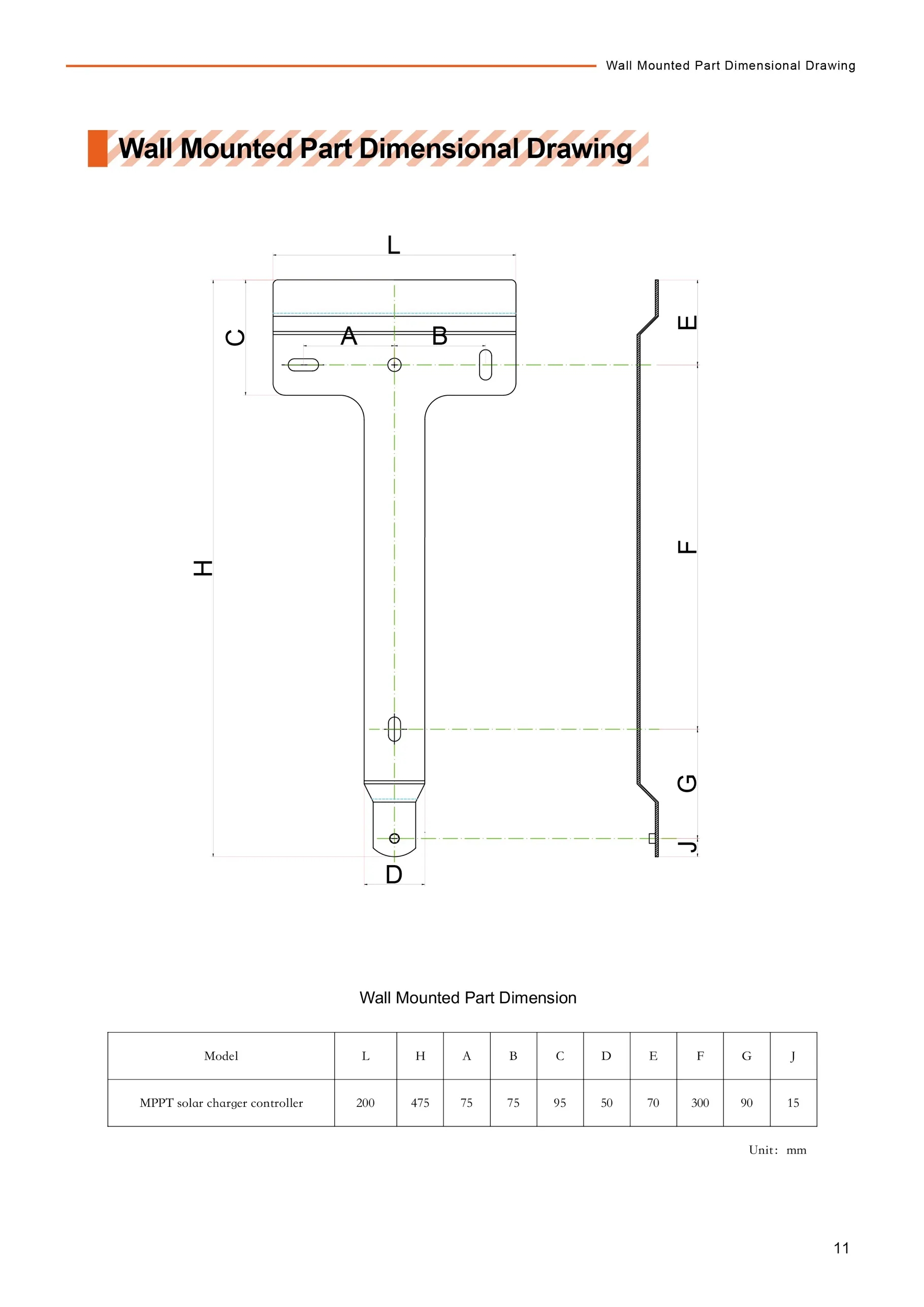

Internal components view 2

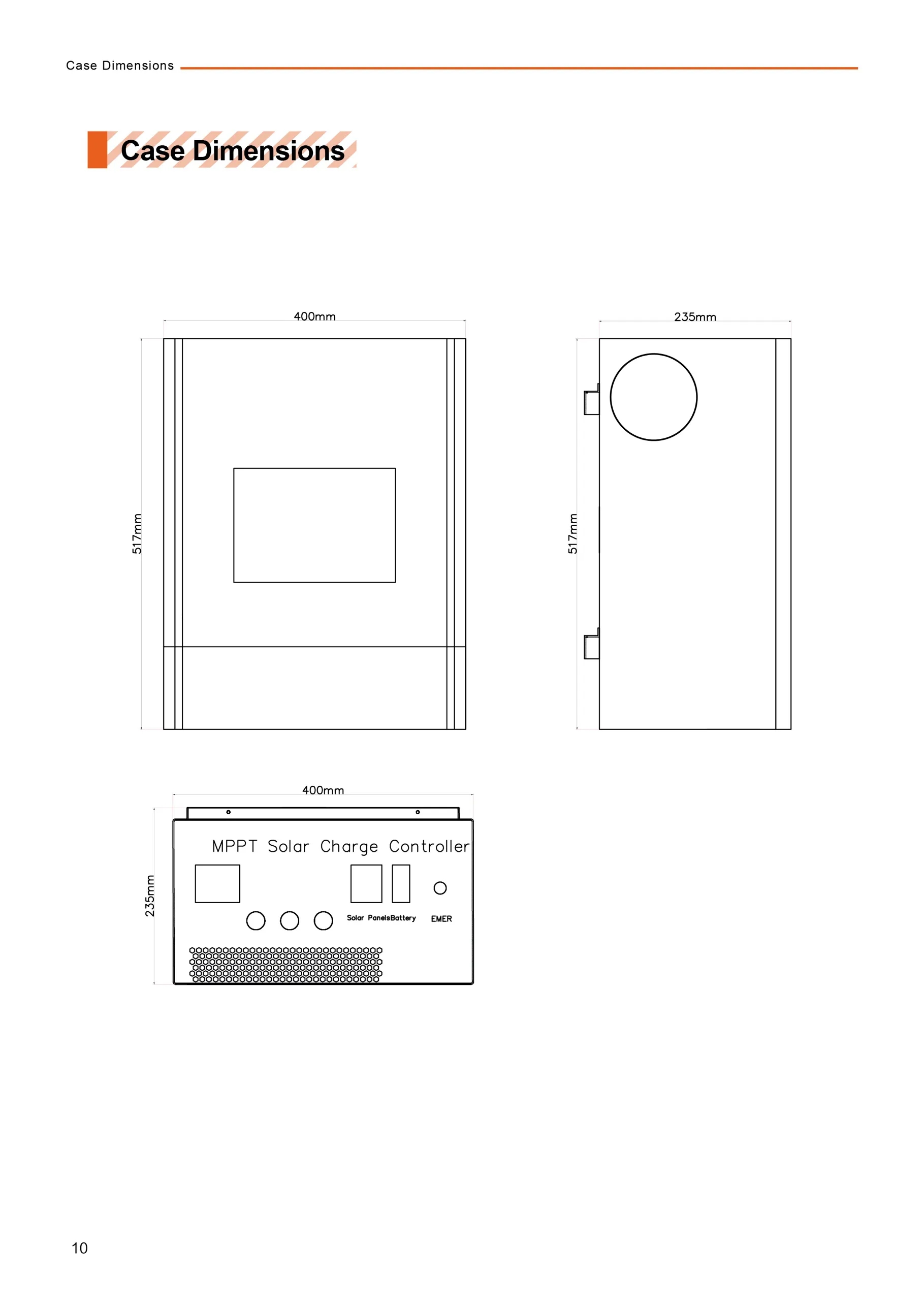

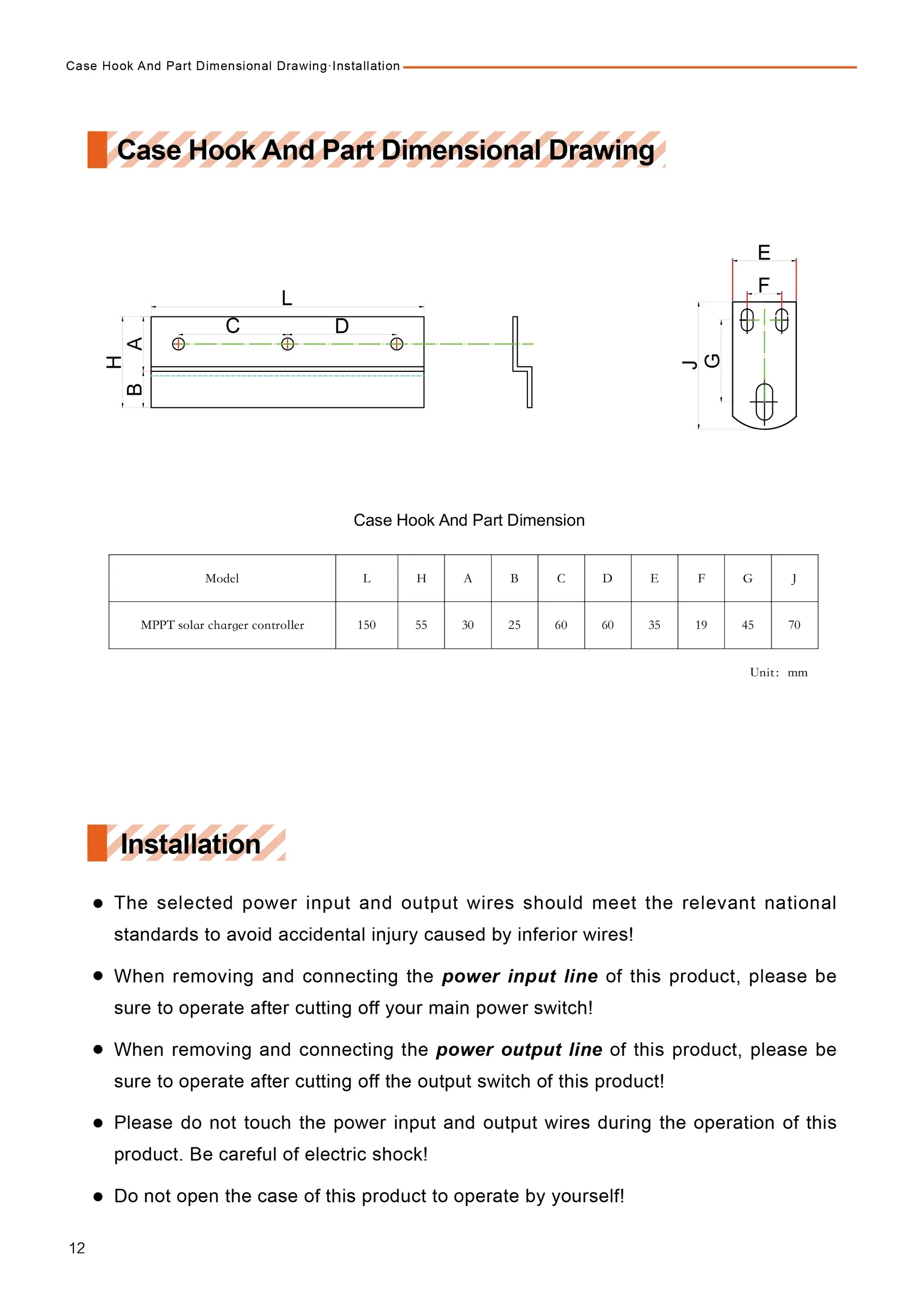

Controller side view Controller front view Controller back view
Technical Specifications
Model MPPT solar charger MSC-420-50 MSC-420-100 MSC-420-200
Match solar panel parameters Solar panels power 23100Wp 46200Wp 92400Wp
Max. Power voltage range Vmp DC550V~DC800V
Open circuit Voltage Voc < DC1000V
Low voltage protection Vlow-pv > Battery Low voltage protection (Settable)
Charging characteristics Applicable battery type Sealed lead-acid battery, colloidal lead-acid battery, open lead-acid battery (you can customize parameters to charge other types of batteries)
Battery rated voltage DC420V
Start charging Vstart-pv Vpv > Vbat
Floating voltage DC508V (Settable)
Battery Low voltage protection Settable
Rated charging current 50A 100A 200A
Over current protection 60A 120A 240A
Charging mode Three stages: constant current (fast charging), constant pressure, floating charging
Display \ communication Display mode Touch screen
Communication protocol Modbus RTU / Modbus TCP
Communication mode RS485 / USB / Wifi / GPRS / RJ45 / CAN (optional)
App cloud monitoring Support Wifi / GPRS / Ethernet
Other features Protection function Input and output overvoltage and undervoltage protection, anti reverse connection protection, etc
MPPT efficiency ≥99.5%
Cooling Mode Fan
Working environment temperature -20°C ~ +50°C
Storage temperature -40°C ~ +75°C
IP protection level IP20 (customizable outdoor IP65)

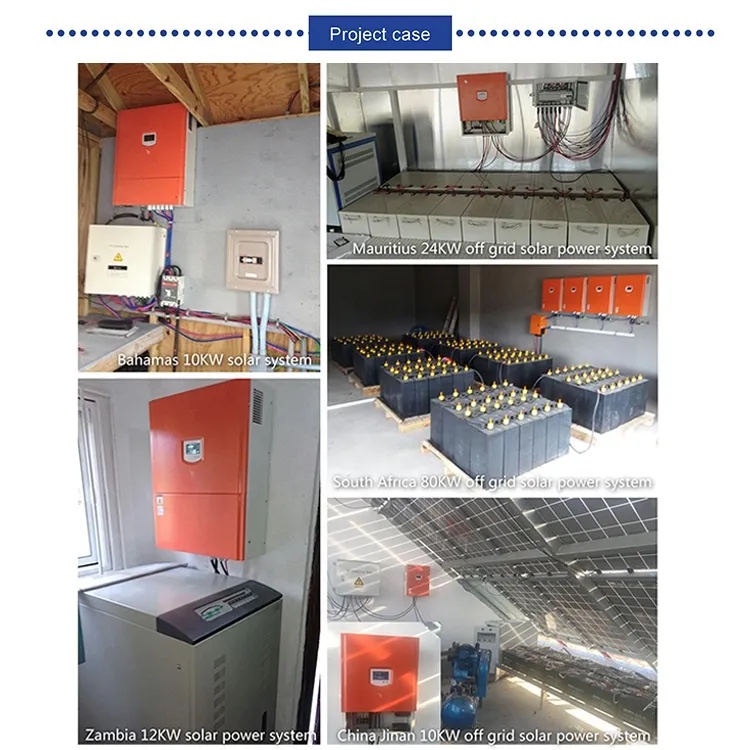

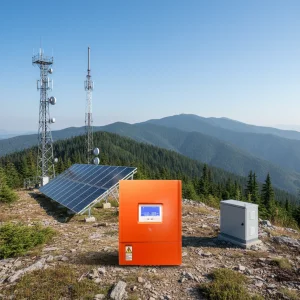

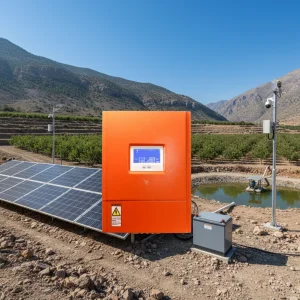

Product application scenario

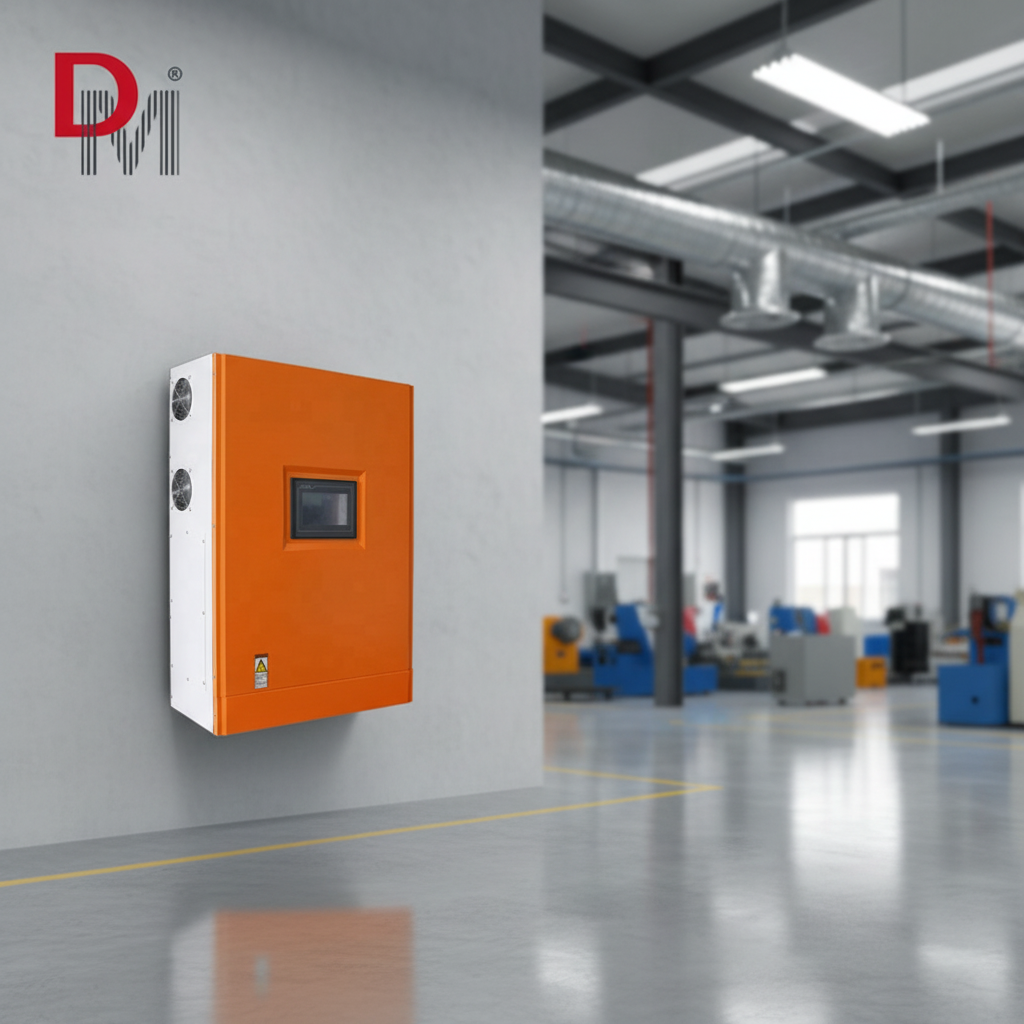

Product application scenario
System layout overview
