Solar power is generated via a solar panel array that converts solar energy into direct current (DC) electricity to be stored inside a battery bank. A complete solar power system typically consists of solar panels, a solar charge controller, a battery bank, an inverter, and AC loads. In the presence of sunlight, the solar panels generate electricity to charge the battery bank; during the absence of light, the battery supplies stored energy to the load through the system.
The solar charge controller adopts a step-by-step current-limiting charging method. It automatically controls the turn-on or cut-off of the multi-channel solar panels based on the voltage variations of the battery bank. This mechanism makes optimal use of solar energy resources while safeguarding the battery bank against overcharging.
| Category | Parameter | MSC-420-50 | MSC-420-100 | MSC-420-200 |
|---|---|---|---|---|
| Match Solar Panel Parameters | Solar panels power | 23100Wp | 46200Wp | 92400Wp |
| Max. Power voltage range Vmp | DC550V ~ DC800V | |||
| Open circuit Voltage Voc | < DC1000V | |||
| Low voltage protection Vlow-pv | > Battery Low voltage protection (Settable) | |||
| Charging Characteristics | Applicable battery type | Sealed lead-acid battery, colloidal lead-acid battery, open lead-acid battery (customizable parameters for other types) | ||
| Battery rated voltage | DC420V | |||
| Start charging Vstart-pv | Vpv > Vbat | |||
| Floating voltage | DC508V (Settable) | |||
| Battery Low voltage protection | Settable | |||
| Rated charging current | 50A | 100A | 200A | |
| Over current protection | 60A | 120A | 240A | |
| Charging mode | Three stages: constant current (fast charging), constant pressure, floating charging | |||

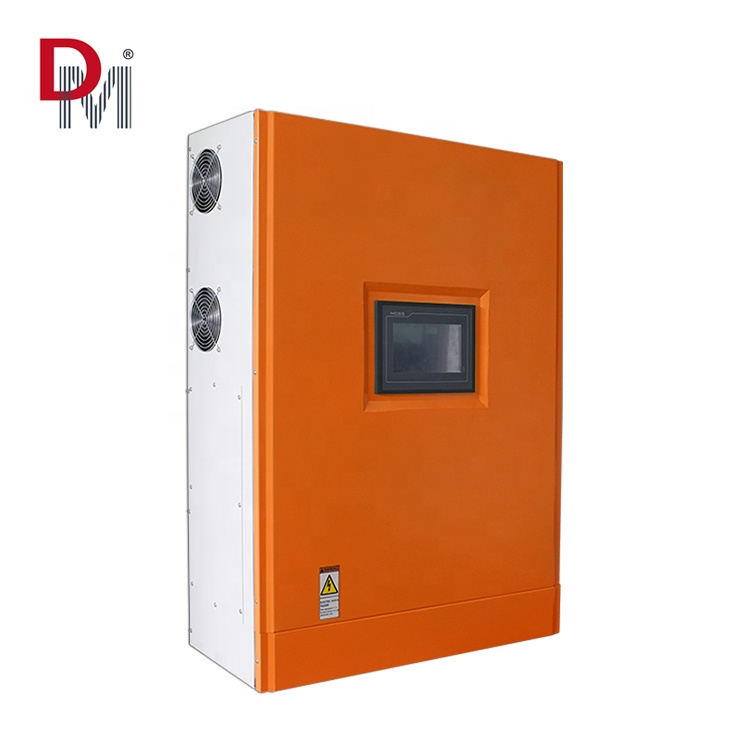

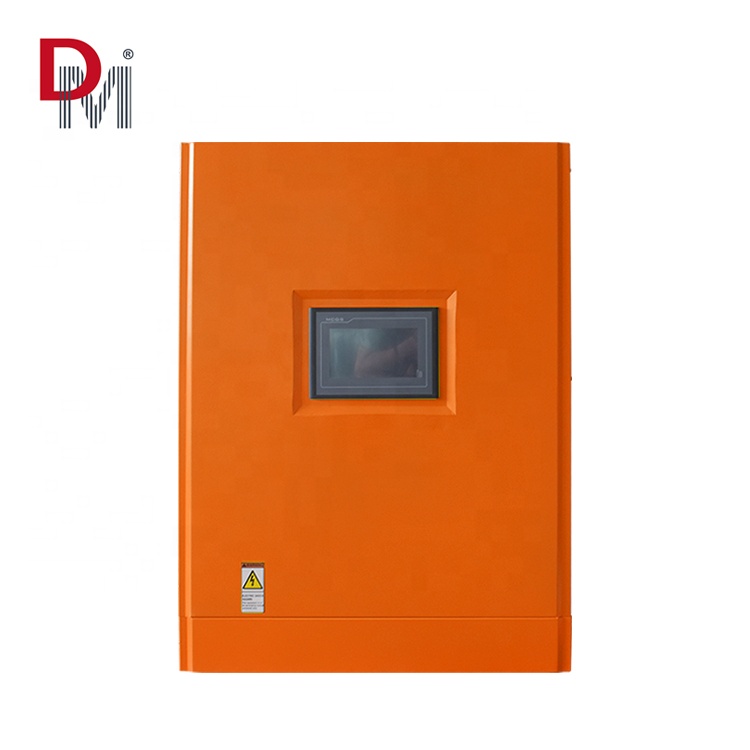

| Display & Communication | Display mode | Touch screen | ||
| Communication protocol | Modbus RTU / Modbus TCP | |||
| Communication mode | RS485 / USB / Wifi / GPRS / RJ45 / CAN (optional) | |||
| App cloud monitoring | Support Wifi / GPRS / Ethernet | |||
| Other Features | Protection function | Input and output overvoltage and undervoltage protection, anti reverse connection protection, etc | ||
| MPPT efficiency | ≥99.5% | |||
| Cooling Mode | Fan | |||
| Working environment temperature | -20℃ ~ +50℃ | |||
| Storage temperature | -40℃ ~ +75℃ | |||
| IP protection level | IP20 (customizable outdoor IP65) | |||
The company was established in 2004 and acquired two registered trademarks in the same year. After five years of accumulation in 2009, the company gradually matured steadily. The company purchased factory buildings with independent property rights, and the company relocated to start a new journey. In 2012, the Ministry of Foreign Trade was established to open up markets and begin to expand foreign markets. In 2015, the company achieved rapid development, with 2 invention patents, 6 utility model patents, 1 appearance patents, obtained the "high-tech enterprise certificate" recognition, and obtained the ISO 9001 quality management system certification. In 2018, the company continued to innovate, with four invention patents, six utility model patents, and two software registration rights, and again successfully recognized high-tech enterprises. On July 10, 2019, it passed the certification of intellectual property management system. In 2020, three patents for invention and six patents for utility models were applied for.
1. Our main products are off grid wind turbine controller, On grid wind turbine controller, solar charging controller, wind-light complementary controller, wind-light complementary street lamp controller, On grid inverter, off grid inverter, frequency converter, stabilized frequency power supply, etc.
2. With first-class manufacturing technology, advanced technology and equipment, strong technical force, perfect testing means and personnel management, the company has carried out 17 research and development projects in the last three years, completed 16 transformation of scientific and technological achievements, and invested all by itself to implement the transformation, averaging 5.3 transformation of scientific and technological achievements each year.
3. The company takes technological innovation as the basis of enterprise development, annual R&D cost is not less than 20% of sales revenue, and continuously explores advanced technologies in the field of new energy power sources, such as electromagnetic control technology for wind turbines, MPPT technology, yaw wind turbines control technology, wind and solar complementary system Internet of Things monitoring, etc. Now it has five national invention patents for core technologies, twelve utility model patents, and the control technology for wind turbines has reached the advanced international level.
4. The company has a complete product quality assurance system and ISO 9001 certification. Perform comprehensive quality control, rigorous test one by one, each performance is superior to the relevant national standards, all products have passed the EU CE certification. Ensure user safety and reliable use. Now the company's products have been the preferred supporting products for well-known domestic manufacturers. The products export to more than 120 countries and regions, such as Germany, Japan, the United States, the United Kingdom, Canada, Australia, Egypt, Brazil, Saudi Arabia, and have established a good image in the domestic and foreign markets.
5. We are based on the market, pay attention to customers, provide high-quality products, adhere to technological progress, scientific management and standardized operation are the key to our success. We will jointly meet the challenges of the new century, shape a good image outside, and construct the blueprint of a modern enterprise in an all-round and three-dimensional way.
