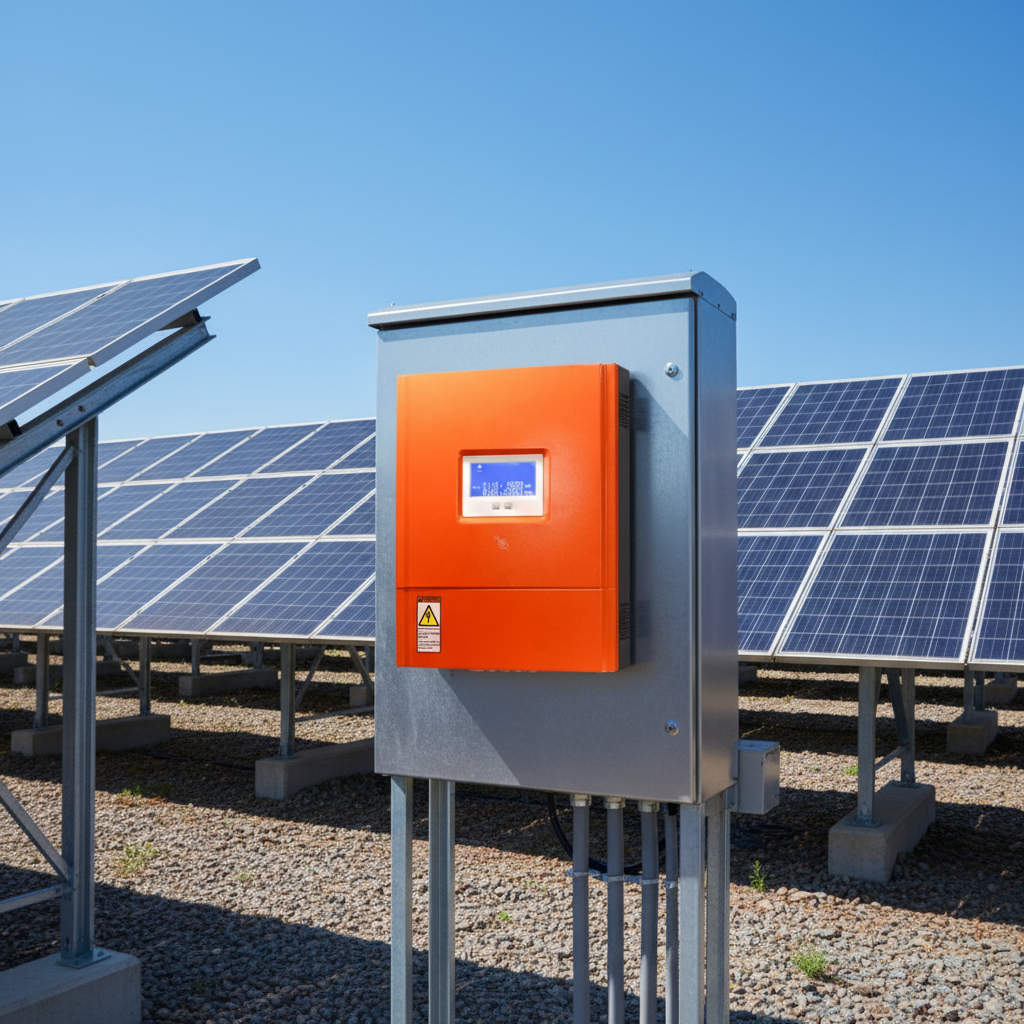

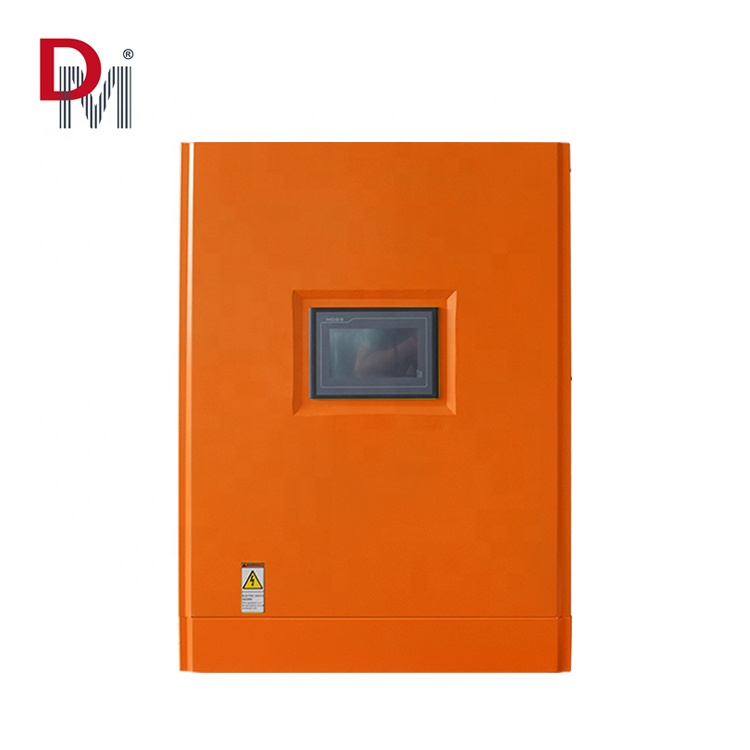

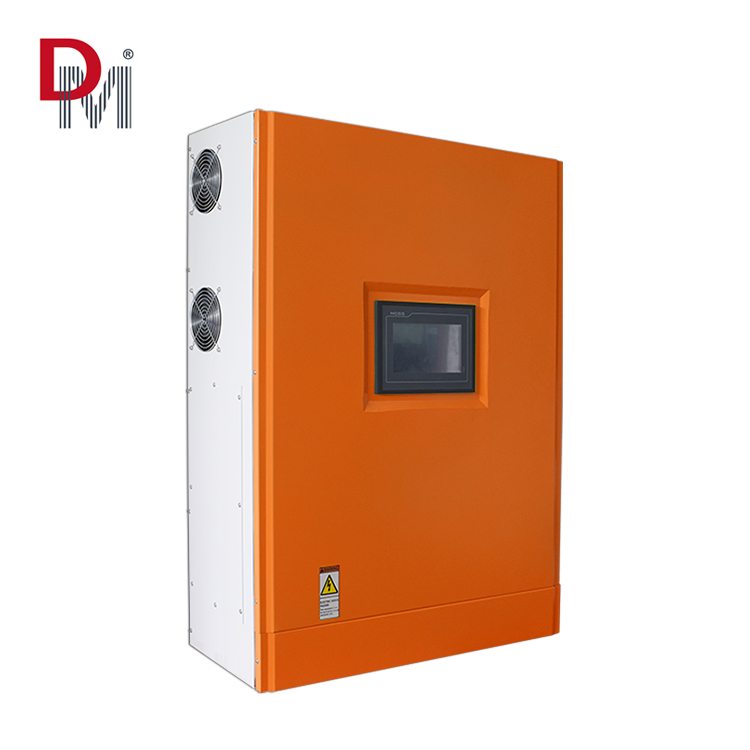

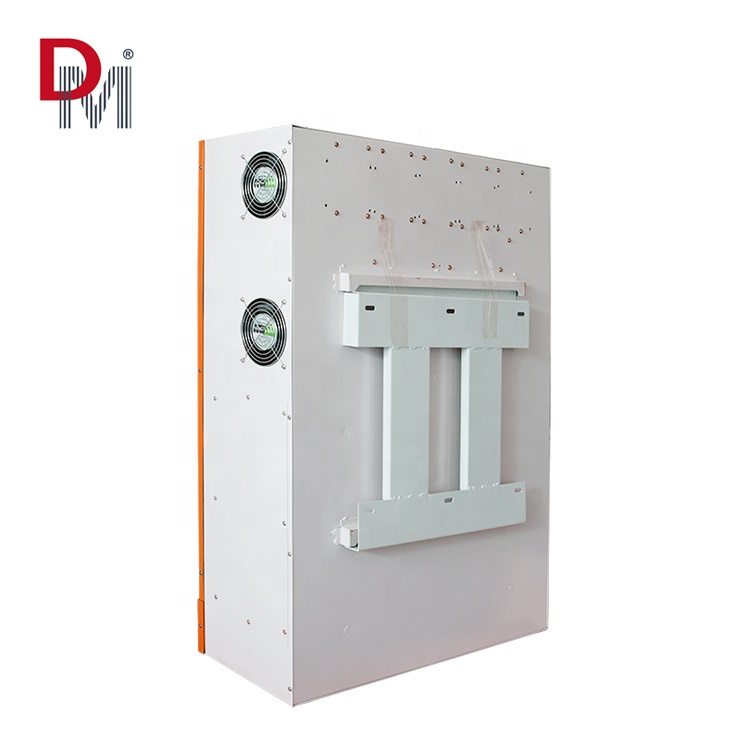

MPPT Solar Charge Controller 460V/520V 500A/600A LCD Display

Send Inquiry

Product Description

Bedienungsanleitung PWM Solar Charger Controller for Home Use Solar Power System 24V 48V 96V 120V 220V 240V (30A, 50A, 60A, 80A)

Product introduction

Properties of the Solar Charge Controller

Design for off-grid solar power system.
Applicable to different kinds of batteries.
Modular design with simple structure and easy maintenance.
Automatic power control function.
LCD display: Solar panel current, solar panel voltage, solar panel power, battery group voltage, charge current.
MODBUS protocol compatibility solved for integration with other devices, facilitating secondary development.
Charge module protection: when batteries are broken or open circuit, the inverter powers loads directly via the controller without damaging the charge module.
Battery protection: disconnects battery upon charge module faults to prevent over-charging (high voltage optional).
Perfect protection function: Solar reverse charge protection, Solar reverse connection protection, Battery reverse connection protection, Battery overcharge protection, Battery over current protection etc., ensuring high reliability.

Operating Principle

Solar power is the generation effect of a solar panel pack that converts solar energy into direct current energy and stores it in a battery. A solar power supply system consists of a solar panel, solar charge controller, battery, inverter, AC load, etc. The solar panel converts solar energy into electricity in the presence of light while charging the battery; in the absence of light, the battery supplies power to the load.

The solar charging controller adopts the step-by-step current-limiting charging method and automatically controls the turn-on or cut-off of the multi-channel solar panels according to the change trend of voltage at the battery bank end, making full use of solar energy resources and guaranteeing the safe and reliable operation of the battery bank.

Model	MPPT solar charger	MSC-420-50	MSC-420-100	MSC-420-200
Match solar panel parameters	Solar panels power	23100Wp	46200Wp	92400Wp
	Max. Power voltage range Vmp	DC550V ~ DC800V
	Open circuit Voltage Voc	< DC1000V
	Low voltage protection Vlow-pv	> Battery Low voltage protection (Settable)
Charging characteristics	Applicable battery type	Sealed lead-acid battery, colloidal lead-acid battery, open lead-acid battery (customizable parameter options for other battery types)
	Battery rated voltage	DC420V
	Start charging Vstart-pv	Vpv > Vbat
	Floating voltage	DC508V (Settable)
	Battery Low voltage protection	Settable
	Rated charging current	50A	100A	200A
	Over current protection	60A	120A	240A
	Charging mode	Three stages: constant current (fast charging), constant pressure, floating charging
Display \ communication	Display mode	Touch screen
	Communication protocol	Modbus RTU / Modbus TCP
	Communication mode	RS485 / USB / Wifi / GPRS / RJ45 / CAN (optional)
	App cloud monitoring	Support Wifi / GPRS / Ethernet
Other features	Protection function	Input and output overvoltage and undervoltage protection, anti reverse connection protection, etc
	MPPT efficiency	≥99.5%
	Cooling Mode	Fan
	Working environment temperature	-20°C ~ +50°C
	Storage temperature	-40°C ~ +75°C
	IP protection level	IP20 (customizable outdoor IP65)
