50KW 60KW 70KW 80KW 100KW 3 Phase Solar Inverter Solar Hybrid Inverter for Using American ATEMEL Company

50KW 60KW 70KW 80KW 100KW Off Grid Hybrid Solar Inverters 3 Phase Solar Inverter Hybrid Inverter Without Battery

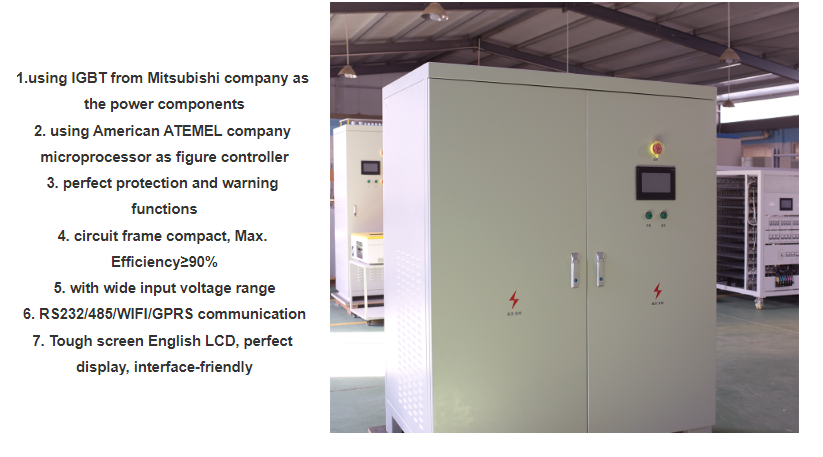

Product Introduction

Using IGBT from Mitsubishi company as the power components
Using American ATEMEL company microprocessor as figure controller
Perfect protection and warning functions
Circuit frame compact, Max. Efficiency ≥ 90%
With wide input voltage range
RS232/485/WIFI/GPRS communication
Touch screen English LCD, perfect display, interface-friendly

Off-grid Inverter Overview

Off-grid inverter converts the DC to AC for the load. It can according to user requirements, increase the utility charge, mains bypass, and other functions. Off-grid inverters include two types: high frequency off grid inverters and industry frequency off grid inverters (with isolated transformer), applied to different territories. Industry inverters (with isolated transformer) includes single phase off grid inverter and three phase off grid inverter.

Applications

For desolate area like mountain, island, pasturing area, etc.
For transportation system like beacon light, traffic light, street light, etc.
For communication system: unattached operation microwave middle station, optical cable maintenance station, etc.
For photovoltaic power station, wind-solar (diesel) power station, park charging station, family power house, factory power station, etc.
For solar building: has good business future. For the new technology application project.

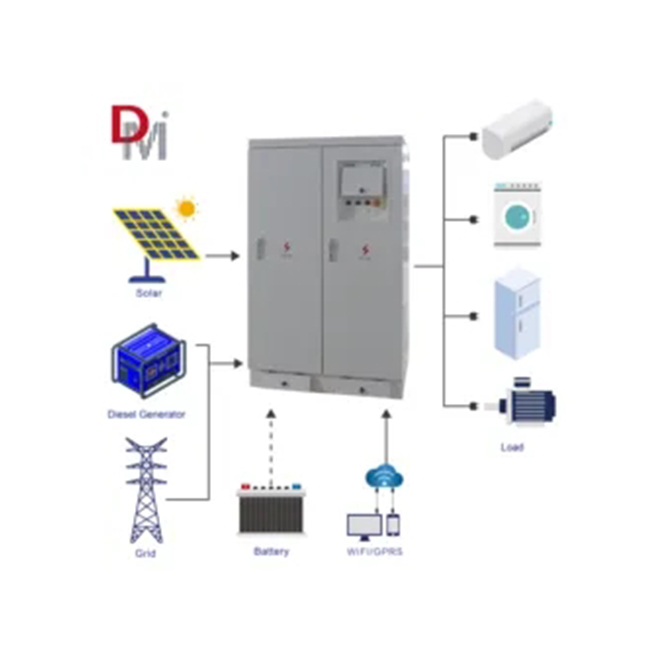

Off Grid Inverter In The New Energy Power System (Off-grid Wind Solar Hybrid System)

Touch Screen Display

Product Parameters

Technical parameters of three-phase off-grid inverter 20KW

Type		NB48-20KSZ	NB96-20KSZ	NB120-20KSZ	NB240-20KSZ
DC input	Input rated voltage	48 VDC	96 VDC	120 VDC	240 VDC
	Input rated current	463 A	231 A	185 A	93 A
	Input DC voltage range	40-62VDC	80-124 VDC	100-155 VDC	200-310 VDC
AC input (AC Bypass)	Allow input voltage range	220 VAC / 380 VAC / 400 VAC ± 15% VAC
	Input rated current	55.5A / 30A / 29A
	Bypass transfer time	≤100ms (Can be customized ≤4ms version)
AC output	Output rated power	20KW
	Output rated voltage & frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output rated current	55.5A / 30A / 29A
	Output voltage accuracy	220 VAC / 380 VAC / 400 VAC ±2%
	Output frequency accuracy	50Hz / 60Hz ± 0.05%
	Waveform distortion (THD)	≤3% (Linear load)
	Dynamic response time (Load 0↔100%)	2ms
	Power factor (PF)	1
	Overload capacity	120%, 5 minutes / 200%, 3 seconds
	Crest factor (CF)	3:1
	Inverter efficiency	94%
Working Environment	Dielectric strength	1500VAC, 1minute
	Noise (1m)	≤50dB
	Ambient temperature	-20℃ ~ +60℃
	Humidity	0~90%, No condensation
	Altitude	<6000m (Higher than 2000m rated power should be reduced)
Protection function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Pure Sine Wave		Yes
Equipped with copper transformer		Yes
Communication mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
Solar Charger		Optional, available
AC Charger		Optional, available
Generator Port		Optional, available
Size(mm) / Weight(kg)		520×1160×1350 mm / 280 kg

Technical parameters of three-phase off-grid inverter 30KW

Type		NB120-30KSZ	NB240-30KSZ	NB380-30KSZ
DC input	Input rated voltage	120 VDC	240 VDC	380 VDC
	Input rated current	278A	139 A	88 A
	Input DC voltage range	100-155 VDC	200-310 VDC	320-496VDC
AC input (AC Bypass)	Allow input voltage range	220 VAC / 380 VAC / 400 VAC ± 15% VAC
	Input rated current	83A / 45.5A / 43.5 A
	Bypass transfer time	≤100ms (Can be customized ≤4ms version)
AC output	Output rated power	30KW
	Output rated voltage & frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output rated current	83A / 45.5A / 43.5 A
	Output voltage accuracy	220 VAC / 380 VAC / 400 VAC ± 1%
	Output frequency accuracy	50Hz / 60Hz ±0.05%
	Waveform distortion (THD)	≤3% (Linear load)
	Dynamic response time (Load 0↔100%)	2ms
	Power factor (PF)	1
	Overload capacity	120%, 5 minutes / 200%, 3 seconds
	Crest factor (CF)	3:1
	Inverter efficiency	94%
Working Environment	Dielectric strength	1500VAC, 1minute
	Noise (1m)	≤50dB
	Ambient temperature	-20℃ ~ +60℃
	Humidity	0~90%, No condensation
	Altitude	<2000m (Higher than 2000m rated power should be reduced)
Protection function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Pure Sine Wave / Copper Transformer		Yes / Yes
Communication mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
Solar Charger / AC Charger / Generator Port		Optional, available / Optional, available / Optional, available
Size(mm) / Weight(kg)		66013001600mm / 360kg

Technical parameters of three-phase off-grid inverter 40KW

Type		NB220-40KSZ	NB240-40KSZ	NB380-40KSZ
DC input	Input rated voltage	220Vdc	240Vdc	380 VDC
	Input rated current	202 A	185 A	117 A
	Input DC voltage range	180-279 VDC	200-310 VDC	320-496VDC
AC input (AC Bypass)	Allow input voltage range	220 VAC / 380 VAC / 400 VAC ± 15% VAC
	Input rated current	111.2A / 60.8A / 58A
	Bypass transfer time	≤100ms (Can be customized ≤4ms version)
AC output	Output rated power	40KW
	Output rated voltage & frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output rated current	111.2A / 60.8A / 58A
	Output voltage accuracy	220 VAC / 380 VAC / 400 VAC ± 1%
	Output frequency accuracy	50Hz / 60Hz ±0.05%
	Waveform distortion (THD)	≤3% (Linear load)
	Dynamic response time (Load 0↔100%)	2ms
	Power factor (PF)	1
	Overload capacity	120%, 5 minutes / 200%, 3 seconds
	Crest factor (CF)	3:1
	Inverter efficiency	94%
Working Environment	Dielectric strength	1500VAC, 1minute
	Noise (1m)	≤50dB
	Ambient temperature	-20℃ ~ +60℃
	Humidity	0~90%, No condensation
	Altitude	<6000m (Higher than 2000m rated power should be reduced)
Protection function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Pure Sine Wave / Copper Transformer		Yes / Yes
Communication mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
Solar Charger / AC Charger / Generator Port		Optional / Optional / Optional
Size(mm) / Weight(kg)		76014001600mm / 550kg

Technical parameters of three-phase off-grid inverter 50KW

Type		NB480-50KSZ	NB380-50KSZ
DC input	Input rated voltage	480 VDC	380 VDC
	Input rated current	115 A	146 A
	Input DC voltage range	400-620 VDC	320-496VDC
AC input (AC Bypass)	Allow input voltage range	220 VAC / 380 VAC / 400 VAC ± 15% VAC
	Input rated current	139A / 76A / 72.5A
	Bypass transfer time	≤100ms (Can be customized ≤4ms version)
AC output	Output rated power	50KW
	Output rated voltage & frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output rated current	139A / 76A / 72.5A
	Output voltage accuracy	220 VAC / 380 VAC / 400 VAC ± 1%
	Output frequency accuracy	50Hz / 60Hz ±0.05%
	Waveform distortion (THD)	≤3% (Linear load)
	Dynamic response time (Load 0↔100%)	2ms
	Power factor (PF)	1
	Overload capacity	120%, 5 minutes / 200%, 3 seconds
	Crest factor (CF)	3:1
	Inverter efficiency	94%
Working Environment	Dielectric strength	1500VAC, 1minute
	Noise (1m)	≤50dB
	Ambient temperature	-20℃ ~ +60℃
	Humidity	0~90%, No condensation
	Altitude	<2000m (Higher than 2000m rated power should be reduced)
Protection function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Pure Sine Wave / Copper Transformer		Yes / Yes
Communication mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
Solar Charger / AC Charger / Generator Port		Optional / Optional / Optional
Size(mm) / Weight(kg)		66013001600mm / 450kg

Product Application Scenarios

Wind Solar Controller and Inverters grid

Buyers Feedback

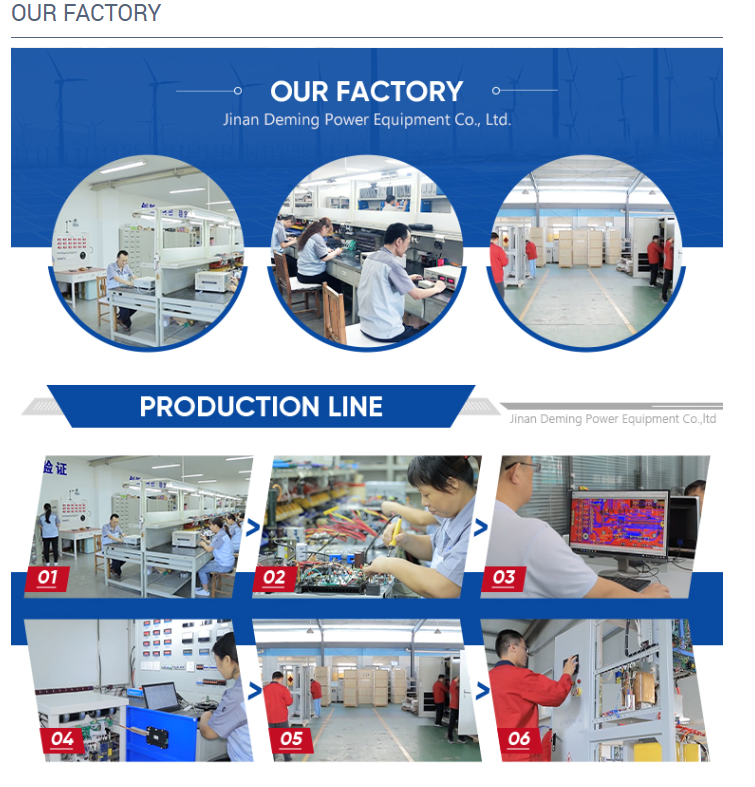

Our Factory

Frequently Asked Questions

Can you provide OEM service?

Yes, we can. We offer standard and customized OEM options to match your branding and system specifications.

Can you design the complete solar wind power system?

Yes, we can design the complete system configuration, including solar panels, controllers, and inverters, customized according to your specific power requirements.

Are you a factory or a trading company?

We are a direct manufacturer specializing in wind turbine solar controllers, off-grid and on-grid inverters, and relevant renewable power conversion equipment.

Is product customization acceptable?

Yes, customization is fully acceptable. We can modify input/output voltages, special bypass configurations, and interface features to fit custom projects.

May I visit your factory?

Yes, you are highly welcome to visit our manufacturing facilities to view our production lines, testing processes, and quality controls.

Can you provide samples for testing?

Yes, we can provide samples for quality and performance evaluation. Please contact our support team to discuss technical sample requirements.
