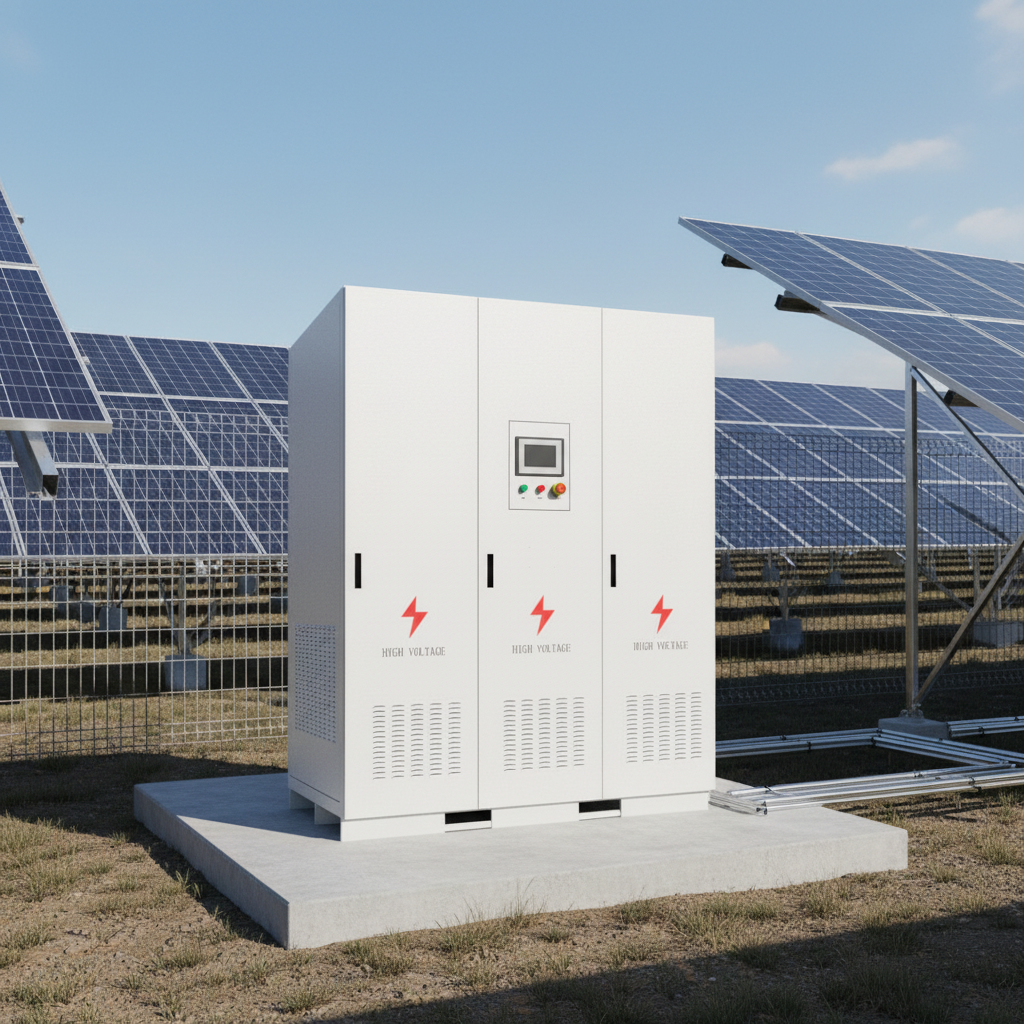

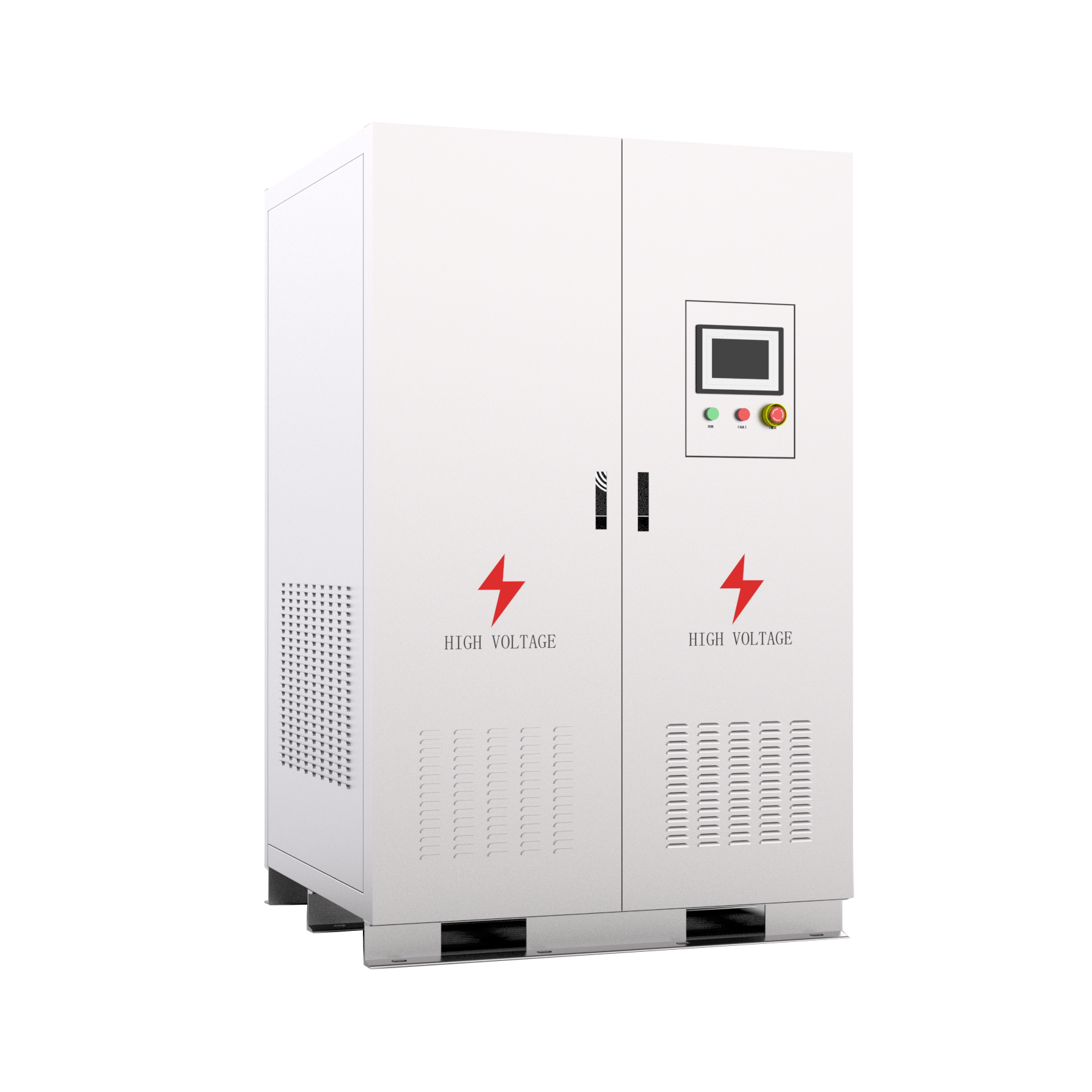

Alternative Energy String Inverter 500 KVA Three Phase off Grid Hybrid Solar AC Pure Sine Wave Inverter

Product Description

Inverter Banner 1
Inverter Banner 2
Power Frequency Pure Sine Wave Inverter Features:
  • Complete isolation-type inverter technology, noiseless output.
  • Adoption of advanced SPWM technology, pure sine wave output.
  • Dynamic current loop control technology to ensure inverter reliable operation.
  • Wide DC input voltage range.
  • Excellent EMC design.
  • Low output harmonic distortion (THD≤3%).
  • LED indicators for input voltage range, load power range, normal output & failure state.
  • Optional energy saving mode.
  • Extensive protections: reverse polarity, short-circuit, overload, under/over input voltage, over-temperature, and inverter’s inner fault identification protections.
  • Wide working temperature range (industrial level).
  • Continuous operation at full power.

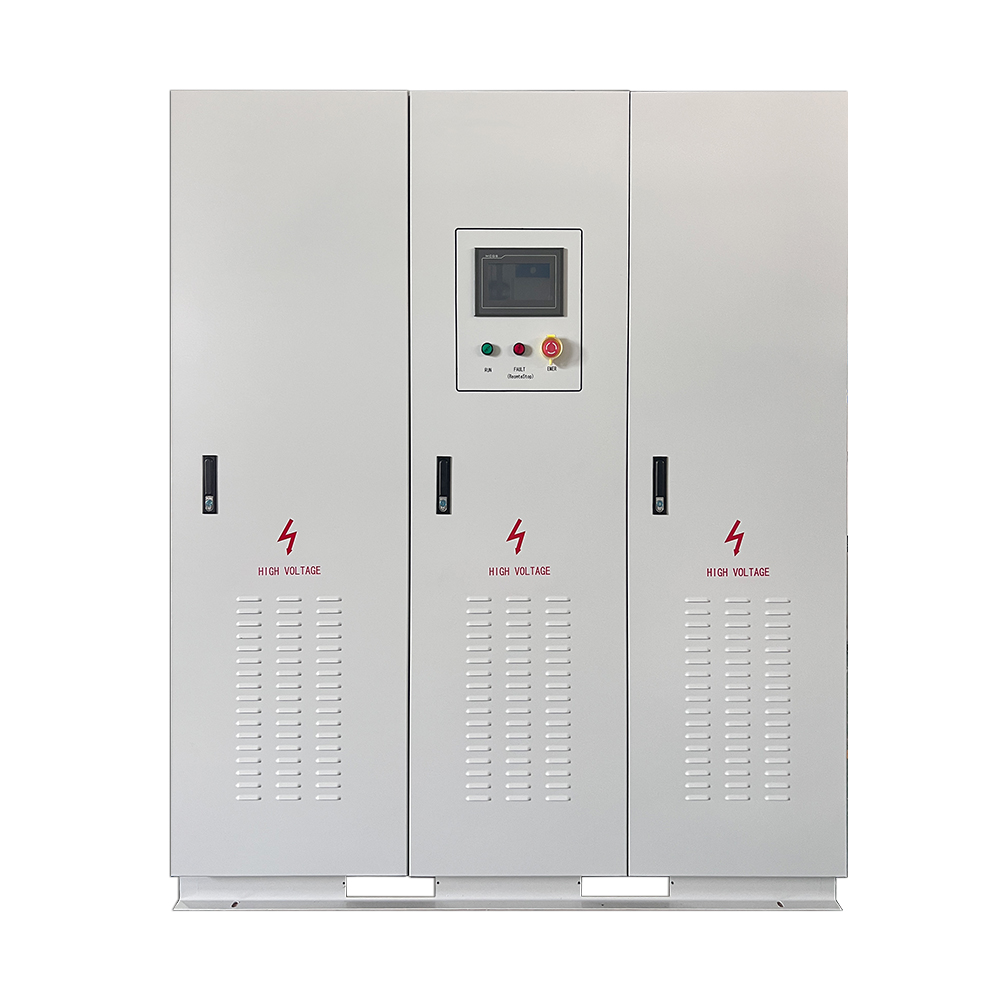

Inverter Features Image

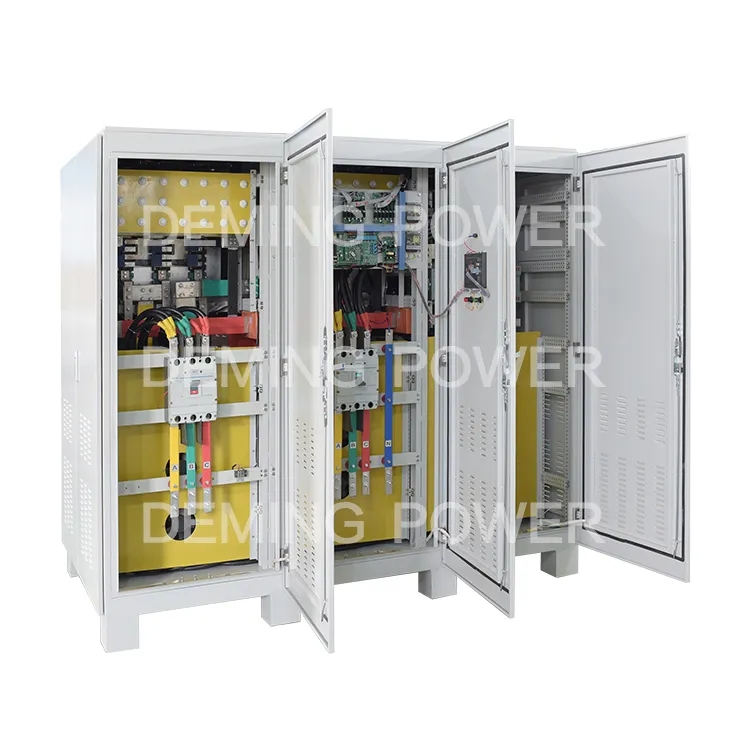

Inverter Front View

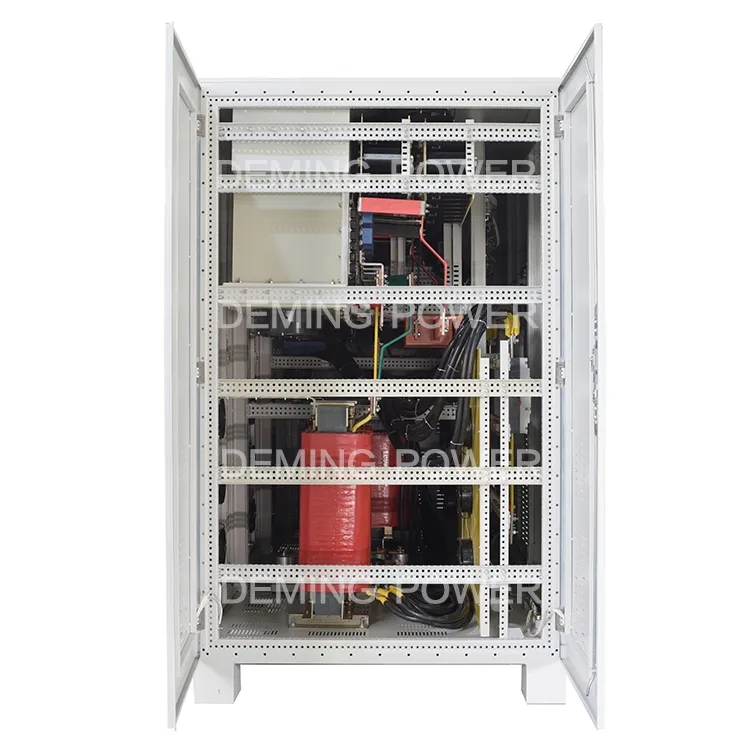

Inverter Side View

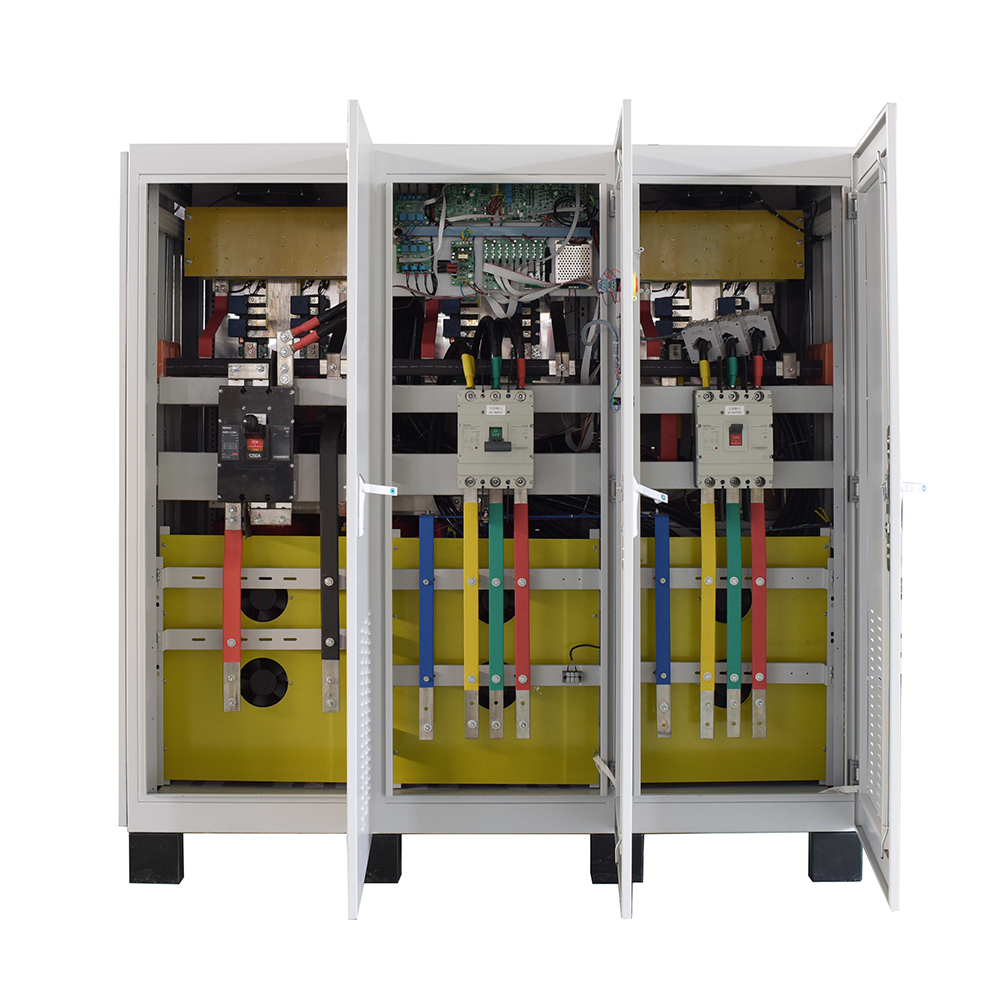

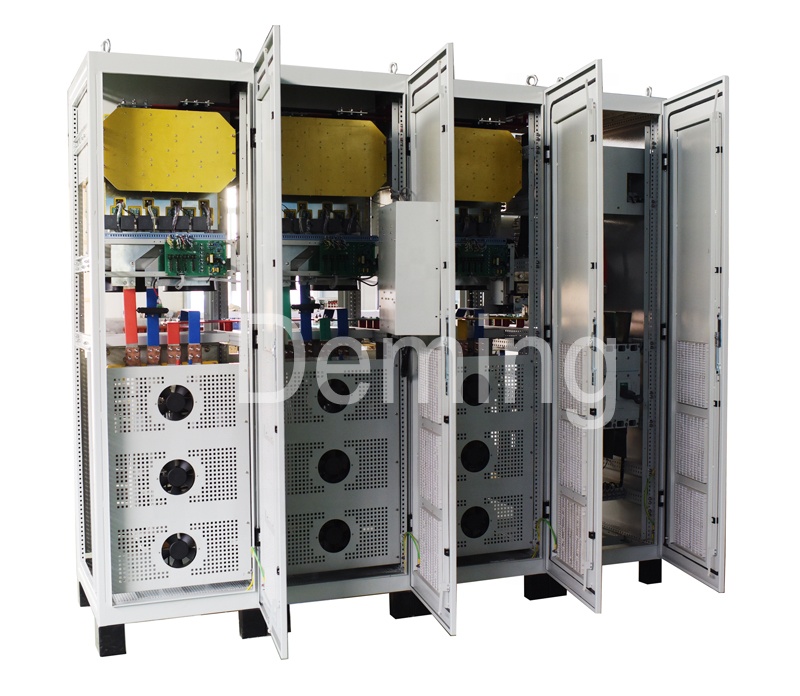

Inverter Inside View 1

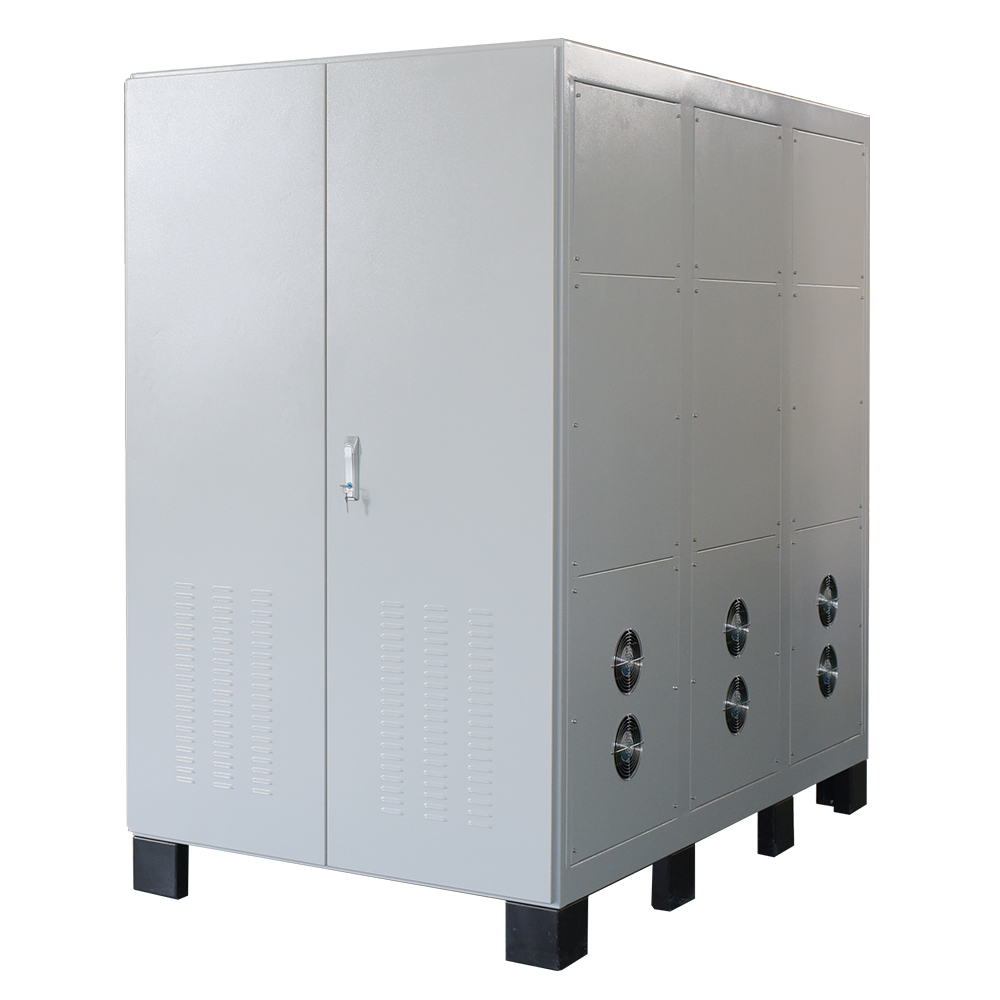

Inverter Inside View 2
Inverter Testing
Inverter Connection Panel
Inverter power supply system drawing
Inverter System Drawing
Inverter Technical Diagram
Technical Specifications
Type / Specifications ND480-200KS
DC Input Input rated voltage 480 VDC
Input rated current 417A
Input DC voltage range 350-600 VDC
AC Input Allow input voltage range 220 VAC / 380 VAC / 400 VAC ± 15% VAC
Input rated current 550A / 300A / 290A
Bypass transfer time ≤4 ms
AC Output Rated capacity 200KVA
Output rated power 160KW
Output rated voltage and frequency 220 VAC / 380 VAC / 400 VAC ,50Hz / 60Hz
Output rated current 550A / 300A / 290A
Output voltage accuracy 220 VAC / 380 VAC / 400 VAC ± 2%
Output frequency accuracy 50Hz / 60Hz ±0.05%
Waveform distortion (THD) (Linear load) ≤3%
Dynamic response time (Load 0←→100%) 2ms
Power factor (PF) 0.8
Overload capacity 120%, 3 minutes / 150%, 10 seconds
Crest factor (CF) 3:1
Inverter efficiency 96%
Working Environment Dielectric strength 1500VAC, 1 minute
Noise (1m) ≤50dB
Ambient temperature -10℃ ~ +50℃
Humidity 0~90%, No condensation
Altitude ≤5000 m
Production function Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Size 1600*1000*2000 mm
Weight 1400KG
