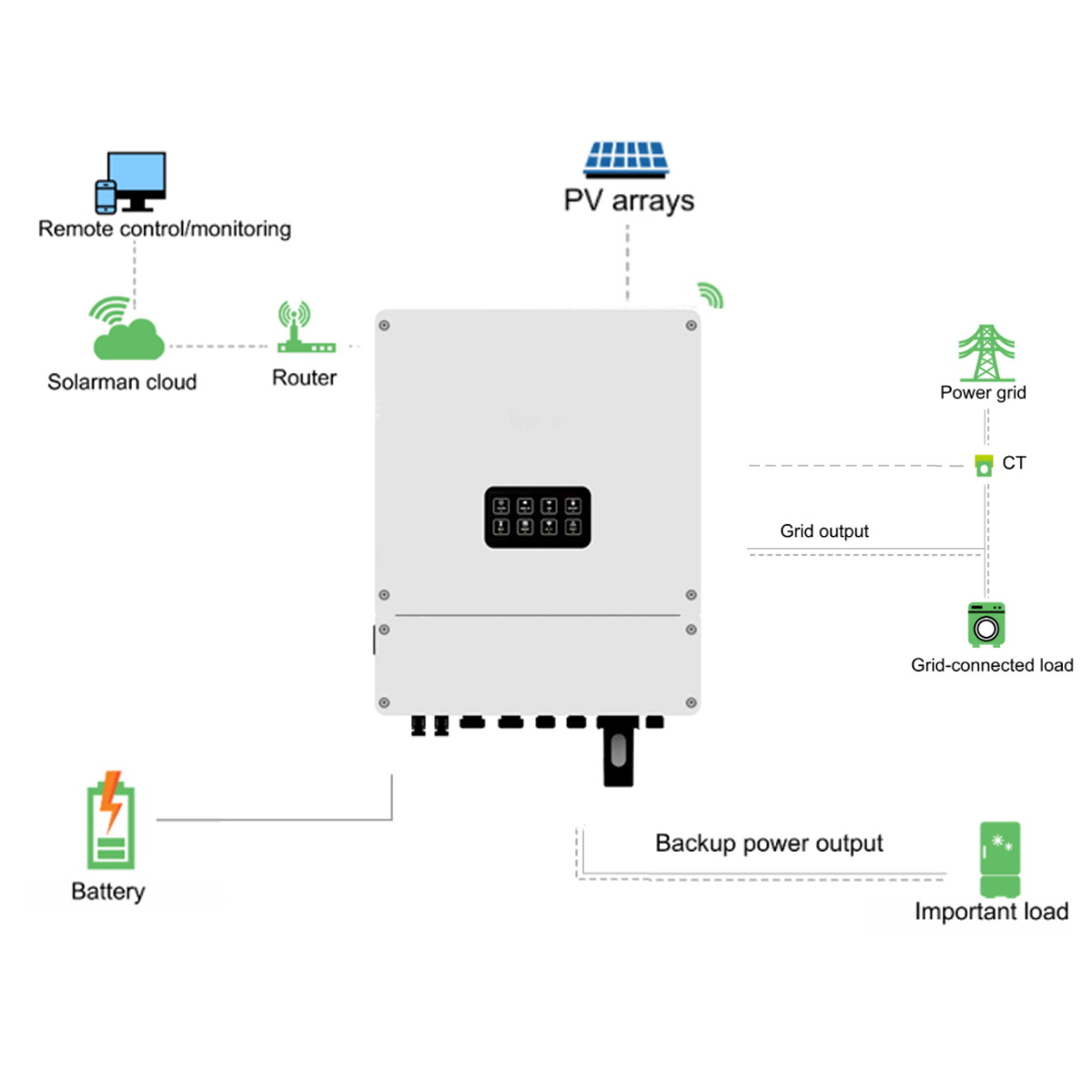

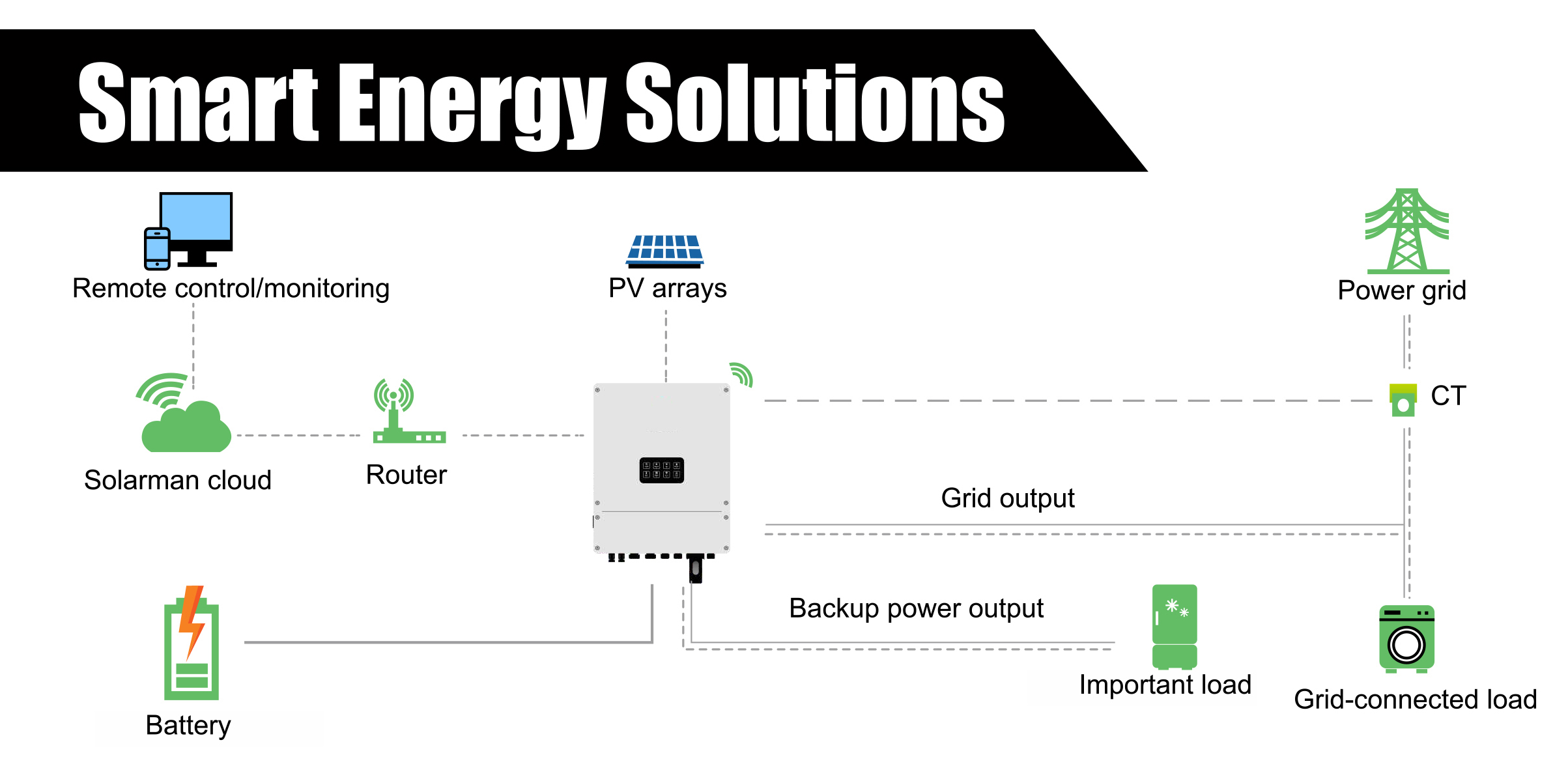

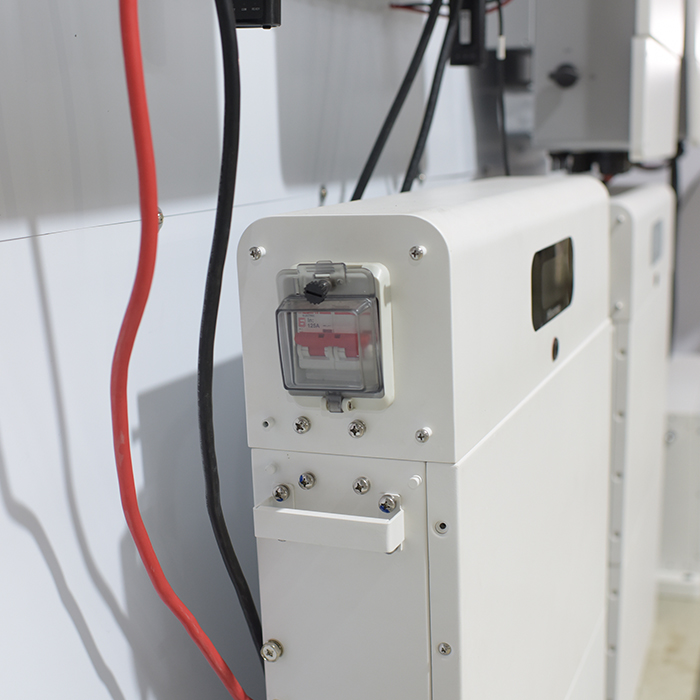

Pure Sine Wave Off Grid Energy Storage MPPT Solar Charge Controller Inverter Ground Power Unit DC/AC Converter

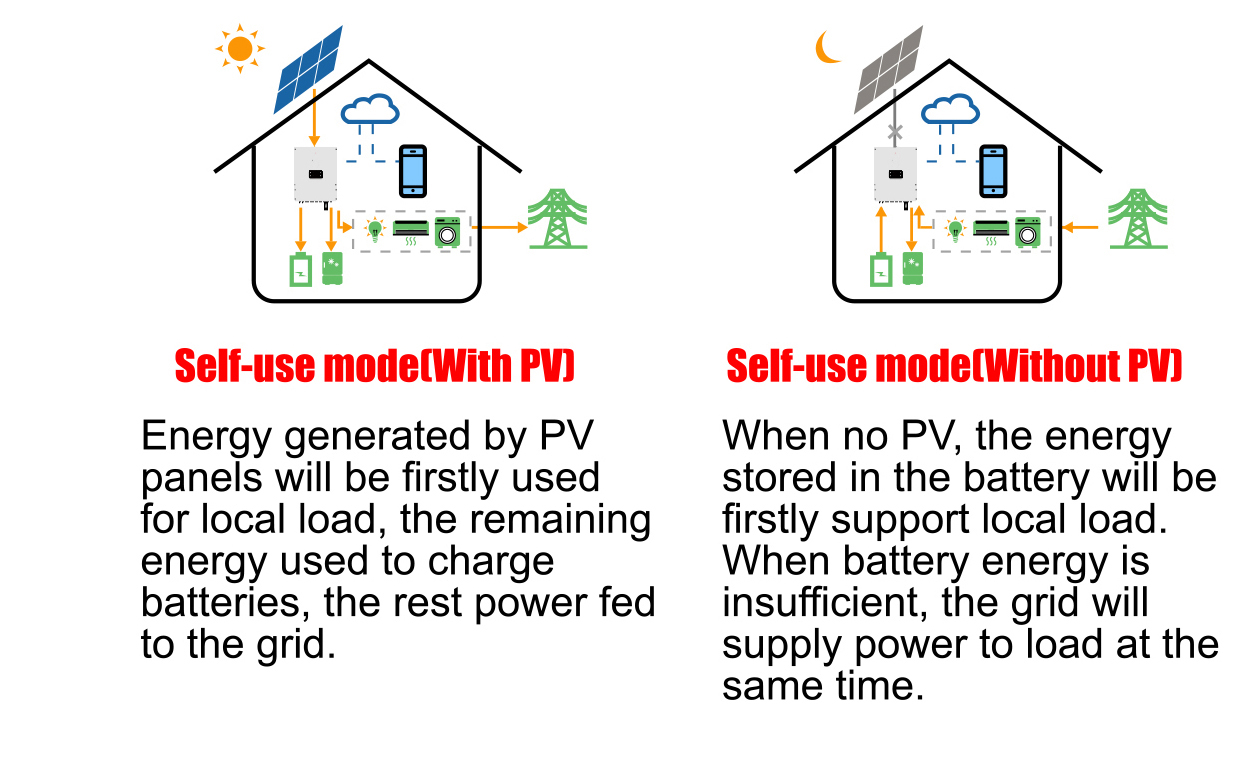

PV Self-consumption: Energy generated by PV panels will be firstly used for local load, the remaining energy used to charge batteries, and the rest power fed to the grid.
Battery Support: When no PV is available, the energy stored in the battery will support the local load first. When battery energy is insufficient, the grid will supply power to the load simultaneously.

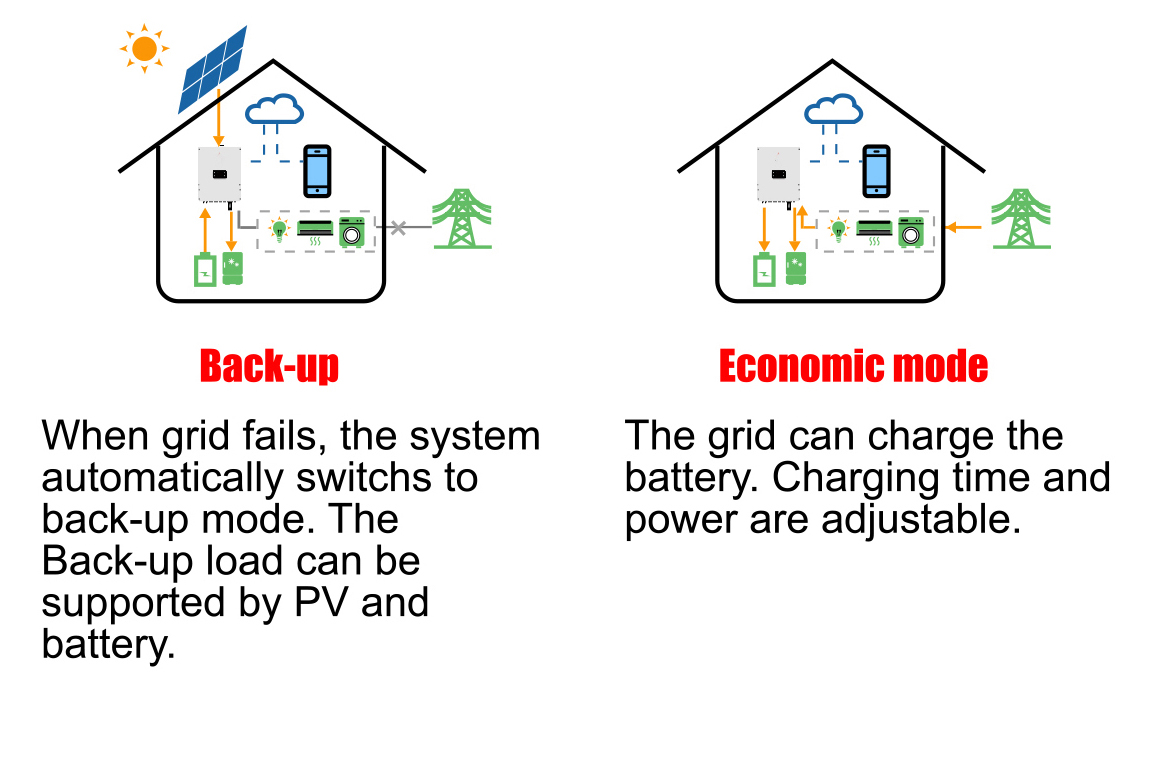

Back-up Mode: When the grid fails, the system automatically switches to back-up mode. The back-up load can be supported by both PV and battery power.
Grid Charging: The grid can charge the battery. Charging times and power levels are fully adjustable.
Key Product Advantages
The battery charge and discharge current up to 120A.
Off-grid peak power can reach twice of rated power (15S).

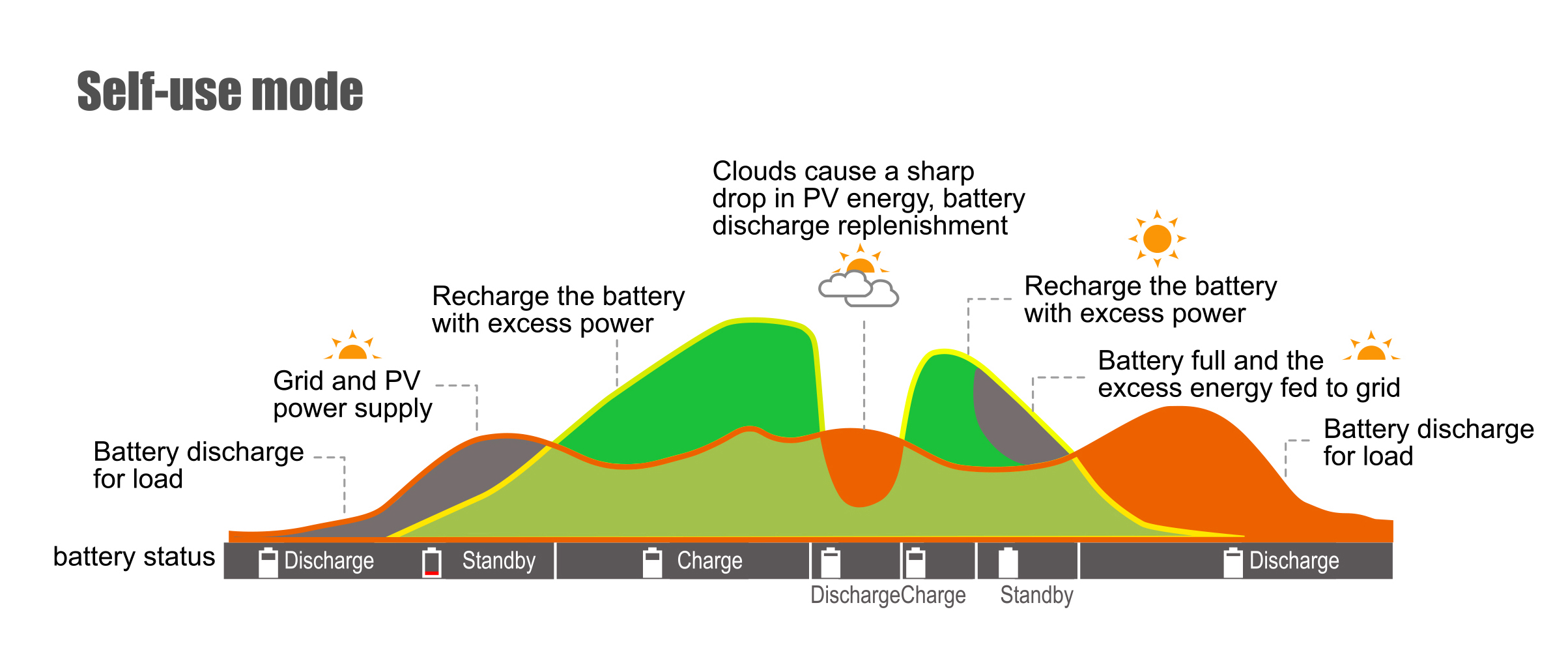

High control precision in Self-use mode.
Battery side high frequency transformer isolation, safe and reliable.
Rapid 10ms switching time.
Product Specifications
Model
DMEP-3KS48P
DMEP-3K6S48P
DMEP-4KS48P
DMEP-4K6S48P
DMEP-5KS48P
DMEP-6KS48P
Battery Input Data
Battery Type
Lithium or lead acid battery
Rated Battery Voltage (V)
48
Max Charging Voltage (V)
≤60 (Configurable)
Max Charge/Discharge Current (A)
120
PV Input Data
Max DC Input Power (kW)
3.9
4.68
5.2
5.98
6.5
7.8
Max DC Input Voltage (V)
500
Starting Voltage (V)
100~500 / 125
Max Input Current (A)
18
18/18
18/18
18/18
18/18
18/18
MPPT Number
1
2
2
2
2
2
AC Output Parameters (On-Grid)
Max Output Apparent Power (W)
3300
3960
4400
5060
5500
6000
Rated Output Voltage (V)
230
Rated Output Frequency (Hz)
50/60Hz
Max Output Current (A)
15
18
19
22
25
27
Output Power Factor
~1 (-0.8 leading ~ +0.8 lagging)
Model
DMEP-3KS48P
DMEP-3K6S48P
DMEP-4KS48P
DMEP-4K6S48P
DMEP-5KS48P
DMEP-6KS48P
AC Output Parameters (Off-Grid)
Rated Output Apparent Power (VA)
3000
3600
4000
4600
5000
6000
Max Output Apparent Power (VA)
6000, 15sec
7200, 15sec
8000, 15sec
9200, 15sec
10000, 15sec
10000, 15sec
Rated Output Voltage (V)
230 (±2%)
Rated Output Frequency (Hz)
50/60 (±0.2%)
Max Output Current (A)
15
18
19
22
25
27
Efficiency
Max Efficiency (Battery)
97.6% / 94.5%
Europe Efficiency
97%
Protection Features
DC Reverse-Polarity Protection
Yes
Short Circuit Protection
Yes
Output Over Current / Voltage Protection
Yes
Grid / Islanding / Temperature Protection
Yes
Basic Operating Data
Operation Temperature (°C)
-25 ~ 60
Cooling / Noise (dB)
Air cooling / <25 dB
Size (W x H x D) (mm)
424 * 555 * 197
Protection Class
IP66
Buyers Feedback

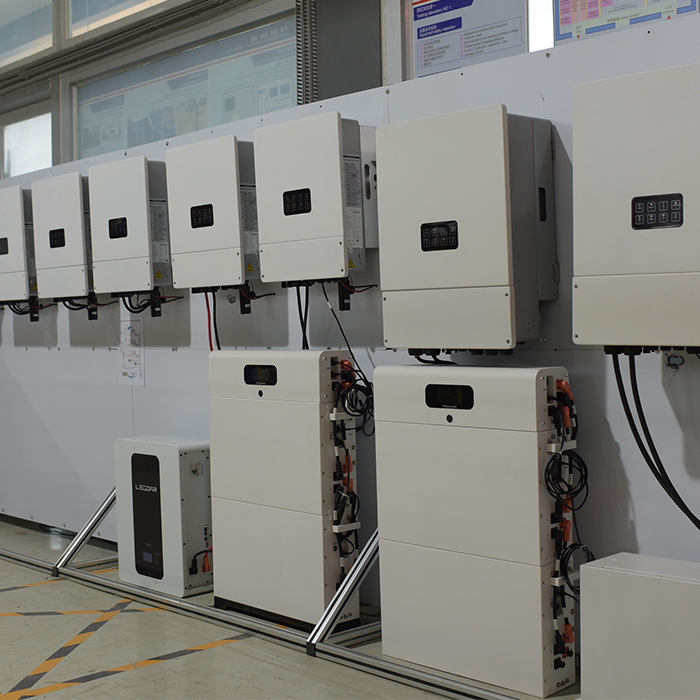

Our Production Factory
Frequently Asked Questions
1. Can you provide OEM service?
Yes, we can provide customized OEM services to meet your specific requirements.
2. Can you design the complete solar wind power system?
Yes, our engineering team can design fully integrated systems based on your local resource parameters and load requirements.
3. Are you a factory or a trading company?
We are a dedicated manufacturer specializing in high-performance wind turbine controllers, solar controllers, and various power inverters.
4. Is custom manufacturing acceptable?
Yes, customized solutions regarding system capacity, output specifications, and protection parameters are acceptable.
5. May I visit your factory?
Yes, you are welcome to visit our manufacturing facilities. Please arrange a scheduled appointment prior to your visit.
6. Can you provide samples?
Yes, we can supply evaluation samples for testing and performance qualification.
