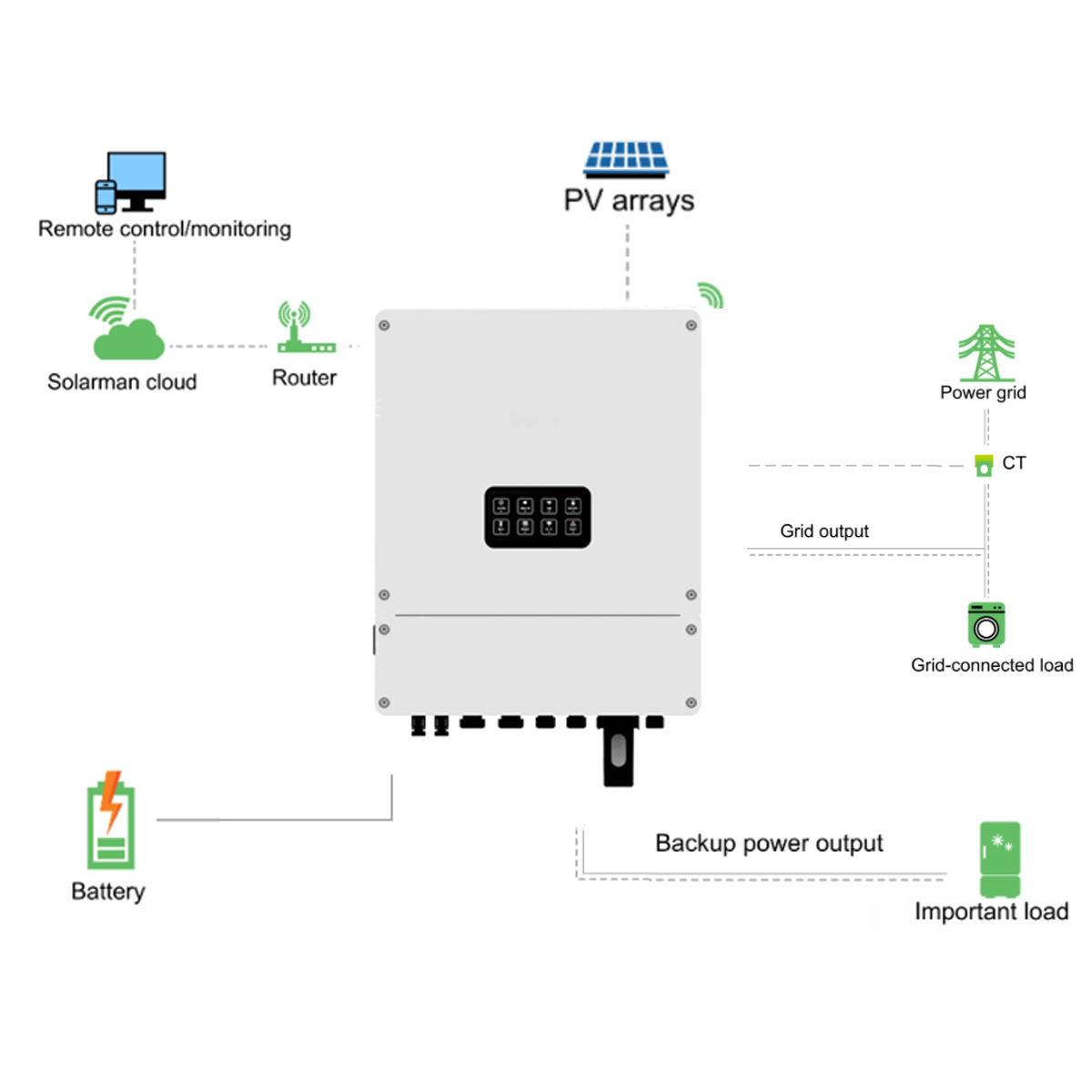

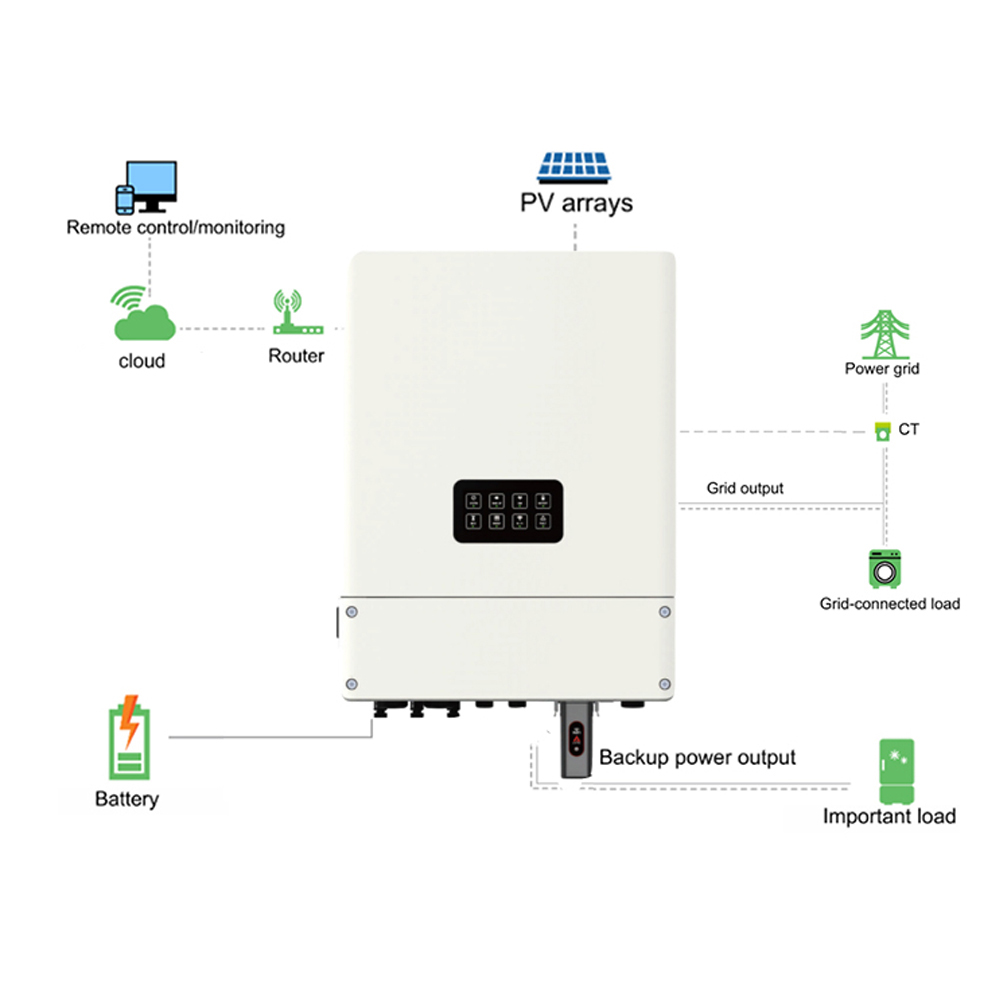

Energy generated by PV panels will be firstly used for local load, the remaining energy used to charge batteries, the rest power fed to the grid.
When no PV, the energy stored in the battery will be firstly support local load. When battery energy is insufficient, the grid will supply power to load at the same time.
When grid fails, the system automatically switches to back-up mode. The Back-up load can be supported by PV and battery.
The grid can charge the battery. Charging time and power are adjustable.
| Model | DMEP-3KS48P | DMEP-3K6S48P | DMEP-4KS48P | DMEP-4K6S48P | DMEP-5KS48P | DMEP-6KS48P |
|---|---|---|---|---|---|---|
| Battery input data | ||||||
| Battery Type | Lithium or lead acid battery | |||||
| Rated battery voltage (V) | 48 | |||||
| Maximum charging voltage (V) | ≤60 (Configurable) | |||||
| Maximum charge/discharge current (A) | 120 | 120 | ||||
| PV input data | ||||||
| Maximum DC input power (kW) | 3.9 | 4.68 | 5.2 | 5.98 | 6.5 | 7.8 |
| Maximum DC input voltage (V) | 500 | |||||
| MPPT Operating voltage range (V) | ||||||
| Starting voltage (V) | 100~500 / 125 | |||||
| Maximum input current (A) | 18 | 18/18 | 18/18 | 18/18 | 18/18 | 18/18 |
| MPPT number | 1 | 2 | 2 | 2 | 2 | 2 |
| AC output parameters (On-Grid) | ||||||
| Maximum output apparent power (W) | 3300 | 3960 | 4400 | 5060 | 5500 | 6000 |
| Rated output voltage (V) | 230 | |||||
| Rated output frequency (Hz) | 50/60Hz | |||||
| Max output current (A) | 15 | 18 | 19 | 22 | 25 | 27 |
| Output power factor | ~1 (-0.8 leading~+0.8 lagging) | |||||
| Model | DMEP-3KS48P | DMEP-3K6S48P | DMEP-4KS48P | DMEP-4K6S48P | DMEP-5KS48P | DMEP-6KS48P |
|---|---|---|---|---|---|---|
| AC output parameters (Off-Grid) | ||||||
| Rated output apparent power (VA) | 3000 | 3600 | 4000 | 4600 | 5000 | 6000 |
| Maximum output apparent power (VA) | 6000, 15sec | 7200, 15sec | 8000, 15sec | 9200, 15sec | 10000, 15sec | 10000, 15sec |
| Rated output voltage (V) | 230 (±2%) | |||||
| Rated output frequency (Hz) | 50/60 (±0.2%) | |||||
| Max output current (A) | 15 | 18 | 19 | 22 | 25 | 27 |
| Efficiency | ||||||
| Max efficiency (PV) | - | |||||
| Max efficiency (Battery) | 97.6% / 94.5% | |||||
| Europe efficiency | 97% | |||||
| Protection | ||||||
| DC reverse-polarity protection | Yes | |||||
| Short circuit protection | Yes | |||||
| Output over current protection | Yes | |||||
| Output over voltage protection | Yes | |||||
| Insulation resistance monitoring | Yes | |||||
| Residual current detection | Yes | |||||
| Surge protection | Yes | |||||
| Grid monitoring | Yes | |||||
| Islanding protection | Yes | |||||
| Temperature protection | Yes | |||||
| Integrated DC switch | Yes | |||||
| Basic data | ||||||
| Operation temperature (°C) | -25~60 | |||||
| Storage temperature (°C) | -30~65 | |||||
| Relative humidity | 0~95% | |||||
| Working altitude (m) | <4000 | |||||
| Cooling | Air cooling | |||||
| Noise (dB) | <25 | |||||
| Weight (kg) | 19 | |||||
| Size (width x height x depth) (mm) | 424*555*197 | |||||
| Protection class | IP66 | |||||
| Topology | HF isolation (Battery side) | |||||
