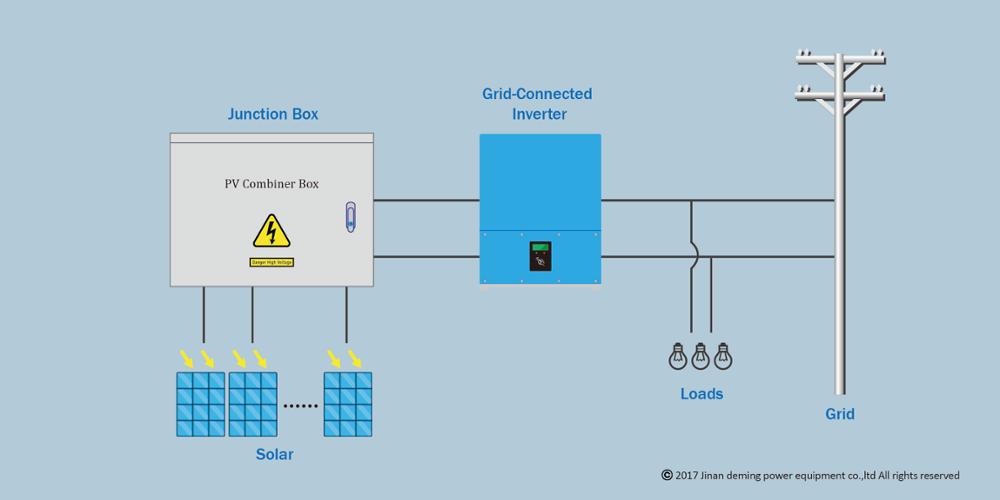

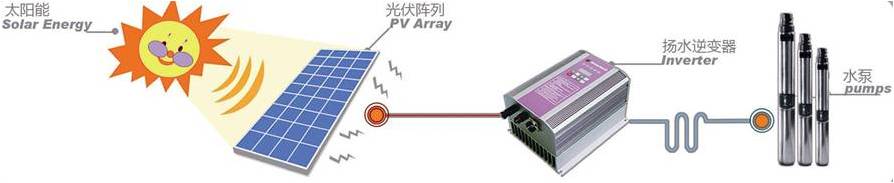

In the solar power system, in order to decrease the connecting line, easy maintenance, reduce losses, optimize system structure, improving the safety and reliability of items, the PV combiner box is usually in need between the solar panels and inverter.
Except the PV junction function, the pc combiner box should also have reverse current prevention, over-current protection, over-voltage protection, lightning protection etc a series of perfect protection functions, meanwhile, checking the running state, current, voltage and power after junction, arrester state, collection of DC circuit breaker state and Arc detection, leakage detection(optional) and so on.

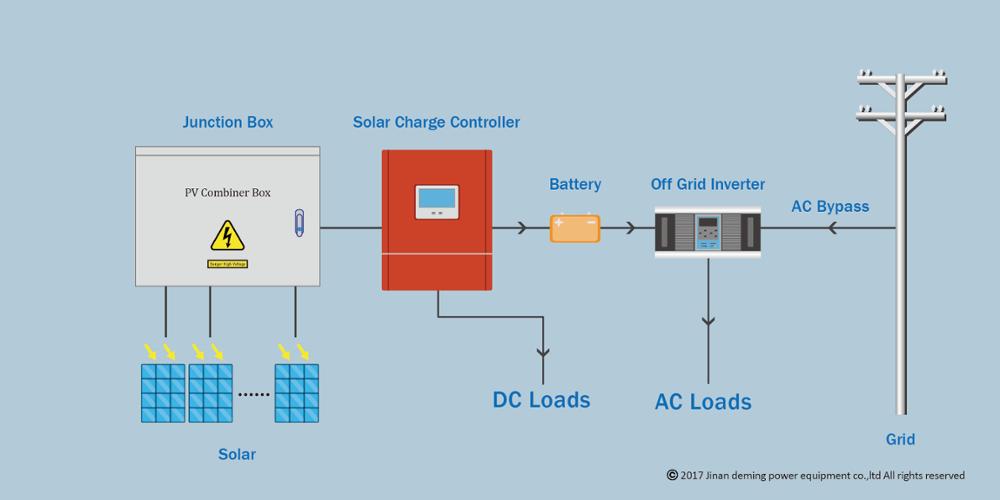

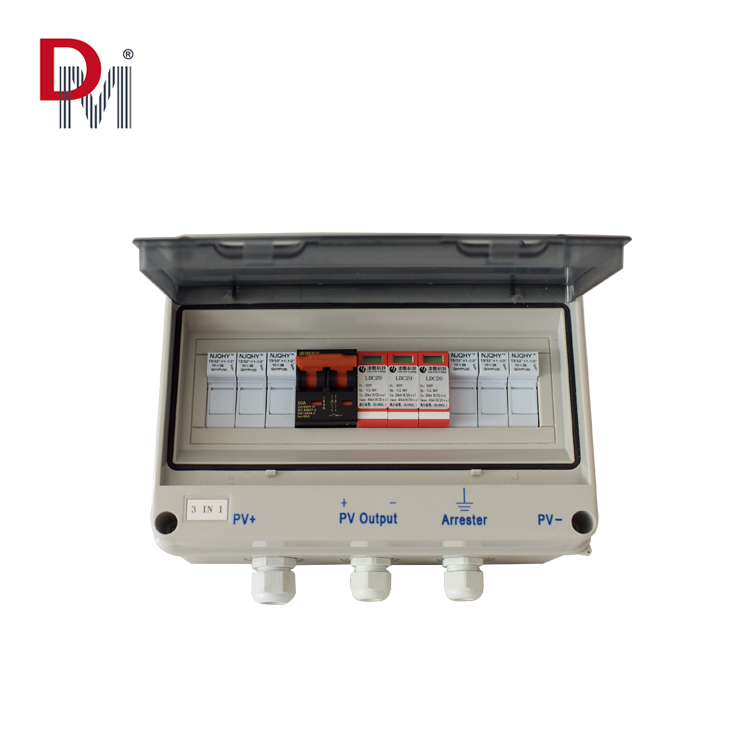

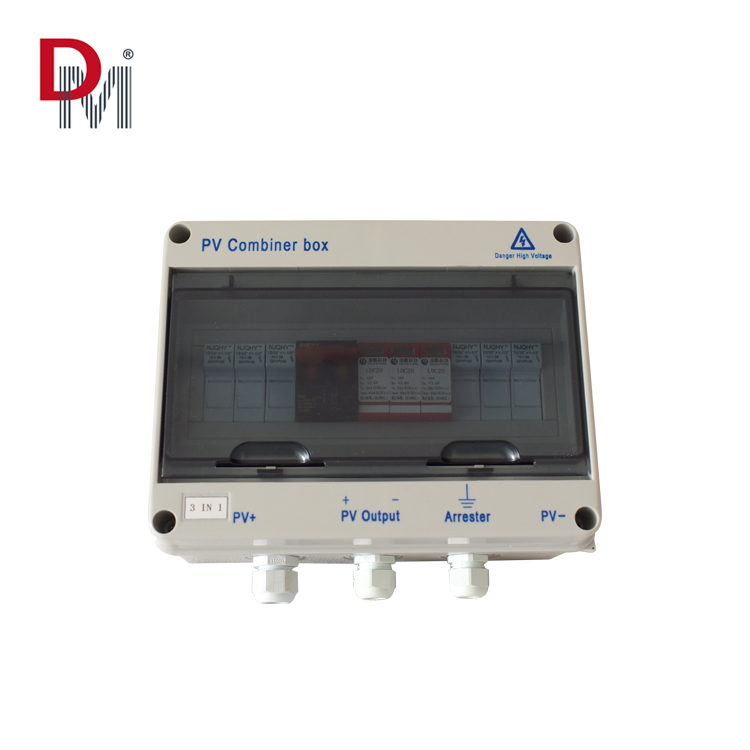

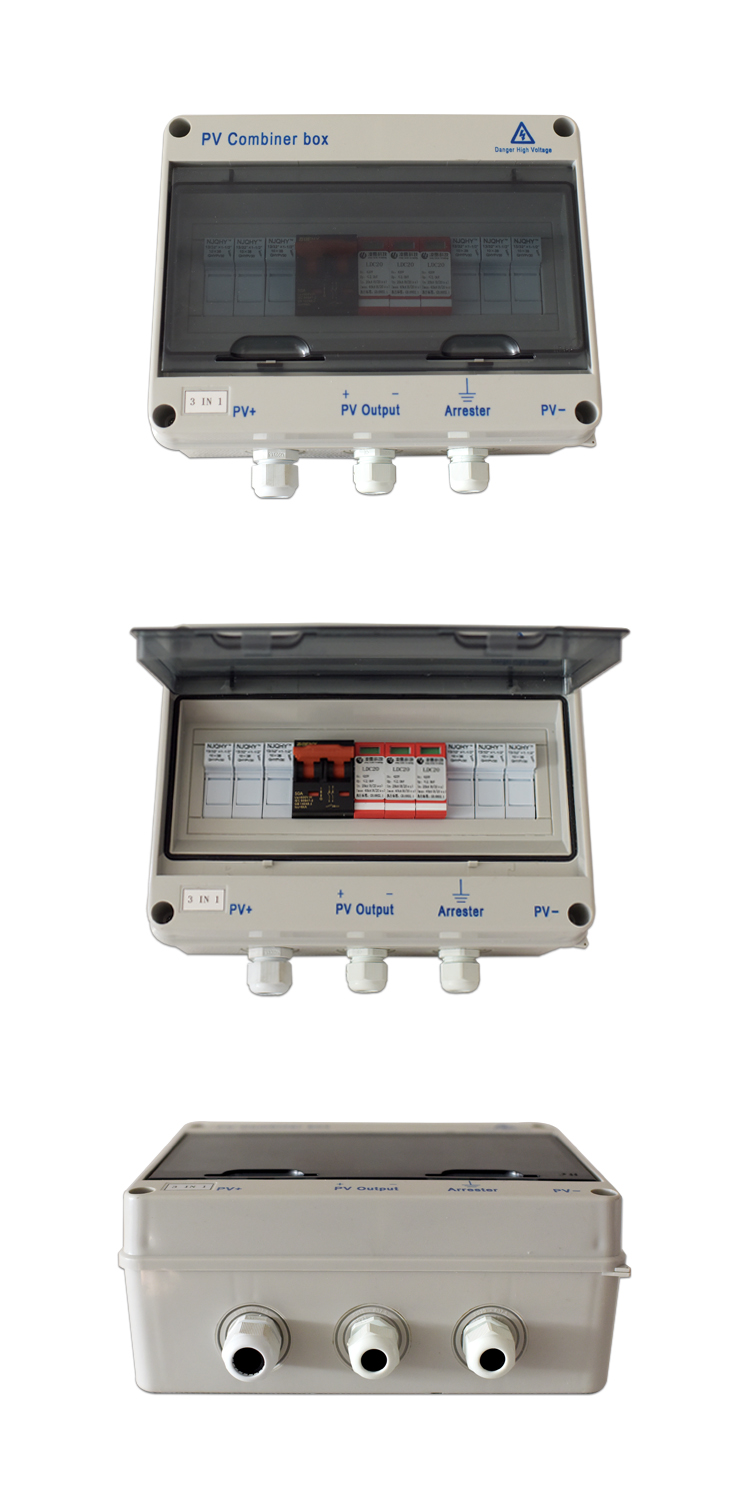

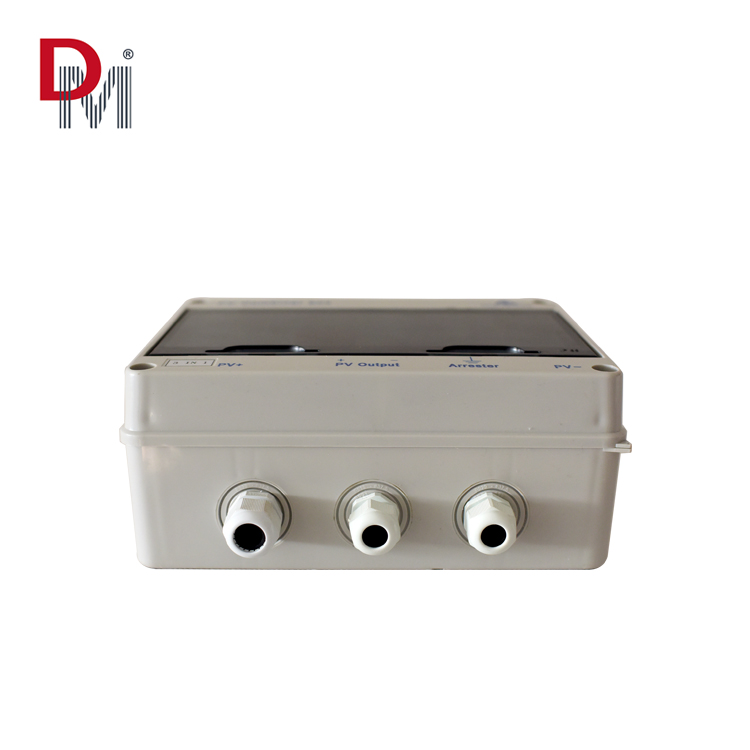

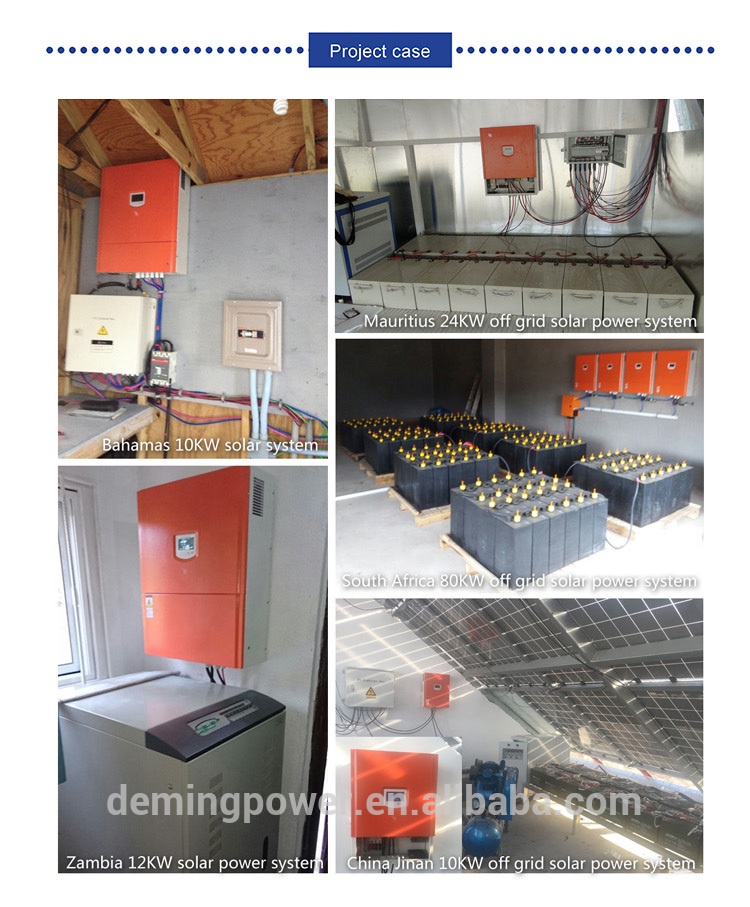

The PV combiner box we manufacture is equipped with all the functions mentioned above, configuration with on grid/off grid solar inverter to make up a complete set of solar power system.
When choose the pv combiner box, based on the input dc voltage range and output power of inverter, certain qty of panels will be connected in series as a string, certain strings in parallel will connect to the PV combiner box for junction, via control of circuit breaker and protection of arrester, then feed to the inverter.
Conform to CGC/GF002:2010, PV Array Junction Box Technical Specifications
Allowable maximum 24 strings panels to connect, Nominal voltage of each string is 10A, maximum 15A
Total output current is 250A, the maximum voltage is 1000Vdc

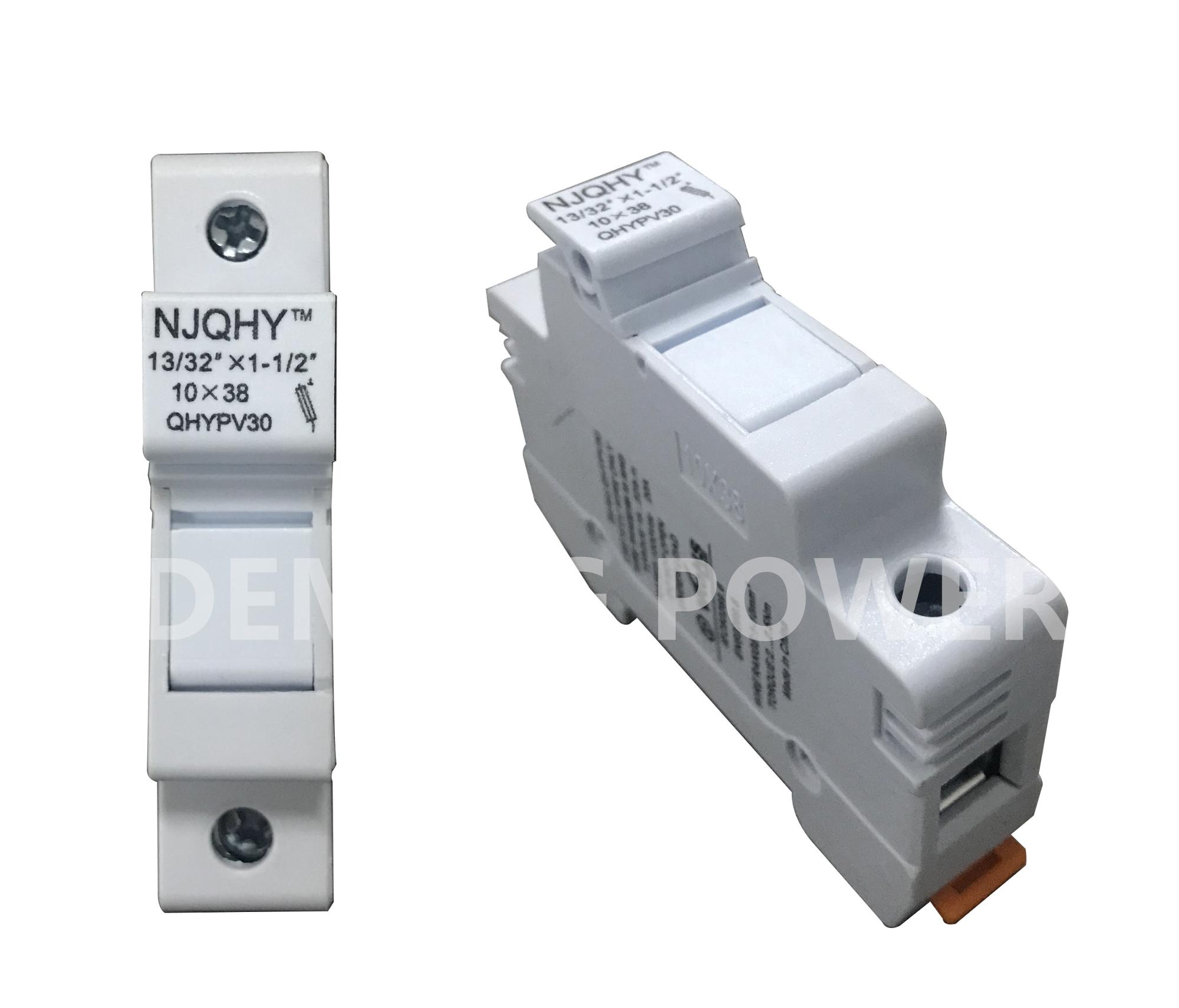

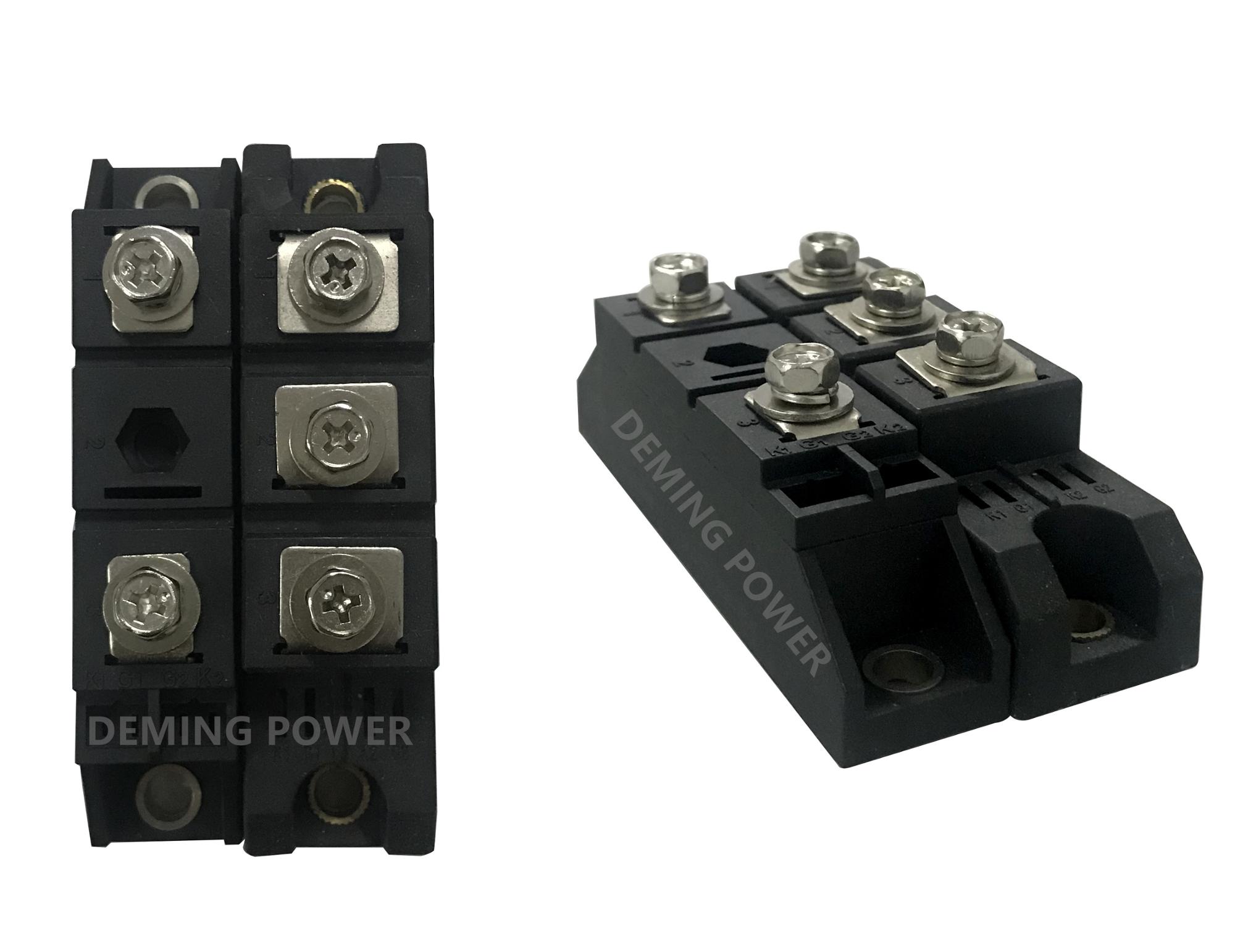

For each string, high voltage fuse protection and anti-connection protection.
Equipped with pv high voltage arrester protection
PV high voltage circuit breaker control the output, pressure-resistant DC1200V, fusing current is optional

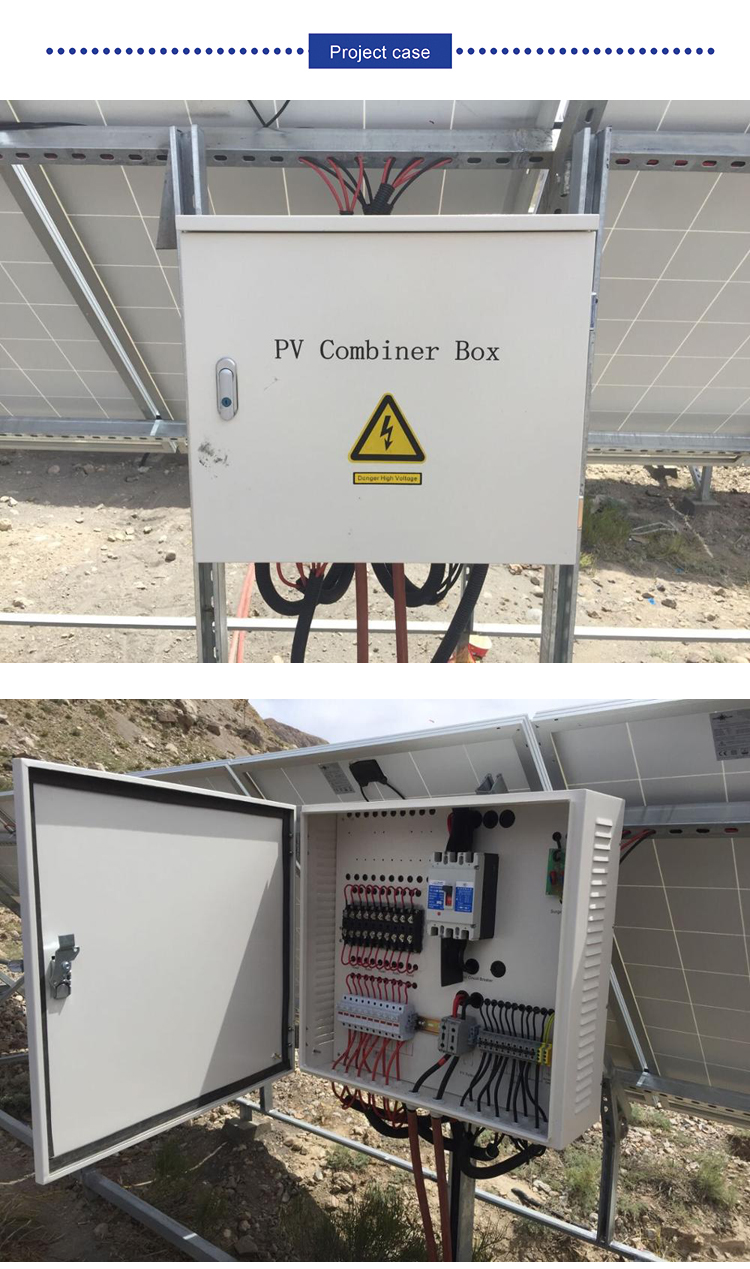

In line with outdoor installation, protection class IP65
Isolate RS485 port used for remote data communication, support MODBUS-RTU protocol.
Built-in comprehensive protection alarm function, not only the various of alarm parameters are programmable set, but also each alarm function can be set "On" Or "Off"
Real-time the harmful arc in the DC circuit, once there is the harmful arc, alarm will work and directly make the trip switch and cut off fault circuit, accordingly, prevent the fire disaster etc from the arc.

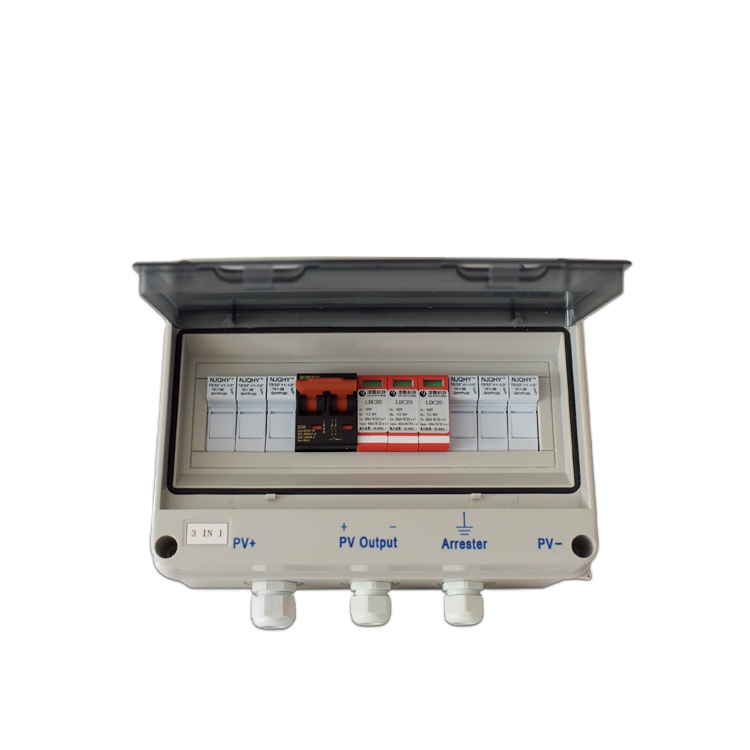

The primary function of a PV combiner box is to bring the output of several solar strings together. It optimizes the system structure, decreases the amount of connecting wires, simplifies system maintenance, reduces power loss, and enhances safety and reliability between the solar panels and the inverter.
It includes a series of robust safety functions, such as reverse current prevention, over-current protection, over-voltage protection, high-voltage lightning protection (SPD), and real-time harmful arc detection in the DC circuit which automatically trips to prevent fire hazards.
This combiner box allows a maximum of 24 strings of panels to connect. The nominal current rating for each string is 10A, with a maximum capacity of up to 15A per string.
Yes, it is designed for outdoor installation and complies with the IP65 protection class standard, ensuring high resistance to water, dust, and harsh environmental conditions.
Yes, it is equipped with an isolated RS485 communication port which supports the standard MODBUS-RTU protocol, allowing for remote data collection and system status monitoring.
