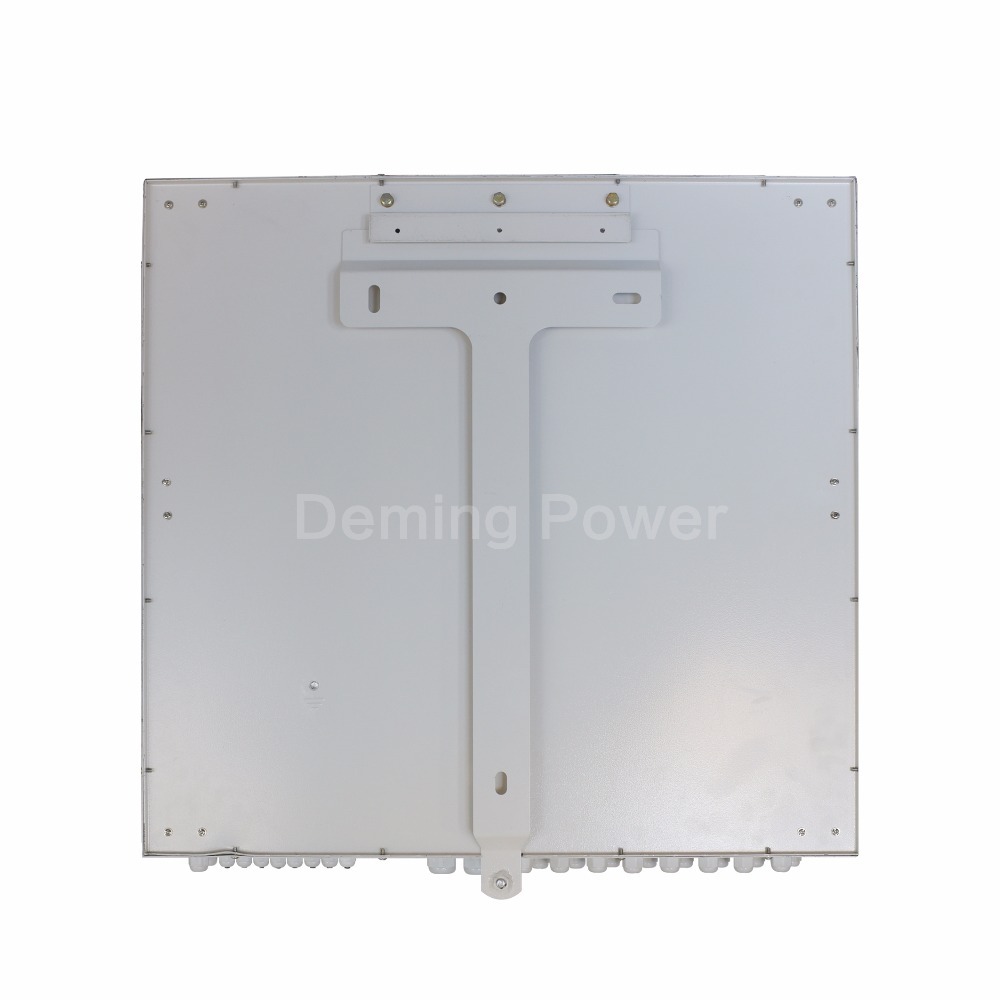

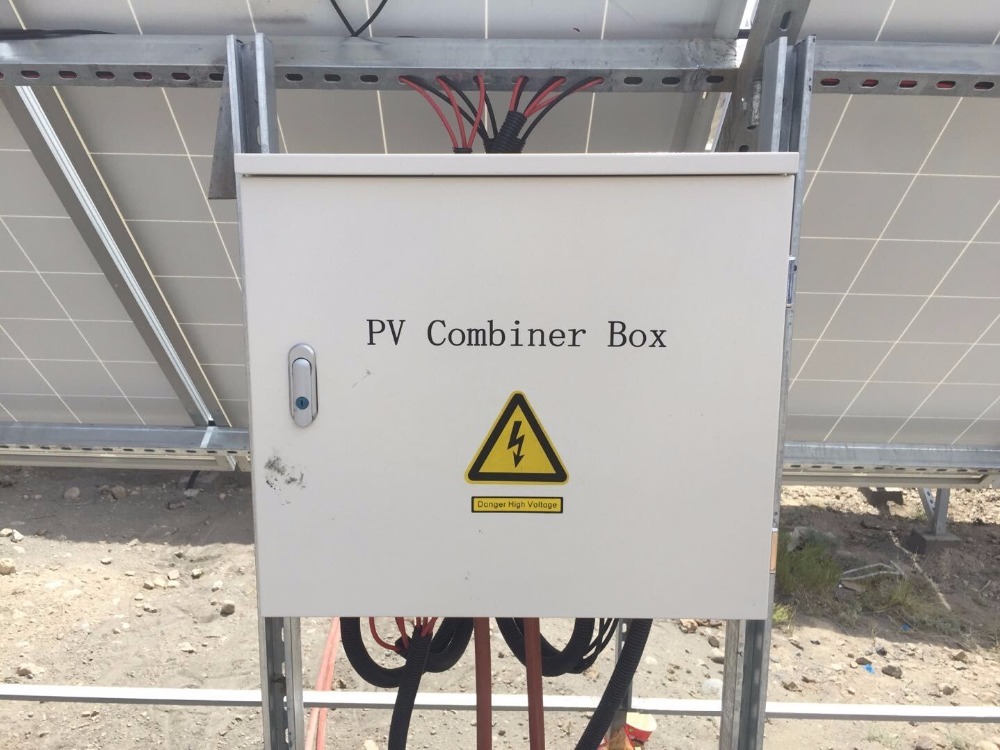

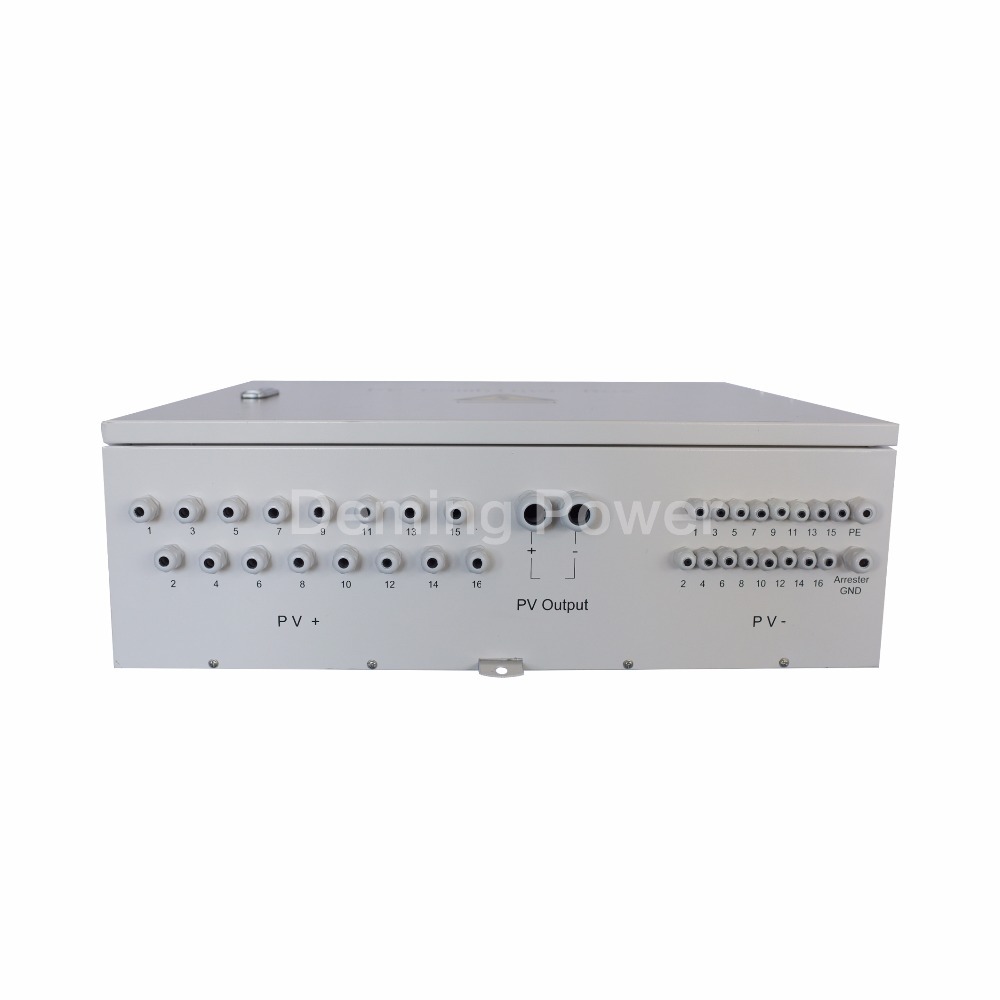

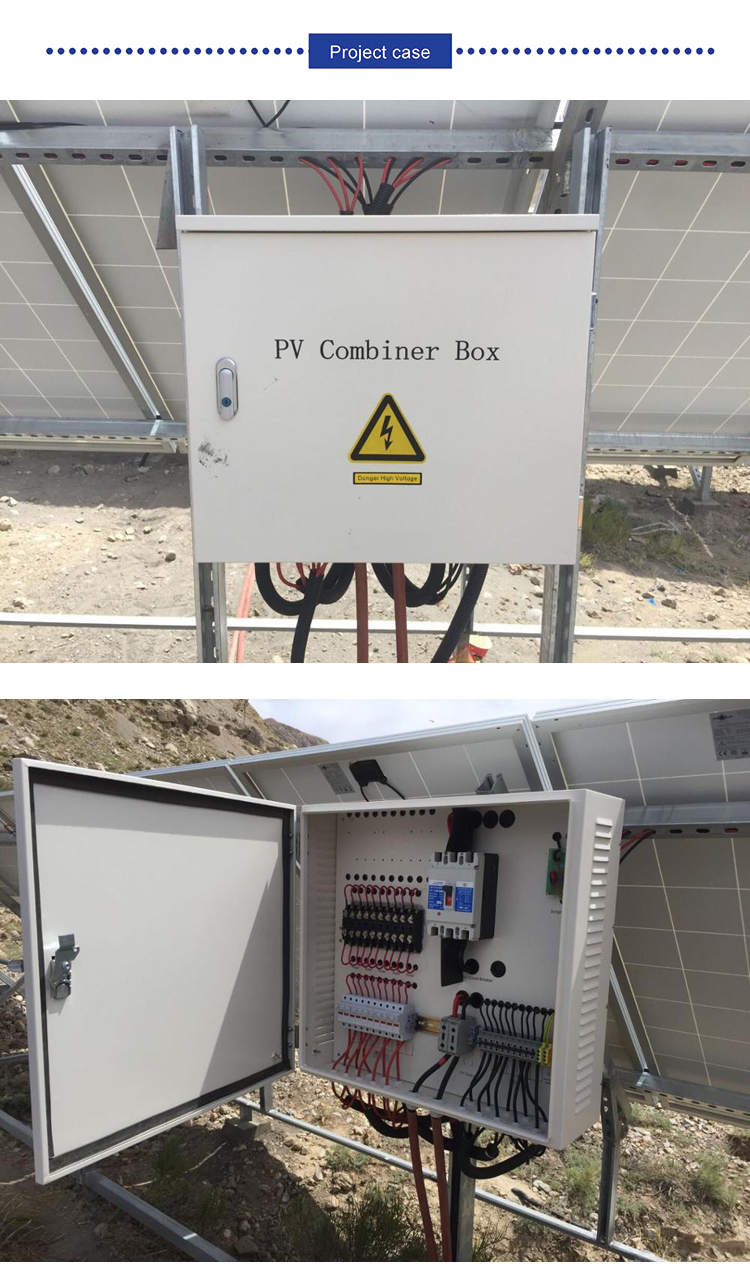

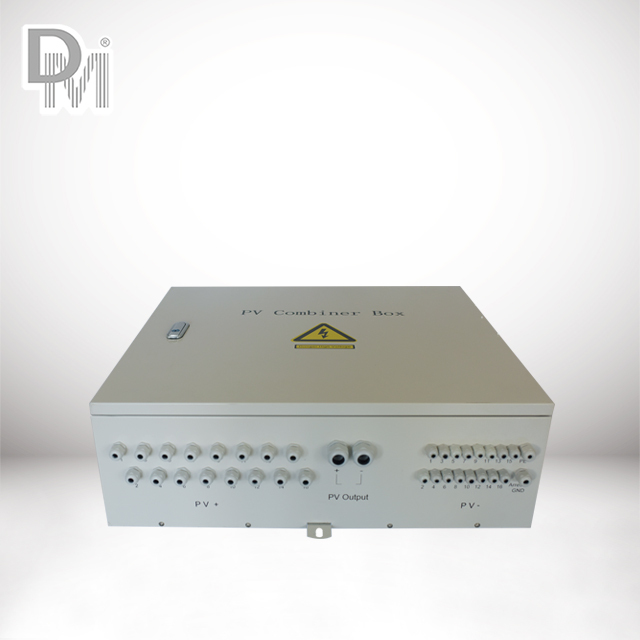

1. In the solar power system, in order to decrease the connecting line, easy maintenance, reduce losses, optimize system structure, improving the safety and reliability of items, the PV combiner box is usually in need between the solar panels and inverter.

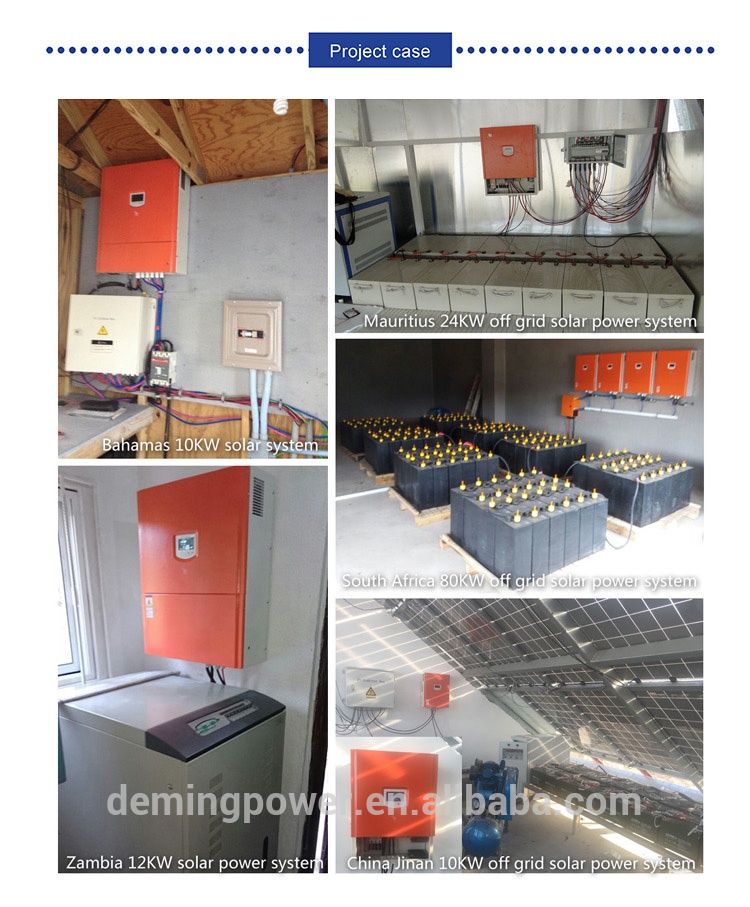

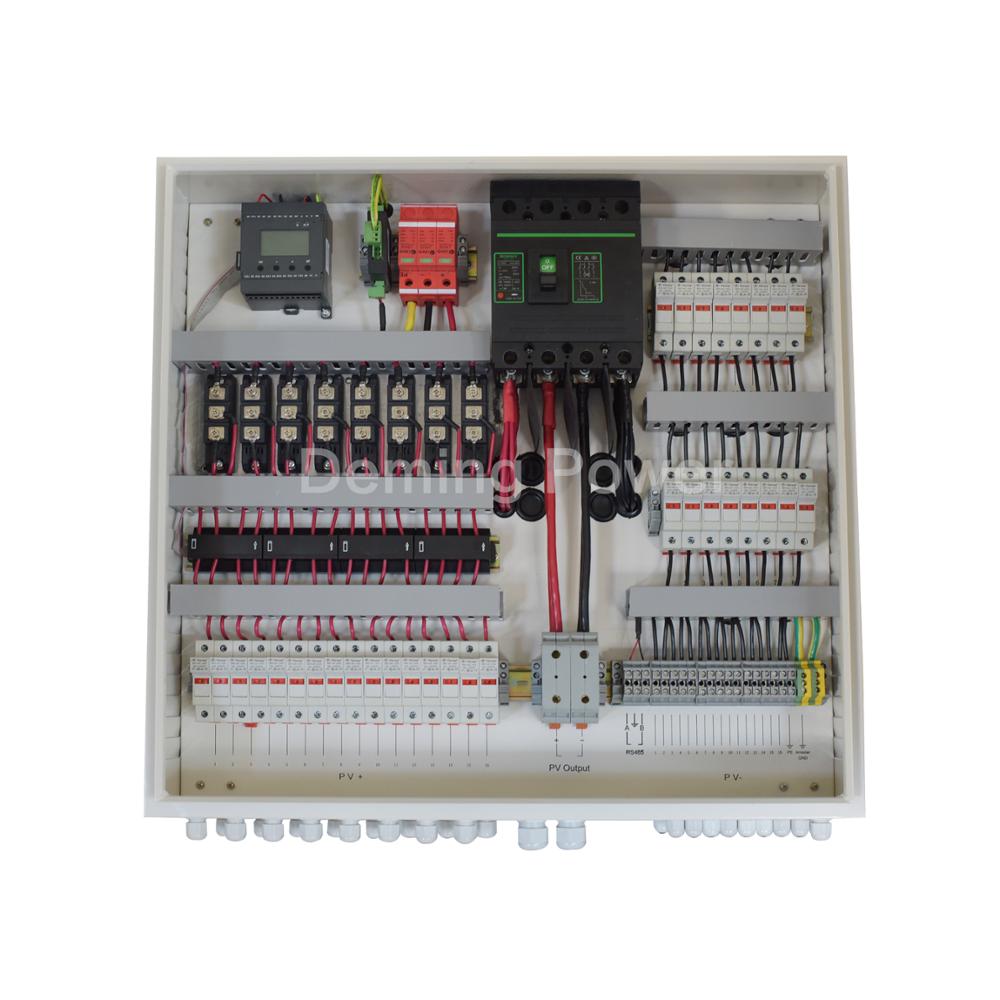

2. Except the PV junction function, the pv combiner box should also have reverse current prevention, over-current protection, over-voltage protection, lightning protection etc a series of perfect protection functions, meanwhile, checking the running state, current, voltage and power after junction, arrester state, collection of DC circuit breaker state and Arc detection, leakage detection(optional) and so on.

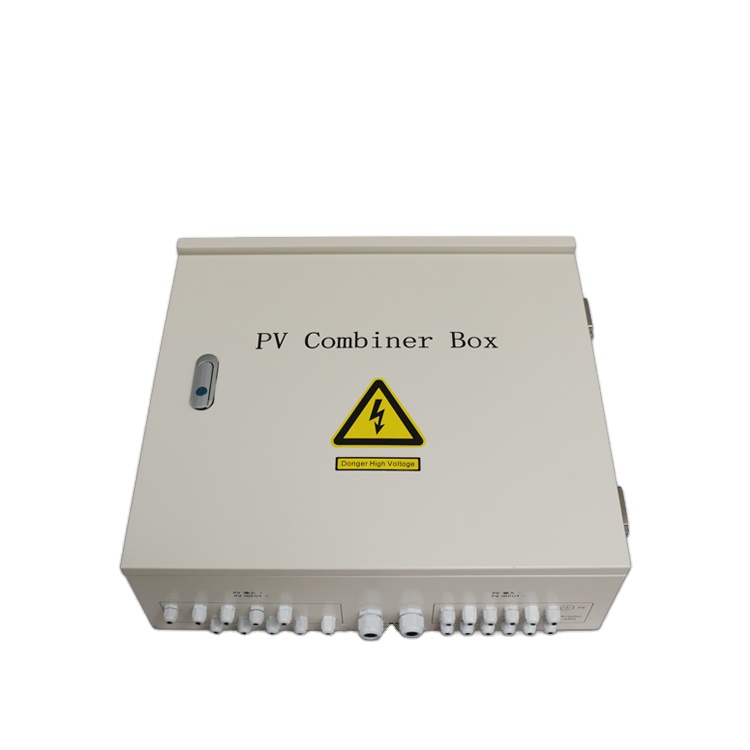

3. The PV combiner box we manufacture is equipped with all the functions mentioned above, configuration with on grid/off grid solar inverter to make up a complete set of solar power system.
4. When choose the pv combiner box, based on the input dc voltage range and output power of inverter, certain qty of panels will be connected in series as a string, certain strings in parallel will connect to the PV combiner box for junction, via control of circuit breaker and protection of arrester, then feed to the inverter.
1
Conform to CGC/GF002:2010, PV Array Junction Box Technical Specifications.
2
Allowable maximum 24 strings panels to connect, Nominal voltage of each string is 10A, maximum 15A.
3
Total output current is 250A, the maximum voltage is 1000Vdc.
4
For each string, high voltage fuse protection and anti-connection protection.
5
Equipped with pv high voltage arrester protection.
6
PV high voltage circuit breaker control the output, pressure-resistant DC1200V, fusing current is optional.
7
In line with outdoor installation, protection class IP65.
8
Isolate RS485 port used for remote data communication, support MODBUS-RTU protocol.
9
Built-in comprehensive protection alarm function, not only the various of alarm parameters are programmable set, but also each alarm function can be set "On" Or "Off".
10
Real-time the harmful arc in the DC circuit, once there is the harmful arc, alarm will work and directly make the trip switch and cut off fault circuit, accordingly, prevent the fire disaster etc from the arc.
Frequently Asked Questions
QWhat is the main function of the 6 in 1 PV combiner box?
The main function is to simplify the wiring between the solar panels and the inverter, optimize system structure, minimize power loss, and provide comprehensive protection features such as over-current, over-voltage, and lightning protection.
QDoes the combiner box support remote monitoring?
Yes. It features an isolated RS485 port and supports the MODBUS-RTU protocol to facilitate remote data communication and real-time system monitoring.
QCan this PV combiner box be installed outdoors?
Yes. The combiner box is designed with an IP65 protection rating, which ensures it is waterproof, dustproof, and suitable for outdoor environments.
QWhat protective mechanisms are integrated for system safety?
It comes equipped with high-voltage fuse protection, anti-connection protection, high-voltage surge protective devices (SPD), output circuit breakers, and advanced real-time harmful DC arc detection to prevent fire hazards.
QWhat are the limits for voltage and current for the DM-CB6 model?
The DM-CB6 model has a maximum PV array voltage rating of 1000V, supports up to 6 parallel inputs with a maximum input current of 10A per string, and delivers a maximum output current of 60A.
