| Model | 1KW 2KW 3KW 5KW 10KW 15KW 20KW 30KW 50KW 100KW 200KW 300KW |
| Rated speed(r/min) | 100r/min 150r/min 200r/min 300r/min 450r/min |
| Rated power(KW) | 50KW |
| Working Voltage | DC48-550V/AC110-480V |
| Rated current(A) | 138,100 A |
| Start-up wind speed(m/s) | 3m/s |
| Rated wind speed(m/s) | 10-12m/s |
| Safe wind speed(m/s) | 35-45m/s |
| No of blades | 3 pieces |
| Material of blades | FRP strengthened |
| Generator | 3 phases PM generator |
| Braking system | Electromagnetic Brake + Manual Brake |

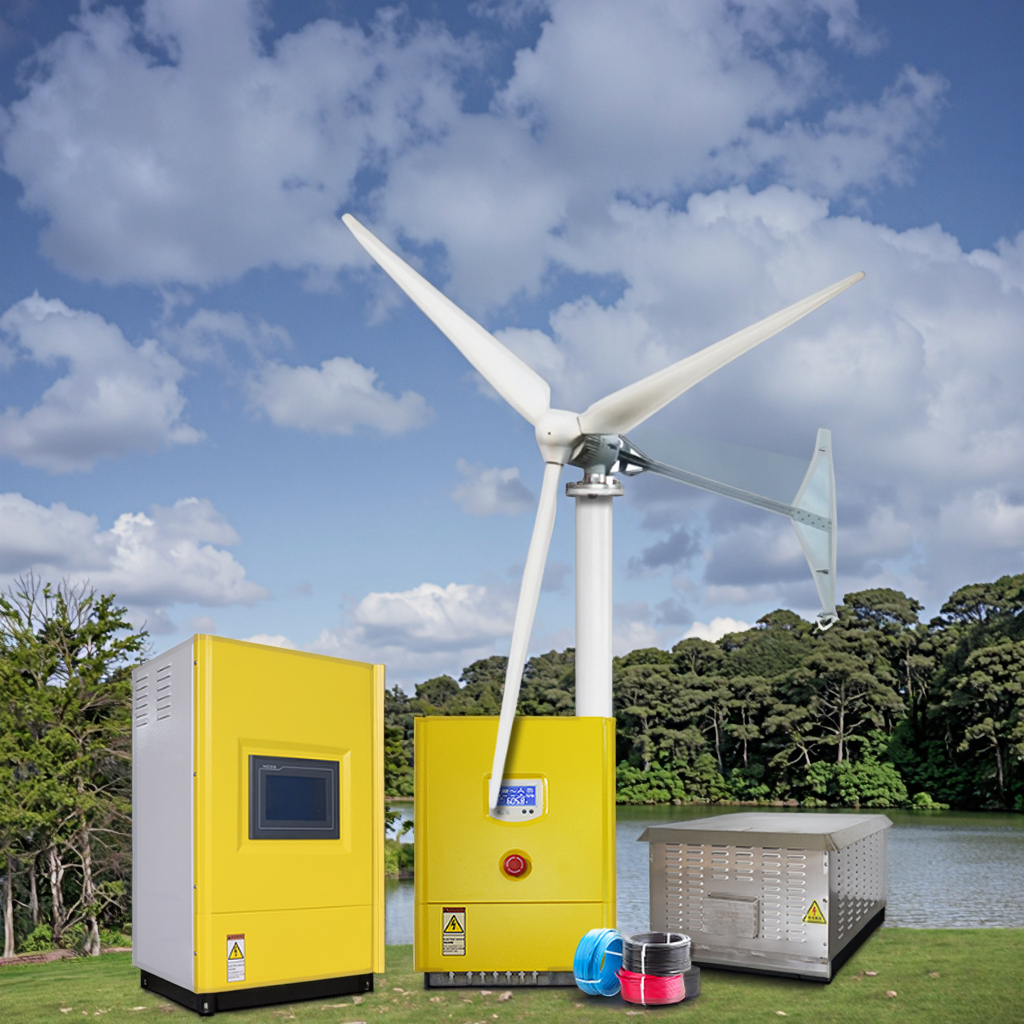

The wind turbine system is configurable in a wide range of models, including 1KW, 2KW, 3KW, 5KW, 10KW, 15KW, 20KW, 30KW, 50KW, 100KW, 200KW, and 300KW options to meet various power generation requirements.
The generator system features a low start-up wind speed of 3m/s, a rated wind speed of 10-12m/s, and a high-security design that ensures safe wind speeds up to 35-45m/s.

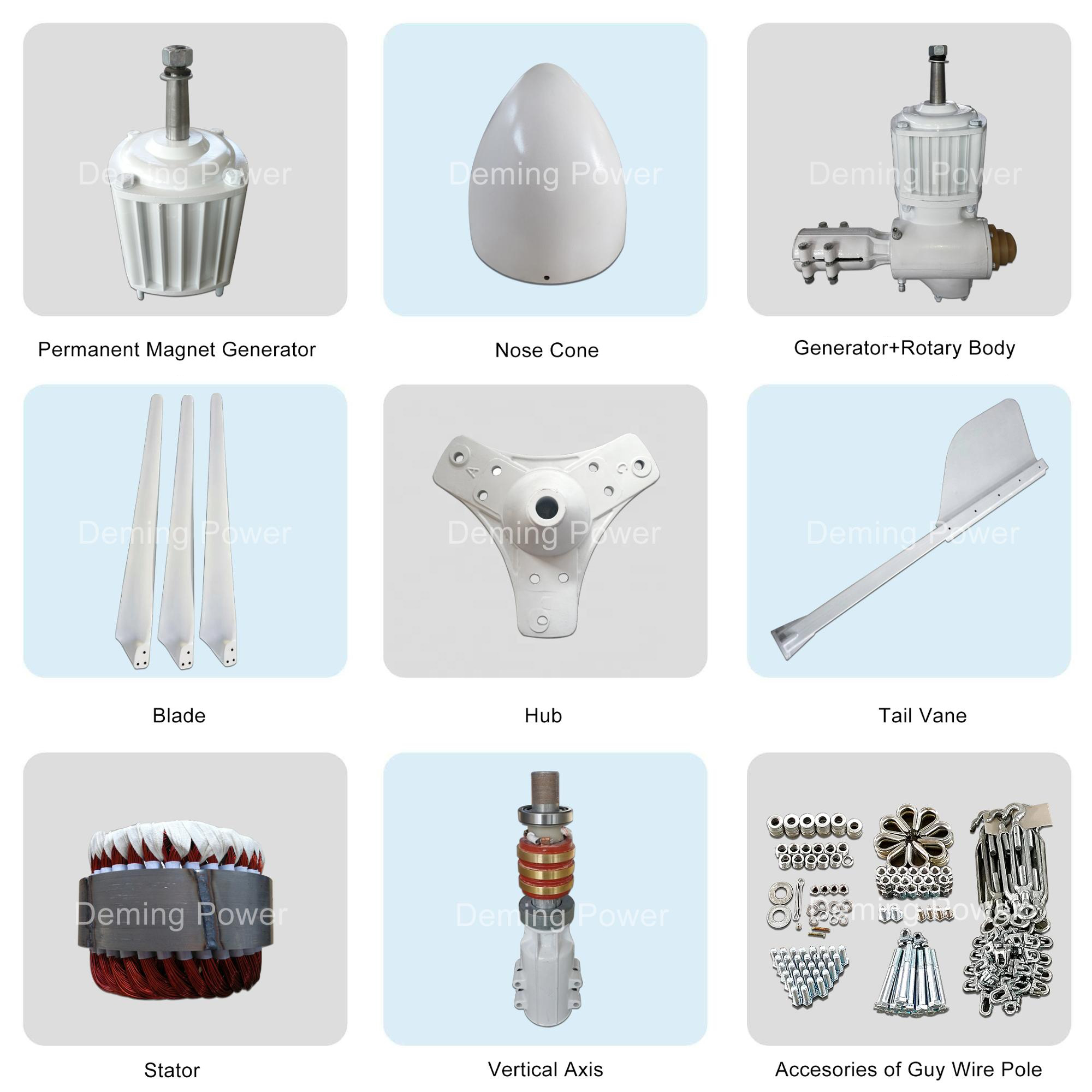

The turbine is configured with 3 high-performance blades made from FRP (Fiber Reinforced Plastic) strengthened material, providing excellent durability and weather resistance.
It utilizes a highly efficient 3-phase PM (Permanent Magnet) generator. For safety, the turbine features a dual braking configuration composed of an Electromagnetic Brake and a manual backup brake.
The system supports a broad working voltage profile of DC48-550V or AC110-480V, with rated speeds optioned between 100r/min, 150r/min, 200r/min, 300r/min, and 450r/min depending on configuration.
