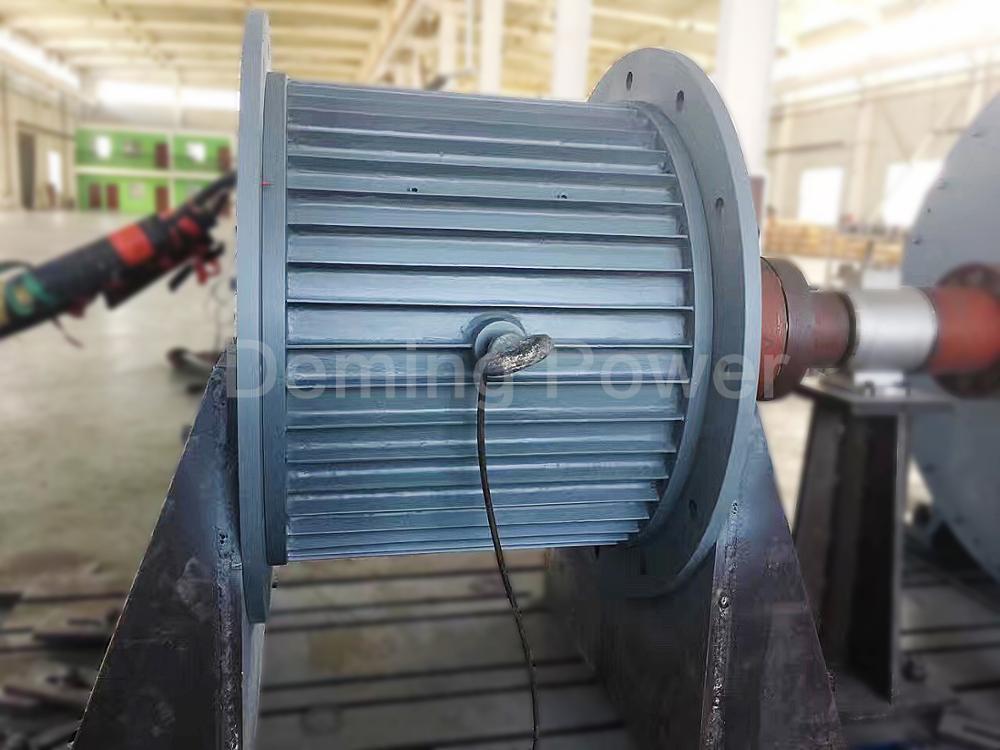

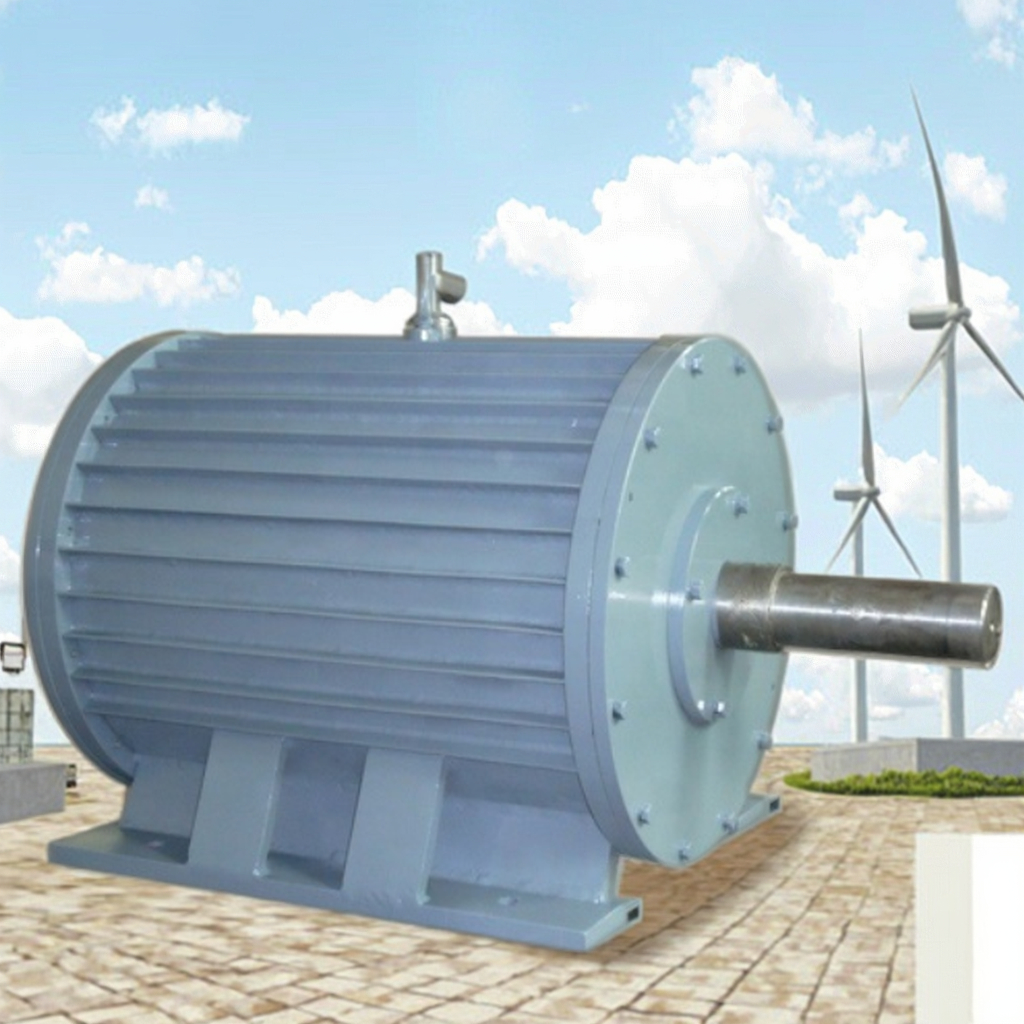

High Efficiency Mini Hydro Turbine with Permanent Magnet Generator Low RPM Eco-Friendly Renewable Energy Product

Permanent Magnet Generator Application Areas

Our permanent magnet generators are highly versatile and widely used across various industries, including:

Wind Power Hydropower Ocean Energy Ships Diesel Generators Aviation and Military Hand-Crank Generators

Wind Power Generation

Especially suitable for direct-drive wind turbines.
No gearbox required, capable of low rotor speeds and high torque.
Suitable for small and medium-sized wind power systems, off-grid wind power, and offshore wind power.

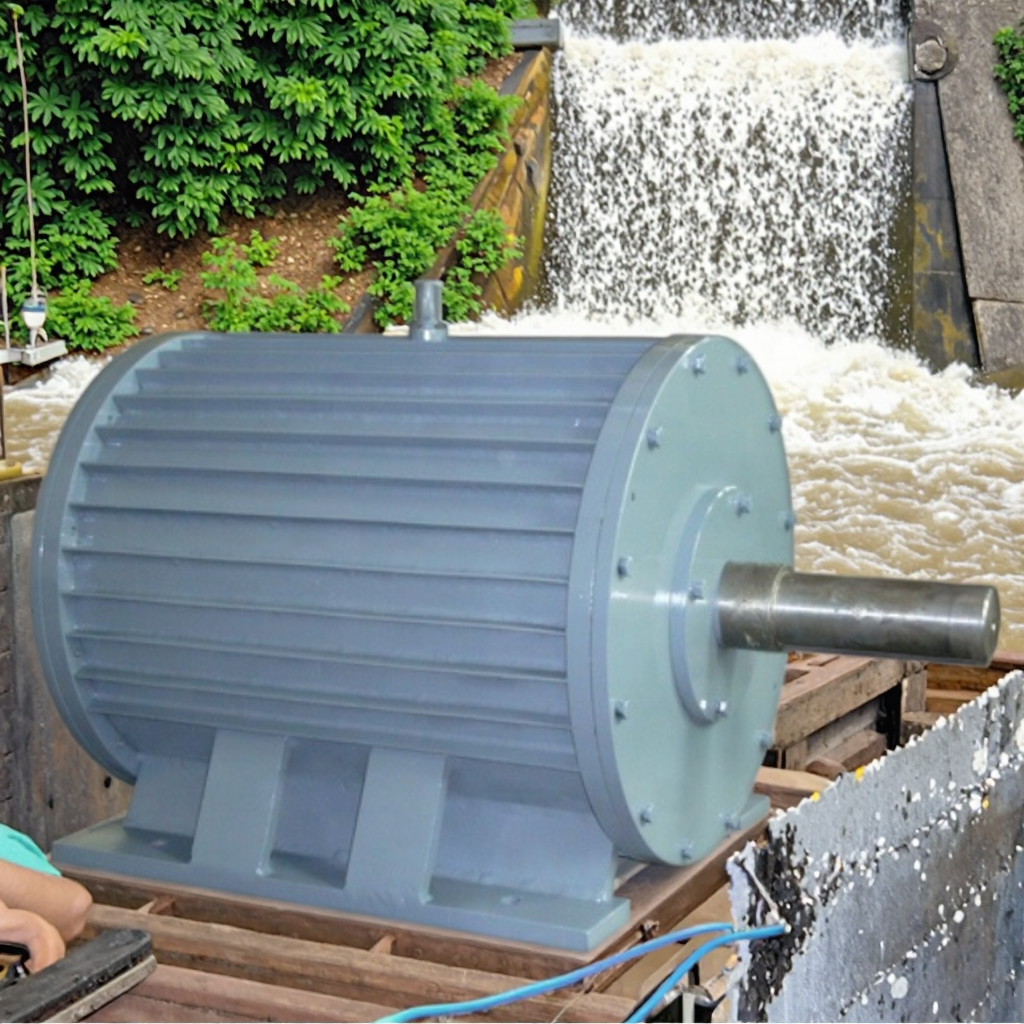

Hydropower Generation

Primarily used in small and medium-sized hydropower stations and micro-hydropower generation systems.
Compatible with axial-flow and Francis-flow turbines.
Compact and highly efficient, making them suitable for use in remote areas.

Key Features & Advantages

No.	Features Description
1	Customized: Voltage, Speed, Power, Frequency etc.
2	Direct Drive, no gear-box
3	Rare earth Nd-Fe-B permanent magnets
4	Long life time >20 years, could run at high speed 7 days 24 hours.
5	Power factor close to 1
6	Maintenance free, can be used in all environments.

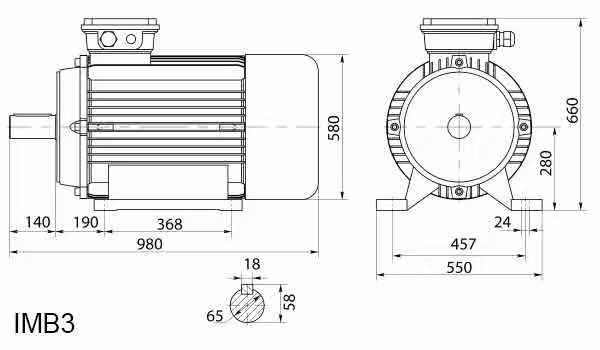

Technical Specifications

We provide customized generators according to each customer's requirements of Voltage, Speed, Power, Frequency etc.

Parameter	Value / Material
Rated Power	0.5-5500KW
Rated Rotate Speed	20-3000rpm
Rated Voltage	48-1140Vac
Frequency	50/60Hz
Number of Poles	24
Generator Type	3 phase AC Synchronous Generator
Magnet Type	NdFeB
Winding Method	Y
Magnet temperature level	Max. 120°C
Winding Temperature Level	Max. 180°C
Efficiency	>95%
Insulate Grade	H
Insulating resistance	100Mohm Min (500Vdc)
Classification of degrees	IP54
Generator shell material	Cast Iron
Winding material	100% Copper
Shaft material	Steel
Iron Core	Cold rolled silicon steel sheet
Bearing brand	SKF
Cooling Method	Fan Cooling
Weight (N.W / G.W)	132kg / 152kg
Installation	Horizontal

Various Models & Ranges

RATED POWER	RATED SPEED	RATED VOLTAGE	FREQUENCY
0.5KW	20rpm~400rpm	12V~220Vac	10Hz~60Hz
1KW	20rpm~600rpm	12V~220Vac	10Hz~60Hz
2KW	20rpm~1000rpm	12V~400Vac	10Hz~60Hz
3KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
5KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
10KW	20rpm~1500rpm	120V~690Vac	10Hz~60Hz
15KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
20KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
25KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
30KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
50KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
80KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
100KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
150KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
200KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
250KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
300KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
500KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
700KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
800KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
1MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
2MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
3MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
4MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz
5MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz

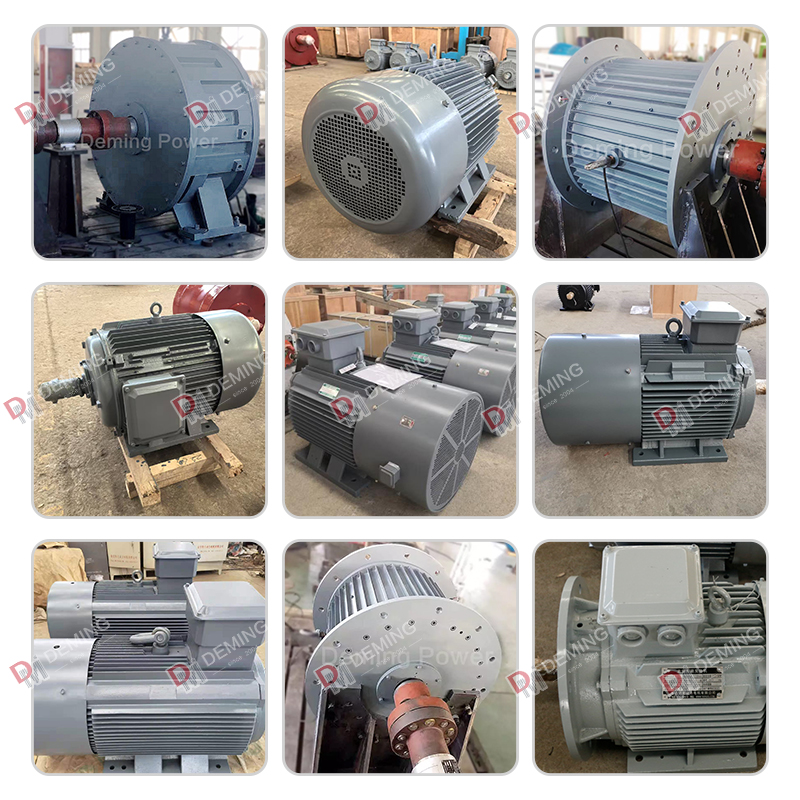

Various Generators

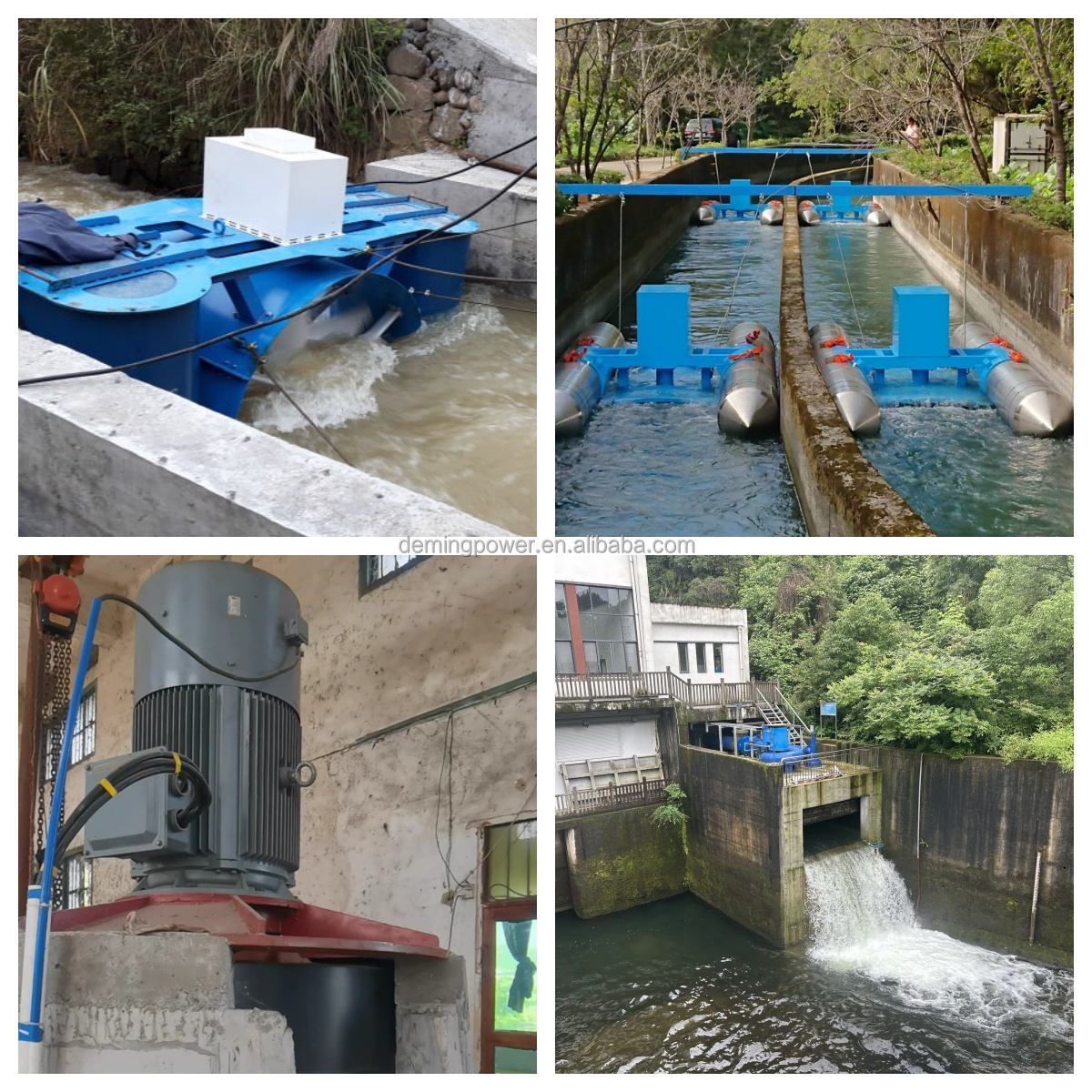

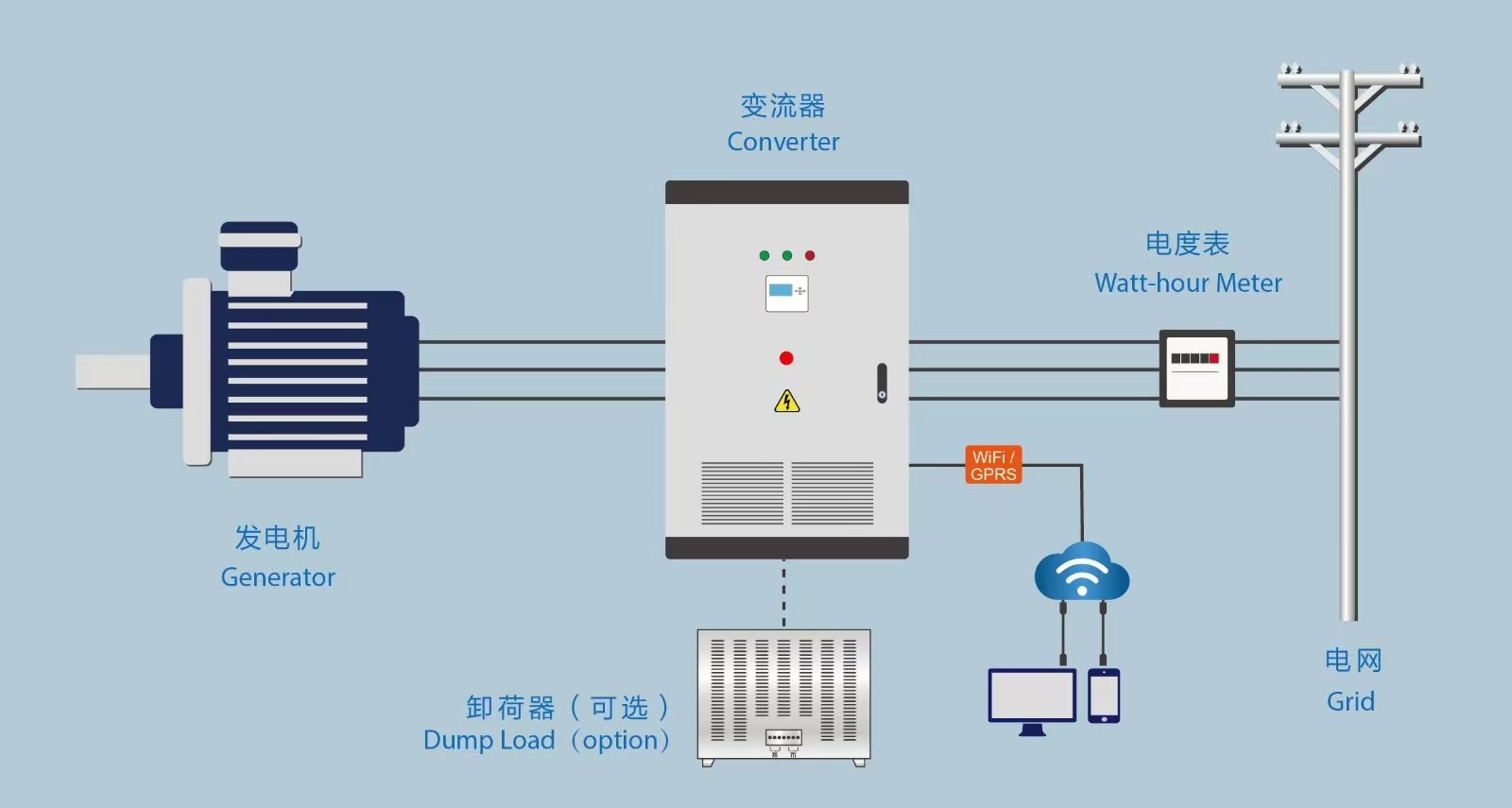

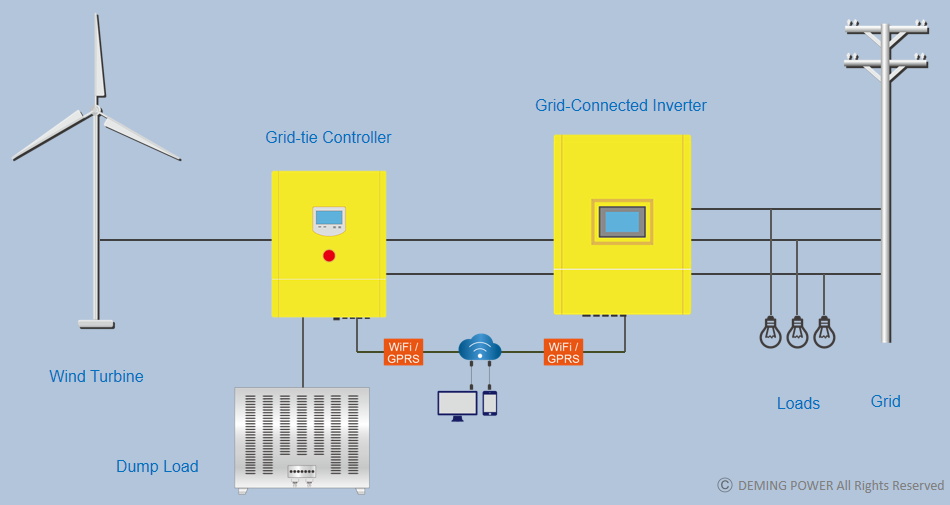

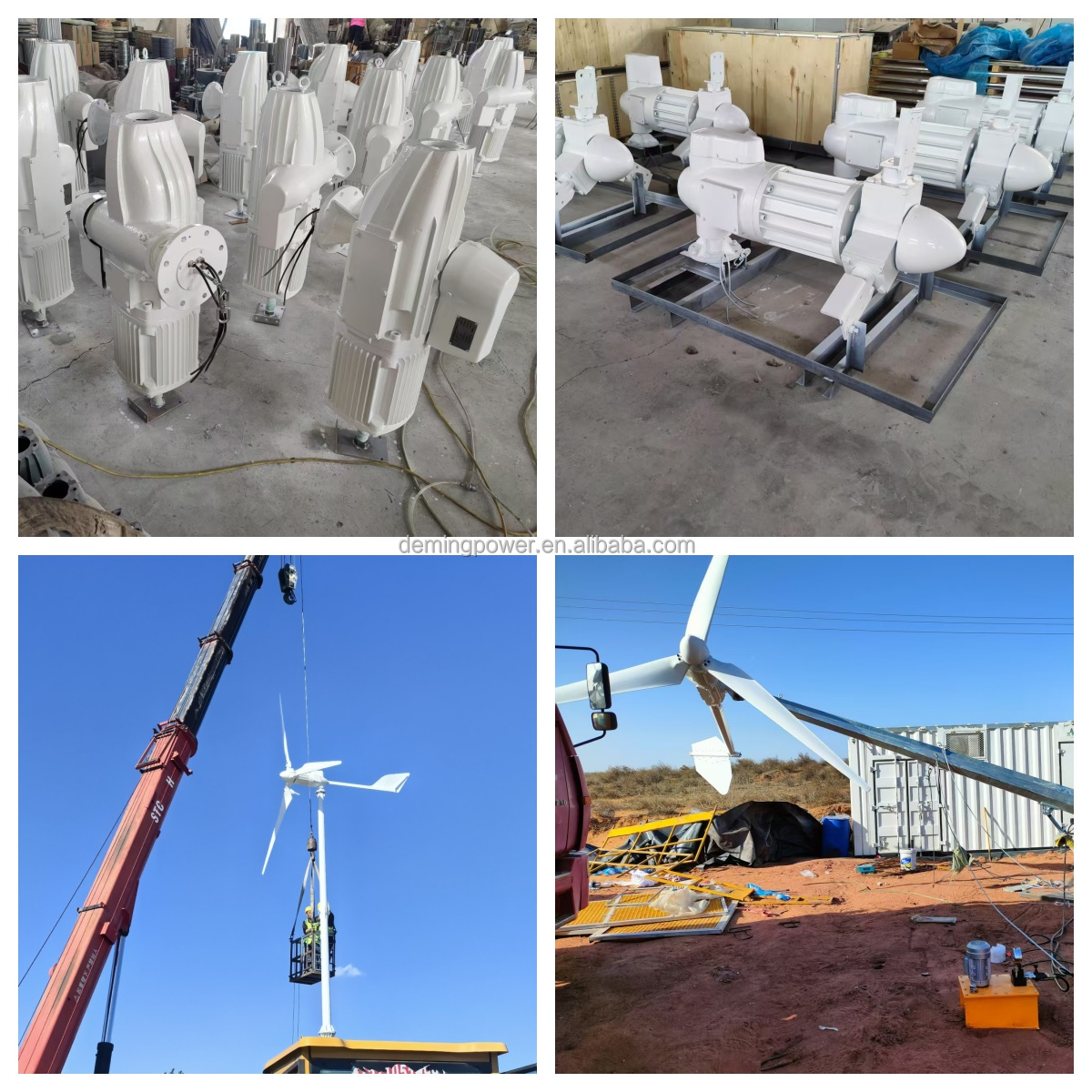

Our Cases

Package & Delivery

Our Factory

See What Customer Say

Frequently Asked Questions

What customization options do you offer for your permanent magnet generators?

We can customize key technical specifications based on your specific requirements, including rated voltage (from 48V to 1140Vac), rated speed (20 to 3000 rpm), rated power (0.5KW to 5500KW), frequency (50Hz/60Hz), and mechanical installation configurations.

Why are direct-drive permanent magnet generators better for wind power?

Direct-drive permanent magnet generators eliminate the need for a gearbox. This allows them to run reliably at low rotor speeds and high torque, reducing mechanical wear, increasing total system efficiency, and lowering long-term maintenance costs.

What kind of materials are used in your generators?

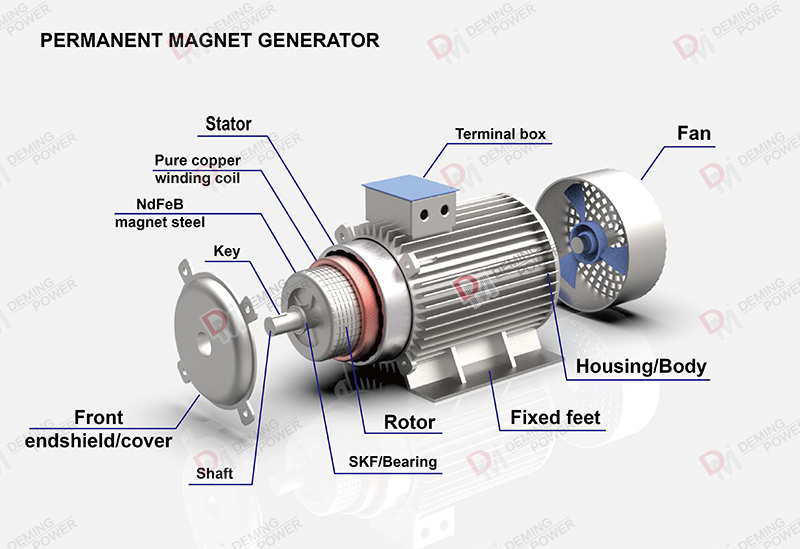

We construct our generators using high-grade materials, including rare earth NdFeB (Neodymium Iron Boron) permanent magnets, 100% pure copper windings, a strong cast iron shell, a high-quality steel shaft, and cold-rolled silicon steel sheets for the iron core. Premium SKF bearings are also used to ensure long life.

Are these generators maintenance-free?

Yes, our permanent magnet generators are designed to be maintenance-free. With their simplified structure, high-grade components, and absence of gearboxes or brushes, they are capable of running continuously (24/7) in harsh and remote environments without regular maintenance.

What is the expected lifetime and efficiency of your generators?

Our permanent magnet generators boast a design lifetime of more than 20 years. They offer outstanding energy conversion performance, achieving working efficiencies exceeding 95% with a power factor close to 1.
