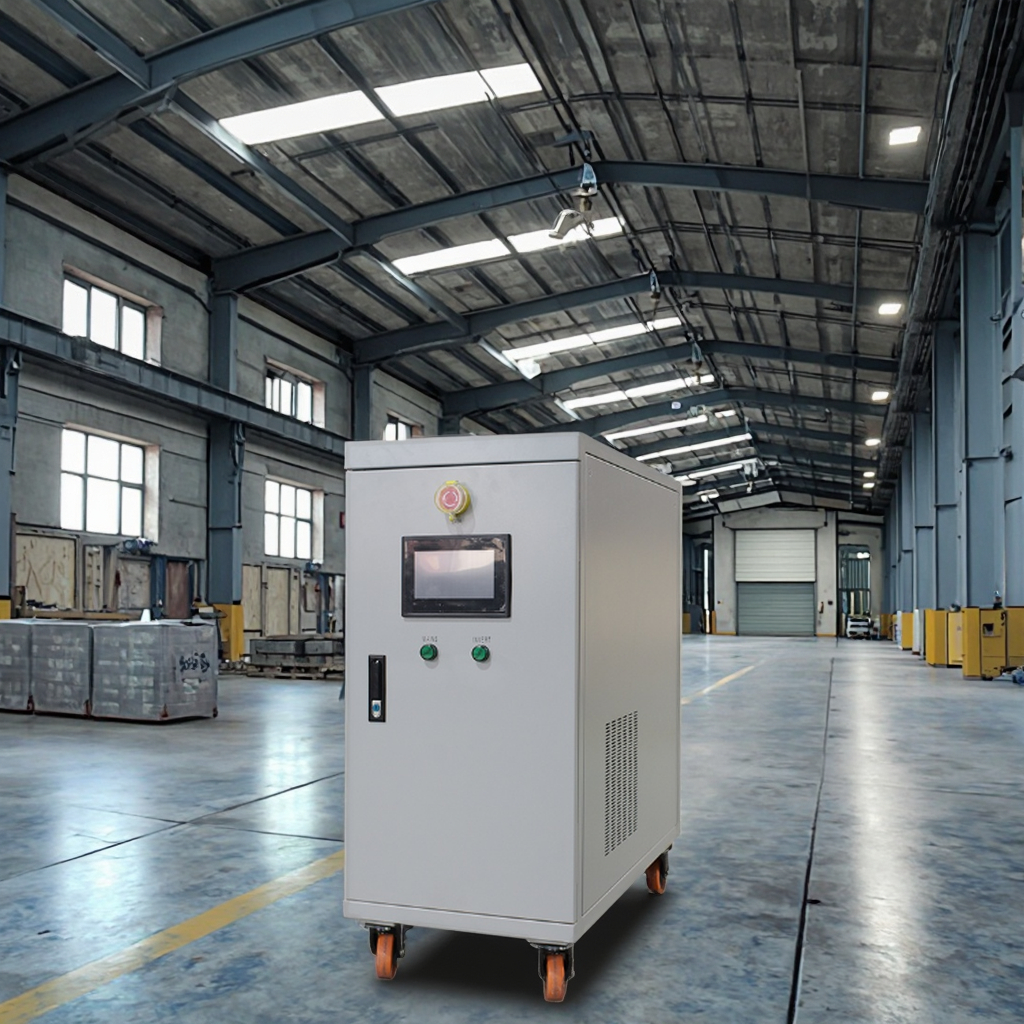

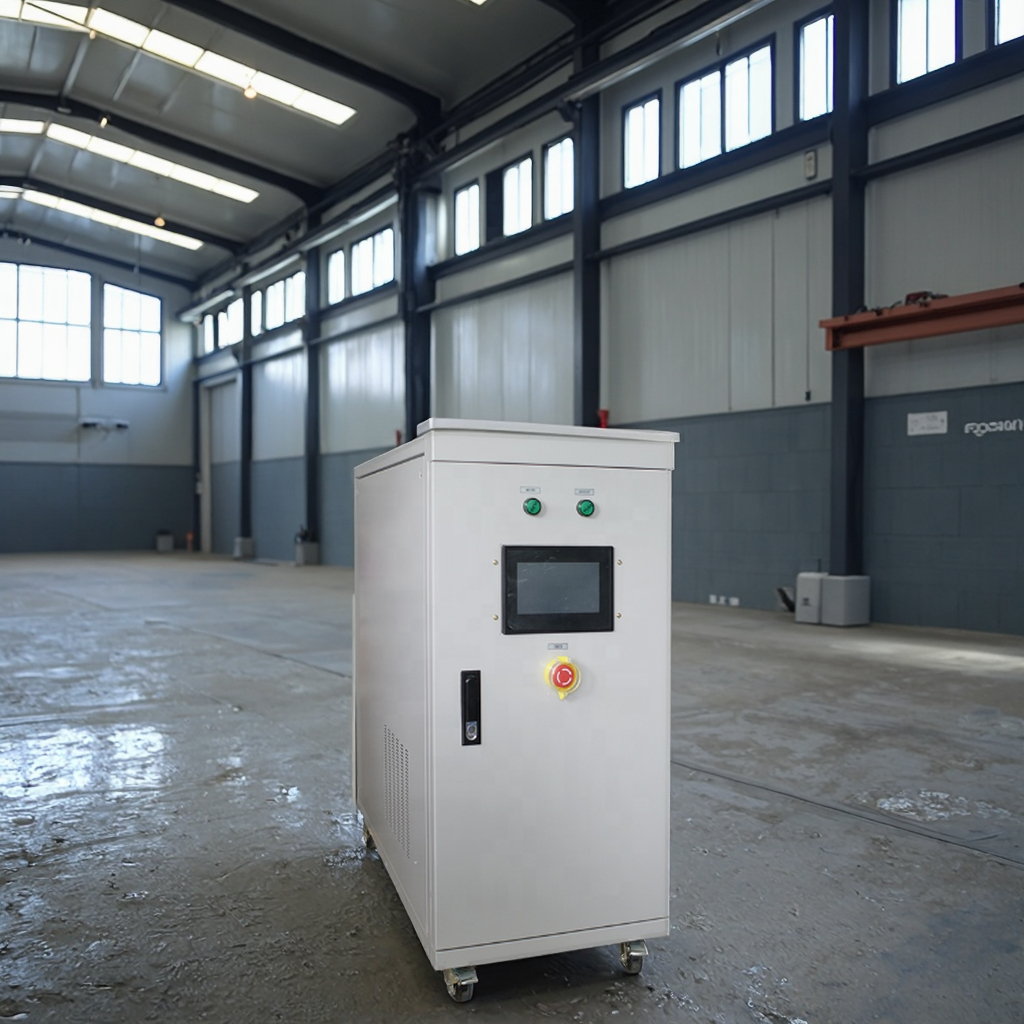

| Generator power converter | DMGC10KTL | DMGC20KTL | DMGC30KTL |
|---|---|---|---|
| Generator rated power | 10KW | 20KW | 30KW |
| Rated voltage of generator (AC) | 400V | 400V | 400V |
| Input voltage range (AC) | 0-550V | 0-550V | 0-550V |
| Rated output power (AC) | 10KW | 20KW | 30KW |
| MPPT MPPT Voltage range (AC) | 250-500V | 250-500V | 250-500V |
| Max. Input current (AC) | 15.8A | 31.7A | 47.6A |
| Rated current (AC) | 14.4A | 28.8A | 43.3A |
| THD Current harmonic | <3% (At rated power) | ||
| Power factor | >0.99 | ||
| Max. efficiency | 98% | ||
| Allowable grid voltage range (AC) | 220V/380V/440V/480V (Three-phase) ±20% | ||
| Allowable grid frequency range | 50Hz/60Hz ±10% | ||
| Automatic operation conditions | AC input and power grid meet the requirements, and the power converter operates automatically | ||
| Restart time after power failure | 2min (Adjustable) | ||
| General parameters | |||
| Function | Rectification, wind turbine curve setting, adjustable output power | ||
| Automatic protection | Reverse connection protection, short circuit protection, island effect protection, LVRT, overheat protection, overload protection, ground fault protection, lightning arrester, etc | ||
| Display | Touch screen | ||
| Monitoring content | Generator voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time | ||
| Protection level | IP20 (Indoor) IP65 (Outdoors) | ||
| Telematics | RS485/USB/GPRS/WIFI/Ethernet (Optional) | ||
| Environment | Operating amb. Temp. & Hum -30-60°C, <90% no condensation | ||
| Noise (1m) | <40dB | ||
| Refrigeration mode | Forced air cooling | ||
| Size / weight | 690*275*770mm 42kg | 690*275*770mm 58kg | 690*275*770mm 65kg |
*Above parameter only for reference. Could be custom made to user specifications.
