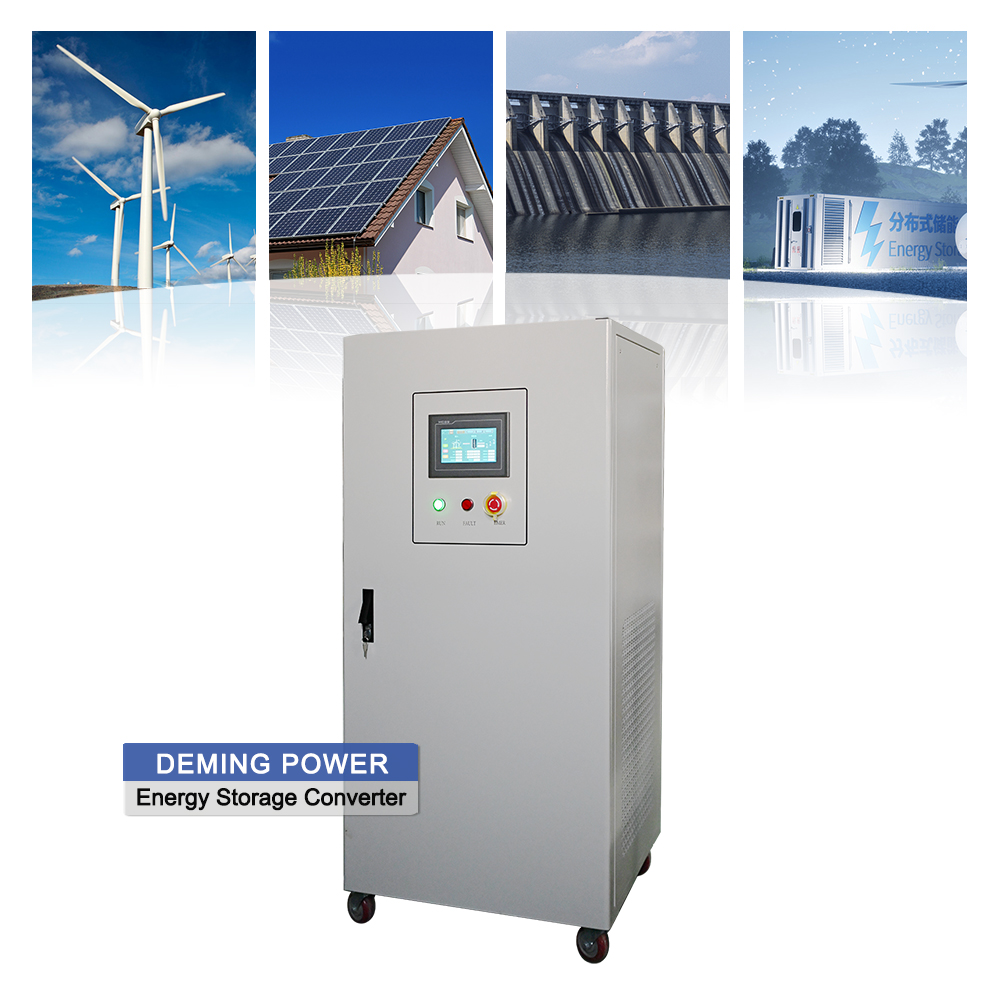

| Generator Power Converter | DMGC75KTL | |
|---|---|---|
| Generator rated power | 75KW | |
| Rated voltage of generator (AC) | 400V | |
| Input voltage range (AC) | 0-550V | |
| Rated output power (AC) | 75KW | |
| MPPT Voltage range (AC) | 250-500V | |
| Max. Input current (AC) | 108A | |
| Rated current (AC) | 119A | |
| THD Current harmonic | <3% (At rated power) | |
| Power factor | >0.99 | |
| Max. efficiency | 96% | |
| Allowable grid voltage range (AC) | 400V (Three-phase) ±15% | |
| Allowable grid frequency range | 50Hz ±10% | |
| Automatic operation conditions | AC input and power grid meet the requirements, and the power converter operates automatically | |
| Restart time after power failure | 2 min (Adjustable) | |
| General Parameters | ||
| Function | Rectification, wind turbine curve setting, adjustable output power | |
| Automatic protection | Reverse connection protection, short circuit protection, island effect protection, LVRT, overheat protection, overload protection, ground fault protection, lightning arrester, etc | |
| Display | Touch screen | |
| Monitoring content | Generator voltage, current, power, inverter output power, cumulative power generation, power generation at any time | |
| Protection level | IP20 (Indoor) | |
| Telematics | RS485/USB/GPRS/WIFI/Ethernet (Optional) | |
| Environment | -30-60°C, <90% Operating amb. Temp. & Hum -30-60°C, <90% no condensation | |
| Noise (1m) | <40dB | |
| Refrigeration mode | Forced air cooling | |
| size / weight | 750*600*1320mm / 340KG | |
*Above parameter only for reference. Could be custom made to user specifications.
As corporate users, you enjoy the following service:
When you confirm the failure of equipment, please promptly contact us and provide the equipment model and complete description of the problem.
However, any of the following situations happened, are not included in the warranty:
It features an optimum aerodynamic shape for high efficiency and low noise, a centrifugal pitch-controlled mechanism supporting low start-up speeds, a maintenance-free direct drive permanent magnet generator, and comprehensive safety controls (aerodynamic, electromagnetic, mechanical, and manual brakes).
The machine comes with a 2-year free warranty, ongoing technical support, and lifelong maintenance cost coverage. Responses are provided within 24 hours of receiving a notification.
Exclusions include unauthorized repairs or modifications, incorrect operations, failure to follow manual instructions for cleaning and maintenance, operation in abnormal environmental conditions, deliberate man-made damage, and natural disasters.

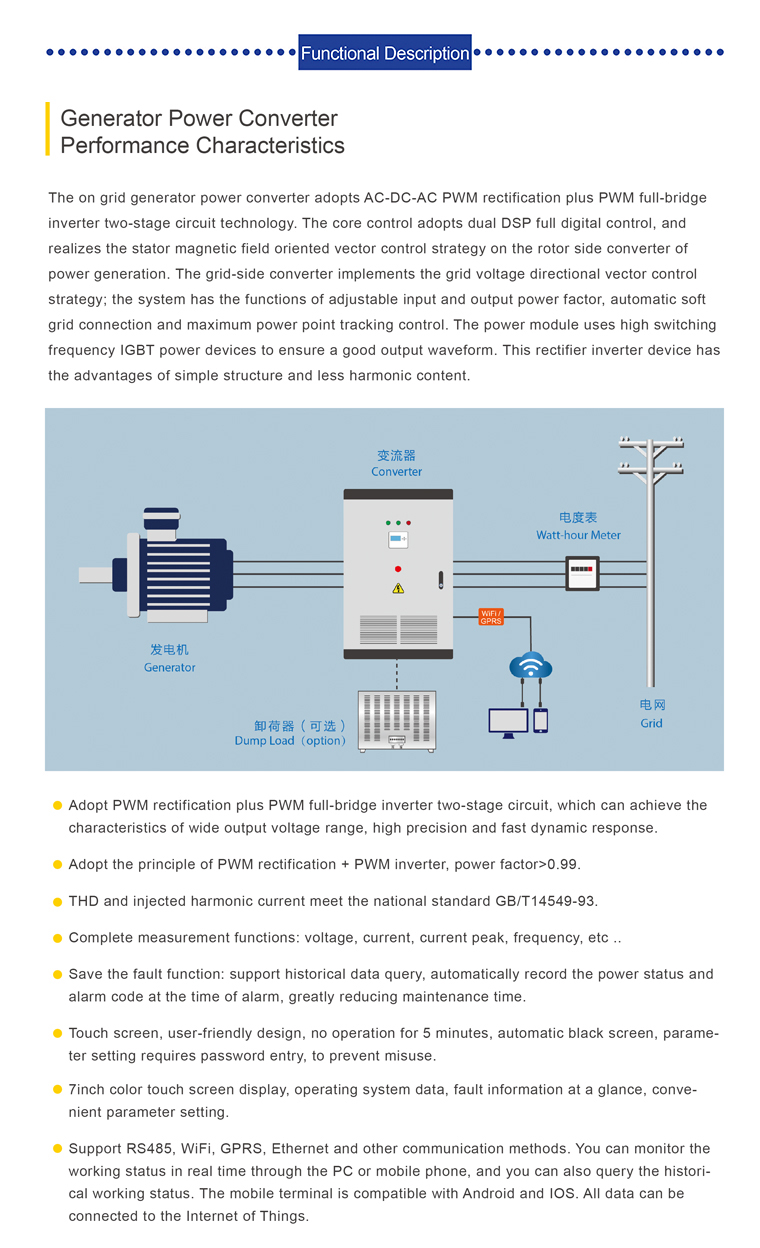

The power converter is equipped with reverse connection, short circuit, island effect, LVRT (Low Voltage Ride Through), overheat, overload, and ground fault protections, as well as integrated lightning arresters.
Yes, the parameters provided in our technical tables are standard reference specifications. The systems can be customized to match specific user requirements and installation environments.
