Product Description

Generator Characteristics

• Optimum aerodynamic shape design: high efficiency, low noise.
• Centrifugal pitch controlled mechanism: 3m/s low wind speed startup; 3-12m/s wind speed, following wind rotor rotate speed to adjust blade angle at optimum TSR, run in high efficiency; over rated wind speed, wind rotor never goes to over speed and has stable control; 3-35m/s wind speed, wind turbine can run smoothly.
• Direct drive permanent magnet generator, low startup resistance moment, constant running ability of over loading 1.5 times, maintenance free for more than 30000 hour.
• Safety control: has aerodynamic brake, electric magnet brake, mechanical brake and manual stop mechanism.
• Sealed slip ring, no cable twist.
• Streamline design.
• Long acting anticorrosive treats, no corrosion in 15 years.

The on grid generator converter adopts AC-DC-AC PWM rectification plus PWM full-bridge inverter two-stage circuit technology. The core control adopts dual DSP full digital control, and realizes the stator magnetic field oriented vector control strategy on the rotor side converter of power generation. The grid-side converter implements the grid voltage directional vector control strategy; the system has the functions of adjustable input and output power factor, automatic soft grid connection and maximum power point tracking control. The power module uses high switching frequency IGBT power devices to ensure a good output waveform. This rectifier inverter device has the advantages of simple structure and less harmonic content.

• Adopt PWM rectification plus PWM full-bridge inverter two-stage circuit, which can achieve the characteristics of wide output voltage range, high precision and fast dynamic response.
• Adopt the principle of PWM rectification + PWM inverter, power factor > 0.99.
• THD and injected harmonic current meet the national standard GB/T14549-93.
• Complete measurement functions: voltage, current, current peak, frequency, etc.
• Save the fault function: support historical data query, automatically record the power status and alarm code at the time of alarm, greatly reducing maintenance time.
• Touch screen, user-friendly design, no operation for 5 minutes, automatic black screen, parameter setting requires password entry, to prevent misuse.
• 7 inch color touch screen display, operating system data, fault information at a glance, convenient parameter setting.
• Support RS485, WiFi, GPRS, Ethernet and other communication methods. You can monitor the working status in real time through the PC or mobile phone, and you can also query the historical working status. The mobile terminal is compatible with Android and IOS. All data can be connected to the Internet of Things.

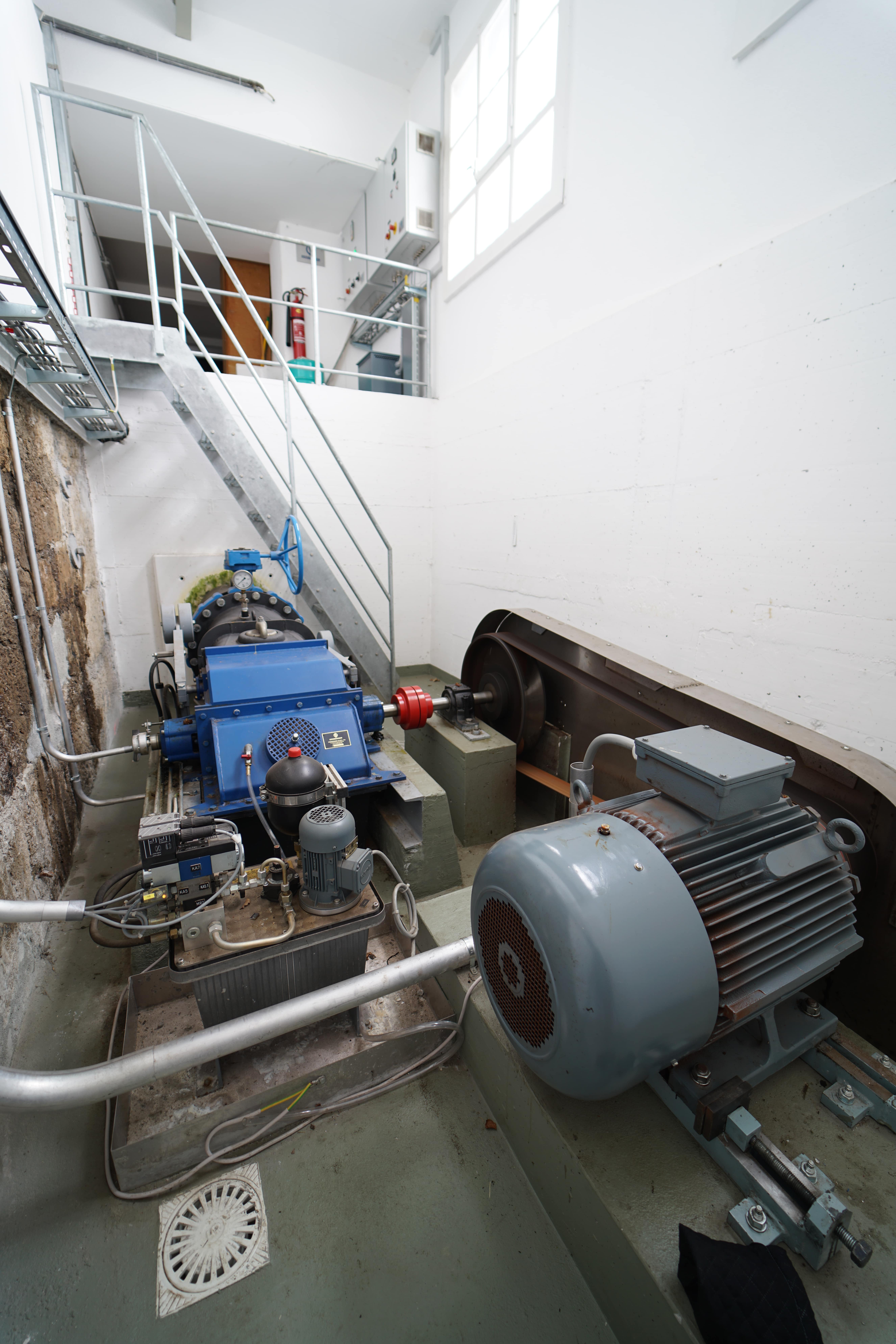

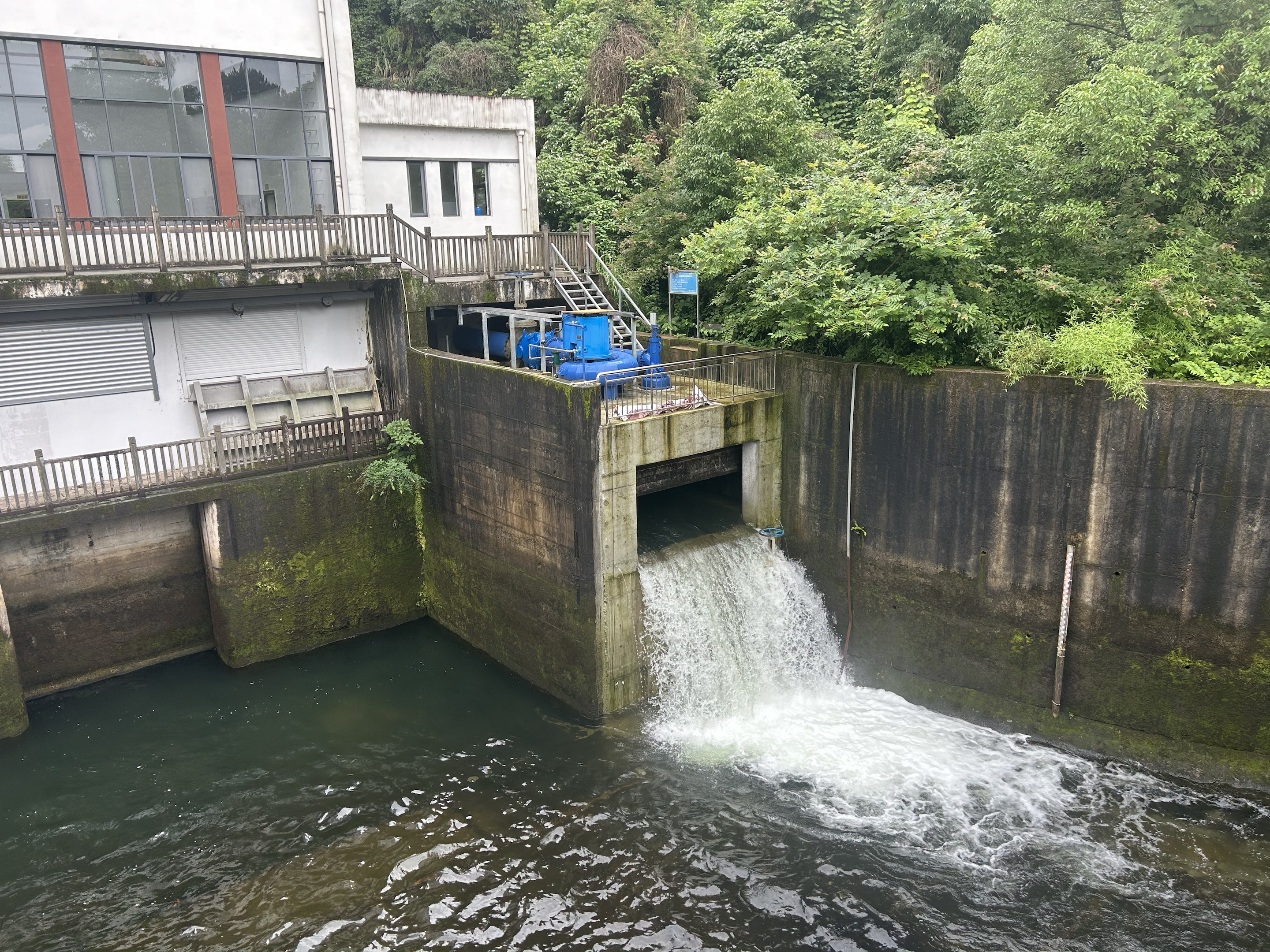

On Grid Generator Power System

Off Grid Generator Power System

Technology

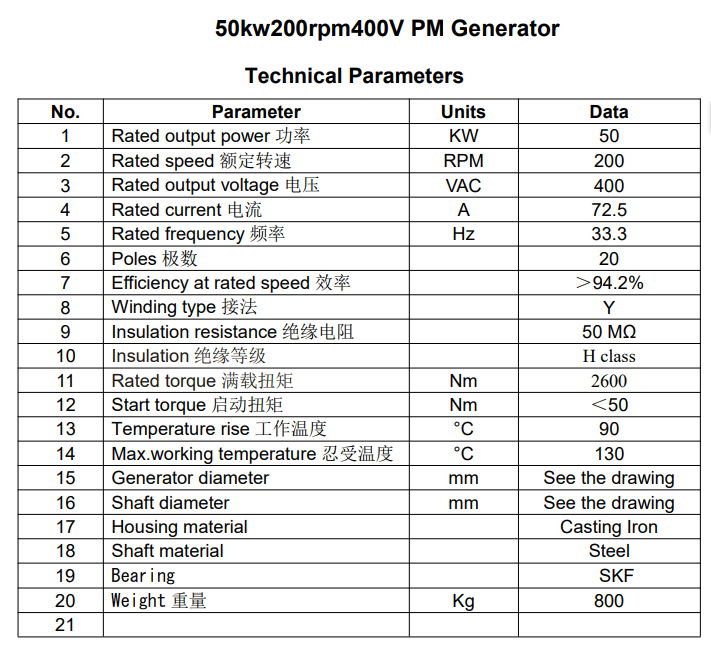

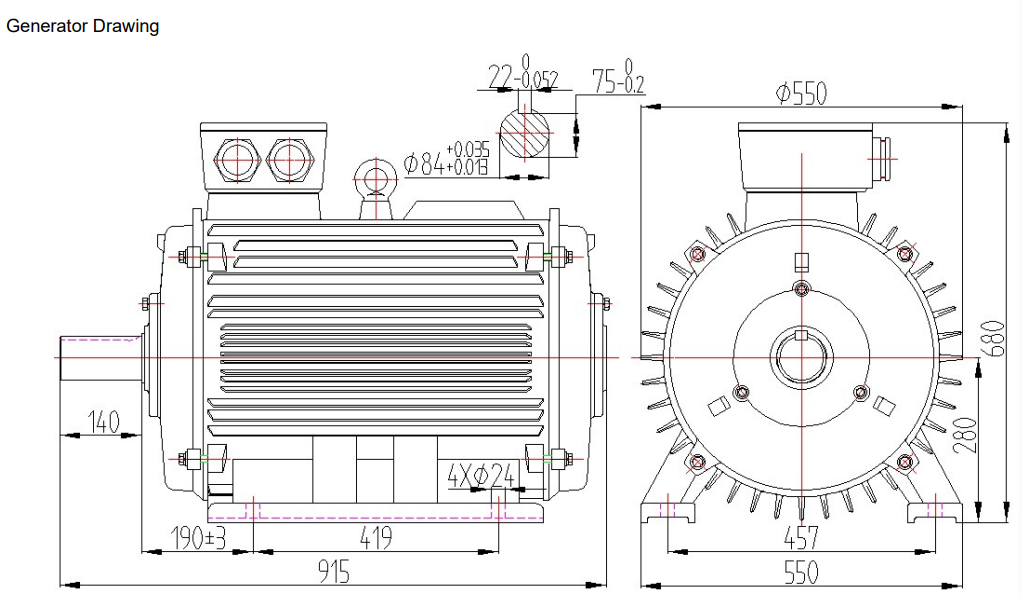

The Technical Spec of 50KW Permanent Magnet Alternator

The Parameters of Generator Power Converter 50KW

Parts

Service Guarantee

As our corporate users, you enjoy the following service:

When you confirm the failure of equipment, please promptly contact us and provide the equipment model and complete description of the problem.

Exclusions from Warranty

However, any of the following situations, if they occurred, are not included in the warranty:

• Unauthorized repair and damage.
• Install or modify arbitrarily.
• Incorrect operation or use.
• Failure to clean or maintain according to the instruction manual.
• Abnormal environmental conditions exceeding the specifications, resulting in damage.
• Deliberate man-made destruction.
• Irresistible natural disasters.

Certifications

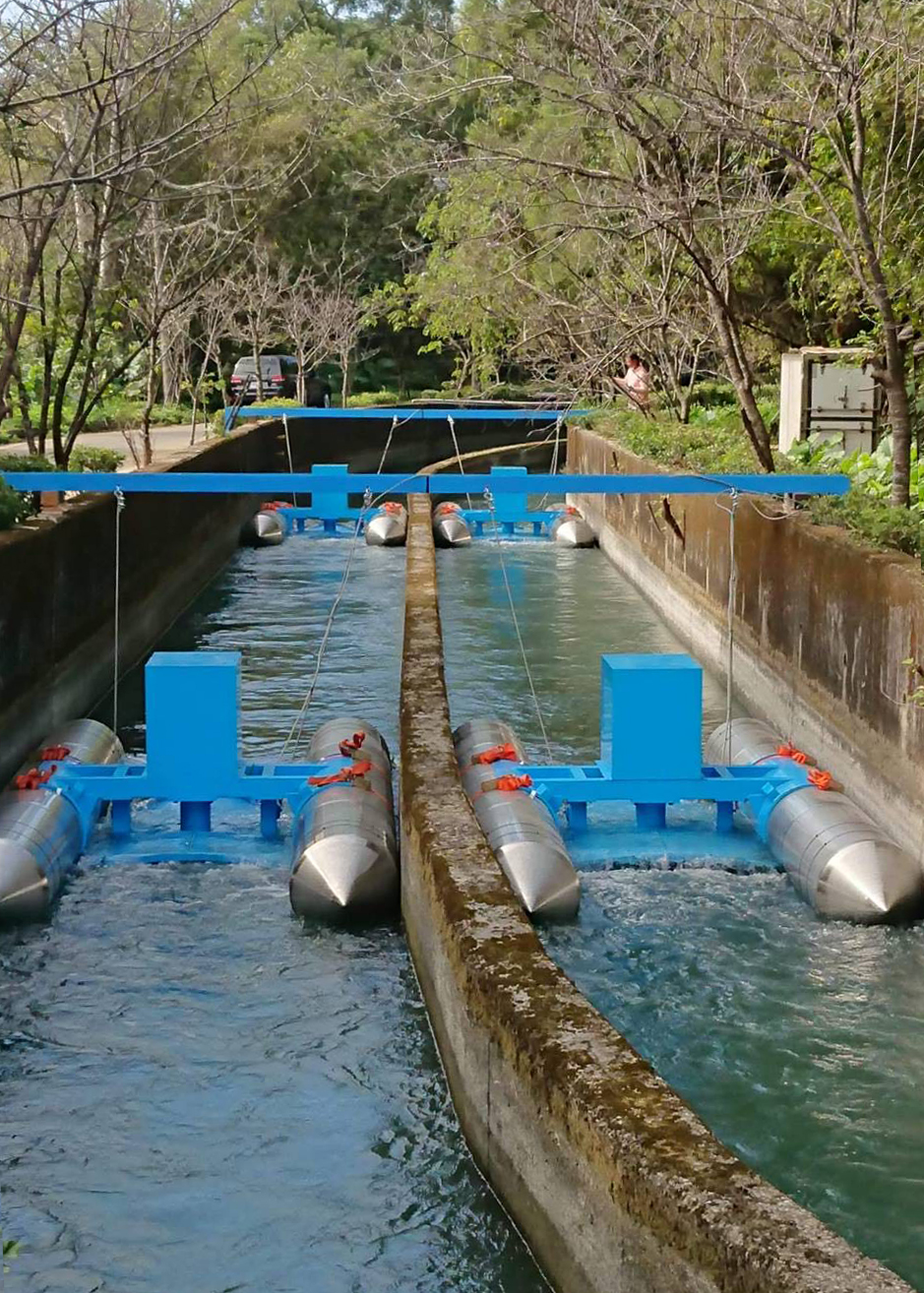

Project Case
