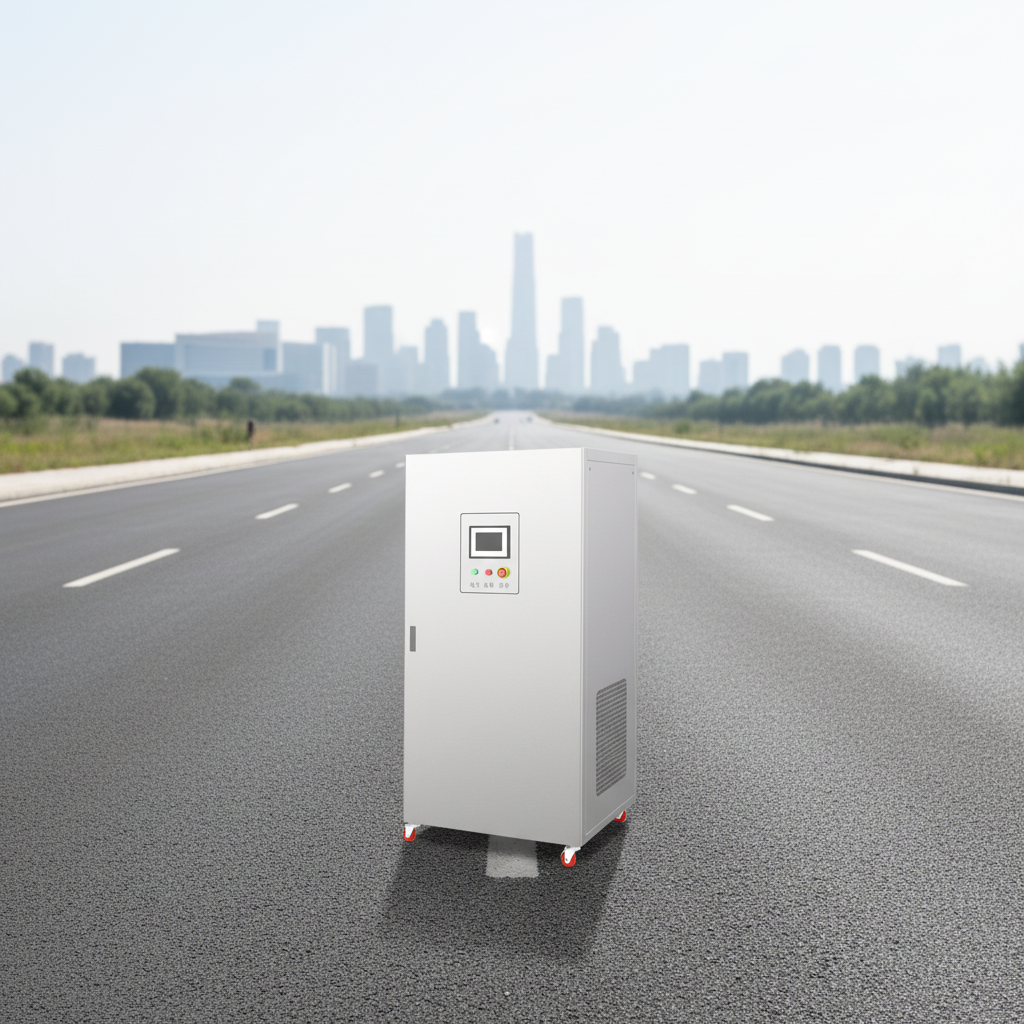

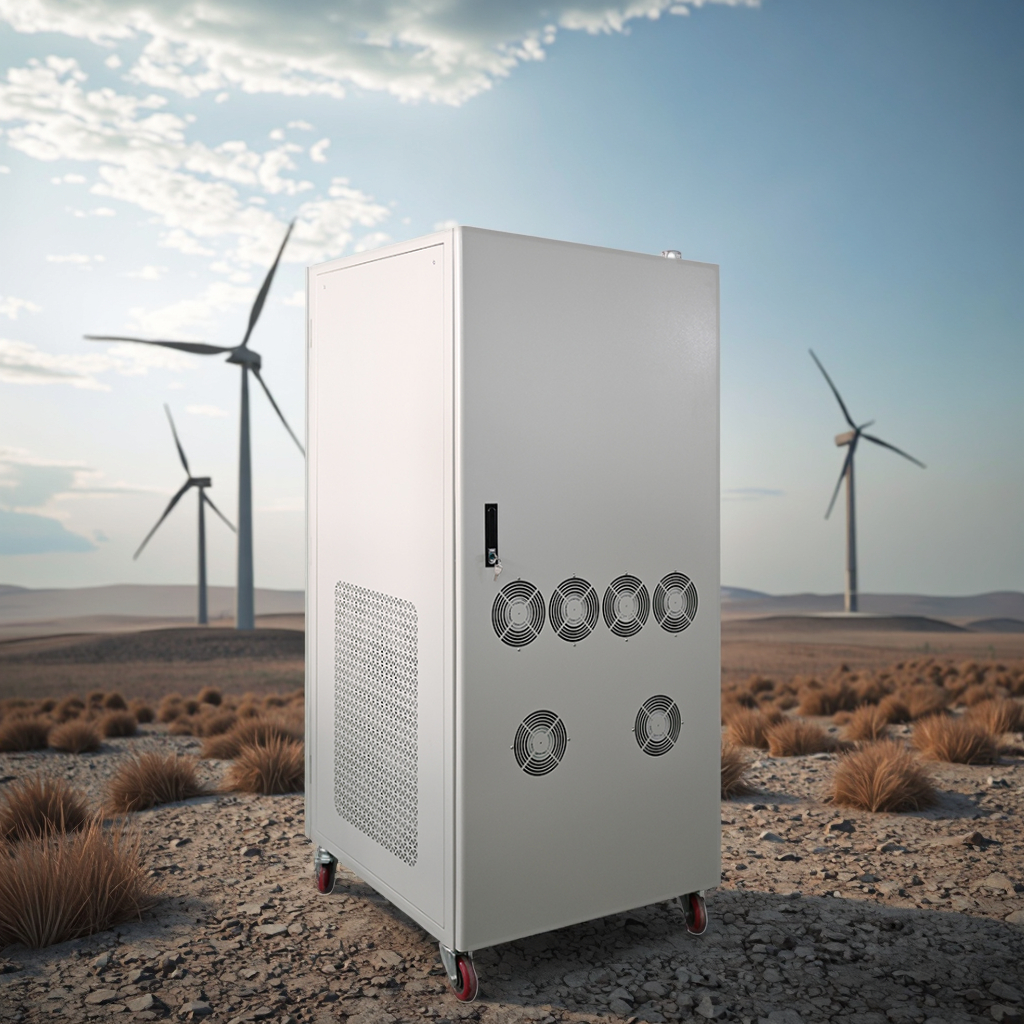

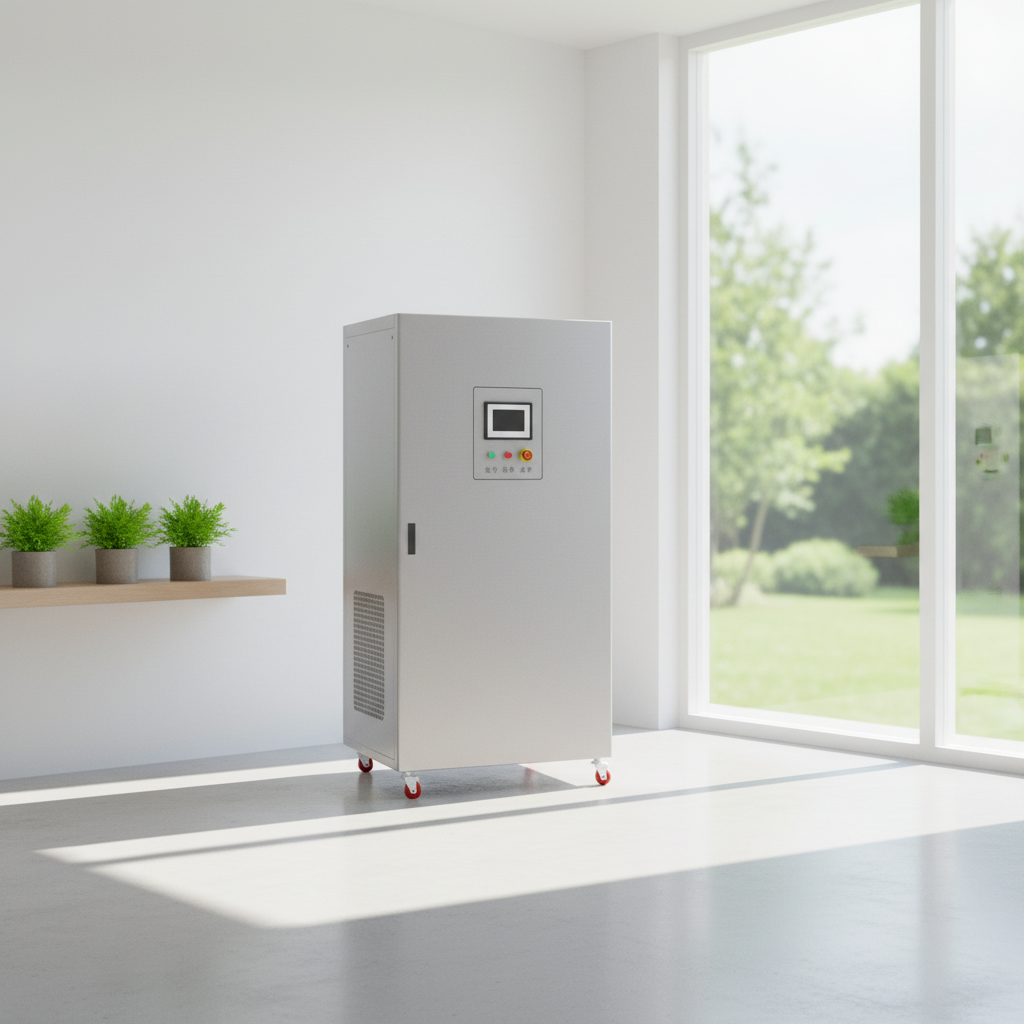

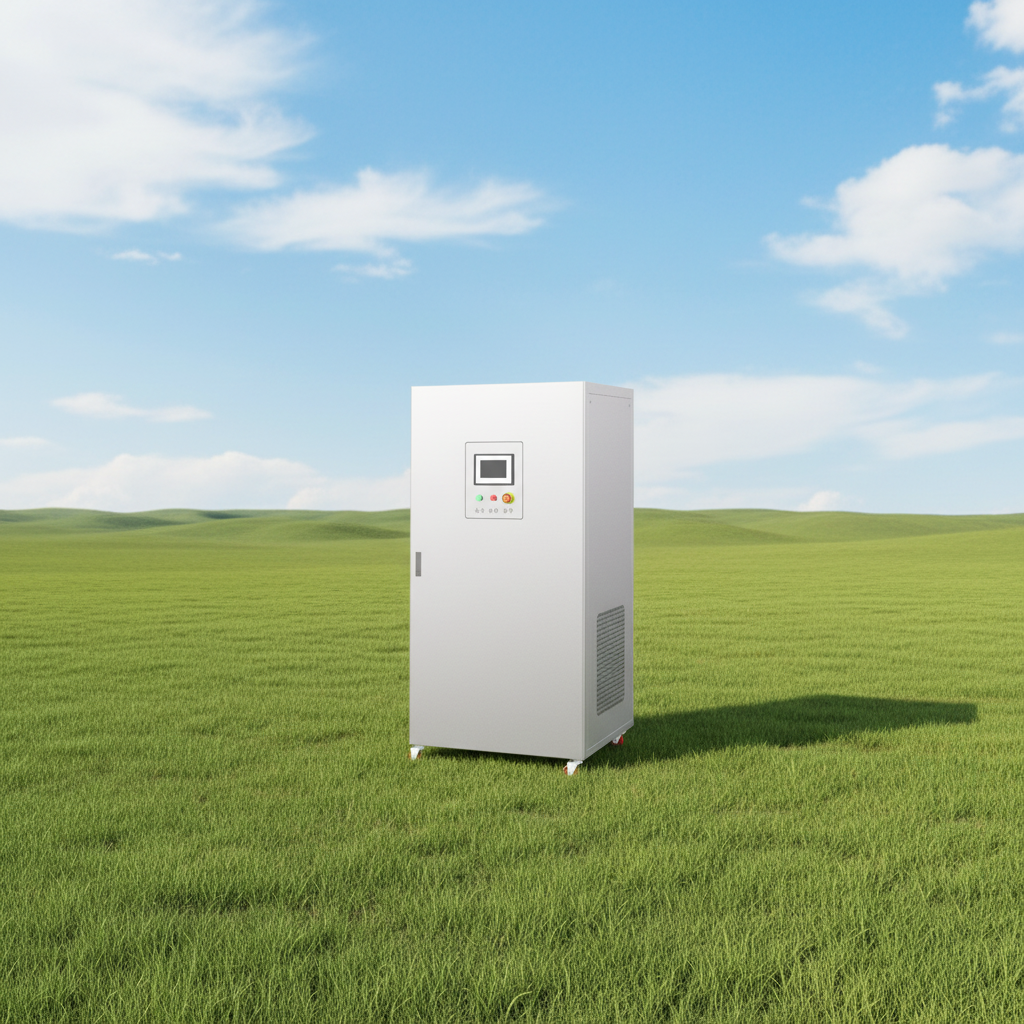

3 Phase 200kW Solar Inverter Off Grid 380V 400V Industrial Solar Energy System Inverter

1 / 5

3 Phase 200kW Solar Inverter Off Grid 380V 400V Industrial Solar Energy System Inverter

Send Inquiry

Product Description

Product introduction

Using IGBT from Mitsubishi company as the power components.
Using American ATMEL company microprocessor as figure controller.
Perfect protection and warning functions.
Circuit frame compact, Max. Efficiency ≥ 90%.
With wide input voltage range.
RS232 / 485 / WIFI / GPRS communication interface.
Tough screen English LCD, perfect display, user interface-friendly.

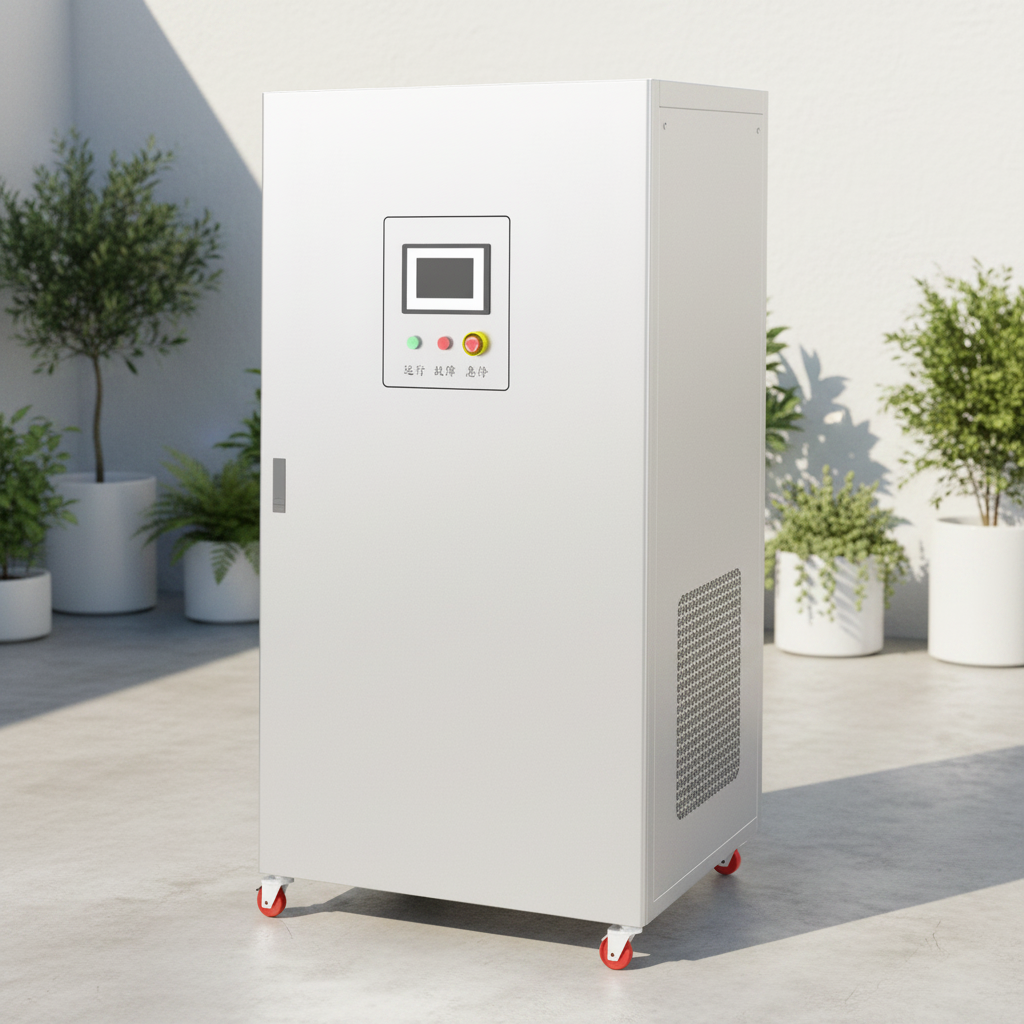

Touch screen display

Product parameter

Technical parameters of three-phase off-grid inverter 10KW

Type		NB48-10KSZ	NB96-10KSZ	NB120-10KSZ	NB240-10KSZ
DC Input	Input Rated Voltage	48 VDC	96 VDC	120 VDC	240 VDC
	Input Rated Current	231 A	116 A	93 A	46 A
	Input DC Voltage Range	40-62 VDC	80-124 VDC	100-155 VDC	200-310 VDC
AC Input (Bypass)	Allow Input Voltage Range	220 VAC / 380 VAC / 400 VAC ± 15%
	Input Rated Current	28A / 15A / 14.5A
	Bypass Transfer Time	≤40ms (Can be customized ≤4ms version)
AC Output	Output Rated Power	10KW
	Output Voltage and Frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output Rated Current	28A / 15A / 14.5A
	Output Voltage Accuracy	220 VAC / 380 VAC / 400 VAC ± 1%
	Output Frequency Accuracy	50Hz / 60Hz ± 0.05%
	Wave Form	Pure sine wave (Isolation transformer)
	THD.	≤3% (Linear load)
	Power Factor (PF)	1
	Overload Capacity	120%, 5 minutes / 200%, 3 seconds
	Crest Factor (CF)	3:1
	Inverter Efficiency	>94%
Environment	Dielectric Strength	1500VAC, 1 minute
	Noise (1m)	≤50dB
	Ambient Temperature	-20℃ ~ +60℃
	Humidity	0~90%, No condensation
	Altitude	<2000m (Higher than 2000m rated power should be reduced)
Protection Function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Pure Sine Wave		Yes
Equipped with copper transformer		Yes
Communication Mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
Solar Charger		Optional, available
AC Charger		Optional, available
Generator Port		Optional, available
Size(mm)		450×830×1100 mm
Weight(kg)		180 kg

Technical parameters of three-phase off-grid inverter 20KW

Type		NB48-20KSZ	NB96-20KSZ	NB120-20KSZ	NB240-20KSZ
DC Input	Input Rated Voltage	48 VDC	96 VDC	120 VDC	240 VDC
	Input Rated Current	463 A	231 A	185 A	93 A
	Input DC Voltage Range	40-62VDC	80-124 VDC	100-155 VDC	200-310 VDC
AC Input (Bypass)	Allow Input Voltage Range	220 VAC / 380 VAC / 400 VAC ± 15%
	Input Rated Current	55.5A / 30A / 29A
	Bypass Transfer Time	≤100ms (Can be customized ≤4ms version)
AC Output	Output Rated Power	20KW
	Output Voltage and Frequency	220 VAC / 380 VAC / 400 VAC ±2% , 50Hz / 60Hz
	Output Rated Current	55.5A / 30A / 29A
	Output Voltage Accuracy	220 VAC / 380 VAC / 400 VAC ± 2%
	Output Frequency Accuracy	50Hz / 60Hz ± 0.05%
	Waveform Distortion (THD)	≤3% (Linear load)
	Dynamic Response Time	2ms (Load 0←→100%)
	Power Factor (PF)	1
	Overload Capacity	120%, 5 minutes / 200%, 3 seconds
	Crest Factor (CF)	3:1
	Inverter Efficiency	94%
Environment	Dielectric Strength	1500VAC, 1 minute
	Noise (1m)	≤50dB
	Ambient Temperature	-20℃ ~ +60℃
	Humidity	0~90%, No condensation
	Altitude	<6000m (Higher than 2000m rated power should be reduced)
Protection Function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Pure Sine Wave		Yes
Equipped with copper transformer		Yes
Communication Mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
Solar Charger		Optional, available
AC Charger		Optional, available
Generator Port		Optional, available
Size(mm)		520×1160×1350 mm
Weight(kg)		280 kg

Technical parameters of three-phase off-grid inverter 30KW

Type		NB120-30KSZ	NB240-30KSZ	NB380-30KSZ
DC Input	Input Rated Voltage	120 VDC	240 VDC	380 VDC
	Input Rated Current	278 A	139 A	88 A
	Input DC Voltage Range	100-155 VDC	200-310 VDC	320-496 VDC
AC Input (Bypass)	Allow Input Voltage Range	220 VAC / 380 VAC / 400 VAC ± 15%
	Input Rated Current	83A / 45.5A / 43.5 A
	Bypass Transfer Time	≤100ms (Can be customized ≤4ms version)
AC Output	Output Rated Power	30KW
	Output Voltage and Frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output Rated Current	83A / 45.5A / 43.5 A
	Output Voltage Accuracy	220 VAC / 380 VAC / 400 VAC ± 1%
	Output Frequency Accuracy	50Hz / 60Hz ± 0.05%
	Waveform Distortion (THD)	≤3% (Linear load)
	Dynamic Response Time	2ms (Load 0←→100%)
	Power Factor (PF)	1
	Overload Capacity	120%, 5 minutes / 200%, 3 seconds
	Crest Factor (CF)	3:1
	Inverter Efficiency	94%
Environment	Dielectric Strength	1500VAC, 1 minute
	Noise (1m)	≤50dB
	Ambient Temperature	-20℃ ~ +60℃
	Humidity	0~90%, No condensation
	Altitude	<2000m (Higher than 2000m rated power should be reduced)
Protection Function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Pure Sine Wave		Yes
Equipped with copper transformer		Yes
Communication Mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
Solar Charger		Optional, available
AC Charger		Optional, available
Generator Port		Optional, available
Size(mm)		66013001600 mm
Weight(kg)		360 kg

Technical parameters of three-phase off-grid inverter 40KW

Type		NB220-40KSZ	NB240-40KSZ	NB380-40KSZ
DC Input	Input Rated Voltage	220 VDC	240 VDC	380 VDC
	Input Rated Current	202 A	185 A	117 A
	Input DC Voltage Range	180-279 VDC	200-310 VDC	320-496 VDC
AC Input (Bypass)	Allow Input Voltage Range	220 VAC / 380 VAC / 400 VAC ± 15%
	Input Rated Current	111.2A / 60.8A / 58A
	Bypass Transfer Time	≤100ms (Can be customized ≤4ms version)
AC Output	Output Rated Power	40KW
	Output Voltage and Frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output Rated Current	111.2A / 60.8A / 58A
	Output Voltage Accuracy	220 VAC / 380 VAC / 400 VAC ± 1%
	Output Frequency Accuracy	50Hz / 60Hz ± 0.05%
	Waveform Distortion (THD)	≤3% (Linear load)
	Dynamic Response Time	2ms (Load 0←→100%)
	Power Factor (PF)	1
	Overload Capacity	120%, 5 minutes / 200%, 3 seconds
	Crest Factor (CF)	3:1
	Inverter Efficiency	94%
Environment	Dielectric Strength	1500VAC, 1 minute
	Noise (1m)	≤50dB
	Ambient Temperature	-20℃ ~ +60℃
	Humidity	0~90%, No condensation
	Altitude	<6000m (Higher than 2000m rated power should be reduced)
Pure Sine Wave		Yes
Equipped with copper transformer		Yes
Communication Mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
AC Charger		Optional
Solar Charger		Optional
Generator Port		Optional
Protection	Protection Function	Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Size(mm)		76014001600mm
Weight(kg)		550kg

Technical parameters of three-phase off-grid inverter 50KW

Type		NB480-50KSZ	NB380-50KSZ
DC Input	Input Rated Voltage	480 VDC	380 VDC
	Input Rated Current	115 A	146 A
	Input DC Voltage Range	400-620 VDC	320-496VDC
AC Input (Bypass)	Allow Input Voltage Range	220 VAC / 380 VAC / 400 VAC ± 15%
	Input Rated Current	139A / 76A / 72.5A
	Bypass Transfer Time	≤100ms (Can be customized ≤4ms version)
AC Output	Output Rated Power	50KW
	Output Voltage and Frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output Rated Current	139A / 76A / 72.5A
	Output Voltage Accuracy	220 VAC / 380 VAC / 400 VAC ± 1%
	Output Frequency Accuracy	50Hz / 60Hz ± 0.05%
	Waveform Distortion (THD)	≤3% (Linear load)
	Dynamic Response Time	2ms (Load 0←→100%)
	Power Factor (PF)	1
	Overload Capacity	120%, 5 minutes / 200%, 3 seconds
	Crest Factor (CF)	3:1
	Inverter Efficiency	94%
Environment	Dielectric Strength	1500VAC, 1 minute
	Noise (1m)	≤50dB
	Ambient Temperature	-20℃ ~ +60℃
	Humidity	0~90%, No condensation
	Altitude	<2000m (Higher than 2000m rated power should be reduced)
Pure Sine Wave		Yes
Equipped with copper transformer		Yes
Communication Mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
AC Charger		Optional
Solar Charger		Optional
Generator Port		Optional
Protection	Protection Function	Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Size(mm)		66013001600mm
Weight(kg)		450kg

Product application scenario

Factory Gallery & Certificates

Frequently Asked Questions (FAQ)

What is a three-phase off-grid inverter and who needs it?

A three-phase off-grid inverter converts DC power from batteries or solar panels into stable three-phase AC power. It is ideal for industrial machinery, commercial centers, agricultural water pumps, and remote locations that require a reliable power grid independent of the main utility grid.

What is the advantage of using a Mitsubishi IGBT component in the inverter?

Integrating a Mitsubishi IGBT as a power switch guarantees high efficiency, excellent thermal management, high switching speed, and extreme reliability, which drastically reduces component failure rates under high-power conditions.

Does the inverter support bypass function and what is the transfer time?

Yes, the inverter is built with an AC bypass transfer function. Depending on the model, the standard transfer time is ≤40ms or ≤100ms. If you require seamless power for sensitive devices, a ≤4ms high-speed customized transfer version is available.

What built-in protections does the inverter have?

Our three-phase off-grid inverters feature multiple layers of protection, including DC input reverse polarity protection, DC input under-voltage protection, output overload protection, output short-circuit protection, and over-temperature (thermal) protection.

Can I monitor the inverter remotely?

Yes. The system comes equipped with robust communication interfaces supporting RS485, Wi-Fi, GPRS, and Ethernet (using Modbus RTU protocol). This allows you to track real-time operations, configure parameters, and receive warning alerts on computers or mobile phones.

Why is a copper isolation transformer important?

The built-in copper isolation transformer isolates the input circuit from the output load. This provides excellent surge protection, suppresses grid harmonics, boosts overload capabilities, and prevents physical electric shock risks, significantly prolonging the equipment’s service life.
