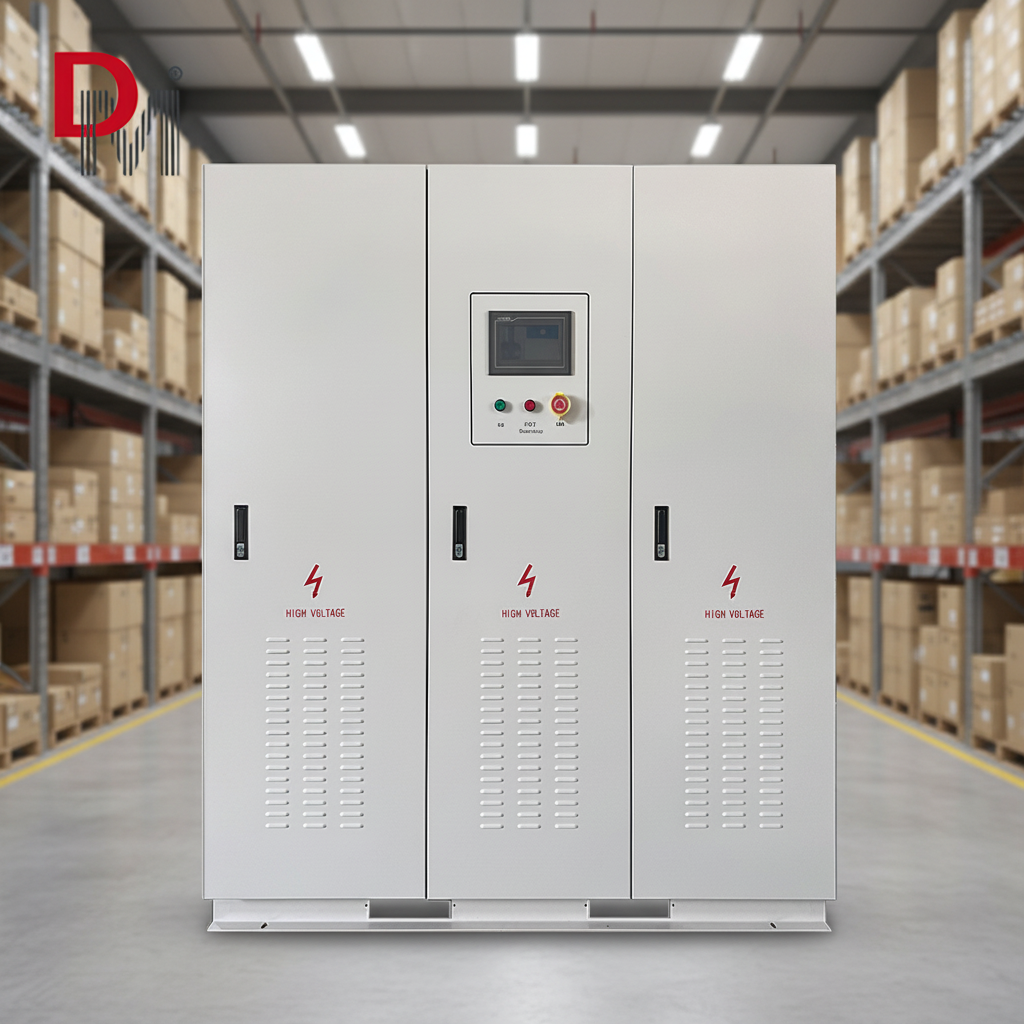

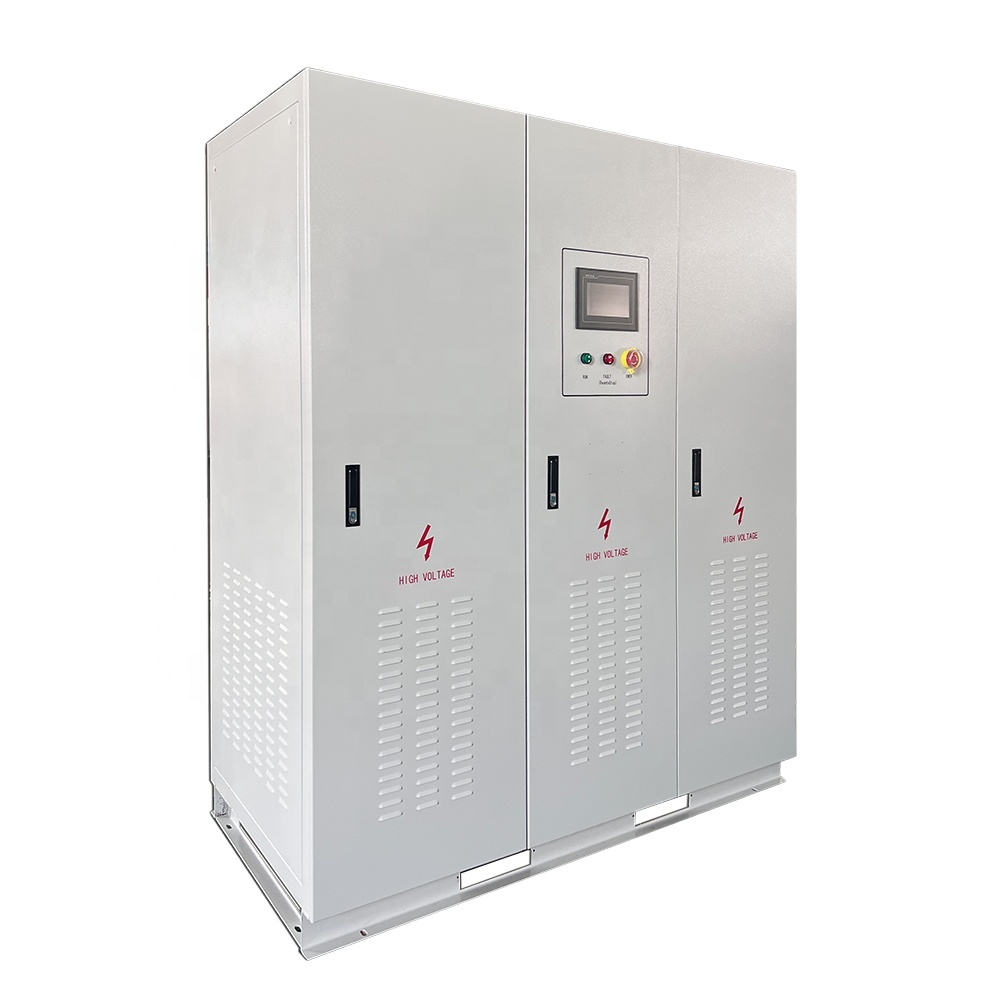

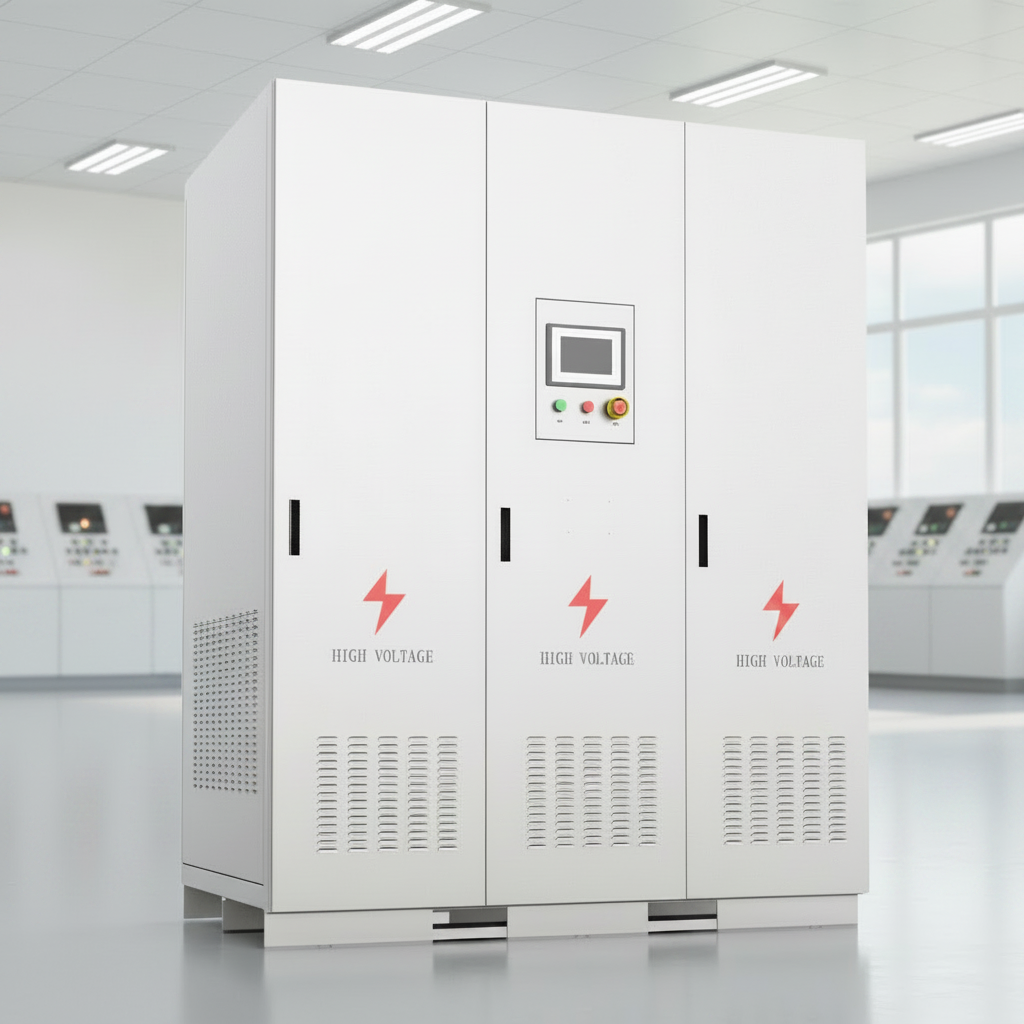

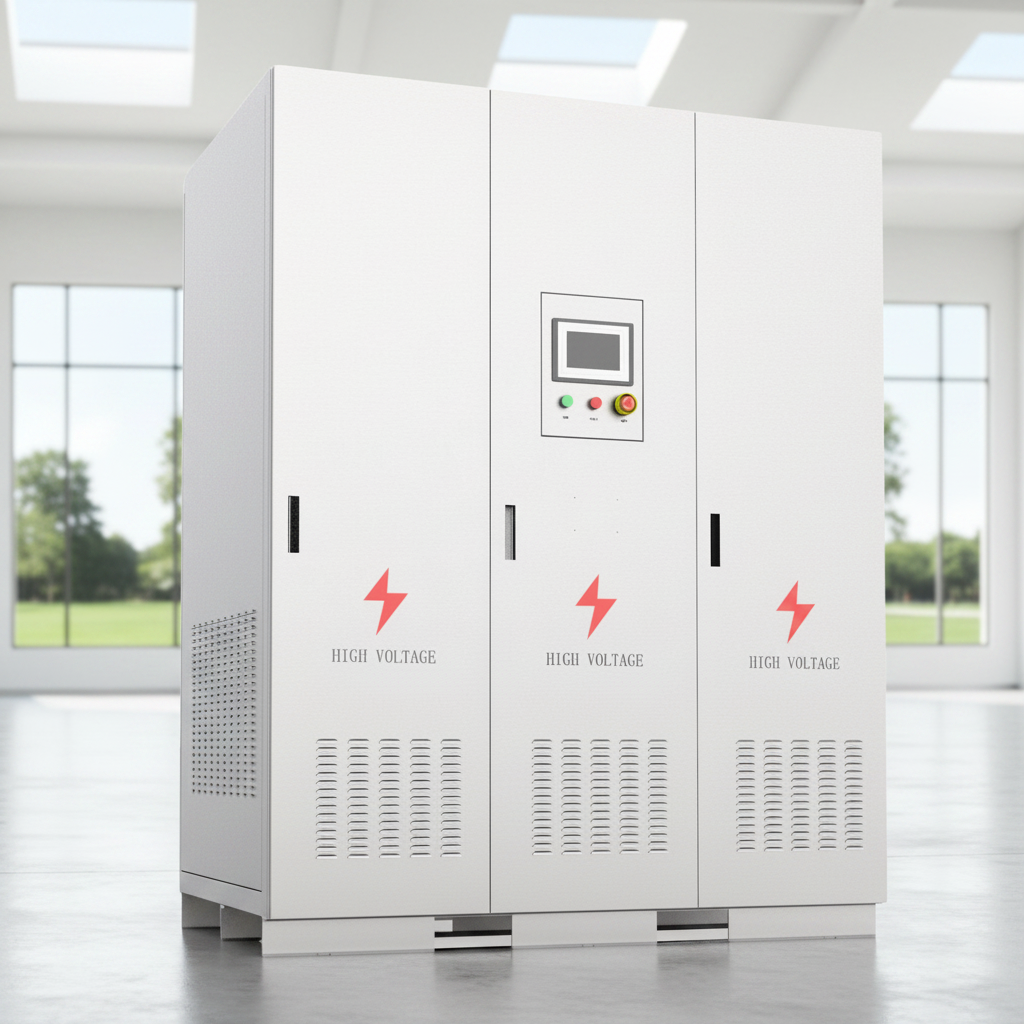

Product parameter

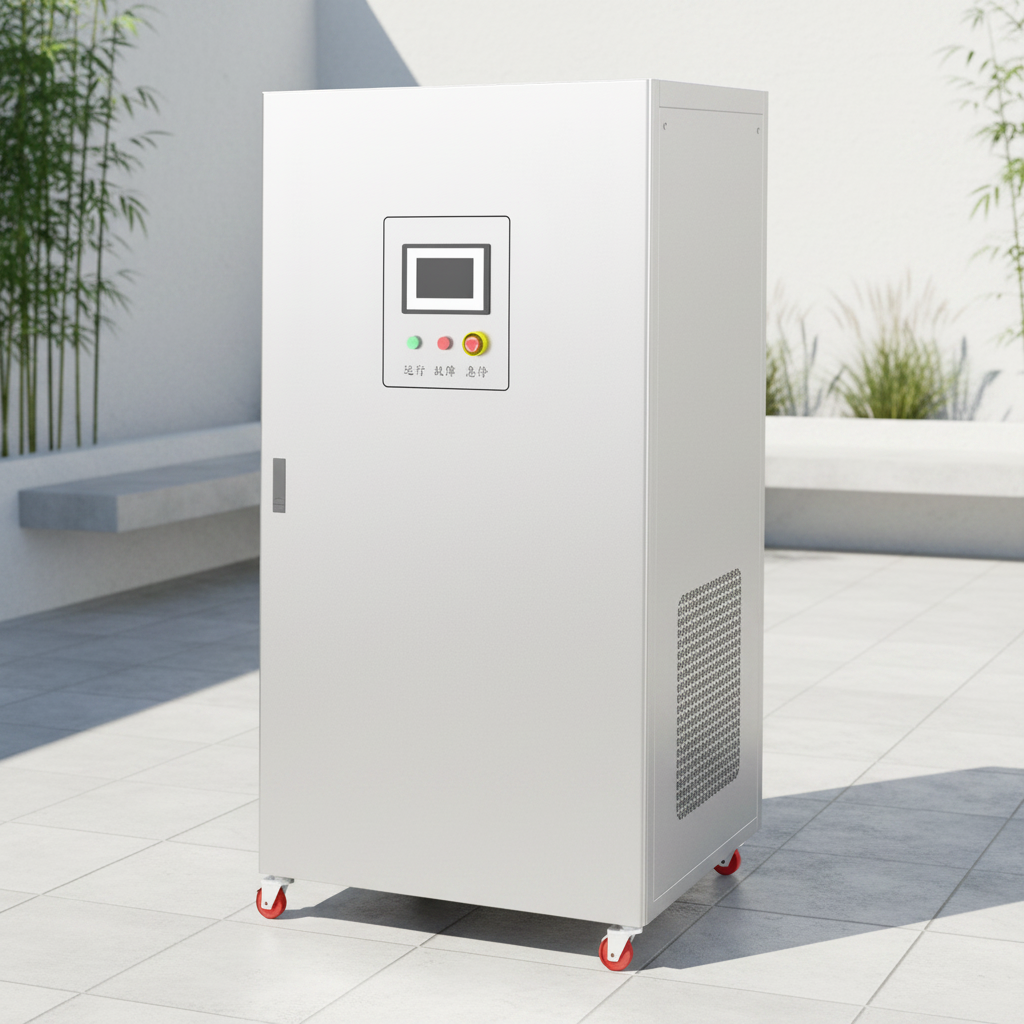

Technical parameters of three-phase off-grid inverter 10KW
| Input rated voltage |
48 VDC |
96 VDC |
120 VDC |
240 VDC |
| Input rated current |
231 A |
116 A |
93 A |
46 A |
| Input DC voltage allowing range |
40-62 VDC |
80-124 VDC |
100-155 VDC |
200-310 VDC |
| Allow input voltage range |
220 VAC / 380 VAC / 400 VAC ± 15% VAC |
| Input rated current |
28A / 15A / 14.5A |
| Bypass transfer time |
≤40ms (Can be customized ≤ 4ms version) |
| Output rated power |
10KW |
| Output rated voltage and frequency |
220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz |
| Output rated current |
28A / 15A / 14.5A |
| Output voltage accuracy |
220 VAC / 380 VAC / 400 VAC ± 1% |
| Output frequency accuracy |
50Hz / 60Hz ± 0.05% |
| Wave Form |
Pure sine wave (Isolation transformer) |
| THD. |
≤3% (Linear load) |
| Power factor (PF) |
1 |
| Overload capacity |
120%, 5 minutes / 200%, 3 seconds |
| Crest factor (CF) |
3:1 |
| Inverter efficiency |
>94% |
| Dielectric strength |
1500VAC, 1 minute |
| Noise (1m) |
≤50dB |
| Ambient temperature |
-20℃ ~ +60℃ |
| Humidity |
0~90%, No condensation |
| Altitude |
<2000m (Higher than 2000m rated power should be reduced) |
| Production function |
Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection |
| Pure Sine Wave |
Yes |
| Equipped with copper transformer |
Yes |
| Communication mode |
RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) |
| Solar Charger |
Optional, available |
| AC Charger |
Optional, available |
| Generator Port |
Optional, available |
| Size(mm) / Weight(kg) |
450×830×1100 mm / 180 kg |
Technical parameters of three-phase off-grid inverter 20KW
| Input rated voltage |
48 VDC |
96 VDC |
120 VDC |
240 VDC |
| Input rated current |
463 A |
231 A |
185 A |
93 A |
| Input DC voltage range |
40-62VDC |
80-124 VDC |
100-155 VDC |
200-310 VDC |
| Allow input voltage range |
220 VAC / 380 VAC / 400 VAC ± 15% VAC |
| Input rated current |
55.5A / 30A / 29A |
| Bypass transfer time |
≤100ms (Can be customized ≤4ms version) |
| Output rated power |
20KW |
| Output rated voltage and frequency |
220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz |
| Output rated current |
55.5A / 30A / 29A |
| Output voltage accuracy |
220 VAC / 380 VAC / 400 VAC ±2% |
| Output frequency accuracy |
50Hz / 60Hz ± 0.05% |
| Waveform distortion (THD) |
≤3% (Linear load) |
| Dynamic response time (Load 0↔100%) |
2ms |
| Power factor (PF) |
1 |
| Overload capacity |
120%, 5 minutes / 200%, 3 seconds |
| Crest factor (CF) |
3:1 |
| Inverter efficiency |
94% |
| Dielectric strength |
1500VAC, 1minute |
| Noise (1m) |
≤50dB |
| Ambient temperature |
-20℃ ~ +60℃ |
| Humidity |
0~90%, No condensation |
| Altitude |
<6000m (Higher than 2000m rated power should be reduced) |
| Production function |
Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection |
| Pure Sine Wave / Copper Transformer |
Yes / Yes |
| Communication mode |
RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) |
| Solar / AC Charger / Generator Port |
Optional, available |
| Size(mm) / Weight(kg) |
520×1160×1350 mm / 280 kg |
Technical parameters of three-phase off-grid inverter 30KW
| Input rated voltage |
120 VDC |
240 VDC |
380 VDC |
| Input rated current |
278A |
139 A |
88 A |
| Input DC voltage range |
100-155 VDC |
200-310 VDC |
320-496 VDC |
| Allow input voltage range |
220 VAC / 380 VAC / 400 VAC ± 15% VAC |
| Input rated current |
83A / 45.5A / 43.5 A |
| Bypass transfer time |
≤100ms (Can be customized ≤4ms version) |
| Output rated power |
30KW |
| Output rated voltage and frequency |
220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz |
| Output rated current |
83A / 45.5A / 43.5 A |
| Output voltage accuracy |
220 VAC / 380 VAC / 400 VAC ± 1% |
| Output frequency accuracy |
50Hz / 60Hz ±0.05% |
| Waveform distortion (THD) |
≤3% (Linear load) |
| Dynamic response time (Load 0↔100%) |
2ms |
| Power factor (PF) |
1 |
| Overload capacity |
120%, 5 minutes / 200%, 3 seconds |
| Inverter efficiency |
94% |
| Dielectric strength |
1500VAC, 1minute |
| Ambient temp. / Humidity |
-20℃ ~ +60℃ / 0~90%, No condensation |
| Altitude |
<2000m (Higher than 2000m rated power should be reduced) |
| Production function |
Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection |
| Pure Sine Wave / Copper Transformer |
Yes / Yes |
| Communication mode |
RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) |
| Solar / AC Charger / Generator Port |
Optional, available |
| Size(mm) / Weight(kg) |
660*1300*1600mm / 360kg |
Technical parameters of three-phase off-grid inverter 40KW
| Input rated voltage |
220Vdc |
240Vdc |
380 VDC |
| Input rated current |
202 A |
185 A |
117 A |
| Input DC voltage range |
180-279 VDC |
200-310 VDC |
320-496 VDC |
| Allow input voltage range |
220 VAC / 380 VAC / 400 VAC ± 15% VAC |
| Input rated current |
111.2A / 60.8A / 58A |
| Bypass transfer time |
≤100ms (Can be customized ≤4ms version) |
| Output rated power |
40KW |
| Output rated voltage and frequency |
220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz |
| Output rated current |
111.2A / 60.8A / 58A |
| Output voltage accuracy |
220 VAC / 380 VAC / 400 VAC ± 1% |
| Waveform distortion (THD) |
≤3% (Linear load) |
| Dynamic response time |
2ms |
| Power factor (PF) / Inverter efficiency |
1 / 94% |
| Dielectric strength / Noise(1m) |
1500VAC, 1minute / ≤50dB |
| Ambient temp. / Humidity |
-20℃ ~ +60℃ / 0~90%, No condensation |
| Altitude |
<6000m (Higher than 2000m rated power should be reduced) |
| Pure Sine Wave / Copper Transformer |
Yes / Yes |
| Communication mode |
RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) |
| AC Charger / Solar Charger / Generator port |
Optional |
| Production function |
Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection |
| Size(mm) / Weight(kg) |
760*1400*1600mm / 550kg |
Technical parameters of three-phase off-grid inverter 50KW
| Input rated voltage |
480 VDC |
380 VDC |
| Input rated current |
115 A |
146 A |
| Input DC voltage range |
400-620 VDC |
320-496 VDC |
| Allow input voltage range |
220 VAC / 380 VAC / 400 VAC ± 15% VAC |
| Input rated current |
139A / 76A / 72.5A |
| Bypass transfer time |
≤100ms (Can be customized ≤4ms version) |
| Output rated power |
50KW |
| Output rated voltage and frequency |
220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz |
| Output rated current |
139A / 76A / 72.5A |
| Output voltage accuracy / Frequency accuracy |
220 VAC / 380 VAC / 400 VAC ± 1% / 50Hz / 60Hz ±0.05% |
| Waveform distortion (THD) |
≤3% (Linear load) |
| Dynamic response time / Power factor (PF) |
2ms / 1 |
| Overload capacity |
120%, 5 minutes / 200%, 3 seconds |
| Crest factor (CF) / Inverter efficiency |
3:1 / 94% |
| Dielectric strength / Noise(1m) |
1500VAC, 1minute / ≤50dB |
| Ambient temp. / Humidity |
-20℃ ~ +60℃ / 0~90%, No condensation |
| Altitude |
<2000m (Higher than 2000m rated power should be reduced) |
| Pure Sine Wave / Copper Transformer |
Yes / Yes |
| Communication mode |
RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) |
| AC Charger / Solar Charger / Generator port |
Optional |
| Production function |
Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection |
| Size(mm) / Weight(kg) |
660*1300*1600mm / 450kg |
Frequently Asked Questions (FAQ)
What core power component is used in this three-phase off-grid inverter?
The inverter utilizes an advanced IGBT module from Mitsubishi company as the main power component to ensure high efficiency, reliability, and stable performance.
What is the standard bypass transfer time, and can it be adjusted?
The standard transfer time for the AC bypass is ≤40ms for the 10KW model and ≤100ms for models between 20KW and 50KW. A customized fast transfer version of ≤4ms can also be ordered.
Does this inverter support remote monitoring and communication?
Yes, it supports multiple communication modes including RS485, Wifi, GPRS, and Ethernet utilizing the standard Modbus RTU protocol for seamless monitoring.
What safety protection features are integrated into the system?
The inverter features a comprehensive suite of built-in protections: input reverse polarity protection, input under-voltage protection, output overload protection, output short circuit protection, and over-temperature (thermal) protection.
Can I connect a solar charger or a backup generator to the system?
Yes, optional ports and integrations for both solar chargers (MPPT/PWM), AC chargers, and auxiliary generator ports are fully compatible and available to configure.
Are these inverters compatible with high-altitude environments?
The standard design supports operation up to 2000 meters above sea level without power loss. For altitudes higher than 2000m, the rated power output should be reduced accordingly.
