Demin Power
1 / 5
| Type | NB48-10KSZ | NB96-10KSZ | NB120-10KSZ | NB240-10KSZ | |
|---|---|---|---|---|---|
| DC input | Input rated voltage | 48 VDC | 96 VDC | 120 VDC | 240 VDC |
| Input rated current | 231 A | 116 A | 93 A | 46 A | |
| Input DC voltage allowing range | 40-62VDC | 80-124 VDC | 100-155 VDC | 200-310 VDC | |
| AC Input (AC bypass) | Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% VAC | |||
| Input rated current | 28A / 15A / 14.5A | ||||
| Bypass transfer time | ≤40ms (Can be customized ≤ 4ms version) | ||||
| AC output | Output rated power | 10KW | |||
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz | ||||
| Output rated current | 28A / 15A / 14.5A | ||||
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 1% | ||||
| Output frequency accuracy | 50Hz / 60Hz ± 0.05% | ||||
| Wave Form | Pure sine wave (Isolation transformer) | ||||
| THD. | ≤3% (Linear load) | ||||
| Power factor (PF) | 1 | ||||
| Overload capacity | 120%, 5 minutes / 200%, 3 seconds | ||||
| Crest factor (CF) | 3:1 | ||||
| Inverter efficiency | ＞94% | ||||
| Working Environment | Dielectric strength | 1500VAC, 1 minute | |||
| Noise (1m) | ≤50dB | ||||
| Ambient temperature | -20℃ ~ +60℃ | ||||
| Humidity | 0~90%, No condensation | ||||
| Altitude | ＜2000m (Higher than 2000m rated power should be reduced) | ||||
| Production function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | ||||
| Pure Sine Wave | Yes | ||||
| Equipped with copper transformer | Yes | ||||
| Communication mode | RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) | ||||
| Solar Charger | Optional, available | ||||
| AC Charger | Optional, available | ||||
| Generator Port | Optional, available | ||||
| Size(mm) | 450×830×1100 mm | ||||
| Weight(kg) | 180 kg | ||||
| Type | NB48-20KSZ | NB96-20KSZ | NB120-20KSZ | NB240-20KSZ | |
|---|---|---|---|---|---|
| DC input | Input rated voltage | 48 VDC | 96 VDC | 120 VDC | 240 VDC |
| Input rated current | 463 A | 231 A | 185 A | 93 A | |
| Input DC voltage range | 40-62VDC | 80-124 VDC | 100-155 VDC | 200-310 VDC | |
| AC input (AC Bypass) | Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% VAC | |||
| Input rated current | 55.5A / 30A / 29A | ||||
| Bypass transfer time | ≤100ms (Can be customized ≤4ms version) | ||||
| AC output | Output rated power | 20KW | |||
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz | ||||
| Output rated current | 55.5A / 30A / 29A | ||||
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ±2% | ||||
| Output frequency accuracy | 50Hz / 60Hz ± 0.05% | ||||
| Waveform distortion (THD). | ≤3% (Linear load) | ||||
| Dynamic response time (Load 0←→100%) | 2ms | ||||
| Power factor (PF) | 1 | ||||
| Overload capacity | 120%, 5 minutes / 200%, 3 seconds | ||||
| Crest factor (CF) | 3:1 | ||||
| Inverter efficiency | 94% | ||||
| Working Environment | Dielectric strength | 1500VAC, 1minute | |||
| Noise (1m) | ≤50dB | ||||
| Ambient temperature | -20℃ ~ +60℃ | ||||
| Humidity | 0~90%, No condensation | ||||
| Altitude | ＜6000m (Higher than 2000m rated power should be reduced) | ||||
| Production function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | ||||
| Pure Sine Wave | Yes | ||||
| Equipped with copper transformer | Yes | ||||
| Communication mode | RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) | ||||
| Solar Charger | Optional, available | ||||
| AC Charger | Optional, available | ||||
| Generator Port | Optional, available | ||||
| Size(mm) | 520×1160×1350 mm | ||||
| Weight(kg) | 280 kg | ||||
| Type | NB120-30KSZ | NB240-30KSZ | NB380-30KSZ | |
|---|---|---|---|---|
| DC input | Input rated voltage | 120 VDC | 240 VDC | 380 VDC |
| Input rated current | 278A | 139 A | 88 A | |
| Input DC voltage range | 100-155 VDC | 200-310 VDC | 320-496VDC | |
| AC input (AC Bypass) | Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% VAC | ||
| Input rated current | 83A / 45.5A / 43.5 A | |||
| Bypass transfer time | ≤100ms (Can be customized ≤4ms version) | |||
| AC output | Output rated power | 30KW | ||
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz | |||
| Output rated current | 83A / 45.5A / 43.5 A | |||
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 1% | |||
| Output frequency accuracy | 50Hz / 60Hz ±0.05% | |||
| Waveform distortion (THD). | ≤3% (Linear load) | |||
| Dynamic response time (Load 0←→100%) | 2ms | |||
| Power factor (PF) | 1 | |||
| Overload capacity | 120%, 5 minutes / 200%, 3 seconds | |||
| Crest factor (CF) | 3:1 | |||
| Inverter efficiency | 94% | |||
| Working Environment | Dielectric strength | 1500VAC, 1minute | ||
| Noise (1m) | ≤50dB | |||
| Ambient temperature | -20℃ ~ +60℃ | |||
| Humidity | 0~90%, No condensation | |||
| Altitude | ＜2000m (Higher than 2000m rated power should be reduced) | |||
| Production function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | |||
| Pure Sine Wave | Yes | |||
| Equipped with copper transformer | Yes | |||
| Communication mode | RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) | |||
| Solar Charger | Optional, available | |||
| AC Charger | Optional, available | |||
| Generator Port | Optional, available | |||
| Size(mm) | 660*1300*1600mm | |||
| Weight(kg) | 360kg | |||
| Type | NB220-40KSZ | NB240-40KSZ | NB380-40KSZ | |
|---|---|---|---|---|
| DC input | Input rated voltage | 220Vdc | 240Vdc | 380 VDC |
| Input rated current | 202 A | 185 A | 117 A | |
| Input DC voltage range | 180-279 VDC | 200-310 VDC | 320-496VDC | |
| AC input (AC Bypass) | Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% VAC | ||
| Input rated current | 111.2A / 60.8A / 58A | |||
| Bypass transfer time | ≤100ms (Can be customized ≤4ms version) | |||
| AC output | Output rated power | 40KW | ||
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz | |||
| Output rated current | 111.2A / 60.8A / 58A | |||
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 1% | |||
| Output frequency accuracy | 50Hz / 60Hz ±0.05% | |||
| Waveform distortion (THD). | ≤3% (Linear load) | |||
| Dynamic response time (Load 0←→100%) | 2ms | |||
| Power factor (PF) | 1 | |||
| Overload capacity | 120%, 5 minutes / 200%, 3 seconds | |||
| Crest factor (CF) | 3:1 | |||
| Inverter efficiency | 94% | |||
| Working Environment | Dielectric strength | 1500VAC, 1minute | ||
| Noise (1m) | ≤50dB | |||
| Ambient temperature | -20℃ ~ +60℃ | |||
| Humidity | 0~90%, No condensation | |||
| Altitude | ＜6000m (Higher than 2000m rated power should be reduced) | |||
| Pure Sine Wave | Yes | |||
| Equipped with copper transformer | Yes | |||
| Communication mode | RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) | |||
| AC Charger | Optional | |||
| Solar Charger | Optional | |||
| Generator port | Optional | |||
| Production function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | |||
| Size(mm) | 760*1400*1600mm | |||
| Weight(kg) | 550kg | |||
| Type | NB480-50KSZ | NB380-50KSZ | |
|---|---|---|---|
| DC input | Input rated voltage | 480 VDC | 380 VDC |
| Input rated current | 115 A | 146 A | |
| Input DC voltage range | 400-620 VDC | 320-496VDC | |
| AC input (AC Bypass) | Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% VAC | |
| Input rated current | 139A / 76A / 72.5A | ||
| Bypass transfer time | ≤100ms (Can be customized ≤4ms version) | ||
| AC output | Output rated power | 50KW | |
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz | ||
| Output rated current | 139A / 76A / 72.5A | ||
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 1% | ||
| Output frequency accuracy | 50Hz / 60Hz ±0.05% | ||
| Waveform distortion (THD). (Linear load) | ≤3% | ||
| Dynamic response time (Load 0←→100%) | 2ms | ||
| Power factor (PF) | 1 | ||
| Overload capacity | 120%, 5 minutes / 200%, 3 seconds | ||
| Crest factor (CF) | 3:1 | ||
| Inverter efficiency | 94% | ||
| Working Environment | Dielectric strength | 1500VAC, 1minute | |
| Noise (1m) | ≤50dB | ||
| Ambient temperature | -20℃ ~ +60℃ | ||
| Humidity | 0~90%, No condensation | ||
| Altitude | ＜2000m (Higher than 2000m rated power should be reduced) | ||
| Pure Sine Wave | Yes | ||
| Equipped with copper transformer | Yes | ||
| Communication mode | RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) | ||
| AC Charger | Optional | ||
| Solar Charger | Optional | ||
| Generator port | Optional | ||
| Production function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | ||
| Size(mm) | 660*1300*1600mm | ||
| Weight(kg) | 450kg | ||

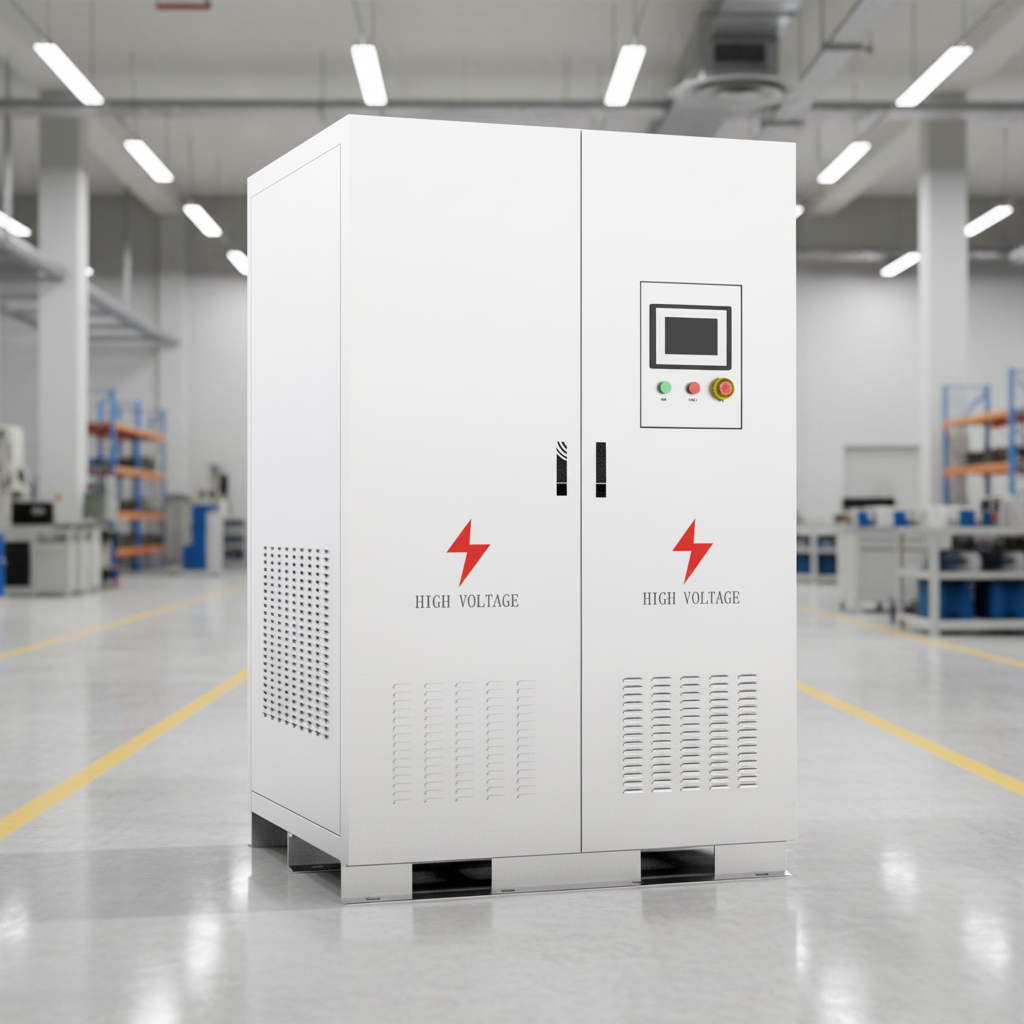

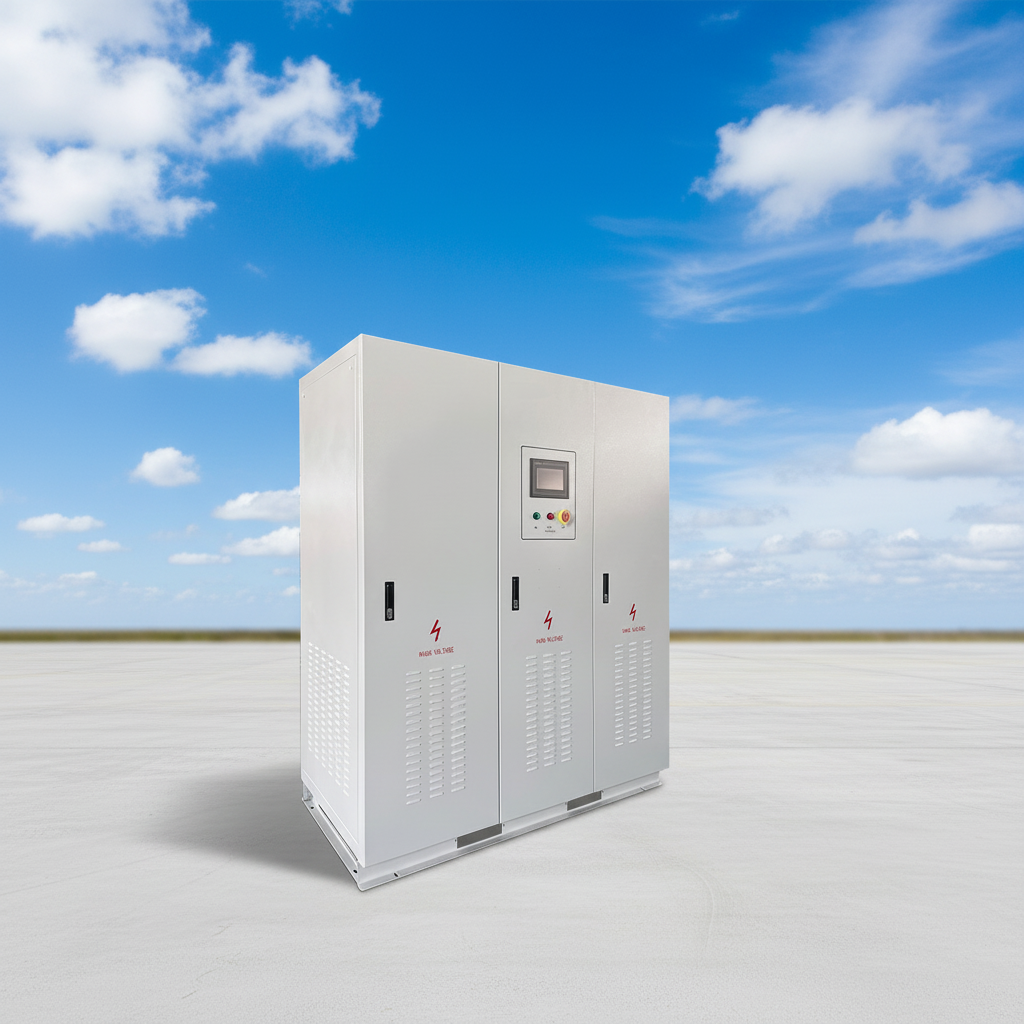

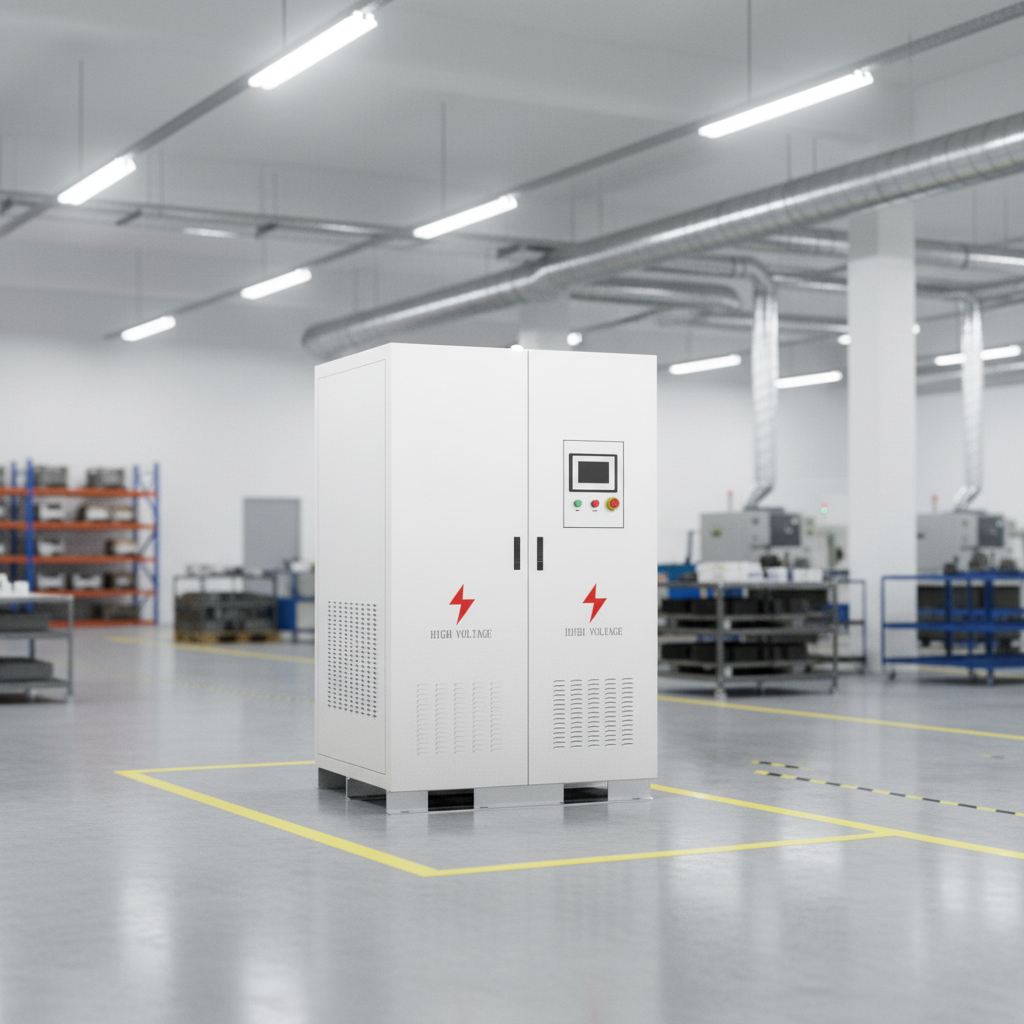

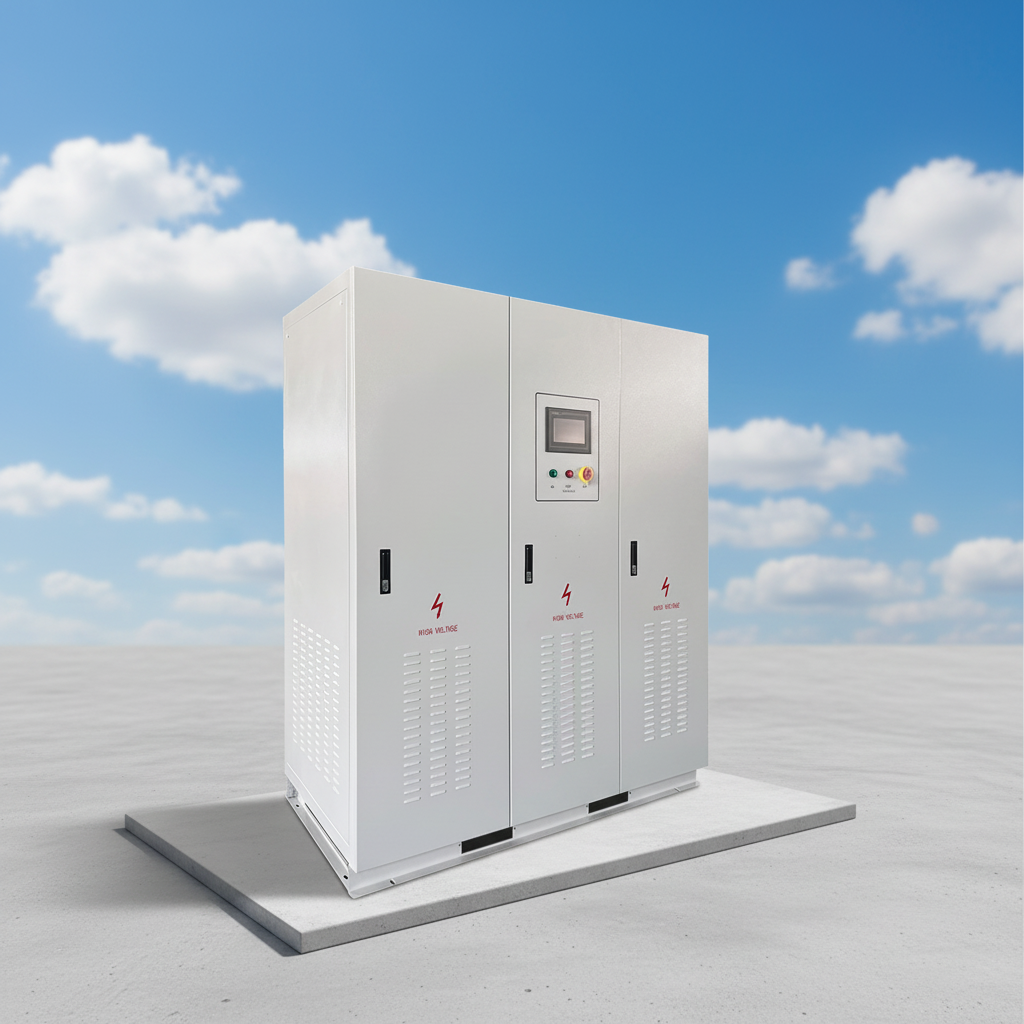

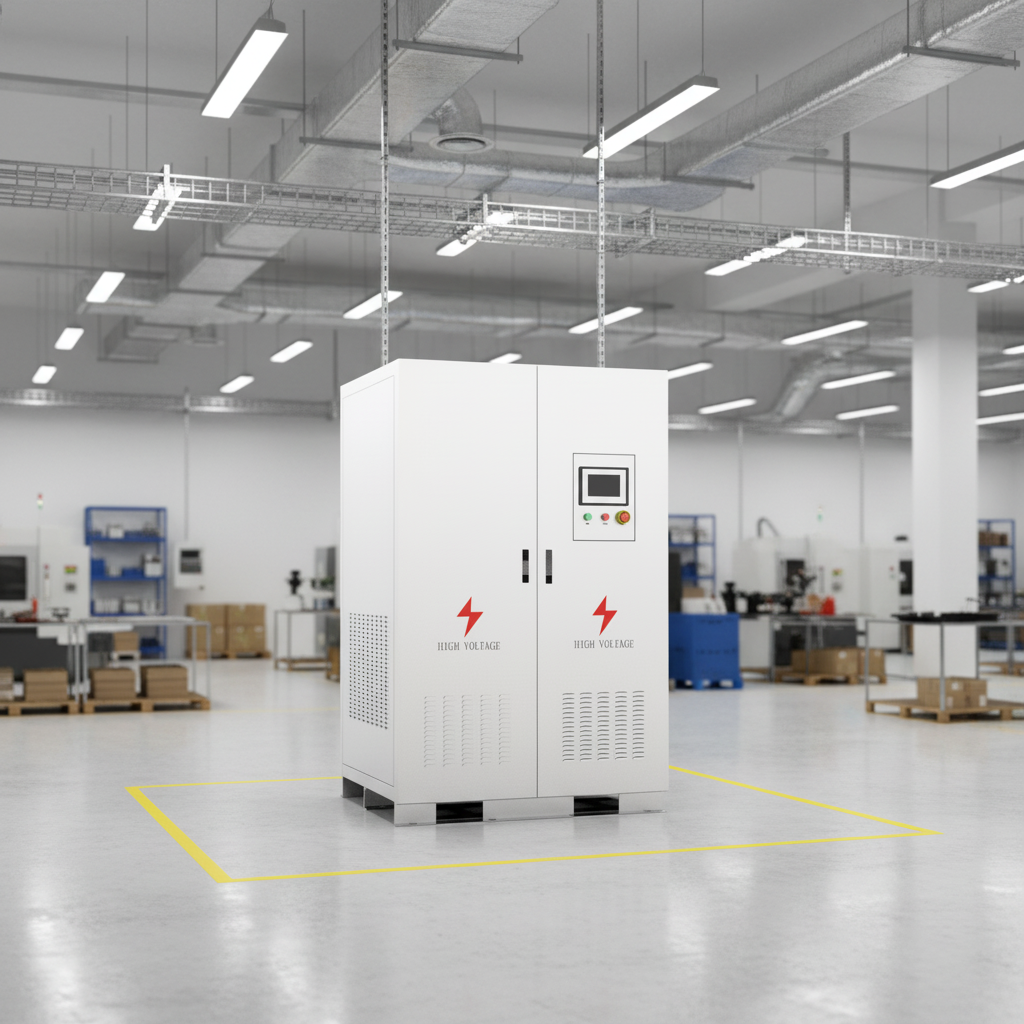

This three-phase off-grid inverter uses high-quality IGBT modules from Mitsubishi as the core power components to ensure high stability, durability, and superior power conversion performance.
The controller relies on an advanced microprocessor from ATmel (USA) as the digital figure controller, which coordinates the electrical systems precisely and provides quick response speeds.
The inverter supports multiple communication modes, including RS485, Wifi, GPRS, and Ethernet using the standard Modbus RTU protocol, allowing easy remote monitoring and system configuration.
It outputs a clean Pure Sine Wave through an integrated isolation copper transformer. The Total Harmonic Distortion (THD) is kept under 3% under linear loads, ensuring safe operation for sensitive appliances.
The inverter comes built with perfect protection functions, including input reverse polarity protection, input under-voltage protection, output overload protection, output short circuit protection, and thermal/overheating protection.
Yes, it features optional integration capacities for a solar charger, an AC charger, and a dedicated generator port to accommodate different hybrid power setup requirements.
