Demin Power
1 / 5
| Model | 1KW 2KW 3KW 5KW 10KW 15KW 20KW 30KW 50KW 100KW 200KW 300KW |
| Rated speed(r/min) | 100r/min 150r/min 200r/min 300r/min 450r/min |
| Rated power(KW) | 50KW |
| Working Voltage | DC48-550V/AC110-480V |
| Rated current(A) | 138,100 A |
| Start-up wind speed(m/s) | 3m/s |
| Rated wind speed(m/s) | 10-12m/s |
| Safe wind speed(m/s) | 35-45m/s |
| No of blades | 3 pieces |
| Material of blades | FRP strengthened |
| Generator | 3 phases PM generator |
| Braking system | Electromagnetic Brake + Manual Brake |
A comprehensive range of models is available to meet various energy demands, including 1KW, 2KW, 3KW, 5KW, 10KW, 15KW, 20KW, 30KW, 50KW, 100KW, 200KW, and 300KW options.
The wind turbines feature a low start-up wind speed of 3m/s. The rated speed ranges dynamically depending on the model, from 100r/min up to 450r/min.

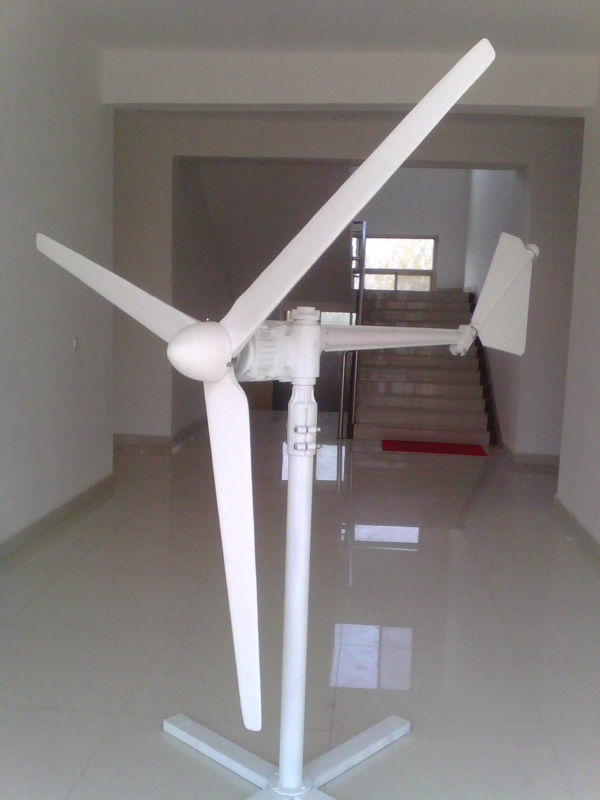

The turbine utilizes 3 blades constructed from FRP (Fiber Reinforced Plastic) strengthened material, providing high durability and optimal aerodynamic efficiency.

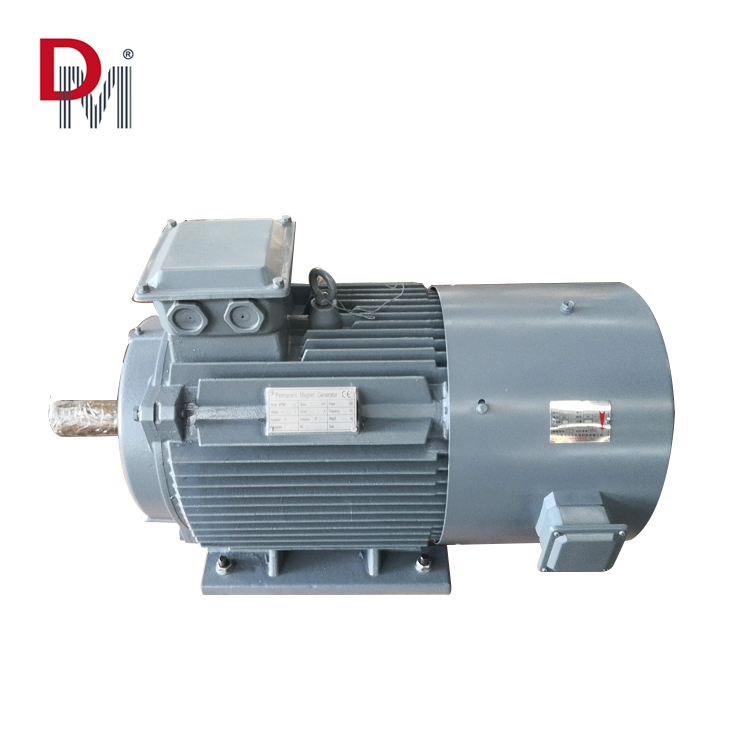

These turbine systems are equipped with a highly efficient 3-phase Permanent Magnet (PM) generator to optimize power conversion rates.
To ensure complete structural and operational safety, a dual-braking system consisting of an Electromagnetic Brake and a Manual Brake is installed.

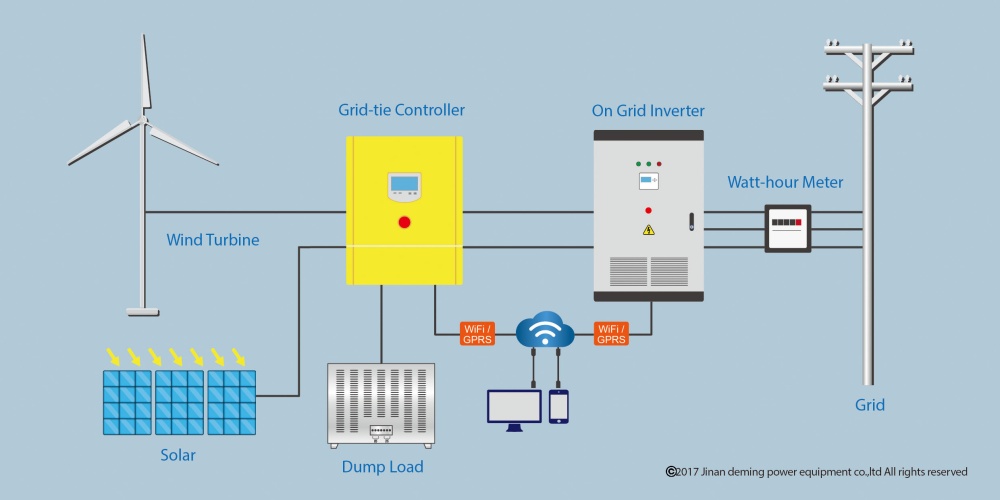

The systems support versatile voltage ranges, including DC 48-550V and AC 110-480V, allowing for integration with various electrical architectures and battery banks.
