| Type | NB48-10KSZ | NB96-10KSZ | NB120-10KSZ | NB240-10KSZ | |
|---|---|---|---|---|---|
| DC Input | Input rated voltage | 48 VDC | 96 VDC | 120 VDC | 240 VDC |
| Input rated current | 231 A | 116 A | 93 A | 46 A | |
| Input DC voltage range | 40-62 VDC | 80-124 VDC | 100-155 VDC | 200-310 VDC | |
| AC Input (AC bypass) | Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% | |||
| Input rated current | 28A / 15A / 14.5A | ||||
| Bypass transfer time | ≤ 40ms (Can be customized ≤ 4ms version) | ||||
| AC Output | Output rated power | 10KW | |||
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz | ||||
| Output rated current | 28A / 15A / 14.5A | ||||
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 1% | ||||
| Output frequency accuracy | 50Hz / 60Hz ± 0.05% | ||||
| Wave Form | Pure sine wave (Isolation transformer) | ||||
| THD. | ≤ 3% (Linear load) | ||||
| Power factor (PF) | 1 | ||||
| Overload capacity | 120%, 5 minutes / 200%, 3 seconds | ||||
| Crest factor (CF) | 3:1 | ||||
| Inverter efficiency | > 94% | ||||
| Working Environment | Dielectric strength | 1500VAC, 1 minute | |||
| Noise (1m) | ≤ 50dB | ||||
| Ambient temperature | -20℃ ~ +60℃ | ||||
| Humidity | 0~90%, No condensation | ||||
| Altitude | < 2000m (Higher than 2000m rated power should be reduced) | ||||
| Protection Function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | ||||
| Pure Sine Wave / Copper Transformer | Yes / Yes | ||||
| Communication Mode | RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) | ||||
| Solar Charger / AC Charger / Generator Port | Optional, available | ||||
| Size (mm) / Weight (kg) | 450×830×1100 mm / 180 kg | ||||
| Type | NB48-20KSZ | NB96-20KSZ | NB120-20KSZ | NB240-20KSZ | |
|---|---|---|---|---|---|
| DC Input | Input rated voltage | 48 VDC | 96 VDC | 120 VDC | 240 VDC |
| Input rated current | 463 A | 231 A | 185 A | 93 A | |
| Input DC voltage range | 40-62 VDC | 80-124 VDC | 100-155 VDC | 200-310 VDC | |
| AC Input (AC bypass) | Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% | |||
| Input rated current | 55.5A / 30A / 29A | ||||
| Bypass transfer time | ≤ 100ms (Can be customized ≤ 4ms version) | ||||
| AC Output | Output rated power | 20KW | |||
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz | ||||
| Output rated current | 55.5A / 30A / 29A | ||||
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 2% | ||||
| Output frequency accuracy | 50Hz / 60Hz ± 0.05% | ||||
| Waveform distortion (THD) | ≤ 3% (Linear load) | ||||
| Dynamic response time (Load 0↔100%) | 2ms | ||||
| Power factor (PF) | 1 | ||||
| Overload capacity | 120%, 5 minutes / 200%, 3 seconds | ||||
| Crest factor (CF) | 3:1 | ||||
| Inverter efficiency | 94% | ||||
| Working Environment | Dielectric strength | 1500VAC, 1 minute | |||
| Noise (1m) | ≤ 50dB | ||||
| Ambient temperature | -20℃ ~ +60℃ | ||||
| Humidity | 0~90%, No condensation | ||||
| Altitude | < 6000m (Higher than 2000m rated power should be reduced) | ||||
| Protection Function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | ||||
| Pure Sine Wave / Copper Transformer | Yes / Yes | ||||
| Communication Mode | RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) | ||||
| Solar Charger / AC Charger / Generator Port | Optional, available | ||||
| Size (mm) / Weight (kg) | 520×1160×1350 mm / 280 kg | ||||
| Type | NB120-30KSZ | NB240-30KSZ | NB380-30KSZ | |
|---|---|---|---|---|
| DC Input | Input rated voltage | 120 VDC | 240 VDC | 380 VDC |
| Input rated current | 278 A | 139 A | 88 A | |
| Input DC voltage range | 100-155 VDC | 200-310 VDC | 320-496 VDC | |
| AC Input (AC bypass) | Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% | ||
| Input rated current | 83A / 45.5A / 43.5 A | |||
| Bypass transfer time | ≤ 100ms (Can be customized ≤ 4ms version) | |||
| AC Output | Output rated power | 30KW | ||
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz | |||
| Output rated current | 83A / 45.5A / 43.5 A | |||
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 1% | |||
| Output frequency accuracy | 50Hz / 60Hz ± 0.05% | |||
| Waveform distortion (THD) | ≤ 3% (Linear load) | |||
| Dynamic response time (Load 0↔100%) | 2ms | |||
| Power factor (PF) | 1 | |||
| Overload capacity | 120%, 5 minutes / 200%, 3 seconds | |||
| Crest factor (CF) | 3:1 | |||
| Inverter efficiency | 94% | |||
| Working Environment | Dielectric strength | 1500VAC, 1 minute | ||
| Noise (1m) | ≤ 50dB | |||
| Ambient temperature | -20℃ ~ +60℃ | |||
| Humidity | 0~90%, No condensation | |||
| Altitude | < 2000m (Higher than 2000m rated power should be reduced) | |||
| Protection Function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | |||
| Pure Sine Wave / Copper Transformer | Yes / Yes | |||
| Communication Mode | RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) | |||
| Solar Charger / AC Charger / Generator Port | Optional, available | |||
| Size (mm) / Weight (kg) | 660*1300*1600mm / 360kg | |||
| Type | NB220-40KSZ | NB240-40KSZ | NB380-40KSZ | |
|---|---|---|---|---|
| DC Input | Input rated voltage | 220Vdc | 240Vdc | 380 VDC |
| Input rated current | 202 A | 185 A | 117 A | |
| Input DC voltage range | 180-279 VDC | 200-310 VDC | 320-496 VDC | |
| AC Input (AC bypass) | Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% | ||
| Input rated current | 111.2A / 60.8A / 58A | |||
| Bypass transfer time | ≤ 100ms (Can be customized ≤ 4ms version) | |||
| AC Output | Output rated power | 40KW | ||
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz | |||
| Output rated current | 111.2A / 60.8A / 58A | |||
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 1% | |||
| Output frequency accuracy | 50Hz / 60Hz ± 0.05% | |||
| Waveform distortion (THD) | ≤ 3% (Linear load) | |||
| Dynamic response time (Load 0↔100%) | 2ms | |||
| Power factor (PF) | 1 | |||
| Overload capacity | 120%, 5 minutes / 200%, 3 seconds | |||
| Crest factor (CF) | 3:1 | |||
| Inverter efficiency | 94% | |||
| Working Environment | Dielectric strength | 1500VAC, 1 minute | ||
| Noise (1m) | ≤ 50dB | |||
| Ambient temperature | -20℃ ~ +60℃ | |||
| Humidity | 0~90%, No condensation | |||
| Altitude | < 6000m (Higher than 2000m rated power should be reduced) | |||
| Protection Function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | |||
| Pure Sine Wave / Copper Transformer | Yes / Yes | |||
| Communication Mode | RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) | |||
| Solar Charger / AC Charger / Generator Port | Optional | |||
| Size (mm) / Weight (kg) | 760*1400*1600mm / 550kg | |||
| Type | NB480-50KSZ | NB380-50KSZ | |
|---|---|---|---|
| DC Input | Input rated voltage | 480 VDC | 380 VDC |
| Input rated current | 115 A | 146 A | |
| Input DC voltage range | 400-620 VDC | 320-496 VDC | |
| AC Input (AC bypass) | Allow input voltage range | 220 VAC / 380 VAC / 400 VAC ± 15% | |
| Input rated current | 139A / 76A / 72.5A | ||
| Bypass transfer time | ≤ 100ms (Can be customized ≤ 4ms version) | ||
| AC Output | Output rated power | 50KW | |
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz | ||
| Output rated current | 139A / 76A / 72.5A | ||
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 1% | ||
| Output frequency accuracy | 50Hz / 60Hz ± 0.05% | ||
| Waveform distortion (THD) (Linear load) | ≤ 3% | ||
| Dynamic response time (Load 0↔100%) | 2ms | ||
| Power factor (PF) | 1 | ||
| Overload capacity | 120%, 5 minutes / 200%, 3 seconds | ||
| Crest factor (CF) | 3:1 | ||
| Inverter efficiency | 94% | ||
| Working Environment | Dielectric strength | 1500VAC, 1 minute | |
| Noise (1m) | ≤ 50dB | ||
| Ambient temperature | -20℃ ~ +60℃ | ||
| Humidity | 0~90%, No condensation | ||
| Altitude | < 2000m (Higher than 2000m rated power should be reduced) | ||
| Protection Function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection | ||
| Pure Sine Wave / Copper Transformer | Yes / Yes | ||
| Communication Mode | RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol) | ||
| Solar Charger / AC Charger / Generator Port | Optional | ||
| Size (mm) / Weight (kg) | 660*1300*1600mm / 450kg | ||

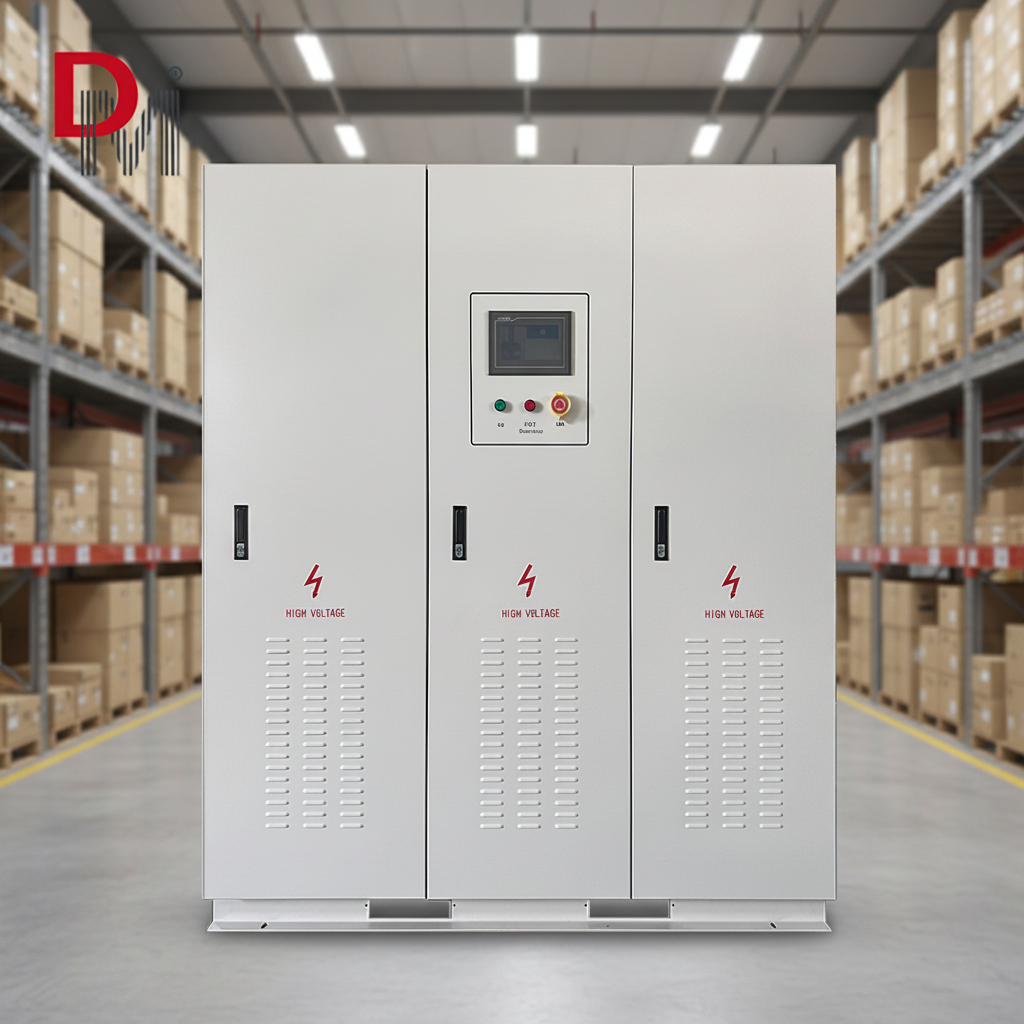

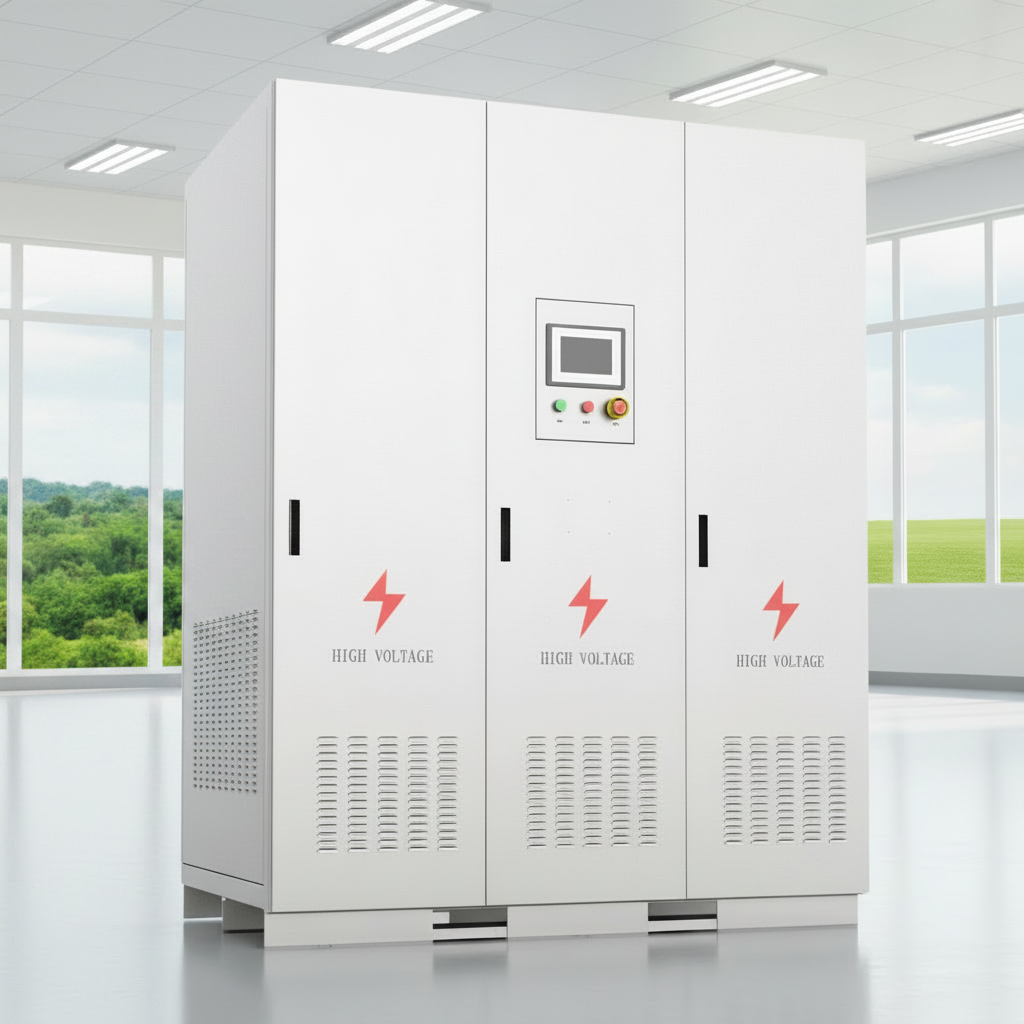

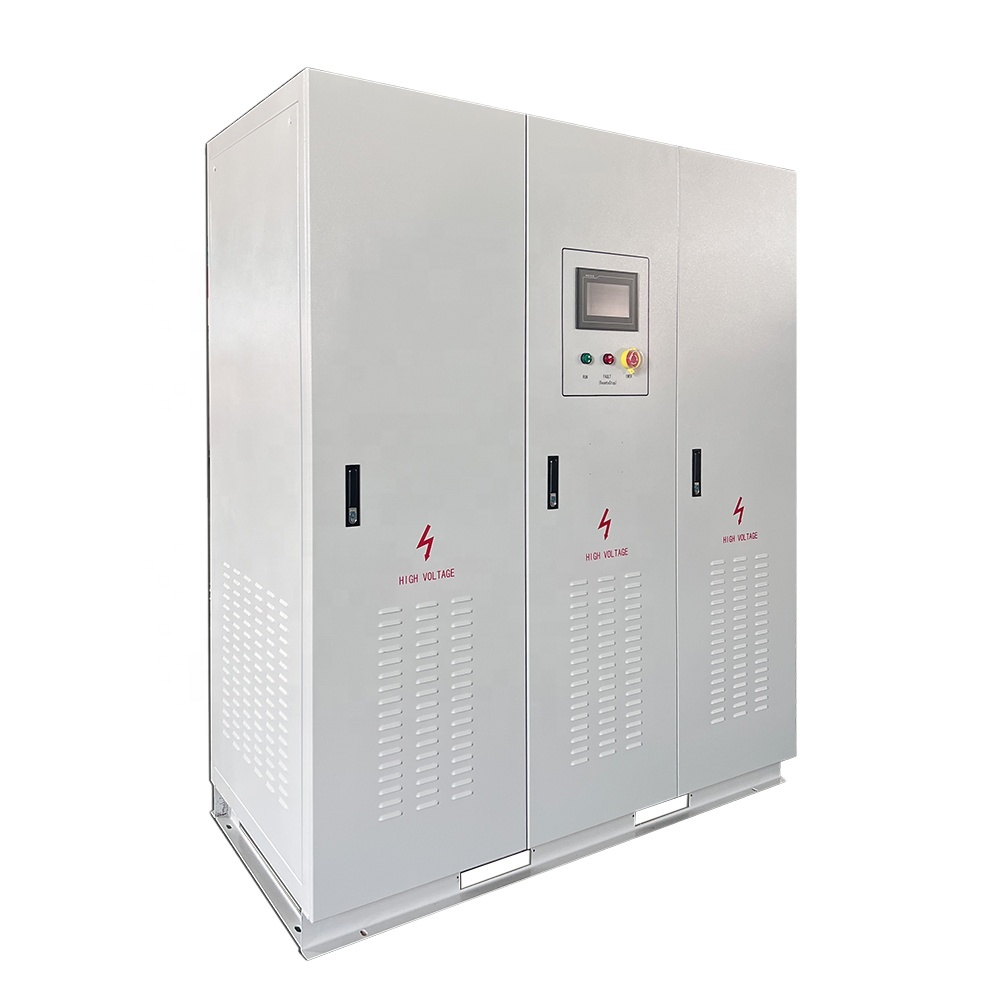

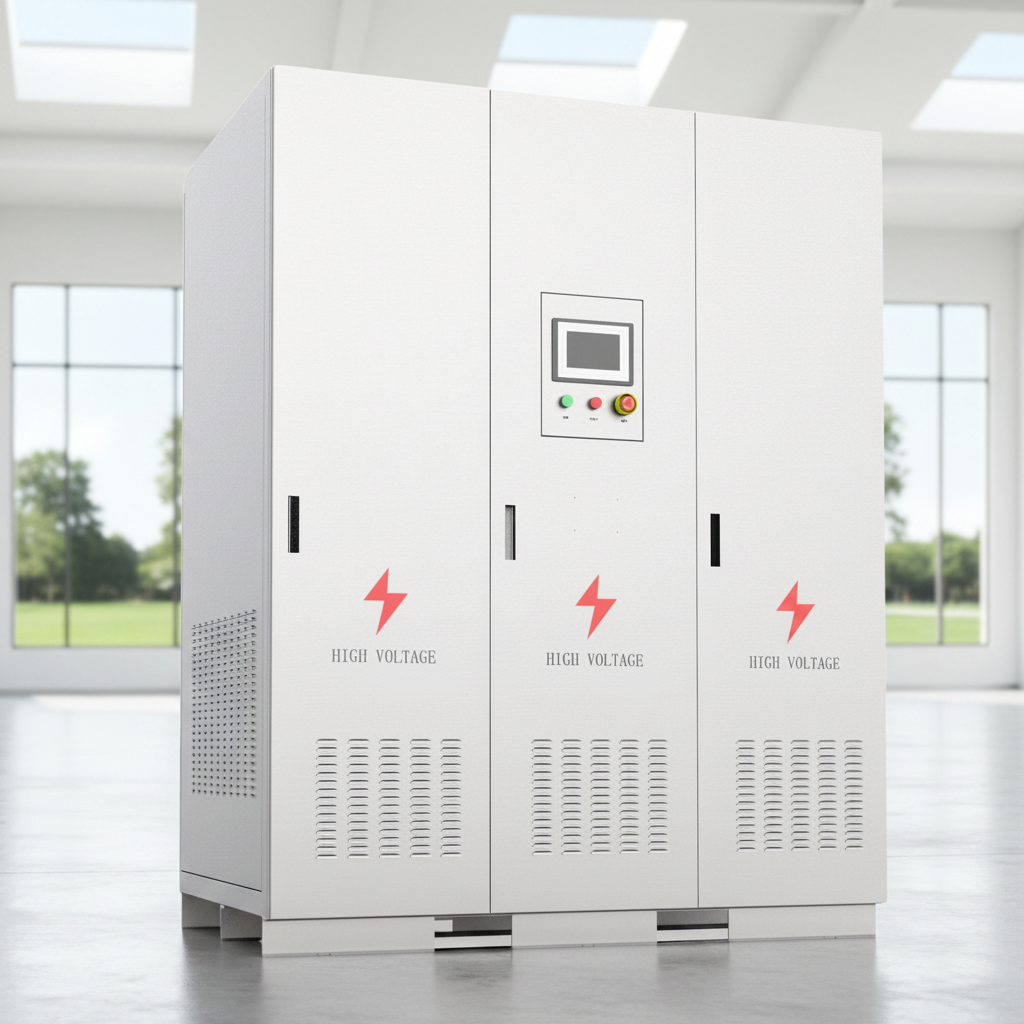

This three-phase off-grid inverter incorporates Mitsubishi IGBT modules as the primary power components and utilizes an American ATEMEL microprocessor as the figure controller, ensuring high efficiency, reliability, and robust performance.
The inverter outputs a pure sine wave via an isolation copper transformer. It features a compact design with a maximum efficiency of 94% (or ≥ 90% for specific configurations) and low total harmonic distortion (THD ≤ 3% under linear load).
The system supports multiple communication protocols and interfaces, including RS485, Wifi, GPRS, and Ethernet, utilizing the standard Modbus RTU protocol for remote monitoring and integration.
Yes. The standard bypass transfer time is ≤ 40ms for the 10KW model and ≤ 100ms for models 20KW and above. An optional, fast-acting version of ≤ 4ms can be customized according to your application requirements.
It features a comprehensive protection suite, including DC input reverse polarity protection, DC input under-voltage protection, AC output overload protection, AC output short-circuit protection, and internal over-temperature (thermal) protection.
Yes, solar chargers, AC chargers, and dedicated generator ports are optional and available. You can customize the configurations to construct hybrid wind, solar, or battery storage systems.
