Product Overview
AS 500w to 5000w Wind Turbine Generator Kit for Home Cost-Effective Wind Power System with 2kw 3kw 1kw & 2000w Rated Power Options.
Technical Specifications
| Specification Parameter |
Details / Value |
| Model |
DM2.8-1.0KW |
| Rotate speed(r/min) |
350r/min |
| Rated power(KW) |
1KW |
| Max. Power(KW) |
2KW |
| Rated voltage(DC/V) |
24,48,96 VDC |
| Rated current(A) |
42,21,10.5 A |
| Start-up wind speed(m/s) |
2m/s |
| Rated wind speed(m/s) |
9m/s |
| Safe wind speed(m/s) |
40m/s |
| No of blades |
3 pieces |
| Material of blades |
Reinforced fire glass steel |
| Generator |
3 phases PM generator |
| Braking system |
Electromagnetic braking control |
| Wind turbine weight(kg) |
56kg |
| Packing weight(kg) |
72kg |
| Tower height(customized) |
Pull rod and independent rod |

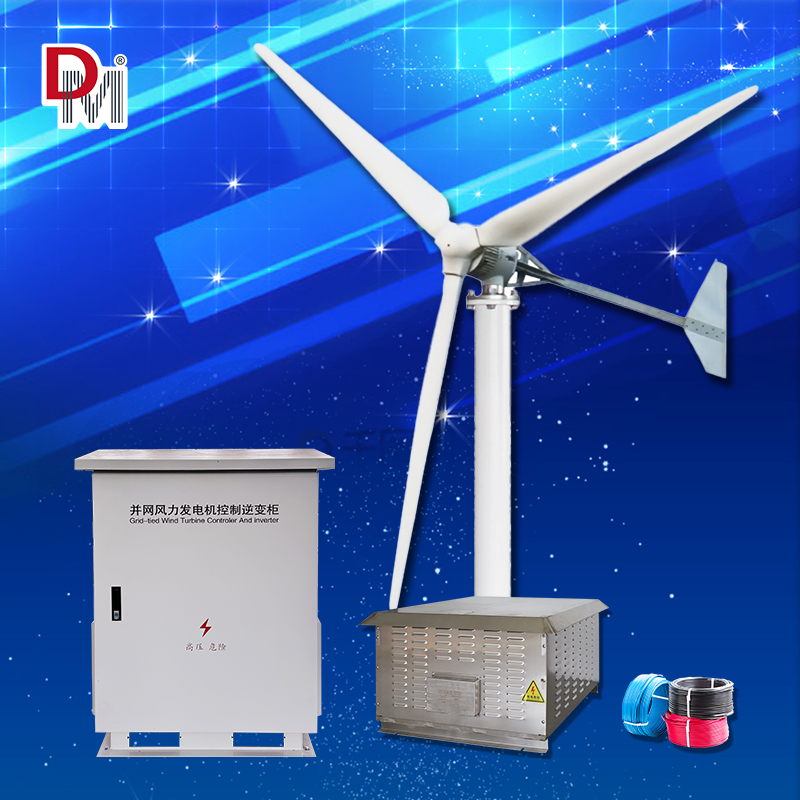

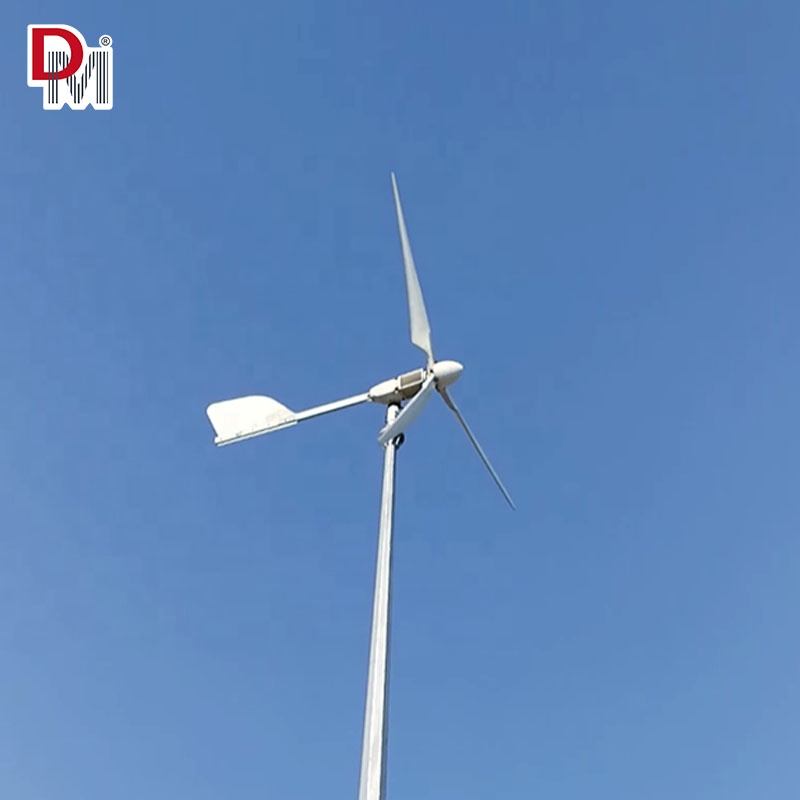

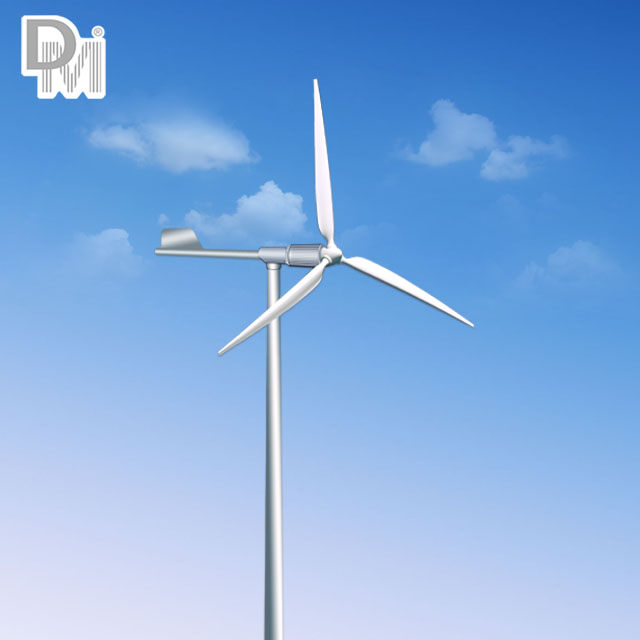

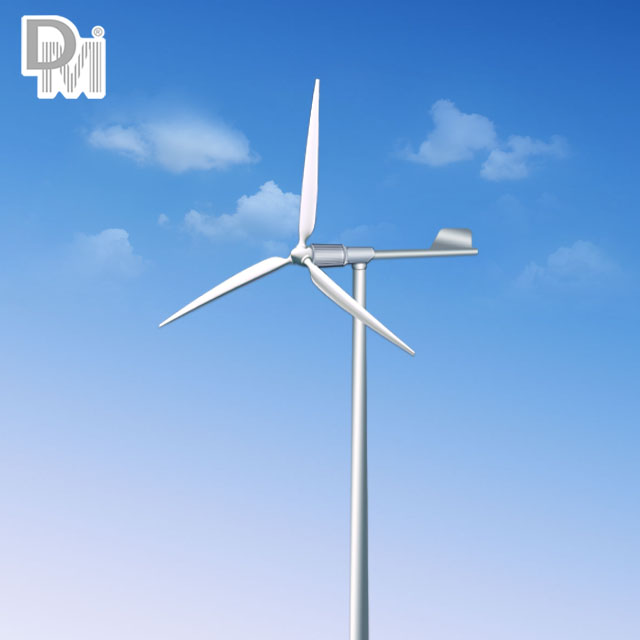

Product Gallery & Installation
✈️
Transport & Delivery Information
Transport Mode: By Air, By Sea, By Express
💳
Payment Terms
Payment Term: 100% T/T in advance or 50% T/T in advance and 50% T/T balance before delivery.
Frequently Asked Questions
❓ What is the rated and maximum power output of this wind generator system?
The DM2.8-1.0KW system is rated at 1KW of power with a maximum capacity of 2KW. It features rated voltage options of 24V, 48V, and 96V DC.
❓ What are the wind speed requirements for the turbine to start working?
This wind generator is designed for optimal performance even in lower wind areas, with a start-up wind speed of just 2m/s, a rated wind speed of 9m/s, and a highly safe wind tolerance limit of up to 40m/s.
❓ What materials are the blades made of?
The system comes with 3 blades constructed from premium reinforced fire glass steel to ensure maximum durability, weight efficiency, and resistance to environmental wear.
❓ What kind of generator and braking mechanism is integrated into this model?
This wind turbine is powered by a high-efficiency 3-phase permanent magnet (PM) generator. For safety and control, it features a reliable electromagnetic braking control system.
❓ What delivery methods and payment conditions do you offer?
We support delivery modes via Air, Sea, or Express depending on your preference. The accepted payment conditions are 100% T/T in advance, or a 50% T/T deposit in advance followed by the remaining 50% T/T balance before final shipment.
