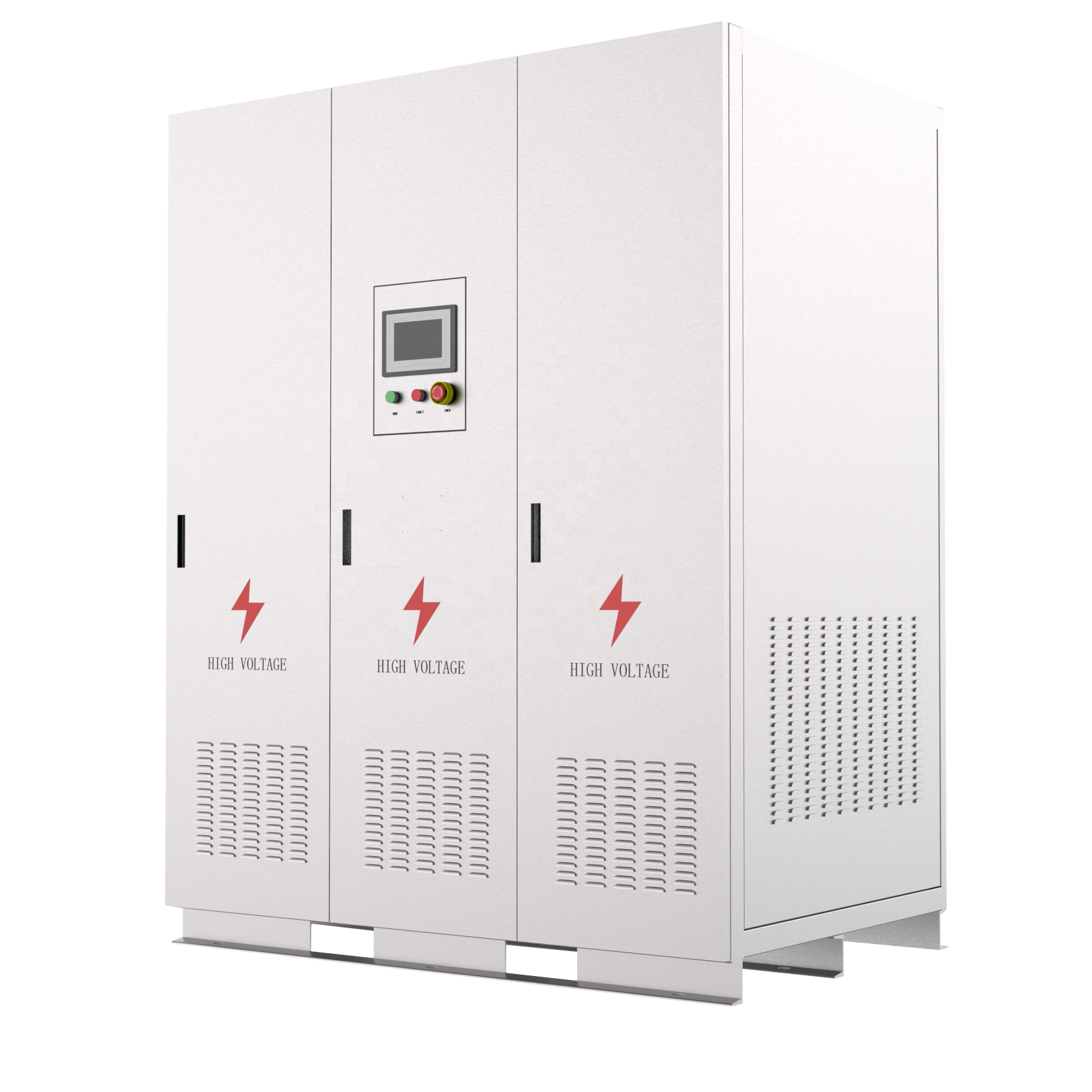

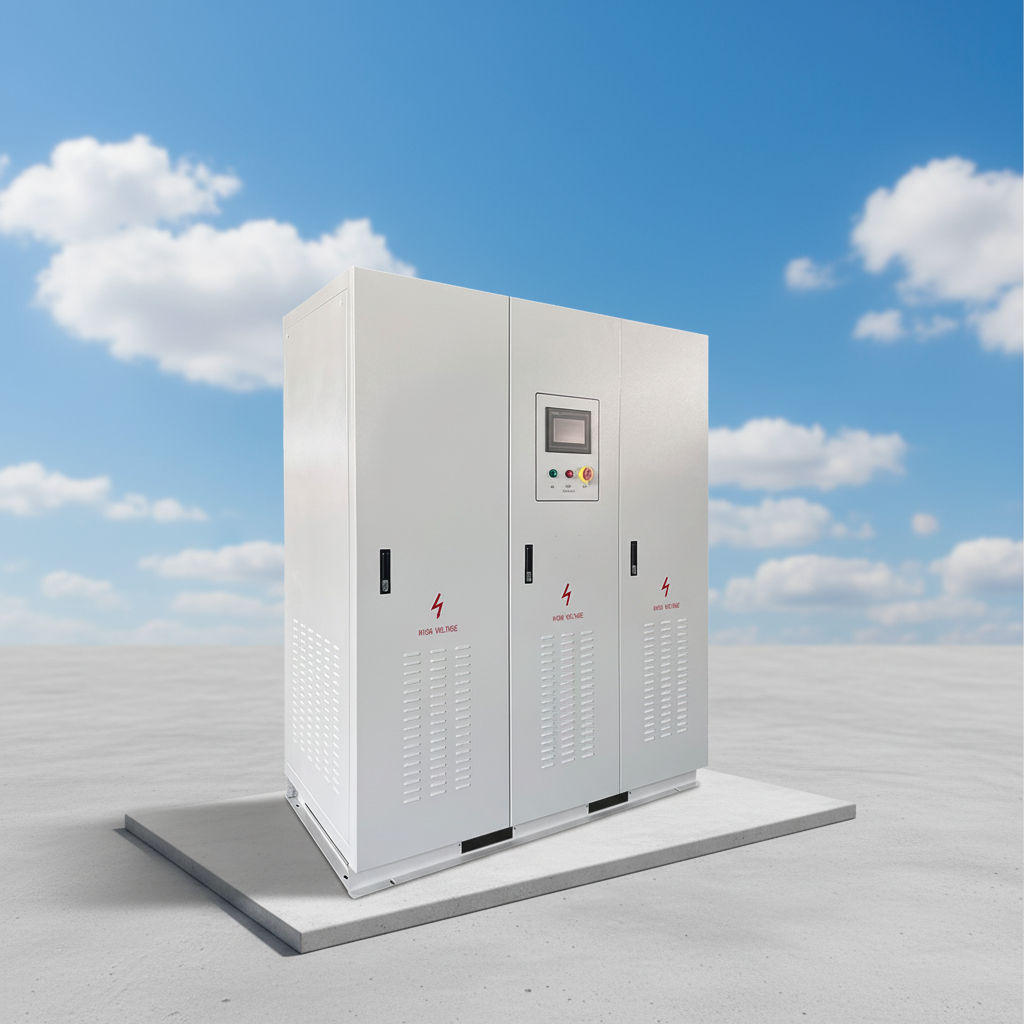

Three Phase Off Grid Solar Inverter 500kW Industrial Power System High Capacity Inverter

1 / 5

Three Phase Off Grid Solar Inverter 500kW Industrial Power System High Capacity Inverter

Send Inquiry

Product Description

Product Introduction

1Using IGBT from Mitsubishi company as the power components
2Using American ATMEL company microprocessor as controller
3Perfect protection and warning functions
4Compact circuit frame structure, Max. Efficiency ≥ 90%
5Wide input voltage range capability
6RS232/485/WIFI/GPRS communication interfaces
7Touch screen English LCD, perfect display, user-friendly interface

Touch Screen Display

Product Parameters

Technical Parameters of Three-Phase Off-Grid Inverter 10KW

Type		NB48-10KSZ	NB96-10KSZ	NB120-10KSZ	NB240-10KSZ
DC Input	Input Rated Voltage	48 VDC	96 VDC	120 VDC	240 VDC
	Input Rated Current	231 A	116 A	93 A	46 A
	Input DC Voltage Allowing Range	40-62 VDC	80-124 VDC	100-155 VDC	200-310 VDC
AC Input (AC Bypass)	Allow Input Voltage Range	220 VAC / 380 VAC / 400 VAC ± 15% VAC
	Input Rated Current	28A / 15A / 14.5A
	Bypass Transfer Time	≤40ms (Can be customized ≤4ms version)
AC Output	Output Rated Power	10KW
	Output Rated Voltage and Frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output Rated Current	28A / 15A / 14.5A
	Output Voltage Accuracy	220 VAC / 380 VAC / 400 VAC ± 1%
	Output Frequency Accuracy	50Hz / 60Hz ± 0.05%
	Wave Form	Pure sine wave (Isolation transformer)
	THD	≤3% (Linear load)
	Power Factor (PF)	1
	Overload Capacity	120% (5 minutes), 200% (3 seconds)
	Crest Factor (CF)	3:1
	Inverter Efficiency	>94%
Working Environment	Dielectric Strength	1500VAC, 1 minute
	Noise (1m)	≤50dB
	Ambient Temperature	-20°C ~ +60°C
	Humidity	0~90%, No condensation
	Altitude	<2000m (Higher than 2000m rated power should be reduced)
Protection Function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Pure Sine Wave		Yes
Equipped with Copper Transformer		Yes
Communication Mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
Solar Charger		Optional, available
AC Charger		Optional, available
Generator Port		Optional, available
Size (mm)		450 × 830 × 1100 mm
Weight (kg)		180 kg

Technical Parameters of Three-Phase Off-Grid Inverter 20KW

Type		NB48-20KSZ	NB96-20KSZ	NB120-20KSZ	NB240-20KSZ
DC Input	Input Rated Voltage	48 VDC	96 VDC	120 VDC	240 VDC
	Input Rated Current	463 A	231 A	185 A	93 A
	Input DC Voltage Range	40-62 VDC	80-124 VDC	100-155 VDC	200-310 VDC
AC Input (AC Bypass)	Allow Input Voltage Range	220 VAC / 380 VAC / 400 VAC ± 15% VAC
	Input Rated Current	55.5A / 30A / 29A
	Bypass Transfer Time	≤100ms (Can be customized ≤4ms version)
AC Output	Output Rated Power	20KW
	Output Rated Voltage and Frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output Rated Current	55.5A / 30A / 29A
	Output Voltage Accuracy	220 VAC / 380 VAC / 400 VAC ± 2%
	Output Frequency Accuracy	50Hz / 60Hz ± 0.05%
	Waveform Distortion (THD)	≤3% (Linear load)
	Dynamic Response Time (Load 0↔100%)	2ms
	Power Factor (PF)	1
	Overload Capacity	120% (5 minutes), 200% (3 seconds)
	Crest Factor (CF)	3:1
	Inverter Efficiency	94%
Working Environment	Dielectric Strength	1500VAC, 1 minute
	Noise (1m)	≤50dB
	Ambient Temperature	-20°C ~ +60°C
	Humidity	0~90%, No condensation
	Altitude	<6000m (Higher than 2000m rated power should be reduced)
Protection Function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Pure Sine Wave		Yes
Equipped with Copper Transformer		Yes
Communication Mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
Solar Charger		Optional, available
AC Charger		Optional, available
Generator Port		Optional, available
Size (mm)		520 × 1160 × 1350 mm
Weight (kg)		280 kg

Technical Parameters of Three-Phase Off-Grid Inverter 30KW

Type		NB120-30KSZ	NB240-30KSZ	NB380-30KSZ
DC Input	Input Rated Voltage	120 VDC	240 VDC	380 VDC
	Input Rated Current	278 A	139 A	88 A
	Input DC Voltage Range	100-155 VDC	200-310 VDC	320-496 VDC
AC Input (AC Bypass)	Allow Input Voltage Range	220 VAC / 380 VAC / 400 VAC ± 15% VAC
	Input Rated Current	83A / 45.5A / 43.5 A
	Bypass Transfer Time	≤100ms (Can be customized ≤4ms version)
AC Output	Output Rated Power	30KW
	Output Rated Voltage and Frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output Rated Current	83A / 45.5A / 43.5 A
	Output Voltage Accuracy	220 VAC / 380 VAC / 400 VAC ± 1%
	Output Frequency Accuracy	50Hz / 60Hz ± 0.05%
	Waveform Distortion (THD)	≤3% (Linear load)
	Dynamic Response Time (Load 0↔100%)	2ms
	Power Factor (PF)	1
	Overload Capacity	120% (5 minutes), 200% (3 seconds)
	Crest Factor (CF)	3:1
	Inverter Efficiency	94%
Working Environment	Dielectric Strength	1500VAC, 1 minute
	Noise (1m)	≤50dB
	Ambient Temperature	-20°C ~ +60°C
	Humidity	0~90%, No condensation
	Altitude	<2000m (Higher than 2000m rated power should be reduced)
Protection Function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Pure Sine Wave		Yes
Equipped with Copper Transformer		Yes
Communication Mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
Solar Charger		Optional, available
AC Charger		Optional, available
Generator Port		Optional, available
Size (mm)		660 × 1300 × 1600 mm
Weight (kg)		360 kg

Technical Parameters of Three-Phase Off-Grid Inverter 40KW

Type		NB220-40KSZ	NB240-40KSZ	NB380-40KSZ
DC Input	Input Rated Voltage	220 Vdc	240 Vdc	380 VDC
	Input Rated Current	202 A	185 A	117 A
	Input DC Voltage Range	180-279 VDC	200-310 VDC	320-496 VDC
AC Input (AC Bypass)	Allow Input Voltage Range	220 VAC / 380 VAC / 400 VAC ± 15% VAC
	Input Rated Current	111.2A / 60.8A / 58A
	Bypass Transfer Time	≤100ms (Can be customized ≤4ms version)
AC Output	Output Rated Power	40KW
	Output Rated Voltage and Frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output Rated Current	111.2A / 60.8A / 58A
	Output Voltage Accuracy	220 VAC / 380 VAC / 400 VAC ± 1%
	Output Frequency Accuracy	50Hz / 60Hz ± 0.05%
	Waveform Distortion (THD)	≤3% (Linear load)
	Dynamic Response Time (Load 0↔100%)	2ms
	Power Factor (PF)	1
	Overload Capacity	120% (5 minutes), 200% (3 seconds)
	Crest Factor (CF)	3:1
	Inverter Efficiency	94%
Working Environment	Dielectric Strength	1500VAC, 1 minute
	Noise (1m)	≤50dB
	Ambient Temperature	-20°C ~ +60°C
	Humidity	0~90%, No condensation
	Altitude	<6000m (Higher than 2000m rated power should be reduced)
Pure Sine Wave		Yes
Equipped with Copper Transformer		Yes
Communication Mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
AC Charger		Optional
Solar Charger		Optional
Generator Port		Optional
Protection Function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Size (mm)		760 × 1400 × 1600 mm
Weight (kg)		550 kg

Technical Parameters of Three-Phase Off-Grid Inverter 50KW

Type		NB480-50KSZ	NB380-50KSZ
DC Input	Input Rated Voltage	480 VDC	380 VDC
	Input Rated Current	115 A	146 A
	Input DC Voltage Range	400-620 VDC	320-496 VDC
AC Input (AC Bypass)	Allow Input Voltage Range	220 VAC / 380 VAC / 400 VAC ± 15% VAC
	Input Rated Current	139A / 76A / 72.5A
	Bypass Transfer Time	≤100ms (Can be customized ≤4ms version)
AC Output	Output Rated Power	50KW
	Output Rated Voltage and Frequency	220 VAC / 380 VAC / 400 VAC, 50Hz / 60Hz
	Output Rated Current	139A / 76A / 72.5A
	Output Voltage Accuracy	220 VAC / 380 VAC / 400 VAC ± 1%
	Output Frequency Accuracy	50Hz / 60Hz ± 0.05%
	Waveform Distortion (THD) (Linear load)	≤3%
	Dynamic Response Time (Load 0↔100%)	2ms
	Power Factor (PF)	1
	Overload Capacity	120% (5 minutes), 200% (3 seconds)
	Crest Factor (CF)	3:1
	Inverter Efficiency	94%
Working Environment	Dielectric Strength	1500VAC, 1 minute
	Noise (1m)	≤50dB
	Ambient Temperature	-20°C ~ +60°C
	Humidity	0~90%, No condensation
	Altitude	<2000m (Higher than 2000m rated power should be reduced)
Pure Sine Wave		Yes
Equipped with Copper Transformer		Yes
Communication Mode		RS485, Wifi, GPRS, Ethernet (Modbus RTU protocol)
AC Charger		Optional
Solar Charger		Optional
Generator Port		Optional
Protection Function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Size (mm)		660 × 1300 × 1600 mm
Weight (kg)		450 kg

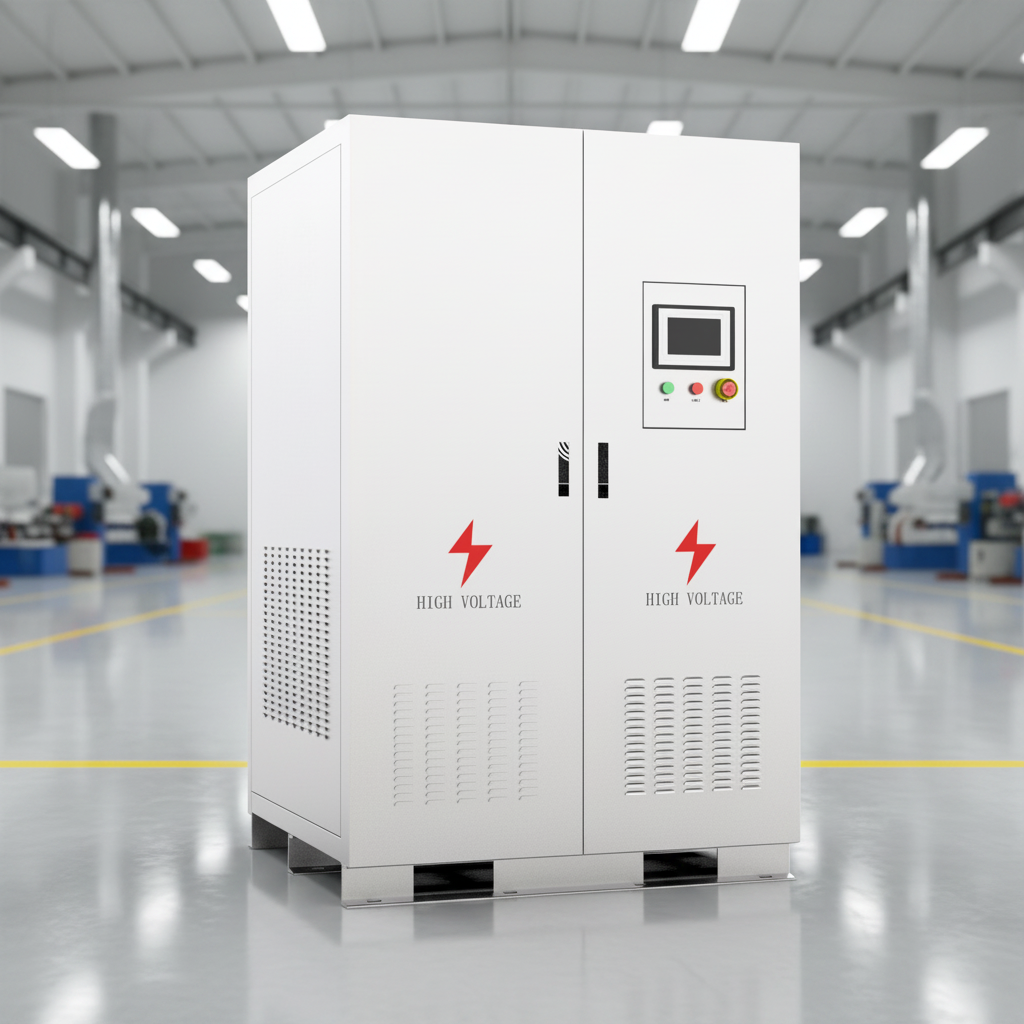

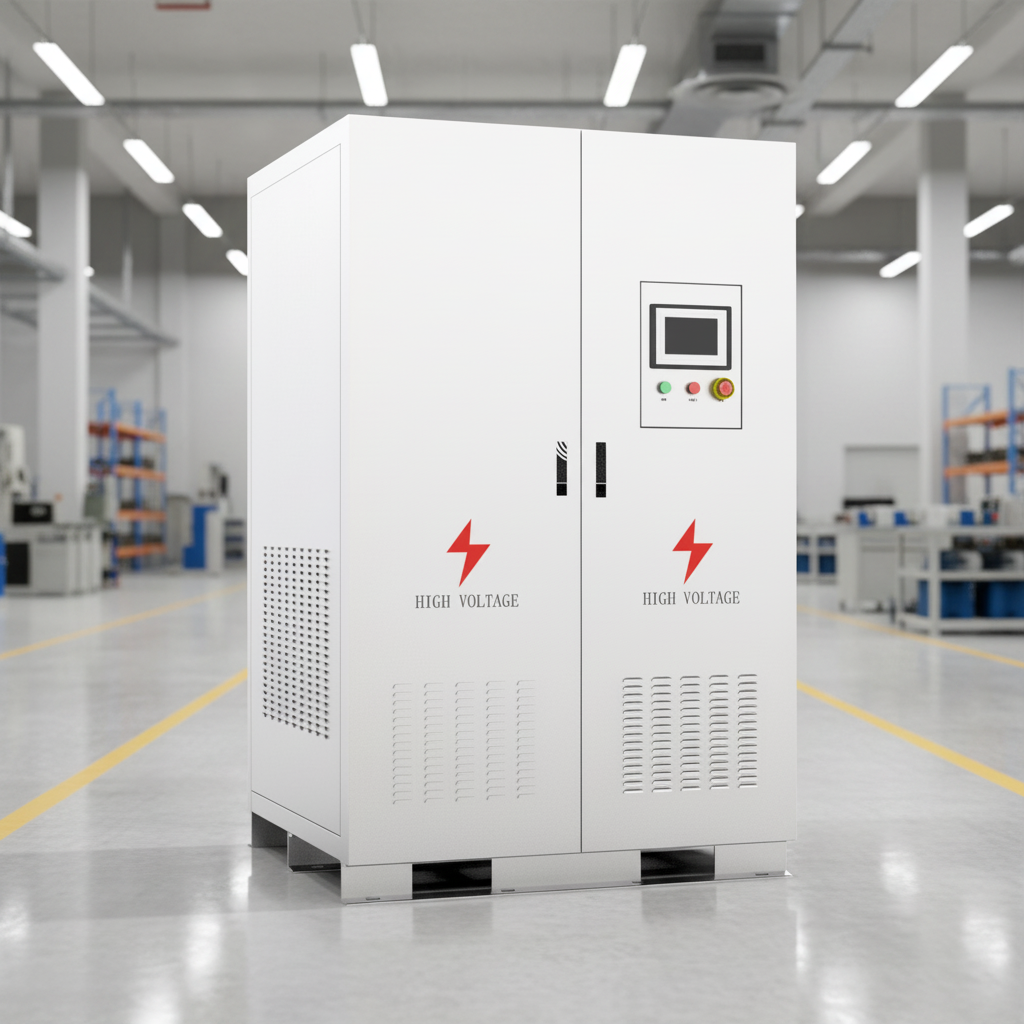

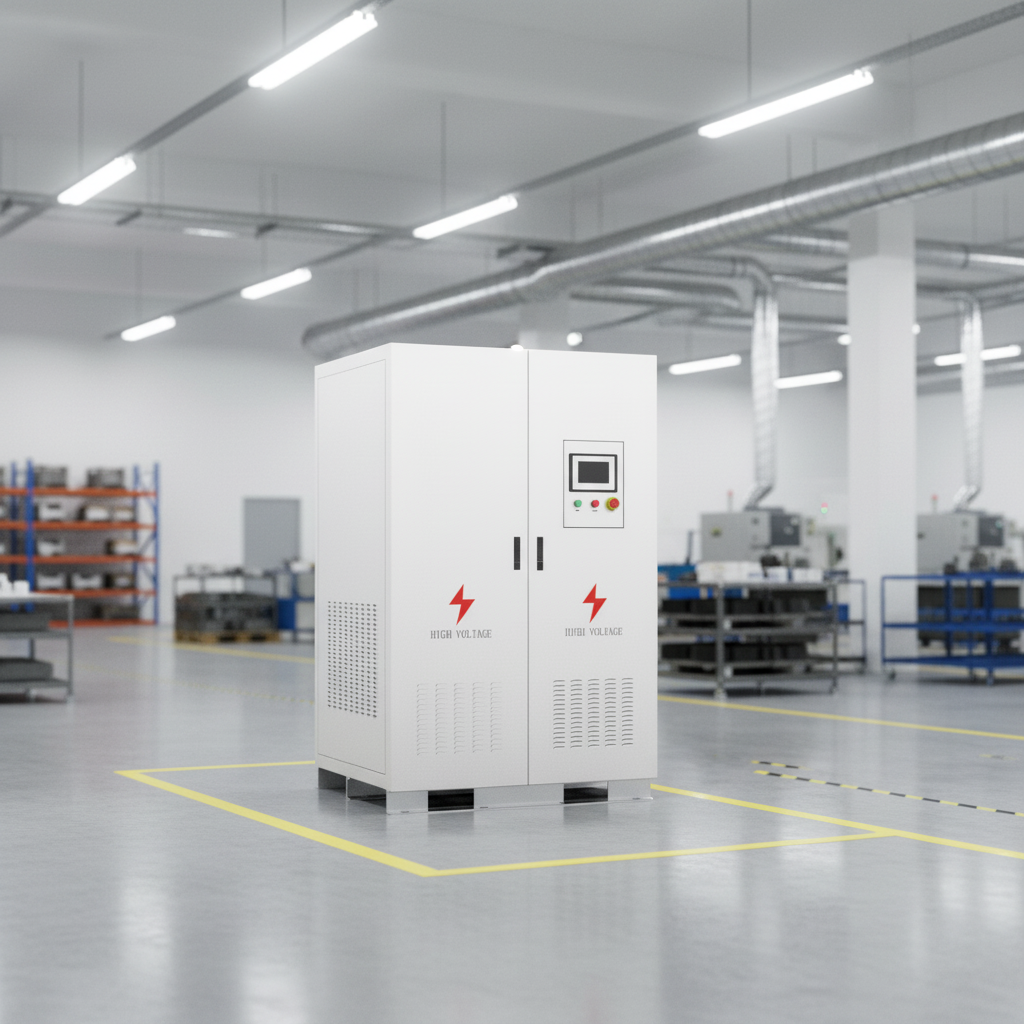

Product Application Scenario

Frequently Asked Questions (FAQ)

Q1: What are the main power components used in these three-phase off-grid inverters?

A1: These inverters utilize high-quality IGBT modules from Mitsubishi company as the main power components and an American ATMEL microprocessor as the figure controller to ensure high efficiency and system stability.

Q2: What is the maximum efficiency of these off-grid inverters?

A2: The circuit frame of our inverters is designed for optimal power delivery, offering a maximum inverter efficiency of up to 94% depending on the specific model and load conditions.

Q3: What protection features do these inverters have?

A3: The inverters have a comprehensive protection system including input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, and thermal protection.

Q4: Can these three-phase off-grid inverters output a pure sine wave?

A4: Yes, all listed models output a pure sine wave through a copper isolation transformer, keeping total harmonic distortion (THD) ≤3% for linear loads.

Q5: What remote monitoring and communication methods are supported?

A5: The inverters support multiple communication configurations, including RS485, Wifi, GPRS, and Ethernet utilizing the Modbus RTU protocol for seamless remote tracking.

Q6: Are solar chargers, AC chargers, and generator integration supported?

A6: Yes, optional built-in solar chargers, AC chargers, and dedicated generator ports are available to customize the off-grid power system according to application needs.
