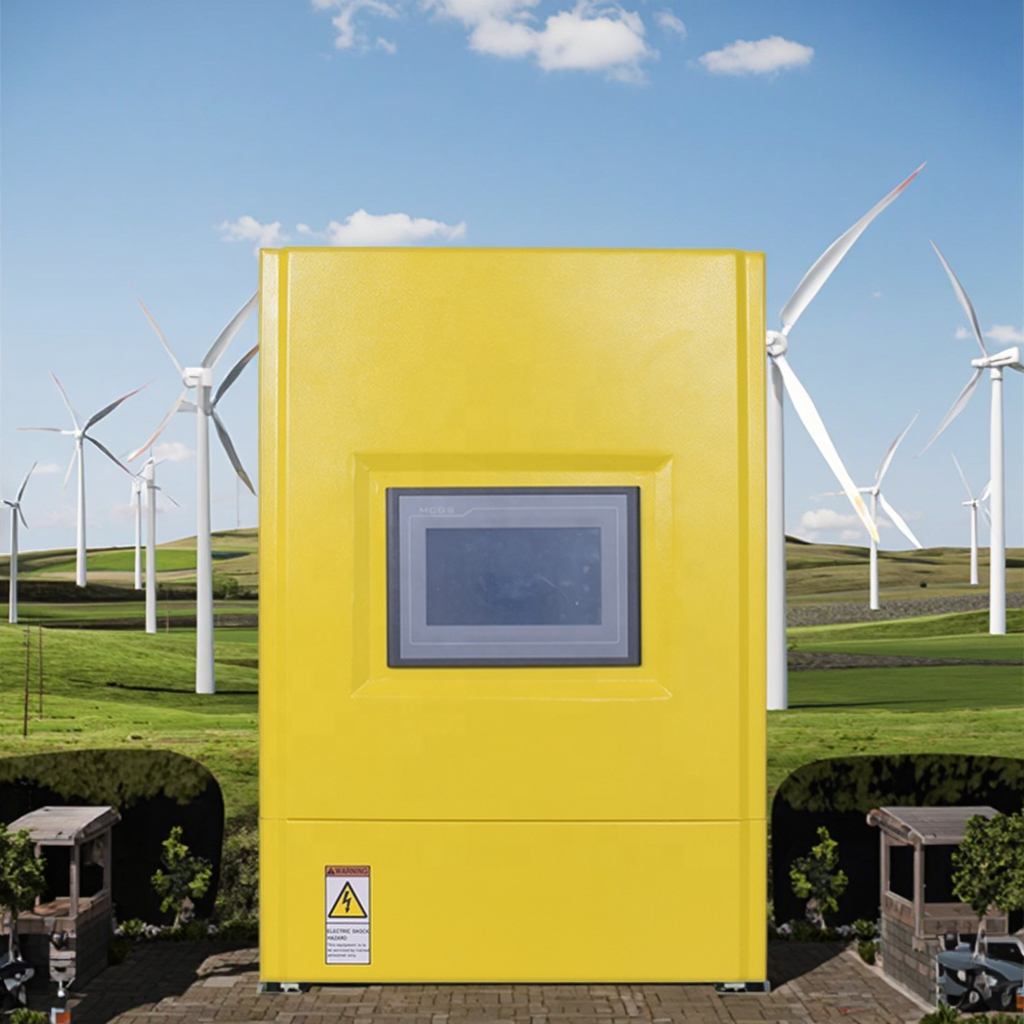

10kW PWM Wind Turbine with MPPT Charge Controller 12V Controller and Inverter

Wind Solar Hybrid On Grid 10kw Horizontal Axis Wind Turbine voltage regulators stabilizers Charge Controller

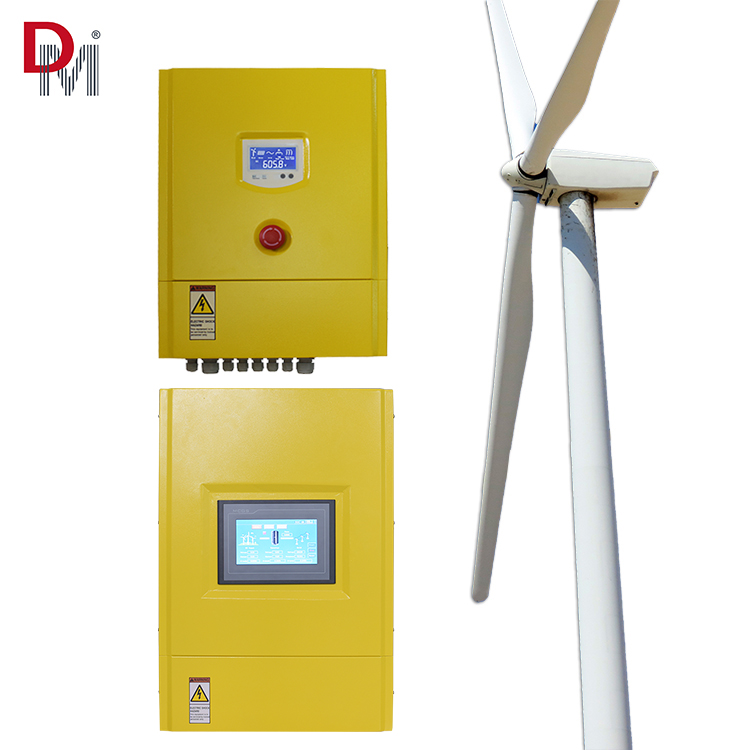

Product introduction

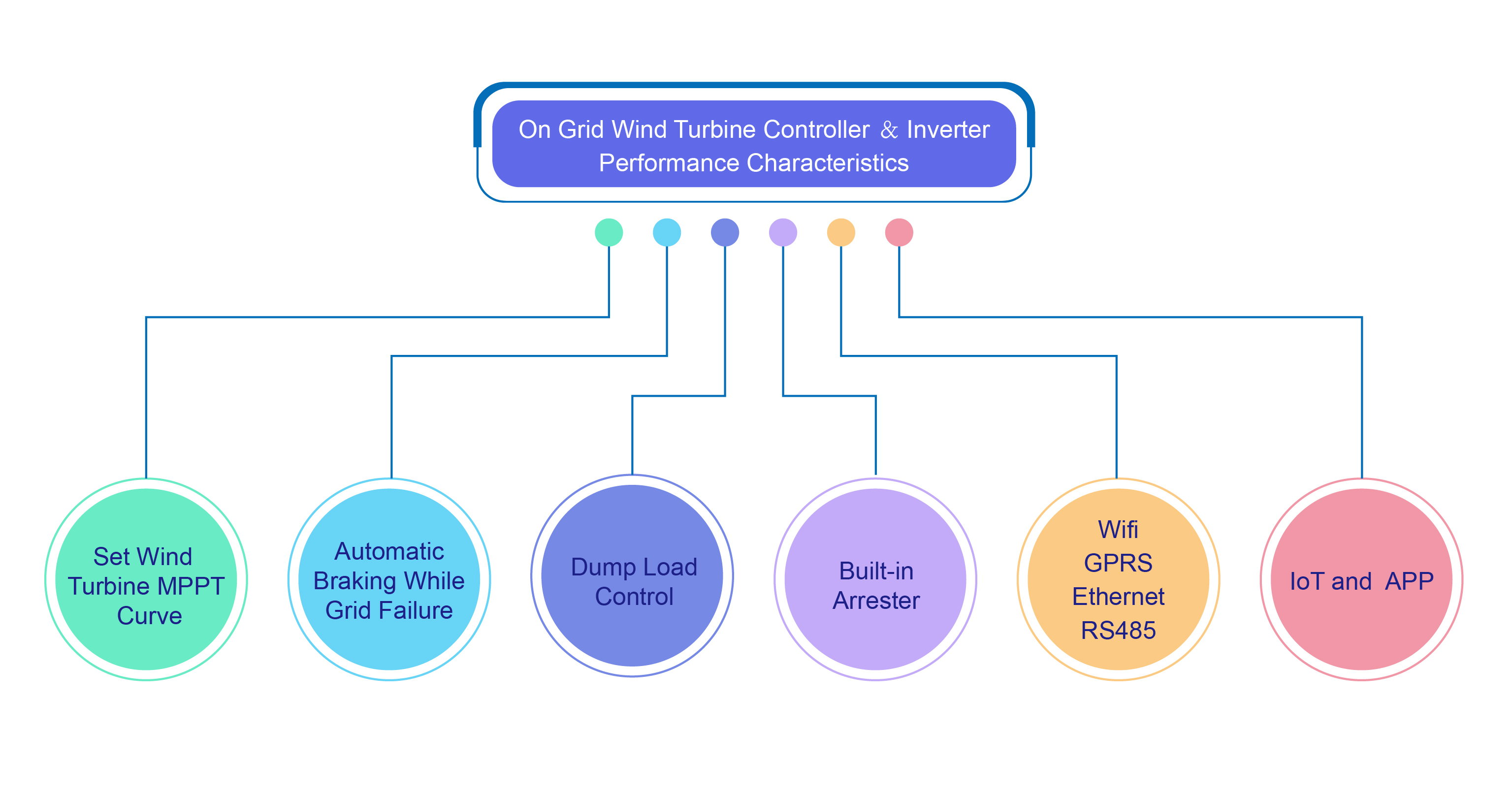

On Grid Wind Turbine Inverter Performance Characteristics

The main circuit uses the DSP chip produced by the American TI company, German Infineon IGBT module, drive protection is the Japanese Mitsubishi movement, and the on grid output part use isolation transformer, which is safe and reliable.
Using SPWM pulse width modulation technology, pure sine wave output, automatic synchronous tracking with the grid, power factor close to 1, low current harmonic content, no pollution to the grid, no impact.
Wind turbine input maximum power tracking technology (MPPT).
The power curve of the wind turbine can be set, the default is 20 points, and the internal expansion is 50.
7-inch color touch screen display, system operation data and fault information at a glance, and convenient parameter setting.
On grid inverter current closed-loop control, controllable and adjustable.
The input DC voltage range is wide, adapt to the needs of different occasions.
Frequency disturbance detection technology to realize anti-island control.
The comprehensive power protection scheme and perfect self-detection and protection functions will stop the on grid inverter when a system failure occurs.
Circuit structure is compact, the maximum efficiency 98%.
Support RS485, WiFi, GPRS, Ethernet and other communication methods. You can monitor the working status of the on grid wind power generation system in real time through the PC or mobile phone, and you can also query the historical working status. The mobile terminal is compatible with Android and IOS. All data can be connected to the Internet of Things.

On Grid Wind Turbine System Description

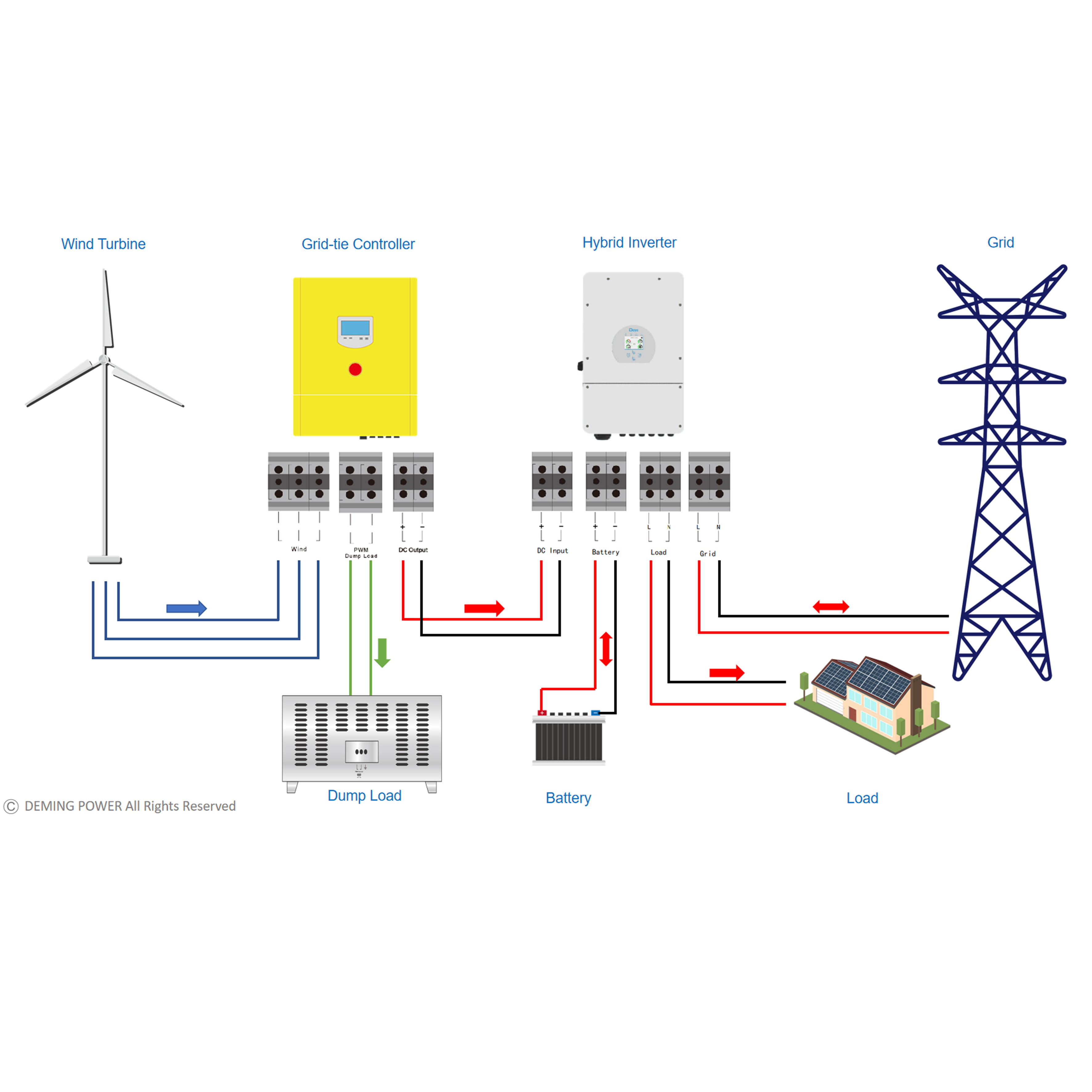

The On grid wind turbine system is composed of wind turbine, on grid controller, on grid inverter, metering device, and power distribution system. Wind energy is converted into AC electrical energy by the wind turbine, and then converted into DC electrical energy by the on grid controller, and then DC electrical energy is converted into AC electrical energy of the same frequency and phase as the grid by the on grid inverter, and part of the power is supplied to the local load. Surplus power is fed into the grid.

Products Description

Specification Parameters	FKJ-GT5KW	FKJ-GT10KW	FKJ-GT20KW
Wind turbine rated power	5KW	5KW	10KW
Wind turbine Max. power	10KW	10KW	20KW
Wind turbine rated voltage	AC220V	AC380-400V	AC380-400V
Solar panels power (optional)	1.5KW	1.5KW	10KW
Function	Rectifier, control, DC output
Automatic protection function	Over voltage protection, network electric cut off protection, regulated supply output, arrester
Manual function	Manual brake, reset, emergency switch
Display mode	LCD
Display content	Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.
PWM constant voltage	≥320Vdc	≥520Vdc	≥520Vdc
Wind turbine 3-phase dump load voltage	350±5Vdc	540±5Vdc	540±5Vdc
Wind turbine 3-phase dump load time-lapse	12-20 min	12-20 min	12-20 min
Solar panels fuse	5A	5A	20A
PWM dump load fuse	25A	16A	32A
Fuse of DC output	32A	20A	40A
Work environment temperature	-30-60°C
Relative humidity	<90% No condensation
Noise (1m)	<40dB
Degree of protection	IP20 (Indoor) / IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet
Temperature compensation (optional)	-4mv/°C/2V, -35°C~+80°C, Accuracy: ±1°C
Size of the controller (mm)	510360240	510360240	580400240
Weight of the controller	18Kg	18Kg	23Kg
Size of the dump load (mm)	600450380	600450380	690450530
Weight of the dump load	28Kg	28Kg	35Kg
