• ✓ This product is produced according to the industry standard JB/T6939.1-2004 and the national standard GB/T19115.1-2003. It can also be produced according to the technical requirements of users.

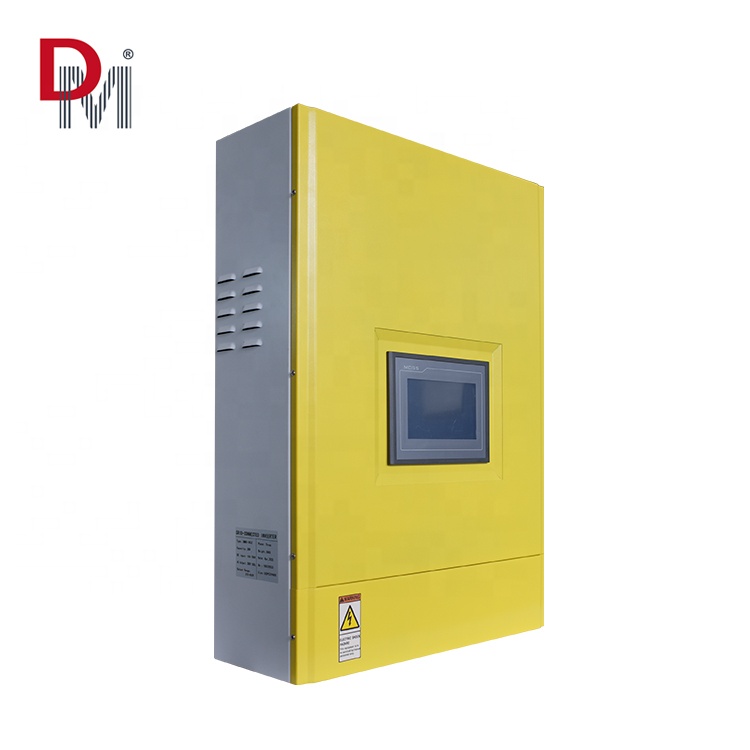

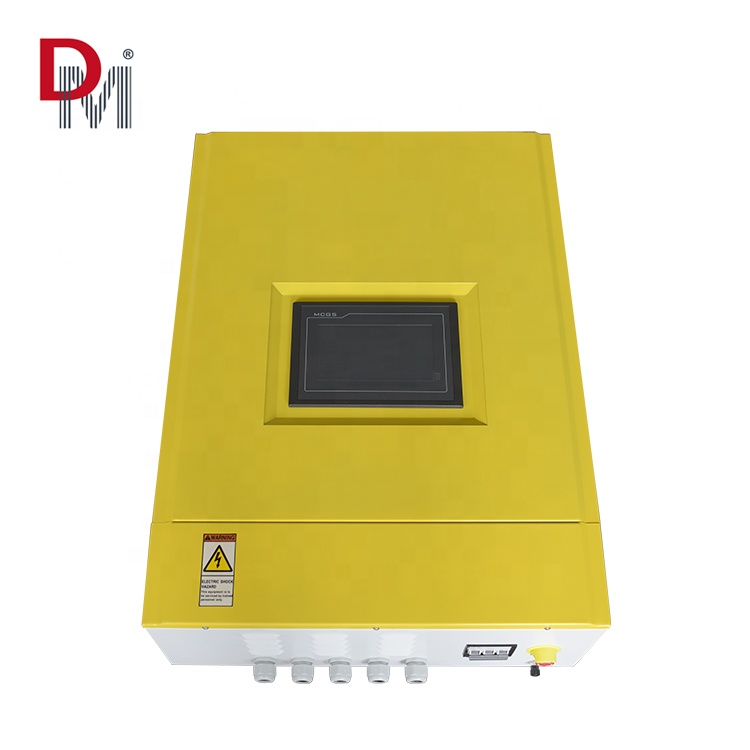

• ✓ Color touch screen display. Visually display the working status of the controller. Rich data display: real-time wind turbine voltage and current, solar panel voltage and current, DC output voltage and current, and cumulative power generation.
• ✓ The technical parameters of the controller can be adjusted through the touch screen. The control parameters can be adjusted for different wind turbines.
• ✓ Two sets of control systems are adopted: PWM constant voltage and constant current system + three-phase braking system.
• ✓ Current control, wind speed control, and wind turbine speed control can be added, and the control parameters can be set.
• ✓ In the case of strong winds, the constant voltage and constant current output of the controller provides DC constant voltage power to ensure the normal operation of the inverter.
• ✓ When the on-grid inverter is offline, the controller outputs a constant voltage and waits for the inverter to return to work.
• ✓ When the grid is cut off, the controller will automatically control the wind turbine brake and the inverter will stop output to the grid. When the grid resumes, the controller stops braking the wind turbine and the inverter will resume power supply.
• ✓ The inside of the controller is equipped with a surge protector. This limits the over-voltage into the wind turbine to a bearable level for the equipment or system, and conducts strong lightning currents directly into the earth to avoid damage.

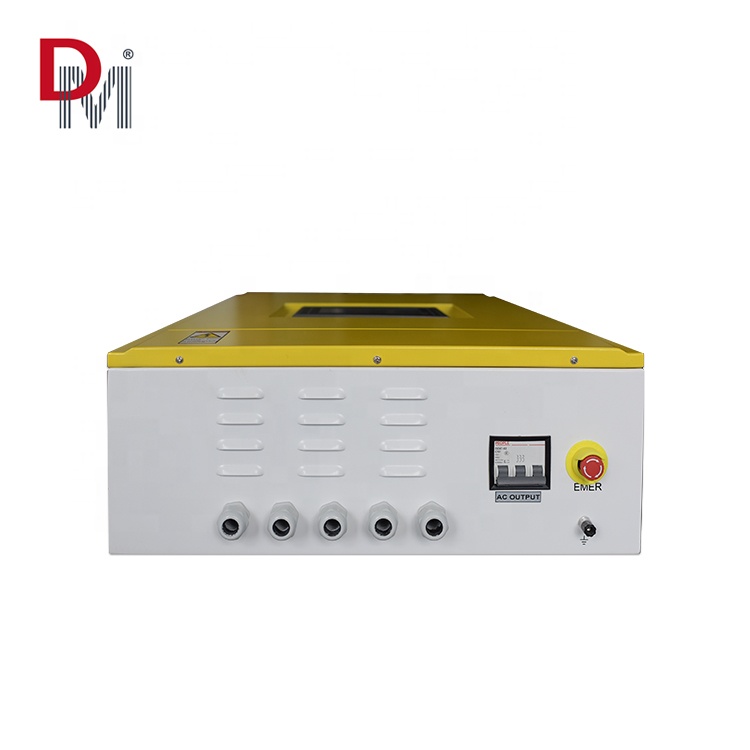

• ✓ The controller has an emergency stop switch. In case of emergency, pressing the front panel button cuts off all power supply to the controller, and the wind turbine will immediately brake.
• ✓ The controller has a manual brake switch. Activating this switch will engage the wind turbine brake.
• ✓ Uses Modbus communication protocol, which is convenient for customers to conduct secondary development.
• ✓ Supports RS485, WiFi, GPRS, Ethernet, and other communication methods. You can monitor the working status of the on-grid wind power generation system in real-time through a PC or mobile phone, and query historical data. The mobile terminal is compatible with Android and iOS. All data can be connected to the Internet of Things.
• ✓ A solar panel control system can be added according to customer needs.
• ✓ The controller can add various control functions such as yaw control, pitch control, mechanical folding tail control, mechanical brake, hydraulic brake, electromagnetic brake, etc., according to the type of wind turbine.

Technical Parameters of the On Grid Wind Turbine (wind solar hybrid) Controller 5KW-20KW

The company was established in 2004. After five years of accumulation in 2009, the company gradually matured steadily. The company purchased factory buildings with independent property rights, and the company relocated to start a new journey. In 2012, the Ministry of Foreign Trade was established to open up markets and begin to expand foreign markets. In 2015, the company achieved rapid development, with 2 invention patents, 6 utility model patents, 1 appearance patent, obtained the "high-tech enterprise certificate" recognition, and obtained the ISO 9001 quality management system certification. In 2018, the company continued to innovate, with four invention patents, six utility model patents, and two software registration rights, and again successfully recognized high-tech enterprises. On July 10, 2019, it passed the certification of intellectual property management system. In 2020, three patents for invention and six patents for utility models were applied for.

• ✓ Our main products are off-grid wind turbine controllers, on-grid wind turbine controllers, solar charging controllers, wind-light complementary controllers, wind-light complementary street lamp controllers, on-grid inverters, off-grid inverters, frequency converters, stabilized frequency power supplies, etc.
• ✓ With first-class manufacturing technology, advanced technology and equipment, strong technical force, perfect testing means, and personnel management, the company has carried out 17 research and development projects in the last three years, completed 16 transformations of scientific and technological achievements, and invested all by itself to implement the transformation, averaging 5.3 transformations of scientific and technological achievements each year.
• ✓ The company takes technological innovation as the basis of enterprise development. Annual R&D cost is not less than 20% of sales revenue, and we continuously explore advanced technologies in the field of new energy power sources, such as electromagnetic control technology for wind turbines, MPPT technology, yaw wind turbines control technology, and wind-solar complementary system Internet of Things monitoring. The company has five national invention patents for core technologies and twelve utility model patents, and the control technology for wind turbines has reached the advanced international level.
• ✓ We have a complete product quality assurance system and ISO 9001 certification. Performing comprehensive quality control with rigorous testing one by one, each performance is superior to the relevant national standards, and all products have passed the EU CE certification to ensure user safety and reliable use. The company's products are preferred supporting products for well-known domestic manufacturers. The products are exported to more than 120 countries and regions, such as Germany, Japan, the United States, the United Kingdom, Canada, Australia, Egypt, Brazil, and Saudi Arabia, establishing a strong image in domestic and foreign markets.
• ✓ We are based on the market, pay attention to customers, provide high-quality products, and adhere to technological progress. Scientific management and standardized operations are the key to our success. We will jointly meet the challenges of the new century, shape a good image, and construct the blueprint of a modern enterprise in an all-round and three-dimensional way.
