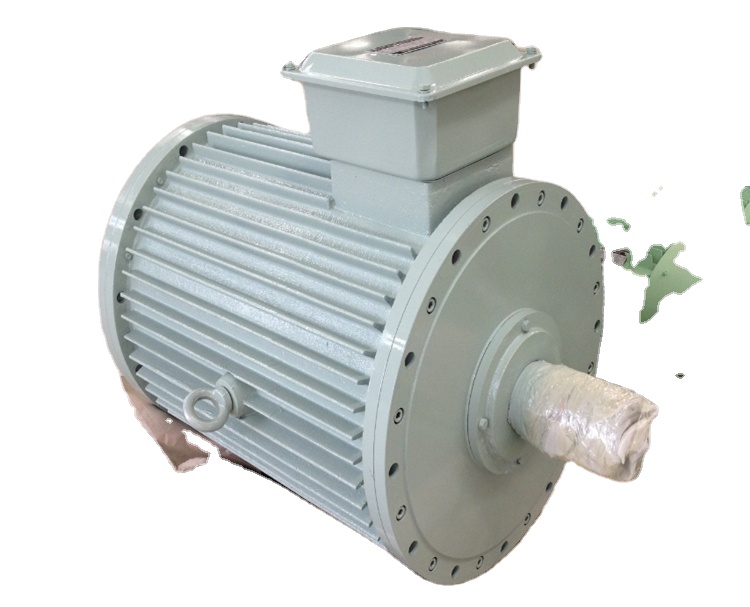

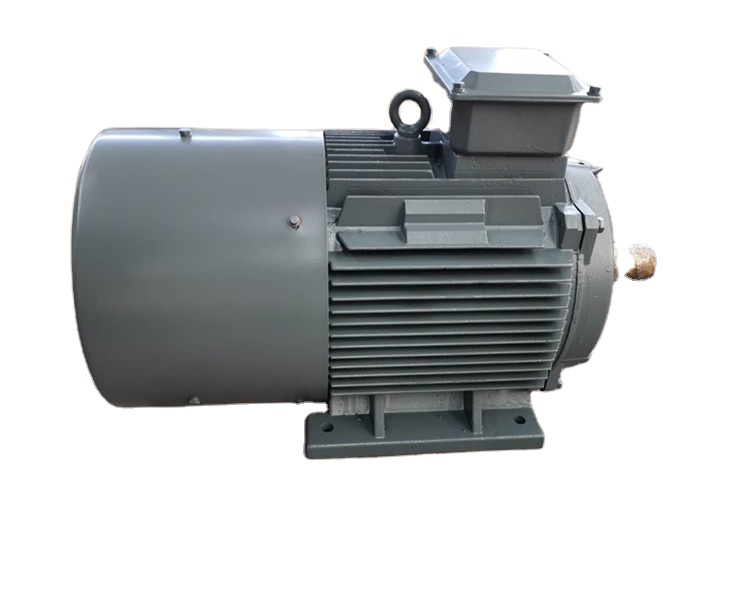

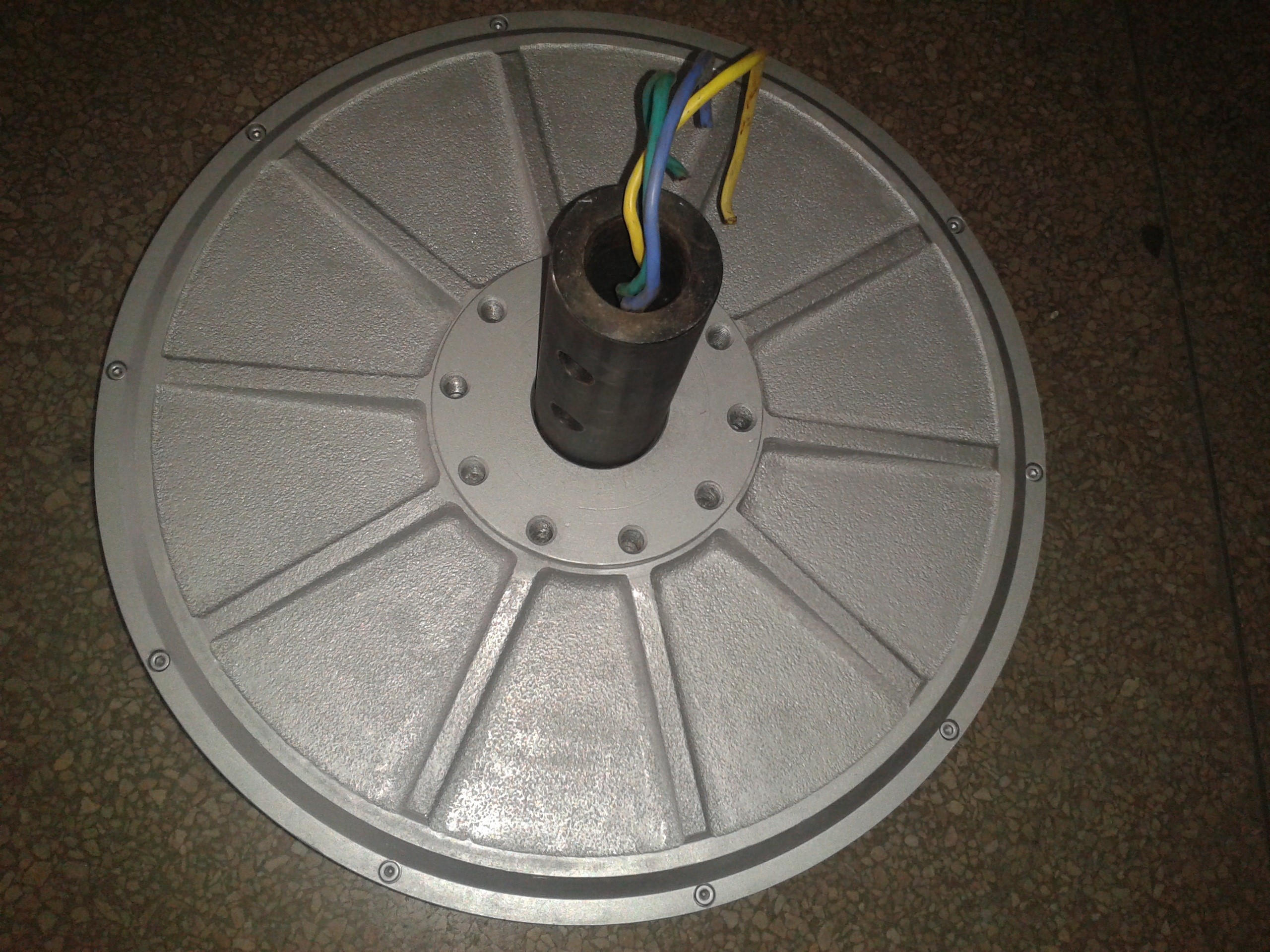

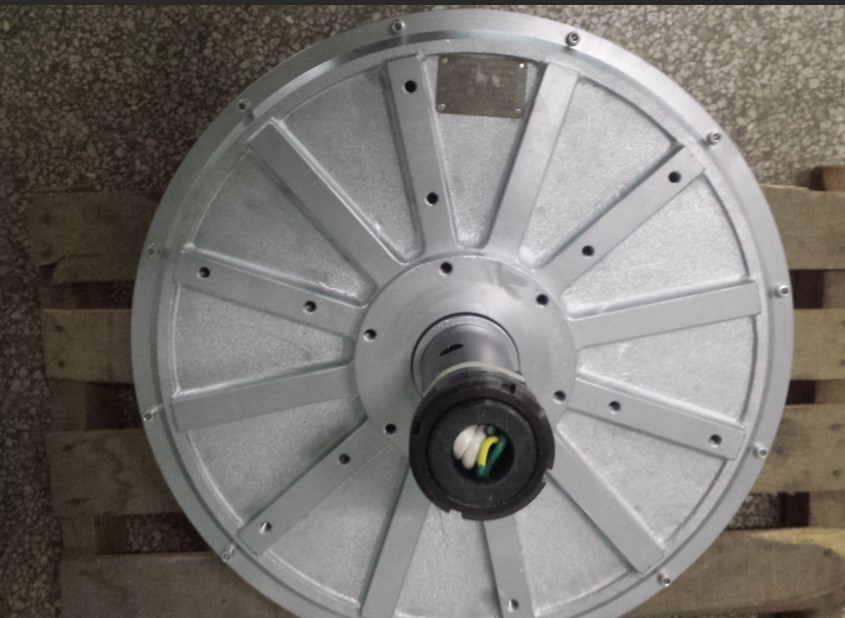

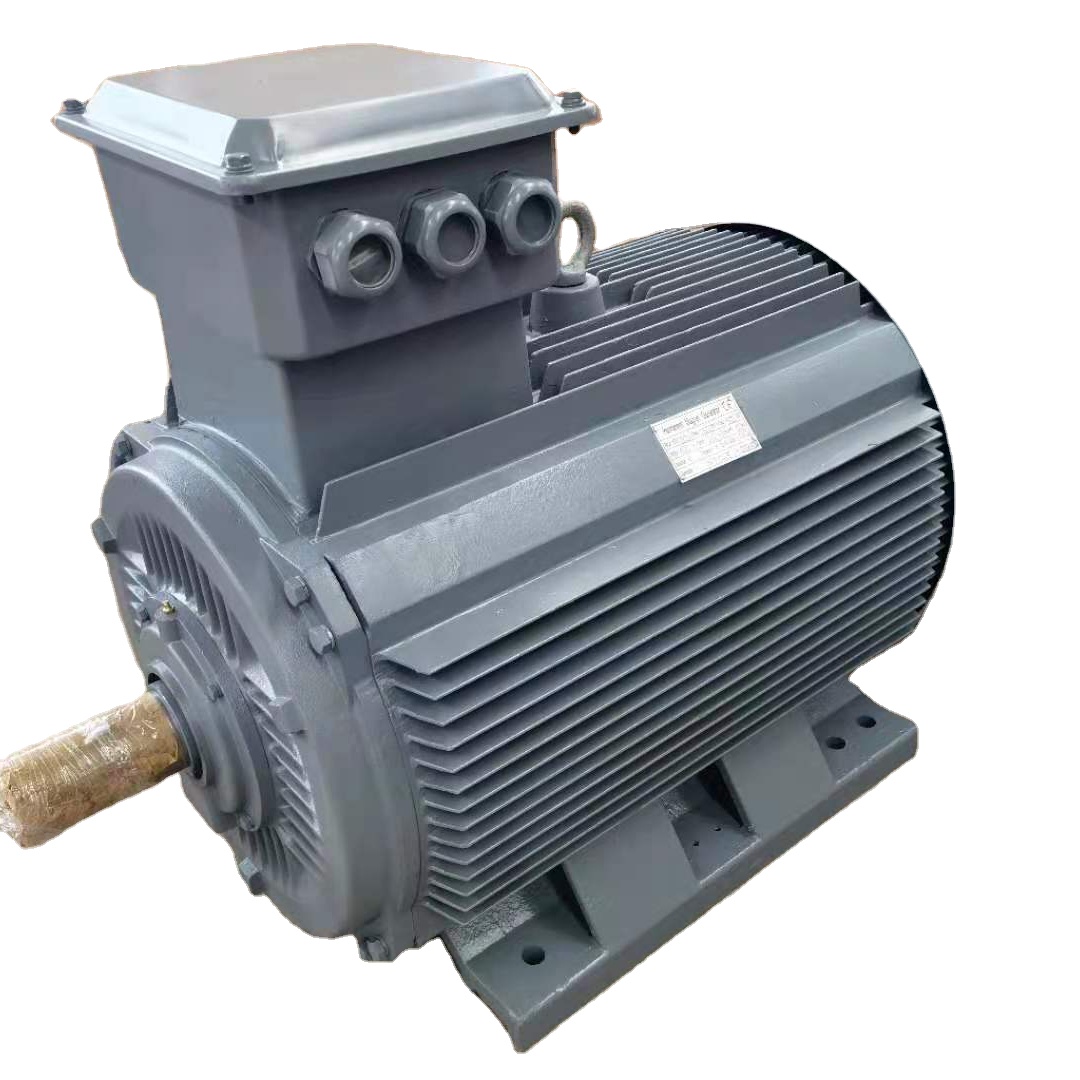

3 Phase 50kW Permanent Magnet Alternator for Industrial Wind Mills
3 Phase 50kW Permanent Magnet Alternator for Industrial Wind Mills
3 Phase 50kW Permanent Magnet Alternator for Industrial Wind Mills
3 Phase 50kW Permanent Magnet Alternator for Industrial Wind Mills
3 Phase 50kW Permanent Magnet Alternator for Industrial Wind Mills
1 / 5
3 Phase 50kW Permanent Magnet Alternator for Industrial Wind Mills
3 Phase 50kW Permanent Magnet Alternator for Industrial Wind Mills
3 Phase 50kW Permanent Magnet Alternator for Industrial Wind Mills
3 Phase 50kW Permanent Magnet Alternator for Industrial Wind Mills
3 Phase 50kW Permanent Magnet Alternator for Industrial Wind Mills

3 Phase 50kW Permanent Magnet Alternator for Industrial Wind Mills

Send Inquiry

Product Description

Permanent Magnet Generator

Permanent Magnet Generator Application Areas

Wind power, hydropower, ocean energy, ships, diesel generators, aviation, hand-crank generators, etc.

Wind Power Generation Applications

  • 1 Especially suitable for direct-drive wind turbines.
  • 2 No gearbox required, capable of low rotor speeds and high torque.
  • 3 Suitable for small and medium-sized wind power systems, off-grid wind power, and offshore wind power.

Hydropower Generation Applications

  • 1 Primarily used in small and medium-sized hydropower stations and micro-hydropower generation systems.
  • 2 Can be used with axial-flow and Francis-flow turbines.
  • 3 Compact and highly efficient, making them suitable for use in remote areas.
Hydropower generation setup

Key Advantages

No. Feature Highlights
1 Customized: Voltage, Speed, Power, Frequency etc.
2 Direct Drive, no gear-box
3 Rare earth Nd-Fe-B permanent magnets
4 Long lifetime >20 years, could run at high speed 7 days 24 hours.
5 Power factor close to 1
6 Maintenance free, can be used in all environments.

Specifications

We provide customized generators according to each customer's requirements of Voltage, Speed, Power, Frequency etc.

Parameter Details
Rated Power0.5-5500KW
Rated Rotate Speed20-3000rpm
Rated Voltage48-1140Vac
Frequency50/60Hz
Number of Poles24
Generator Type3 phase AC Synchronous Generator
Magnet TypeNdFeB
Winding MethodY
Magnet temperature levelMax. 120℃
Winding Temperature LevelMax. 180℃
Efficiency>95%
Insulate GradeH
Insulating resistance100Mohm Min (500Vdc)
Classification of degreesIP54
Generator shell materialCast Iron
Winding material100% Copper
Shaft materialSteel
Iron CoreCold rolled silicon steel sheet
Bearing brandSKF
Cooling MethodFan Cooling
Weight (N.W / G.W)132kg / 152kg
InstallationHorizontal
Technical drawing details

Various Types Available

RATED POWER RATED SPEED RATED VOLTAGE FREQUENCY
0.5KW20rpm~400rpm12V~220Vac10Hz~60Hz
1KW20rpm~600rpm12V~220Vac10Hz~60Hz
2KW20rpm~1000rpm12V~400Vac10Hz~60Hz
3KW20rpm~1500rpm48V~690Vac10Hz~60Hz
5KW20rpm~1500rpm48V~690Vac10Hz~60Hz
10KW20rpm~1500rpm120V~690Vac10Hz~60Hz
15KW20rpm~3000rpm120V~690Vac10Hz~60Hz
20KW20rpm~3000rpm120V~690Vac10Hz~60Hz
25KW20rpm~3000rpm120V~1140Vac10Hz~60Hz
30KW20rpm~3000rpm120V~1140Vac10Hz~60Hz
50KW20rpm~3000rpm220V~1140Vac10Hz~60Hz
80KW20rpm~3000rpm220V~1140Vac10Hz~60Hz
100KW20rpm~3000rpm220V~1140Vac10Hz~60Hz
150KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
200KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
250KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
300KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
500KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
700KW20rpm~3000rpm690V~1140Vac10Hz~60Hz
800KW20rpm~3000rpm690V~1140Vac10Hz~60Hz
1MW200rpm~3000rpm690V~1140Vac10Hz~60Hz
2MW200rpm~3000rpm690V~1140Vac10Hz~60Hz
3MW200rpm~3000rpm690V~1140Vac10Hz~60Hz
4MW600rpm~3000rpm690V~1140Vac10Hz~60Hz
5MW600rpm~3000rpm690V~1140Vac10Hz~60Hz

Various Generators

Various Generator Types

Our Cases

Project Case 1 Project Case 2 Project Case 3 Project Case 4

Package & Delivery

Safe Packaging and Delivery

Our Factory

Factory Facility Overview Production Workshop Manufacturing Line Factory Equipment

See What Customers Say

Customer Testimonials

Frequently Asked Questions (FAQ)

Q1: What are the primary application areas of your permanent magnet generators?
A: Our permanent magnet generators are extensively applied in wind power, hydropower, ocean energy, marine shipping, diesel generators, aviation systems, and hand-crank applications.
Q2: Why are these generators suitable for direct-drive wind turbines?
A: They do not require a gearbox, which allows them to operate smoothly at low rotor speeds with high torque. This gearless design simplifies maintenance and increases overall system reliability.
Q3: Can the specifications of the generators be customized?
A: Yes, we specialize in customization. We design and manufacture generators to match your specific requirements for voltage, speed, power outputs (from 0.5KW up to 5500KW), and frequency.
Q4: What is the typical lifespan of your permanent magnet generator?
A: Thanks to our high-grade rare earth NdFeB permanent magnets, Class H insulation, and robust structure, our generators offer a long lifespan of over 20 years and are capable of continuous 24/7 high-speed operation.
Q5: Are these generators maintenance-free?
A: Yes, our permanent magnet generators feature a gearless direct-drive system and contain no brushes. This highly durable structure ensures maintenance-free operation across diverse and harsh environmental conditions.
Q6: What materials are used to ensure the generator's high efficiency?
A: The generator uses high-quality NdFeB magnets, 100% copper windings, a cold-rolled silicon steel sheet iron core, and premium SKF bearings. These allow the generator to reach an efficiency rating of over 95%.
