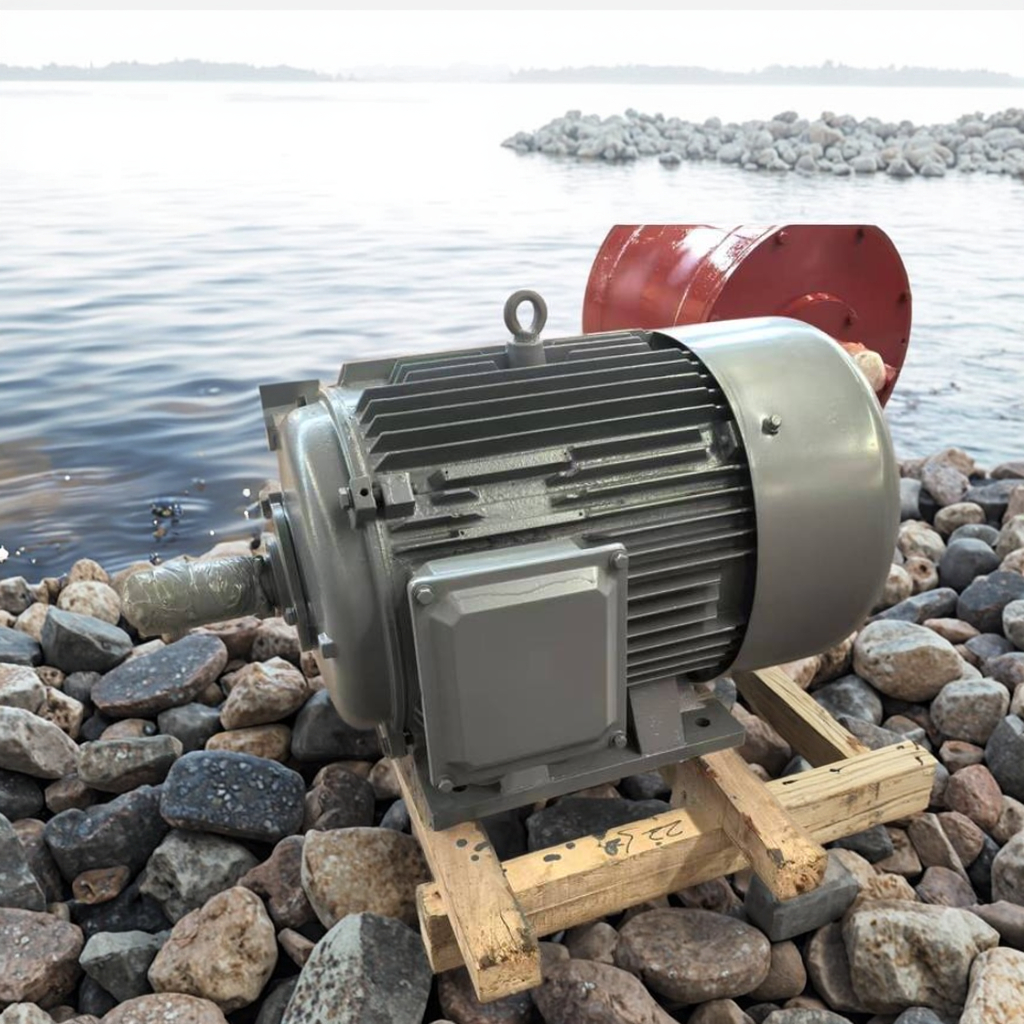

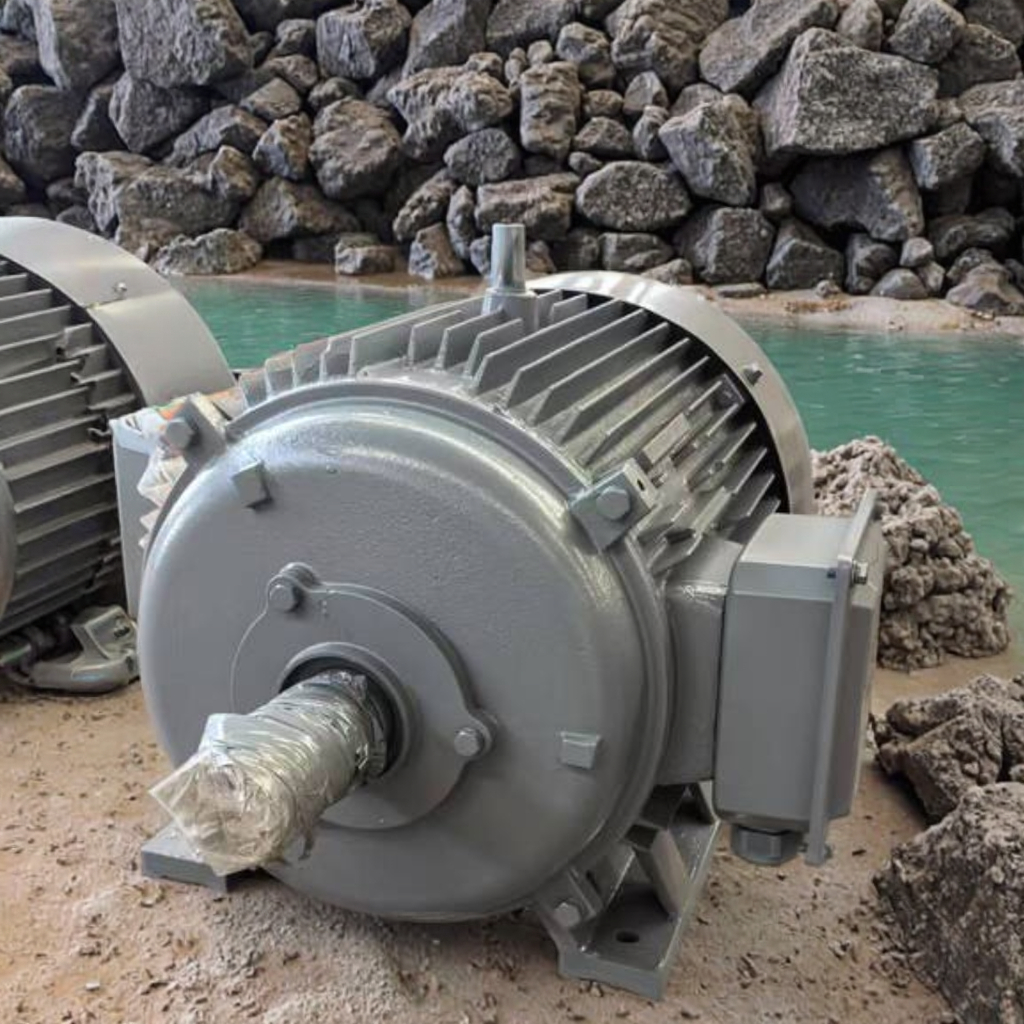

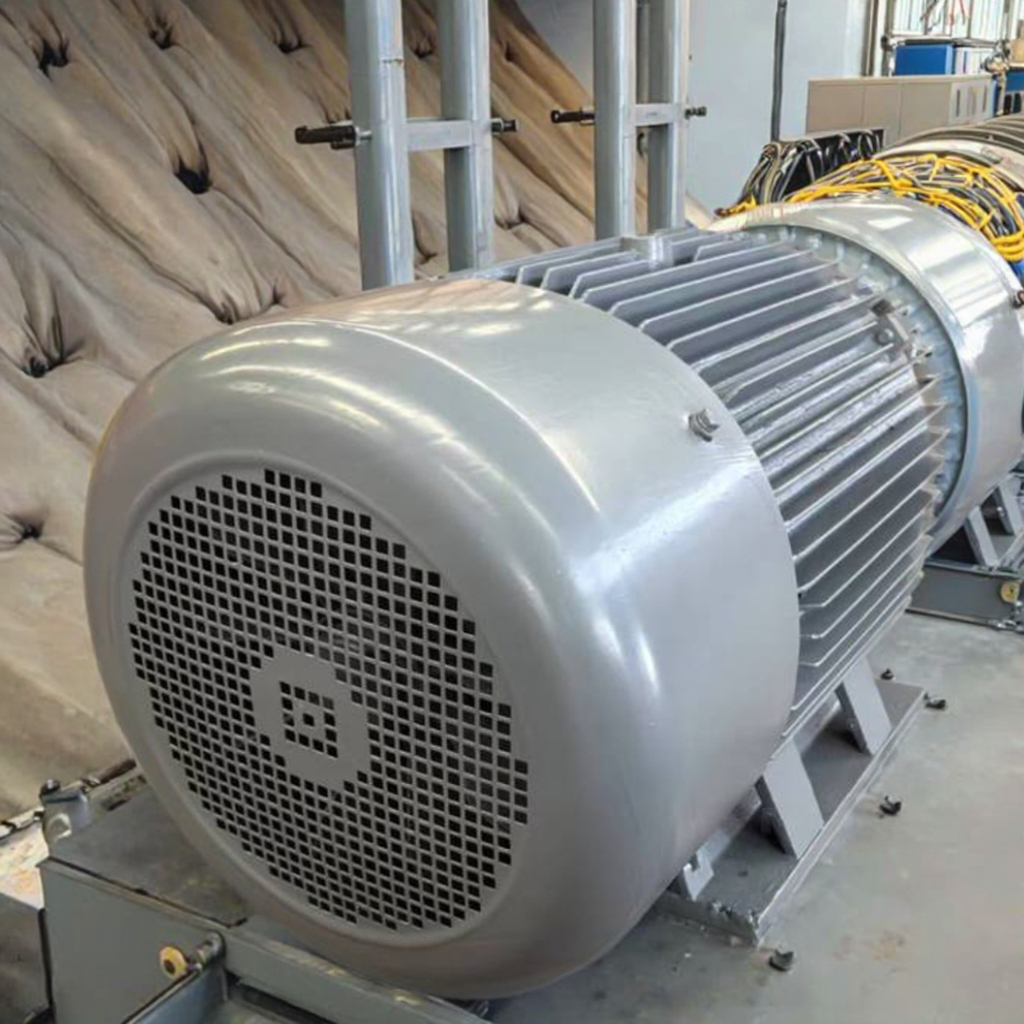

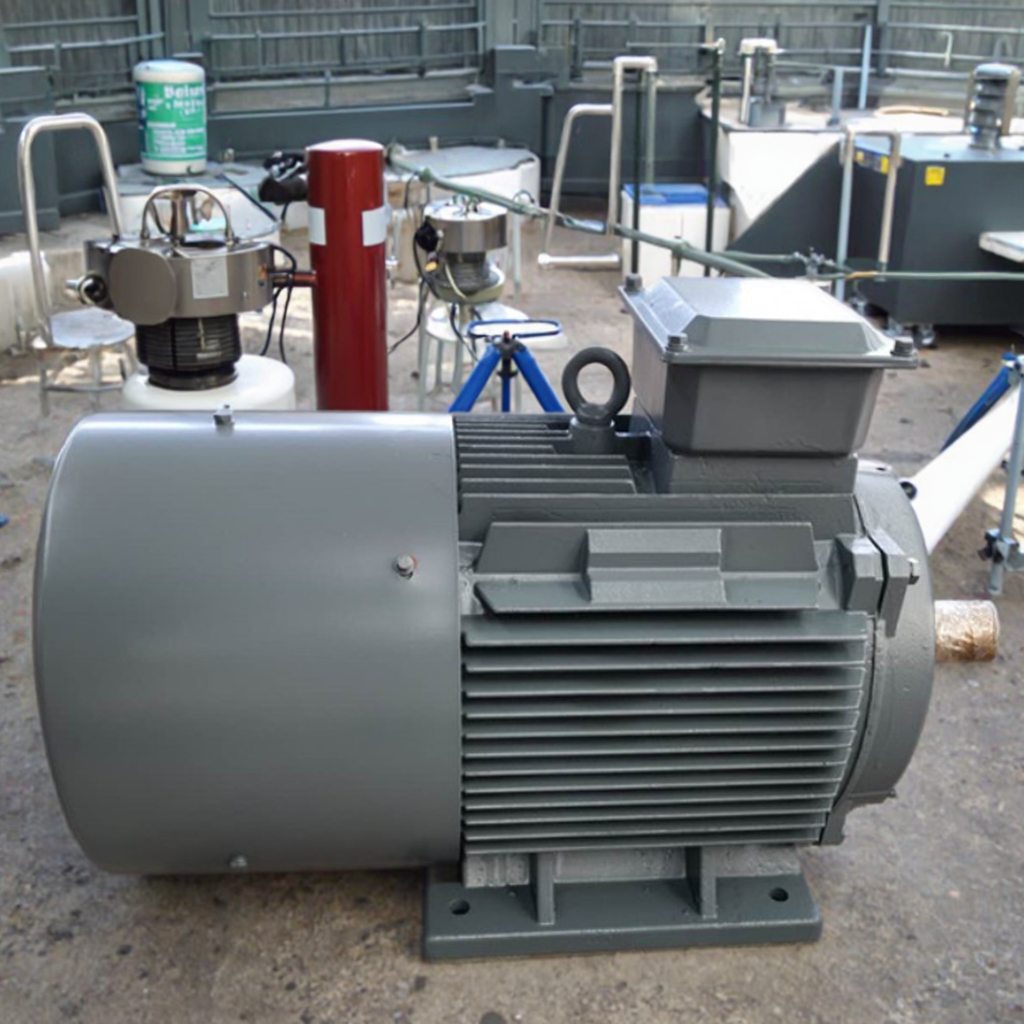

30kw Free Energy Micro Hydro Generator with Water Turbine for Renewable Energy Use in Rivers

1 / 5

30kw Free Energy Micro Hydro Generator with Water Turbine for Renewable Energy Use in Rivers

Send Inquiry

Product Description

Permanent Magnet Generator Application Areas

Permanent magnet generators are widely utilized across various key sectors, including wind power, hydropower, ocean energy, ships, diesel generators, aviation and military, hand-crank generators, and other specialized power generation systems.

Wind Power Generation

Especially suitable for direct-drive wind turbines.
No gearbox required, capable of low rotor speeds and high torque.
Suitable for small and medium-sized wind power systems, off-grid wind power, and offshore wind power.

Hydropower Generation

Primarily used in small and medium-sized hydropower stations and micro-hydropower generation systems.
Compatible with axial-flow and Francis-flow turbines.
Compact and highly efficient design, ideal for remote areas.

Key Features & Technical Advantages

Customization Support
Tailored voltage, speed, power, frequency, and related specifications.

Direct Drive Efficiency
Gearbox-free structure reduces mechanical energy loss and maintenance.

Premium Nd-Fe-B Magnets
Utilizes rare earth neodymium permanent magnets for high field strength.

Extended Lifetime
Long operating life span (>20 years), capable of 24/7 continuous high-speed runs.

High Power Factor
Optimized electrical parameters keeping power factor exceptionally close to 1.

Maintenance Free
Designed for durable, maintenance-free operations across harsh environments.

Technical Specifications

Our manufacturing facility provides customization services for generators based on voltage, speed, power output, frequency, and spatial configuration requirements.

Parameter	Standard Specification & Value
Rated Power	0.5-5500KW
Rated Rotate Speed	20-3000 rpm
Rated Voltage	48-1140Vac
Frequency	50/60Hz
Number of Poles	24
Generator Type	3 Phase AC Synchronous Generator
Magnet Type	NdFeB (Neodymium)
Winding Method	Y Type
Magnet Temperature Level	Max. 120°C
Winding Temperature Level	Max. 180°C
Efficiency	>95%
Insulation Grade	H
Insulating Resistance	100Mohm Min (500Vdc)
Classification of Degrees	IP54
Generator Shell Material	Cast Iron
Winding Material	100% Pure Copper
Shaft Material	Steel
Iron Core	Cold rolled silicon steel sheet
Bearing Brand	SKF
Cooling Method	Fan Cooling
Weight (N.W / G.W)	132kg / 152kg
Installation	Horizontal

Selection Matrix & Available Models

Rated Power	Rated Speed Range	Rated Voltage Range	Frequency Range
0.5KW	20rpm~400rpm	12V~220Vac	10Hz~60Hz
1KW	20rpm~600rpm	12V~220Vac	10Hz~60Hz
2KW	20rpm~1000rpm	12V~400Vac	10Hz~60Hz
3KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
5KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
10KW	20rpm~1500rpm	120V~690Vac	10Hz~60Hz
15KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
20KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
25KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
30KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
50KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
80KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
100KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
150KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
200KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
250KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
300KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
500KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
700KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
800KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
1MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
2MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
3MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
4MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz
5MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz

Various Generators

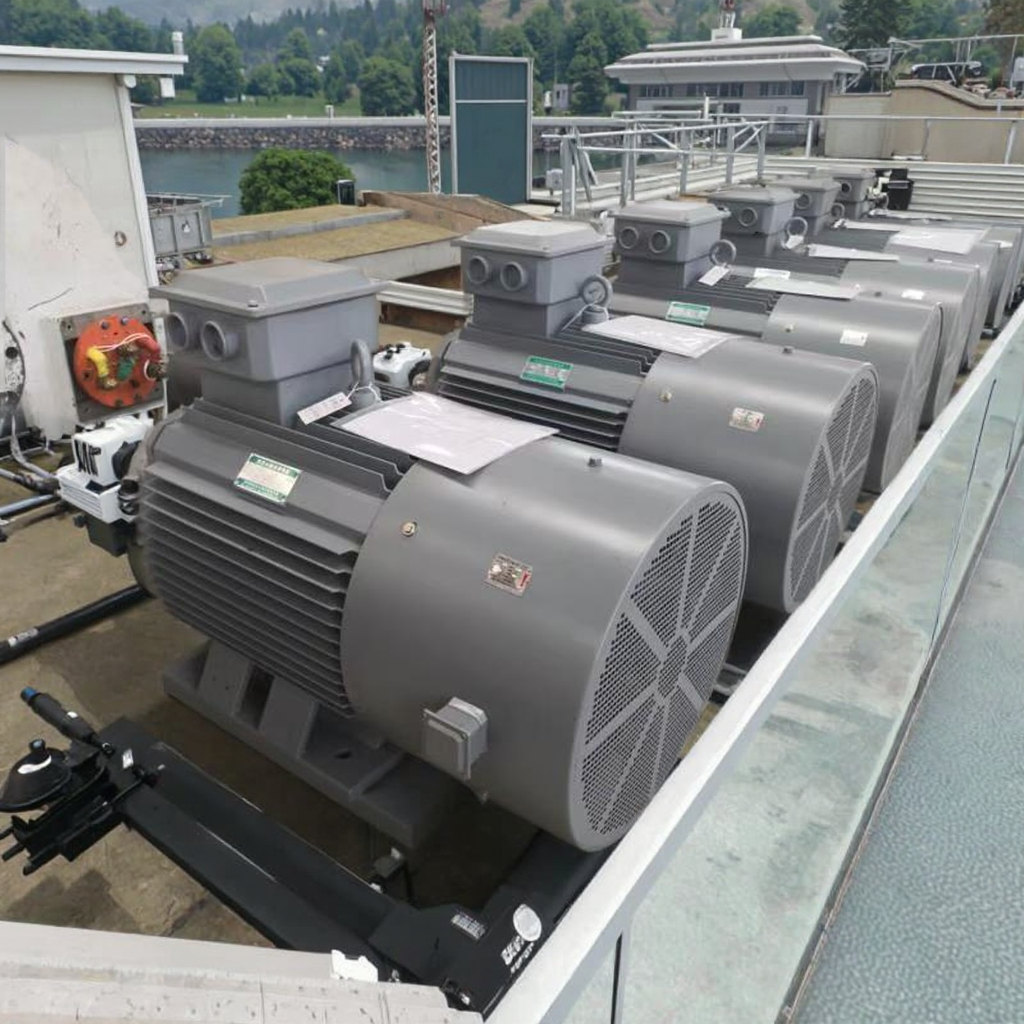

Our Cases

Package & Delivery

Our Factory Workshop

See What Customer Say

Frequently Asked Questions

What are the primary applications of these permanent magnet generators?

They are highly versatile and widely used in wind power systems, small to medium-sized hydropower stations, ocean energy harvesting, marine ship power, diesel generator backups, hand-crank emergency units, and aviation/military systems.

Why are direct-drive generators beneficial for wind power generation?

By using a direct-drive setup, these generators eliminate the need for a mechanical gearbox. This allows them to operate reliably at low rotor speeds with high torque output, greatly reducing power loss, noise, and ongoing maintenance.

What specifications and parameters can be customized?

We support tailored designs matching your specific application. Customizations include voltage outputs (from 48V to 1140Vac), rotation speeds (20 to 3000 rpm), power capacities (0.5 to 5500KW), frequency options (50Hz or 60Hz), and installation dimensions.

What materials are used to ensure the generator's long service life?

Our generators feature rare earth NdFeB permanent magnets rated up to 120°C, 100% pure copper windings with high-grade H insulation (rated up to 180°C), premium SKF bearings, a high-durability steel shaft, and a robust cast iron shell.

What protection level and efficiency can be expected?

The generators have an IP54 protection level, making them suitable for use in varied outdoor and marine environments. Under standard operating conditions, they maintain a highly efficient output exceeding 95% with a power factor close to 1.
