Product Description

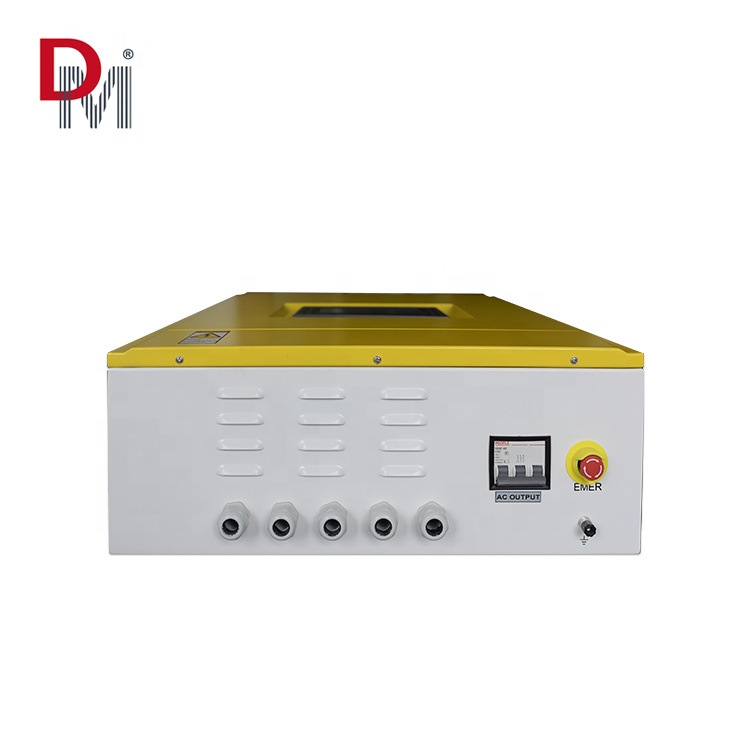

Good Quality Long Service Time Inverter Wind Power Inverter 5kW Wind Mill Power Solar Hybrid Inverter Suppliers

Product Introduction

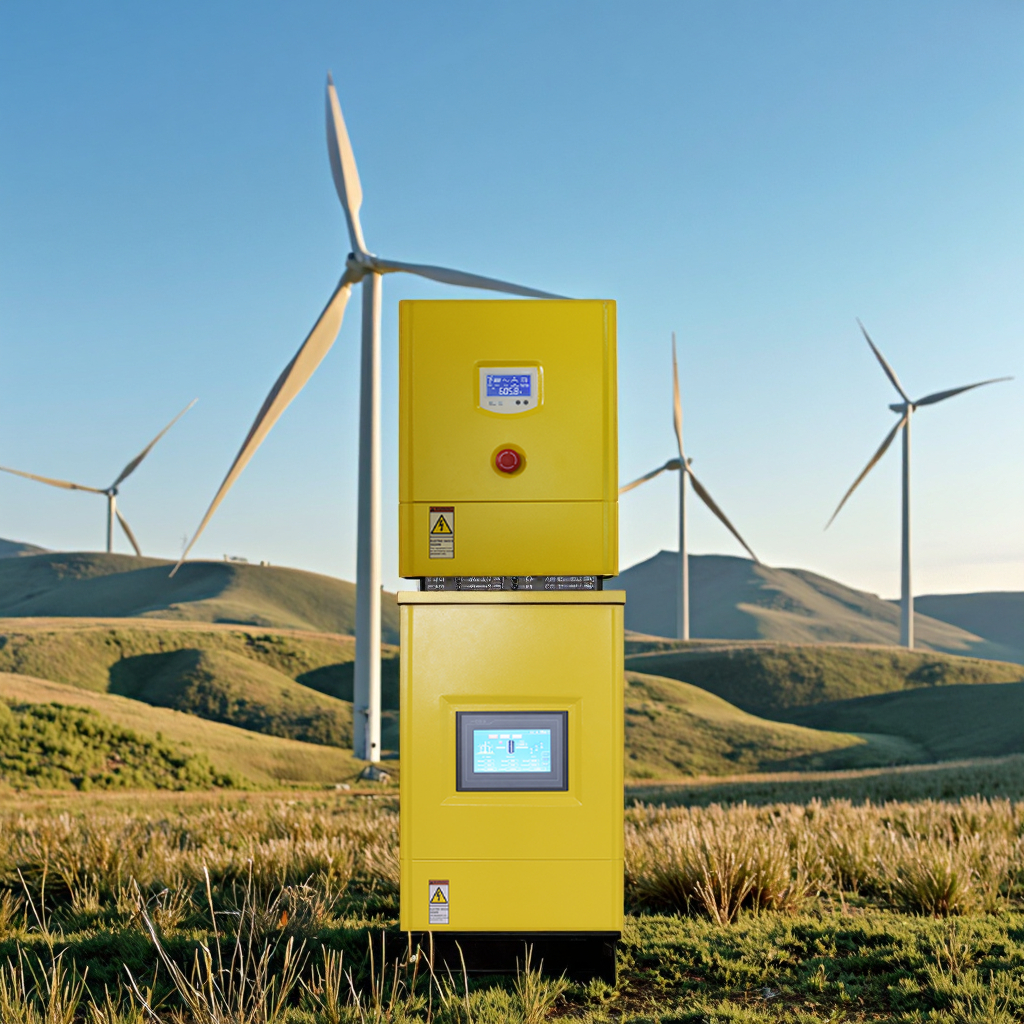

On Grid Wind Turbine System: The On grid wind turbine system is composed of wind turbine, on grid controller, on grid inverter, metering device, and power distribution system. Wind energy is converted into AC electrical energy by the wind turbine, and then converted into DC electrical energy by the on grid controller, and then DC electrical energy is converted into AC electrical energy of the same frequency and phase as the grid by the on grid inverter, and part of the power is supplied to the local load. Surplus power is fed into the grid.

On Grid Wind Turbine Inverter Performance Characteristics

The main circuit uses the DSP chip produced by the American TI company, German Infineon IGBT module, drive protection is the Japanese Mitsubishi movement, and the on grid output part uses an isolation transformer, which is safe and reliable.
Using SPWM pulse width modulation technology, pure sine wave output, automatic synchronous tracking with the grid, power factor close to 1, low current harmonic content, no pollution to the grid, no impact.
Wind turbine input maximum power tracking technology (MPPT).
The power curve of the wind turbine can be set; the default is 20 points, and the internal expansion is 50.

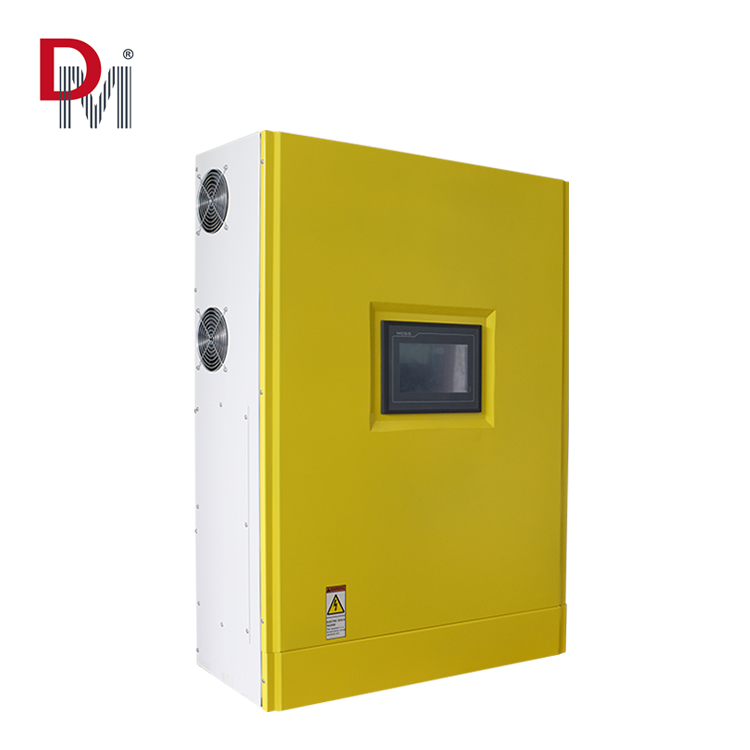

7-inch color touch screen display, system operation data and fault information at a glance, and convenient parameter setting.
On grid inverter current closed-loop control, controllable and adjustable.
The input DC voltage range is wide, adapting to the needs of different occasions.
Frequency disturbance detection technology to realize anti-island control.
The comprehensive power protection scheme and perfect self-detection and protection functions will stop the on grid inverter when a system failure occurs.
Circuit structure is compact, with a maximum efficiency of 98%.
Support RS485, WiFi, GPRS, Ethernet and other communication methods. You can monitor the working status of the on grid wind power generation system in real time through the PC or mobile phone, and you can also query the historical working status. The mobile terminal is compatible with Android and iOS. All data can be connected to the Internet of Things.

Products Description

3-5kW grid-connected wind generator controls the inverter specifications

On grid wind turbine controller	Parameters	WGMC3K220	WGMC5K220
Wind turbine input
Power	-	3kW	5kW
Max. Control power / current	-	6kW / 20A	10kW / 34A
Rated voltage of wind turbine (AC)	-	220V	220V
Input voltage range	AC / DC	AC 0-330V / DC 0-450V	AC 0-330V / DC 0-450V
Braking voltage (DC)	Default (Set range)	350V ± 1% (320-350V)	350V ± 1% (320-350V)
Braking current (DC)	Default (Set range)	15A (0-15A)	25A (0-25A)
Braking time	Default (Set range)	10-20 min	0-5000 min
*Generator overspeed control	Default (Set range)	>300 rpm/min	0-1000 rpm/min
*Over wind speed control	Default (Set range)	14 m/s	0-45 m/s
Manual control	-	Manual brake, *remote control brake (with communication function)
Automatic control function	-	Dump load control, yaw, pitch, mechanical brake, hydraulic brake, electromagnetic brake
*PV Input
Rated power (increased)	-	3kWp	3kWp
Working voltage (DC)	-	320V; 400V	320 / 400V
DC output parameters
Output voltage range (DC)	-	0-350V	0-350V
Constant voltage (DC)	Default (Set range)	310V ± 1% (300-330V)	310V ± 1% (300-330V)
Constant current (DC)	Default (Set range)	12A (0-12A)	20A (0-20A)
On grid wind turbine inverter	Model	DMWG3KTL	DMWG5KTL
Rated output power (AC)	-	3kW	5kW
Max. Output power (AC)	-	3.3kW	5.5kW
Input voltage range (DC)	-	0-450V	0-450V
MPPT Voltage range (DC)	-	100V-400V	100V-400V
Max. Input current (DC)	-	11.2A	18.7A
Rated current	-	10.2A	17A
THD Current harmonic	-	<3% (at rated power)
Power factor	-	>0.99
Max efficiency	-	98%
Allowable grid voltage range (AC)	-	110V/120/220V (Single-phase) ± 20%
Allowable grid frequency range	-	50Hz/60Hz ± 10%
Automatic operation conditions	-	DC input and power grid meet the requirements, the inverter operates automatically
Restart time after power failure	-	2 min (Adjustable)

General Parameters
Function	Rectification, DC output, output voltage control, output current control, Dump load control, control parameter setting, wind turbine curve setting
Automatic protection	Control part: Over voltage protection, over current protection, reverse connection protection, lightning arrester Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT, overheat protection, overload protection, ground fault protection, etc.
Display	Touch screen, LCD
Monitoring content	Wind turbine voltage, current, power, solar panel voltage, current, power, DC output voltage, current, power, inverter output power, cumulative power generation, power generation at any time, rotational speed, wind speed
Protection level	IP20 (Indoor) / IP65 (Outdoors)
Telematics	RS485/USB/GPRS/WIFI/Ethernet (optional)
Environment	Operating amb. Temp. & Hum -30 to 60°C, <90% no condensation
Noise (1m)	<40dB

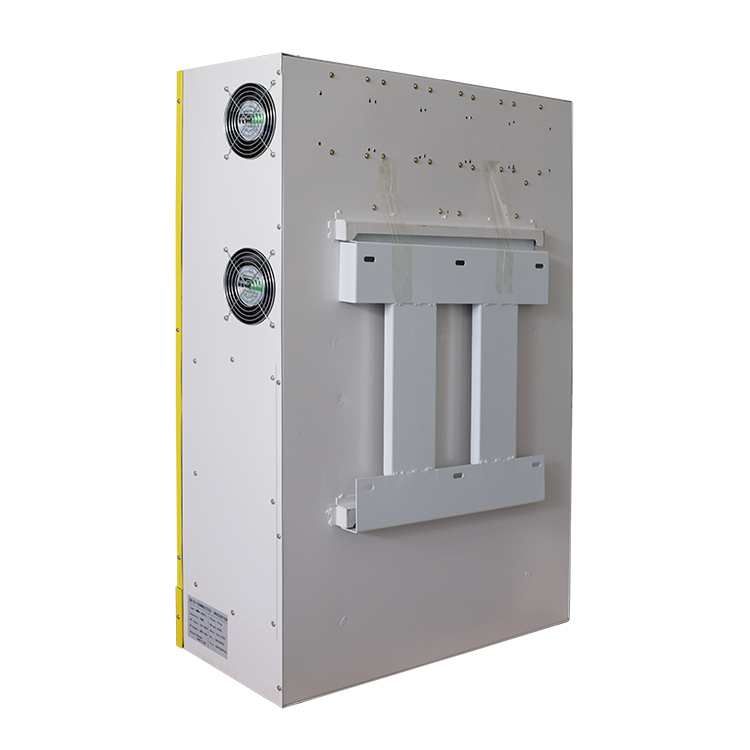

Refrigeration mode	Forced air cooling

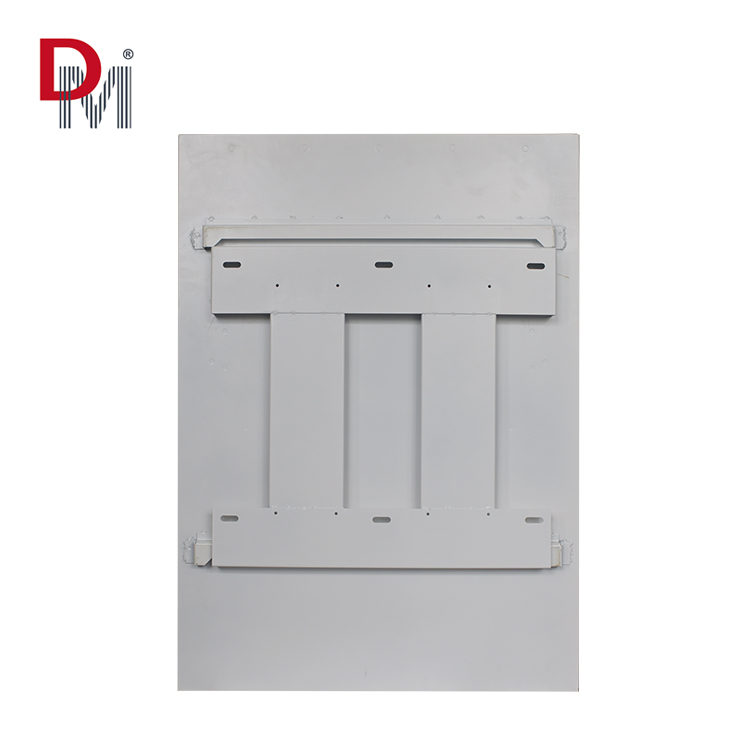

Controller size / weight	360230480mm 17kg	360230480mm 18kg
Dump load size / weight	400400250mm 12kg	600450380mm 28kg
Inverter size / weight	450275770mm 39kg	450275770mm 44kg
