70KW Free Energy Generator with 50Hz Frequency Permanent Magnet Generator for Wind and Hydro Turbines

1 / 5

70KW Free Energy Generator with 50Hz Frequency Permanent Magnet Generator for Wind and Hydro Turbines

Send Inquiry

Product Description

Permanent Magnet Generator Application Areas

Highly versatile power generation solutions applicable across diverse sectors:

Wind Power Hydropower Ocean Energy Marine & Ships Diesel Generators Aviation Hand-Crank Generators

Wind Power Generation

✓ Especially suitable for direct-drive wind turbines.
✓ No gearbox required, capable of low rotor speeds and high torque.
✓ Ideal for small and medium-sized wind power systems, off-grid wind power, and offshore wind power.

Hydropower Generation

✓ Primarily used in small and medium-sized hydropower stations and micro-hydropower generation systems.
✓ Fully compatible with axial-flow and Francis-flow turbines.
✓ Compact and highly efficient design, making them perfect for remote areas.

Key Advantages

No.	Features & Customized Services
1	Customized: Voltage, Speed, Power, Frequency, etc.
2	Direct Drive, no gear-box required
3	Rare earth Nd-Fe-B (Neodymium) permanent magnets
4	Long life time >20 years, capable of running at high speed 24/7.
5	Power factor close to 1
6	Maintenance free, suitable for all environmental conditions.

Technical Specifications

We provide customized generators according to specific requirements for Voltage, Speed, Power, Frequency, etc.

Rated Power	0.5-5500KW
Rated Rotate Speed	20-3000 rpm
Rated Voltage	48-1140Vac
Frequency	50/60HZ
Number of Poles	24
Generator Type	3 Phase AC Synchronous Generator
Magnet Type	NdFeB
Winding Method	Y
Magnet Temperature Level	Max. 120℃
Winding Temperature Level	Max. 180℃
Efficiency	>95%
Insulate Grade	H
Insulating Resistance	100Mohm Min (500Vdc)
Classification of Degrees	IP54
Generator Shell Material	Cast Iron
Winding Material	100% Copper
Shaft Material	Steel
Iron Core	Cold rolled silicon steel sheet
Bearing Brand	SKF
Cooling Method	Fan Cooling
Weight (N.W / G.W)	132kg / 152kg
Installation	Horizontal

Various Types Available

Rated Power	Rated Speed	Rated Voltage	Frequency
0.5KW	20rpm~400rpm	12V~220Vac	10Hz~60Hz
1KW	20rpm~600rpm	12V~220Vac	10Hz~60Hz
2KW	20rpm~1000rpm	12V~400Vac	10Hz~60Hz
3KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
5KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
10KW	20rpm~1500rpm	120V~690Vac	10Hz~60Hz
15KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
20KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
25KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
30KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
50KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
80KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
100KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
150KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
200KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
250KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
300KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
500KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
700KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
800KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
1MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
2MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
3MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
4MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz
5MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz

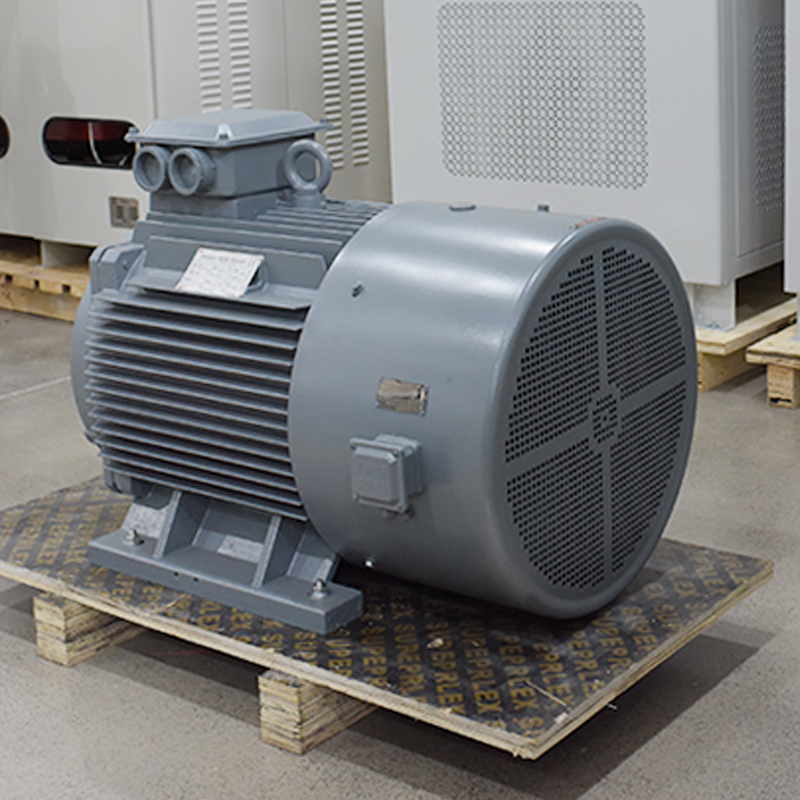

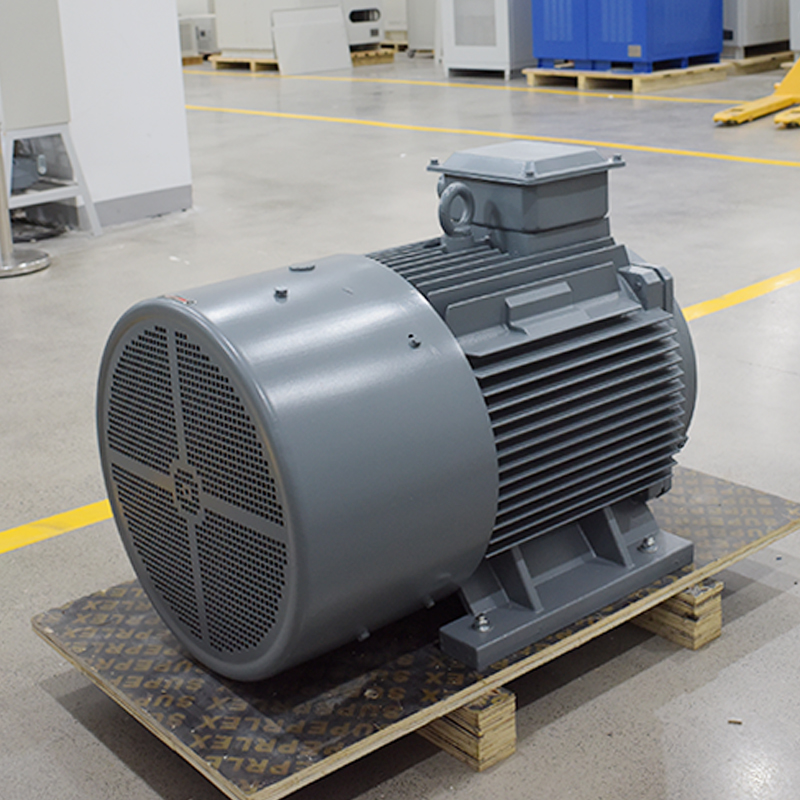

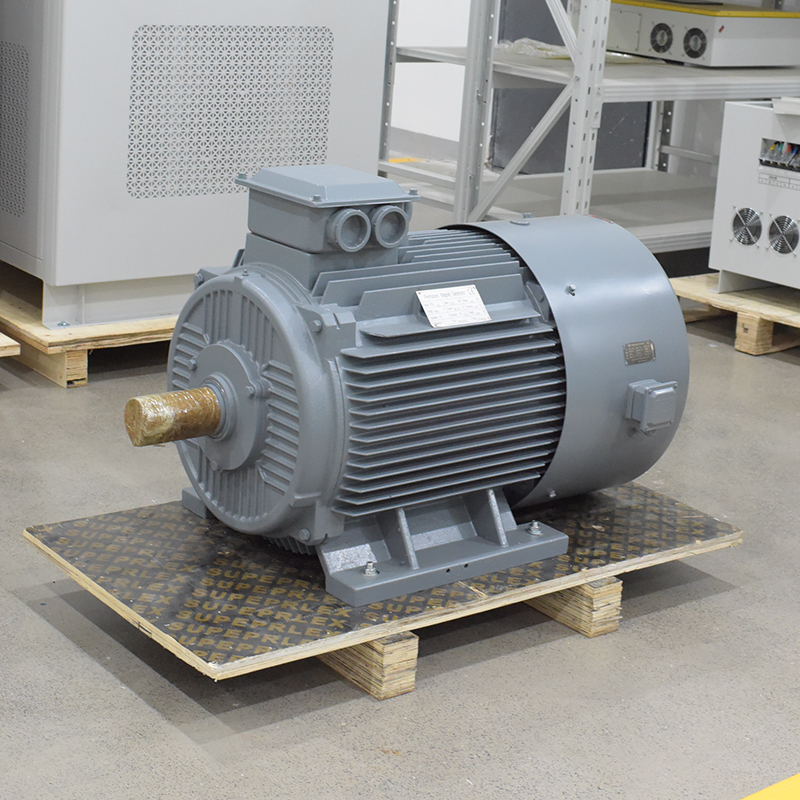

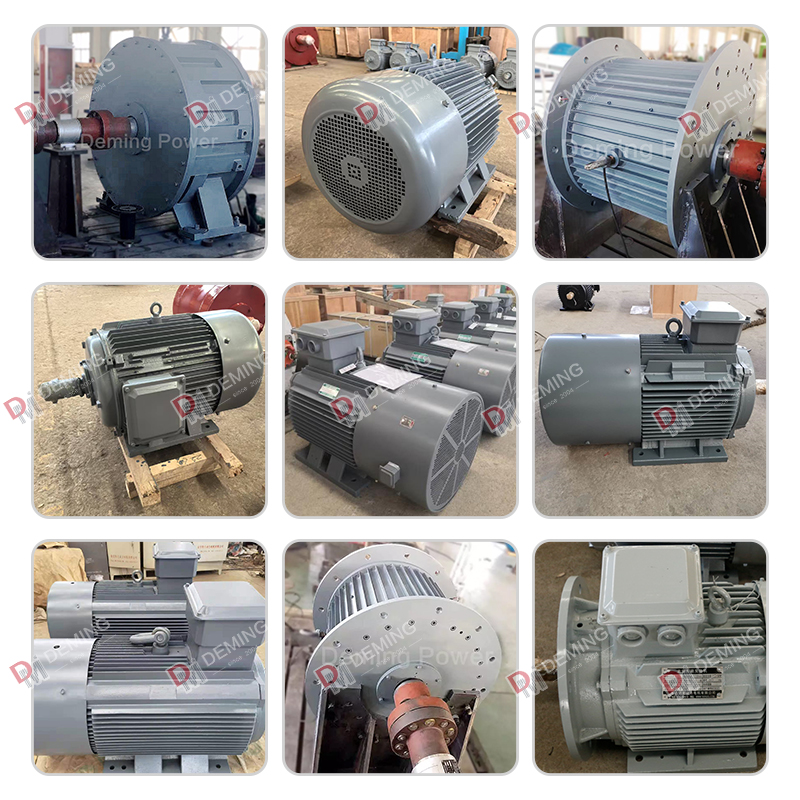

Product Gallery

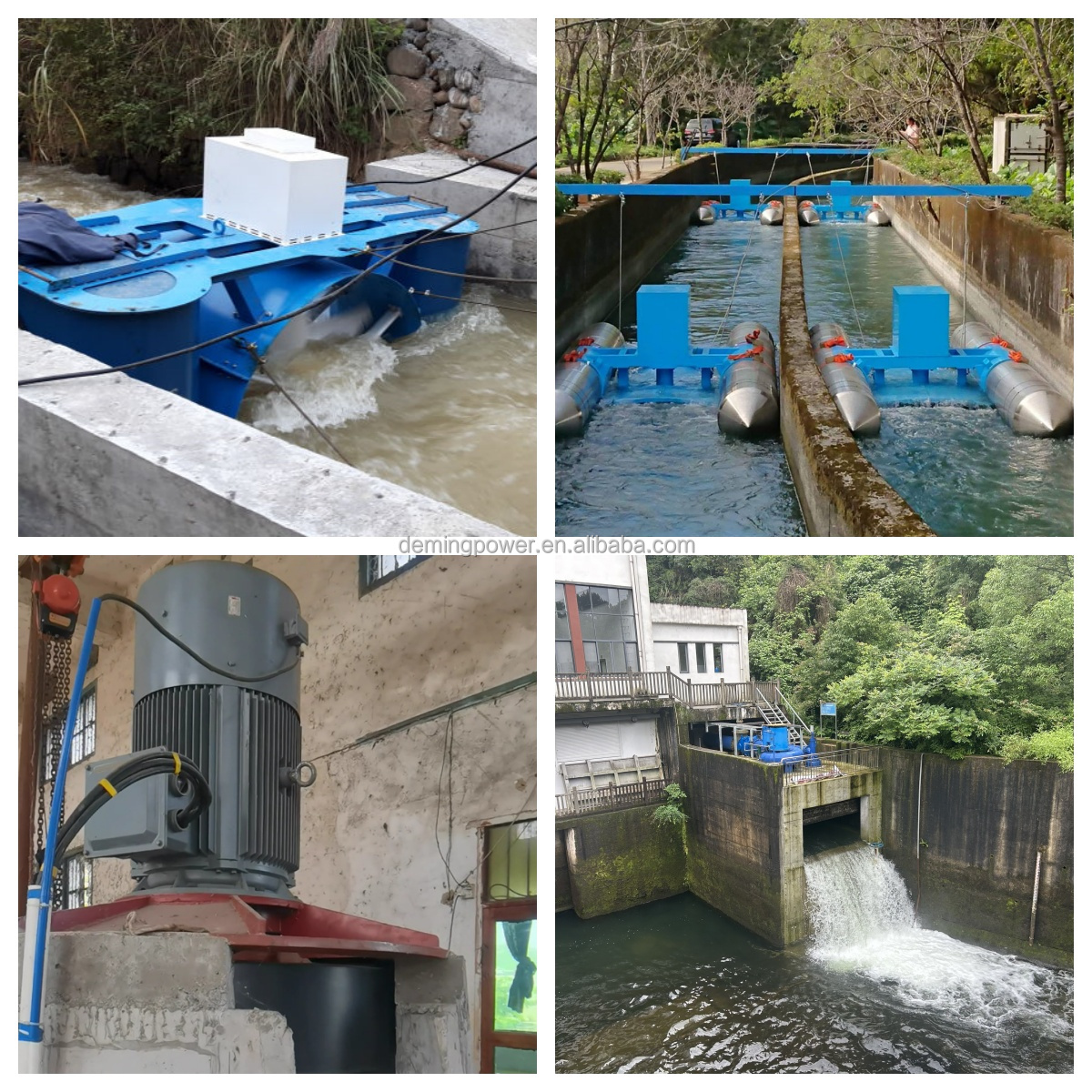

Project Cases

Package & Delivery

Factory Overview

Customer Reviews

Frequently Asked Questions (FAQ)

1. What are the custom options available for these generators?

We offer full customization for Voltage, Speed, Power, Frequency, and other structural options to meet specific application requirements across wind, hydro, and diesel setups.

2. Why is direct-drive wind turbine capability beneficial?

Direct-drive configurations eliminate the need for a gearbox. This enables low-speed operation, achieves high torque, increases reliability, and significantly reduces maintenance requirements.

3. What high-performance materials are used in manufacturing?

Our generators feature rare earth NdFeB permanent magnets, 100% copper windings, a high-quality steel shaft, a cold-rolled silicon steel sheet iron core, and premium SKF bearings inside a cast iron shell.

4. What is the efficiency rating of these permanent magnet generators?

These generators have an efficiency rating exceeding 95% with a power factor close to 1, ensuring maximum energy conversion and minimal power losses.

5. What environments are these generators suitable for?

With an IP54 classification grade and class H insulation, these generators are maintenance-free and can run reliably in all environments (including marine and remote areas) 24/7.

6. What is the expected lifespan of these generators?

Constructed with high-grade industrial materials and a direct-drive structure, our permanent magnet generators offer an expected operational lifespan of over 20 years.
