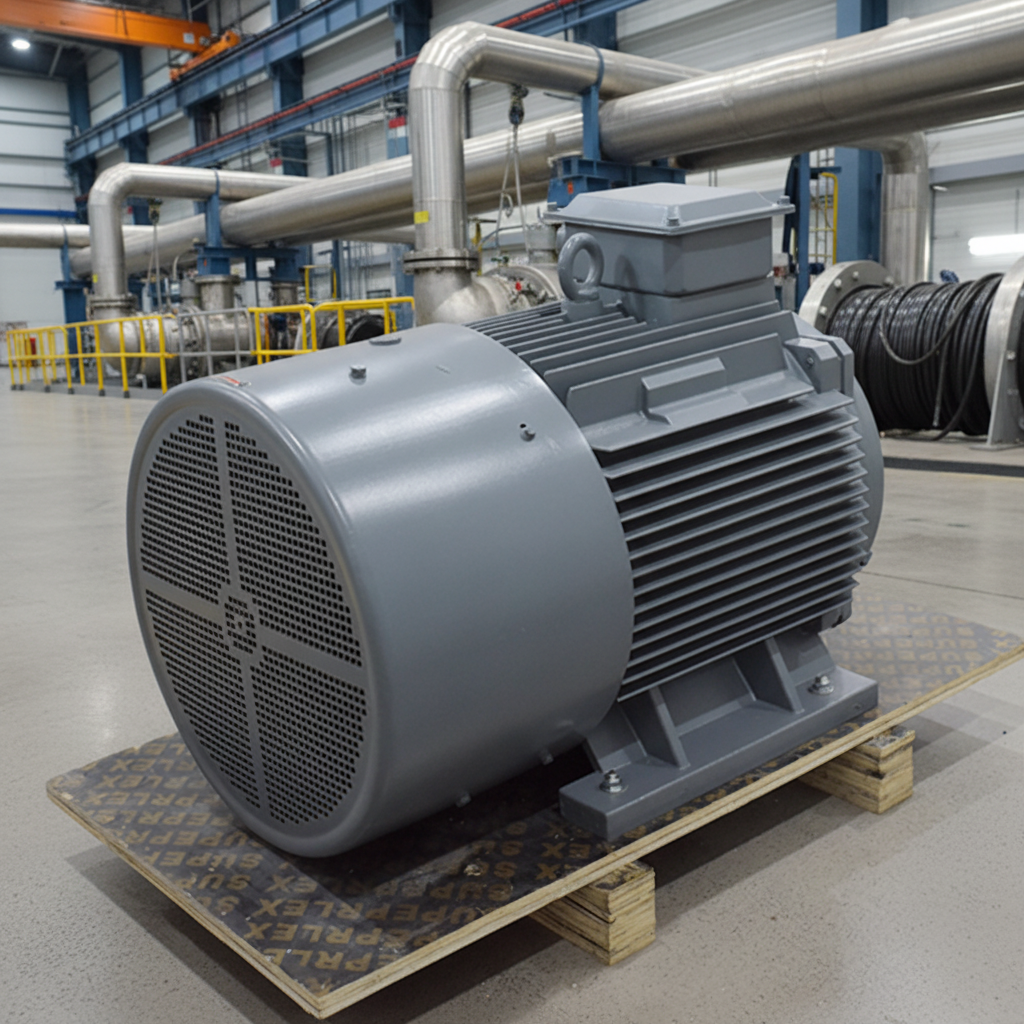

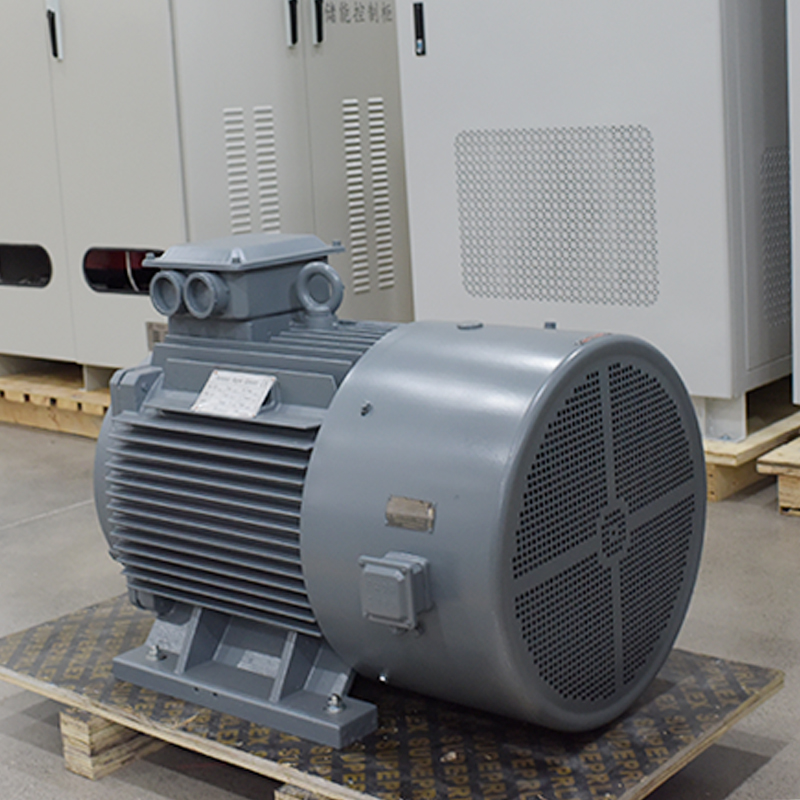

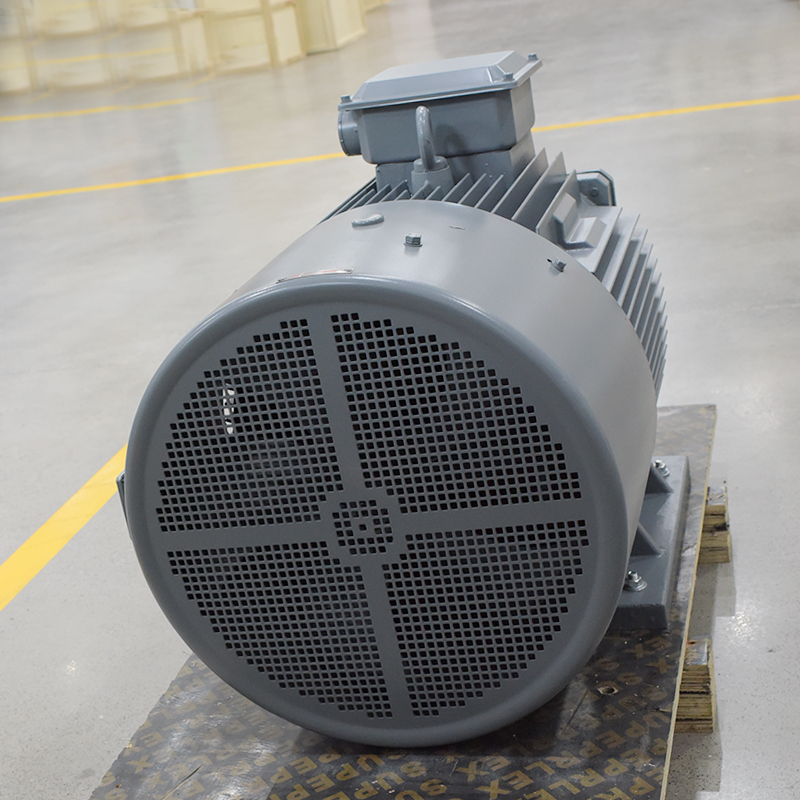

DEMING DMG-50KW High Efficiency 50KW 3 Phase 50Hz Permanent Magnet Generator for Renewable Energy Low RPM
DEMING DMG-50KW High Efficiency 50KW 3 Phase 50Hz Permanent Magnet Generator for Renewable Energy Low RPM
DEMING DMG-50KW High Efficiency 50KW 3 Phase 50Hz Permanent Magnet Generator for Renewable Energy Low RPM
DEMING DMG-50KW High Efficiency 50KW 3 Phase 50Hz Permanent Magnet Generator for Renewable Energy Low RPM
DEMING DMG-50KW High Efficiency 50KW 3 Phase 50Hz Permanent Magnet Generator for Renewable Energy Low RPM
1 / 5
DEMING DMG-50KW High Efficiency 50KW 3 Phase 50Hz Permanent Magnet Generator for Renewable Energy Low RPM
DEMING DMG-50KW High Efficiency 50KW 3 Phase 50Hz Permanent Magnet Generator for Renewable Energy Low RPM
DEMING DMG-50KW High Efficiency 50KW 3 Phase 50Hz Permanent Magnet Generator for Renewable Energy Low RPM
DEMING DMG-50KW High Efficiency 50KW 3 Phase 50Hz Permanent Magnet Generator for Renewable Energy Low RPM
DEMING DMG-50KW High Efficiency 50KW 3 Phase 50Hz Permanent Magnet Generator for Renewable Energy Low RPM

DEMING DMG-50KW High Efficiency 50KW 3 Phase 50Hz Permanent Magnet Generator for Renewable Energy Low RPM

Send Inquiry

Product Description

Permanent Magnet Generator Header

Permanent Magnet Generator Application Areas

Our permanent magnet generators are highly versatile and widely deployed in numerous industries, including:

1 Wind Power Systems
2 Hydropower Stations
3 Ocean Energy (Tidal/Wave)
4 Marine Vessels & Ships
5 Diesel Generators
6 Aviation & Hand-Crank Power

Permanent Magnet Generator Used in Wind Power Generation

  • Especially suitable for direct-drive wind turbines.
  • No gearbox required, capable of low rotor speeds and high torque.
  • Suitable for small and medium-sized wind power systems, off-grid wind power, and offshore wind power.

Permanent Magnet Generators Used in Hydropower Generation

  • Primarily used in small and medium-sized hydropower stations and micro-hydropower generation systems.
  • Fully compatible with both axial-flow and Francis-flow turbines.
  • Compact size and high efficiency make them ideal for remote off-grid installations.
Permanent Magnet Generator Detail

Key Technical Features

✓ Fully Customizable: Tailored voltage, speed, power, frequency, and dimensions to fit your system.
✓ Direct Drive System: Gearless design ensures less mechanical loss and lower maintenance overheads.
✓ Rare Earth Magnets: High-performance NdFeB (Neodymium Iron Boron) permanent magnets inside.
✓ Extended Lifespan: Engineered for >20 years of operations, running continuously 24/7.
✓ Optimal Efficiency: High efficiency with a power factor close to 1.
✓ Maintenance Free: Designed for durable operation under all types of harsh environmental conditions.

Technical Specifications

With our specialized manufacturing plant, we provide custom-built generators aligned with specific requirements for Voltage, Speed, Power, Frequency, and mechanical interface configurations.

Standard Technical Parameters
Rated Power 0.5-5500KW
Rated Rotate Speed 20-3000 rpm
Rated Voltage 48-1140Vac
Frequency 50/60Hz
Number of Poles 24
Generator Type 3 Phase AC Synchronous Generator
Magnet Type NdFeB
Winding Method Y
Magnet Temp. Level Max. 120℃
Winding Temp. Level Max. 180℃
Efficiency >95%
Insulate Grade H
Insulating Resistance 100Mohm Min (500Vdc)
Protection Class IP54
Generator Shell Material Cast Iron
Winding Material 100% Copper
Shaft Material Steel
Iron Core Cold rolled silicon steel sheet
Bearing Brand SKF
Cooling Method Fan Cooling
Weight (N.W / G.W) 132kg / 152kg
Installation Type Horizontal
Permanent Magnet Generator Dimensional Diagram

Various Types Selection Matrix

Rated Power Rated Speed Rated Voltage Frequency
0.5KW20rpm ~ 400rpm12V ~ 220Vac10Hz ~ 60Hz
1KW20rpm ~ 600rpm12V ~ 220Vac10Hz ~ 60Hz
2KW20rpm ~ 1000rpm12V ~ 400Vac10Hz ~ 60Hz
3KW20rpm ~ 1500rpm48V ~ 690Vac10Hz ~ 60Hz
5KW20rpm ~ 1500rpm48V ~ 690Vac10Hz ~ 60Hz
10KW20rpm ~ 1500rpm120V ~ 690Vac10Hz ~ 60Hz
15KW20rpm ~ 3000rpm120V ~ 690Vac10Hz ~ 60Hz
20KW20rpm ~ 3000rpm120V ~ 690Vac10Hz ~ 60Hz
25KW20rpm ~ 3000rpm120V ~ 1140Vac10Hz ~ 60Hz
30KW20rpm ~ 3000rpm120V ~ 1140Vac10Hz ~ 60Hz
50KW20rpm ~ 3000rpm220V ~ 1140Vac10Hz ~ 60Hz
80KW20rpm ~ 3000rpm220V ~ 1140Vac10Hz ~ 60Hz
100KW20rpm ~ 3000rpm220V ~ 1140Vac10Hz ~ 60Hz
150KW20rpm ~ 3000rpm380V ~ 1140Vac10Hz ~ 60Hz
200KW20rpm ~ 3000rpm380V ~ 1140Vac10Hz ~ 60Hz
250KW20rpm ~ 3000rpm380V ~ 1140Vac10Hz ~ 60Hz
300KW20rpm ~ 3000rpm380V ~ 1140Vac10Hz ~ 60Hz
500KW20rpm ~ 3000rpm380V ~ 1140Vac10Hz ~ 60Hz
700KW20rpm ~ 3000rpm690V ~ 1140Vac10Hz ~ 60Hz
800KW20rpm ~ 3000rpm690V ~ 1140Vac10Hz ~ 60Hz
1MW200rpm ~ 3000rpm690V ~ 1140Vac10Hz ~ 60Hz
2MW200rpm ~ 3000rpm690V ~ 1140Vac10Hz ~ 60Hz
3MW200rpm ~ 3000rpm690V ~ 1140Vac10Hz ~ 60Hz
4MW600rpm ~ 3000rpm690V ~ 1140Vac10Hz ~ 60Hz
5MW600rpm ~ 3000rpm690V ~ 1140Vac10Hz ~ 60Hz

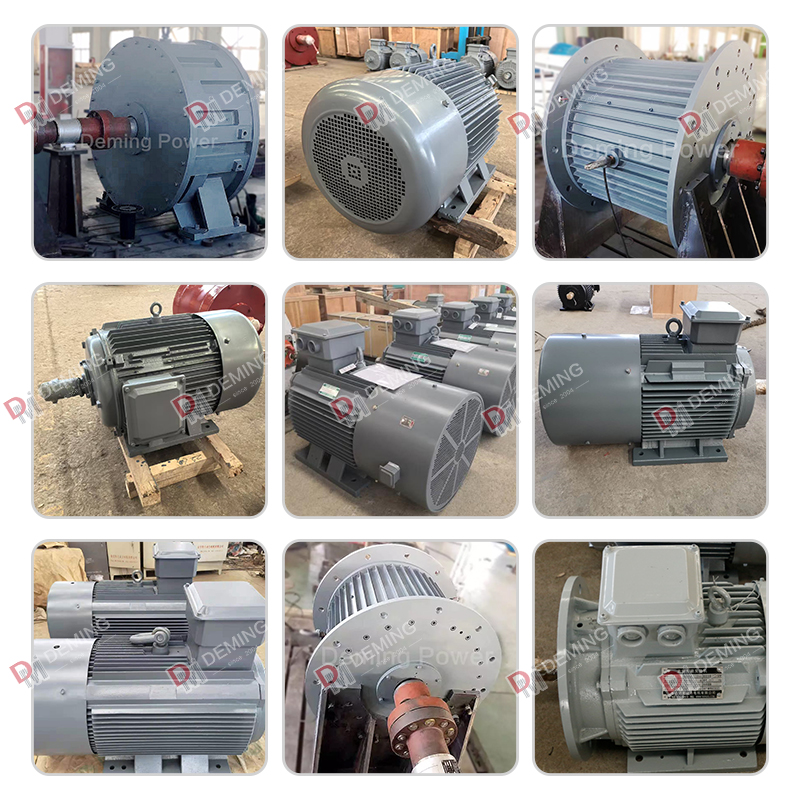

Various Generators

Various Generator Configurations

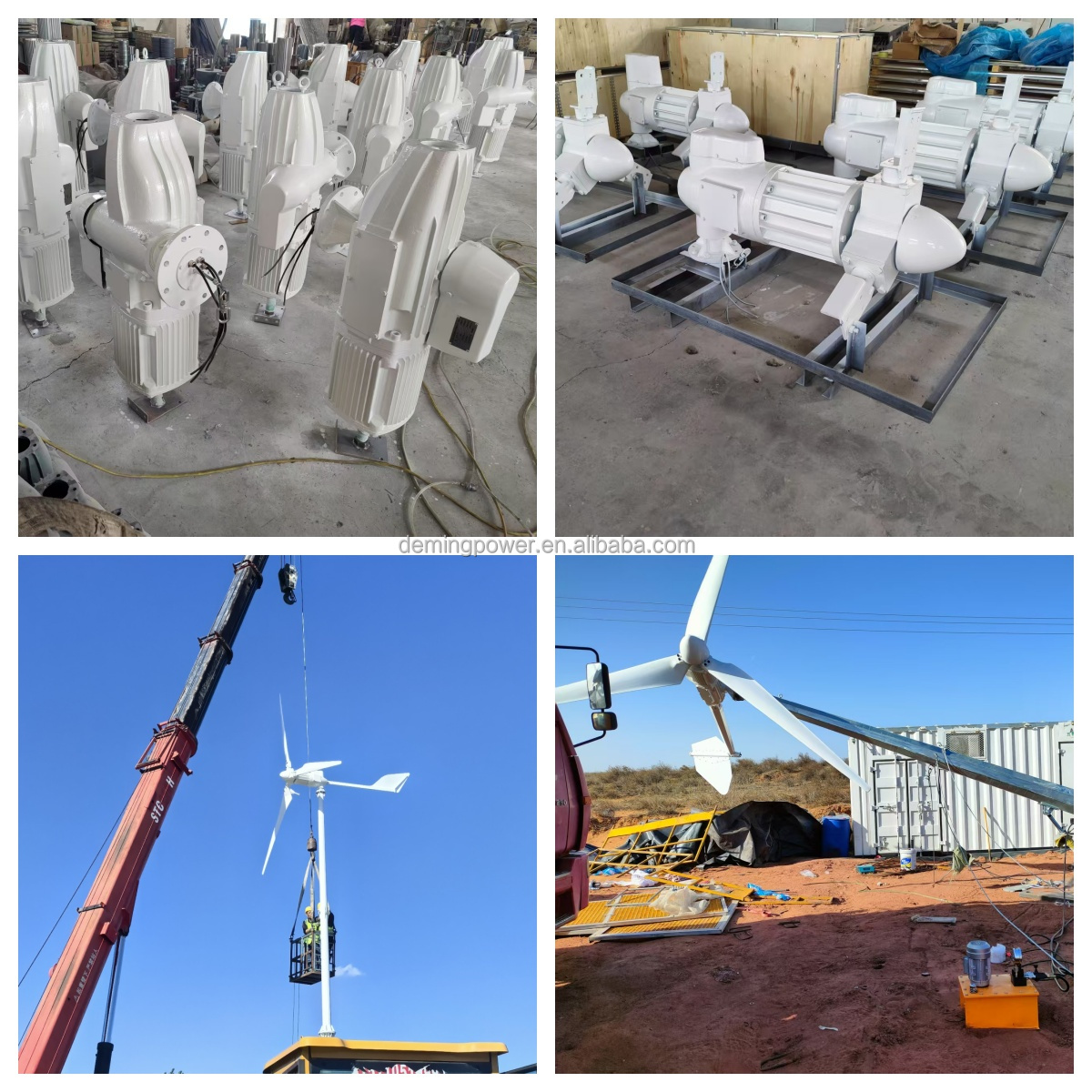

Our Cases

Installation Case 1 Installation Case 2 Installation Case 3 Installation Case 4

Package & Delivery

Packing and Delivery Process

Our Factory

Factory Workshop View 1 Factory Workshop View 2 Factory Workshop View 3 Factory Workshop View 4

See What Customer Say

Customer Testimonials and Reviews

Frequently Asked Questions (FAQ)

Can these permanent magnet generators be customized?
Yes. We offer fully customized solutions matching specific requirement metrics. You can request customizations for Rated Voltage, Rotate Speed, Rated Power, Frequency, mounting options, and shaft dimensions.
What makes them highly suited for wind turbines?
They are direct-drive generators, which means they do not require an integrated gearbox. This system allows for higher efficiency, reliable low rotor speed outputs, and excellent torque handling capacity suitable for off-grid, medium, and offshore wind power setups.
What kind of magnet material is used?
We use high-grade NdFeB (Neodymium Iron Boron) rare earth permanent magnets, which enable high efficiency, stable voltage, and a lifespan exceeding 20 years under heavy operation.
Do these generators require high maintenance?
No, they are practically maintenance-free. Because there are no mechanical gears or excitation windings, common wear-and-tear points are eliminated. The IP54 rating makes them highly resistant to environmental contaminants.
What is the typical operating temperature limits?
Our permanent magnets are rated to withstand temperatures up to a maximum of 120℃, while the high-quality copper windings are rated up to a maximum temperature level of 180℃.
