Our permanent magnet generators are highly versatile and suitable for a wide range of industries including:

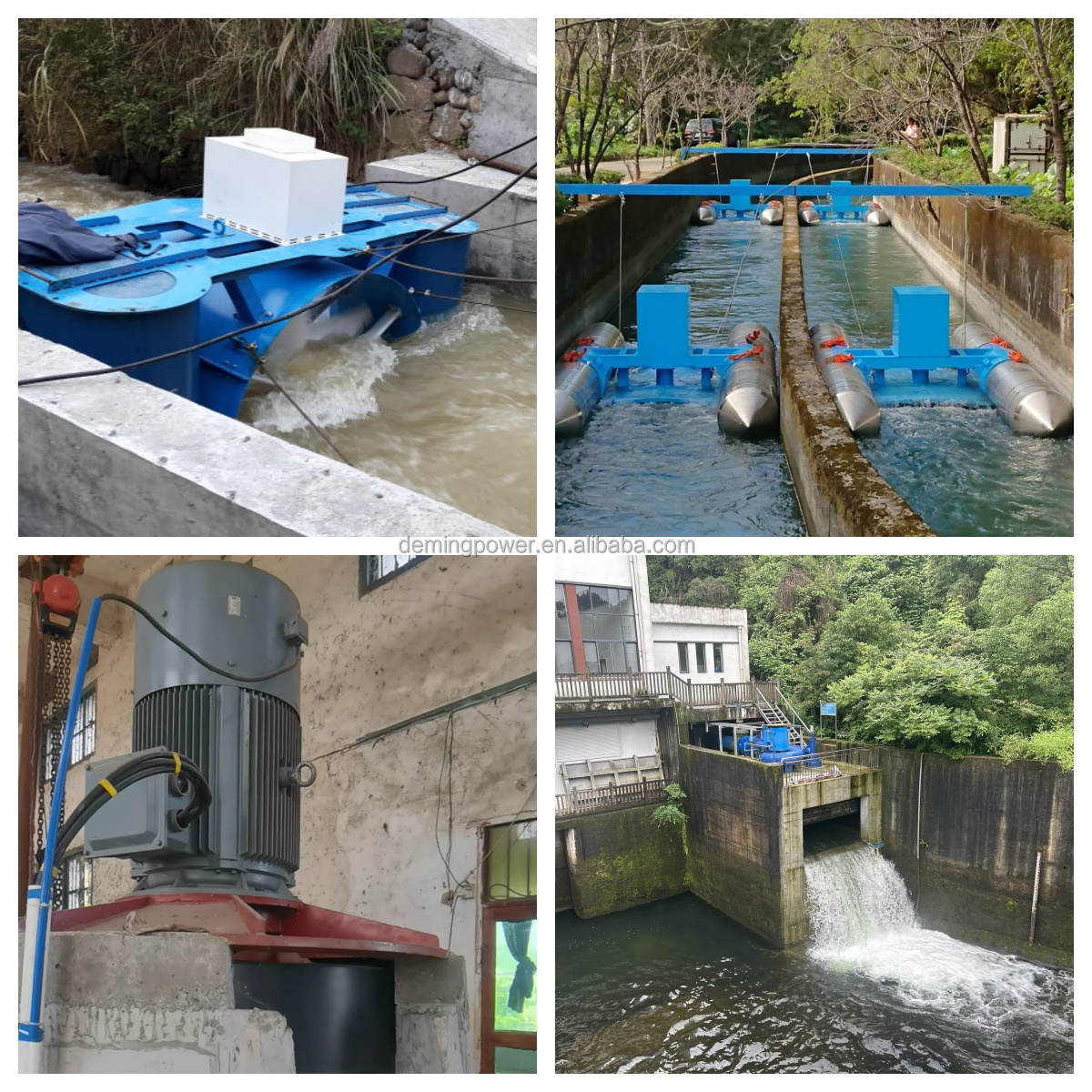

Wind power, hydropower, and ocean energy generation systems.
Marine vessels, diesel generator configurations, and heavy duty ships.
Aviation, military installations, and portable hand-crank generators.
| Feature No. | Description Detail |
|---|---|
| 1. Customized Configuration | Voltage, Speed, Power, Frequency, and more tailored to your specifications. |
| 2. Direct Drive System | No gearbox required, reducing mechanical loss and wear. |
| 3. Premium Materials | Utilizes rare earth Nd-Fe-B permanent magnets for superior performance. |
| 4. Long Lifespan | Designed for a lifetime of >20 years; built to run at high speed 24/7. |
| 5. High Efficiency | Power factor is close to 1, ensuring maximum power delivery. |
| 6. Low Maintenance | Maintenance-free operation, suitable for deployment in all environments. |
We provide customized generators according to each customer's specific requirements of Voltage, Speed, Power, Frequency etc.
| Specification Parameter | Value / Standard |
|---|---|
| Rated Power | 0.5 - 5500KW |
| Rated Rotate Speed | 20 - 3000 rpm |
| Rated Voltage | 48 - 1140Vac |
| Frequency | 50 / 60Hz |
| Number of Poles | 24 |
| Generator Type | 3 Phase AC Synchronous Generator |
| Magnet Type | NdFeB |
| Winding Method | Y |
| Magnet Temperature Level | Max. 120°C |
| Winding Temperature Level | Max. 180°C |
| Efficiency | >95% |
| Insulation Grade | H |
| Insulating Resistance | 100Mohm Min (500Vdc) |
| Classification of Degrees | IP54 |
| Generator Shell Material | Cast Iron |
| Winding Material | 100% Copper |
| Shaft Material | Steel |
| Iron Core | Cold rolled silicon steel sheet |
| Bearing Brand | SKF |
| Cooling Method | Fan Cooling |
| Weight (N.W / G.W) | 132kg / 152kg |
| Installation | Horizontal |
| Rated Power | Rated Speed | Rated Voltage | Frequency |
|---|---|---|---|
| 0.5KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
| 1KW | 20rpm~600rpm | 12V~220Vac | 10Hz~60Hz |
| 2KW | 20rpm~1000rpm | 12V~400Vac | 10Hz~60Hz |
| 3KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
| 5KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
| 10KW | 20rpm~1500rpm | 120V~690Vac | 10Hz~60Hz |
| 15KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
| 20KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
| 25KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
| 30KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
| 50KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
| 80KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
| 100KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
| 150KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 200KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 250KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 300KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 500KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 700KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 800KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 1MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 2MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 3MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 4MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 5MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
