Deming FKJ-GT -Y 20KW 30KW 50KW Grid Tie Yaw Wind Turbine Generator Controller for on Grid Wind System

Product Description

FKJ-GT-Y 20KW 30KW 50KW Grid tie Yaw Wind Turbine Generator Controller For On Grid Wind System
Grid tie Yaw Wind Turbine Generator Controller
Wind Turbine Generator Controller System Diagram
Controller Overview
Off-Grid PWM Wind Turbine Controller Characteristics
  • Manufactured according to standard industrial requirements and national regulations to meet technical users' demands.
  • Big LCD display showing real-time wind turbine voltage, current, power, solar panel stats, and battery group parameters.
  • Dual control systems: PWM constant voltage system and three-phase dump load system.
  • PWM control during strong wind conditions to guarantee constant voltage and current battery charging.
  • Automatic three-phase dump load activation upon battery damage or disconnection to prevent turbine runaway.
  • Comprehensive battery protection: polarity reverse protection, disconnection, and damage protection.
  • Over-charging protection: automatic three-phase dump load activation and braking when battery is full.
  • Auto recharging: stops dump load and starts recharging once battery drops to 108% of rated voltage.
  • Equipped with a manual brake switch to force three-phase dump load action.
  • Internal surge arrester designed to direct high lighting currents into the ground, safeguarding equipment.
  • Optional solar panel control system according to customer requirements.
  • Optional diesel generator port with automatic start and stop control.
  • Uses Modbus Communication protocol, allowing simple secondary development.
  • Technical parameter adjustments via RS485 for advanced, custom applications.
  • WIFI and GPRS support for real-time mobile and PC system monitoring (Android & iOS compatible).
  • Compatible with mechanical yawing, tail control, mechanical/hydraulic/electromagnetism braking functions.

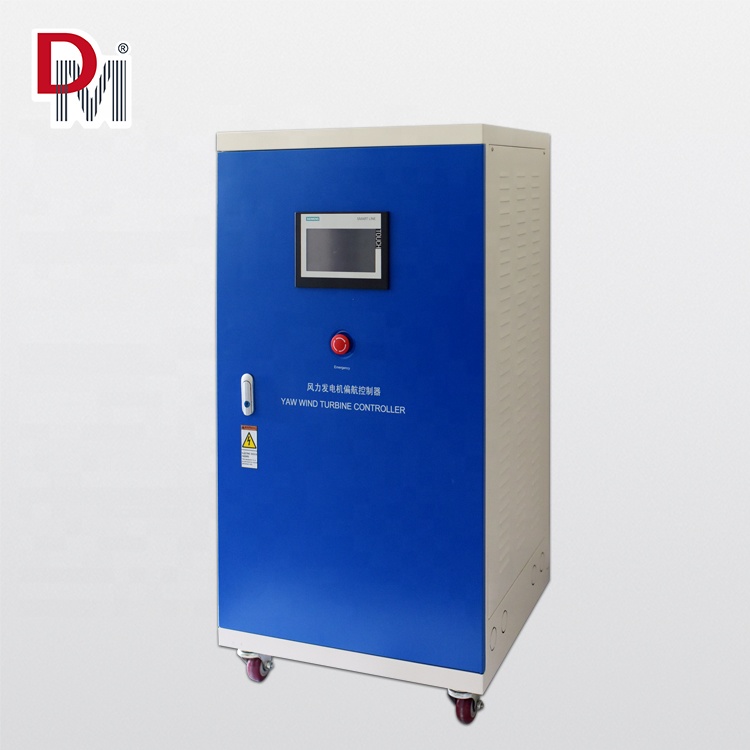

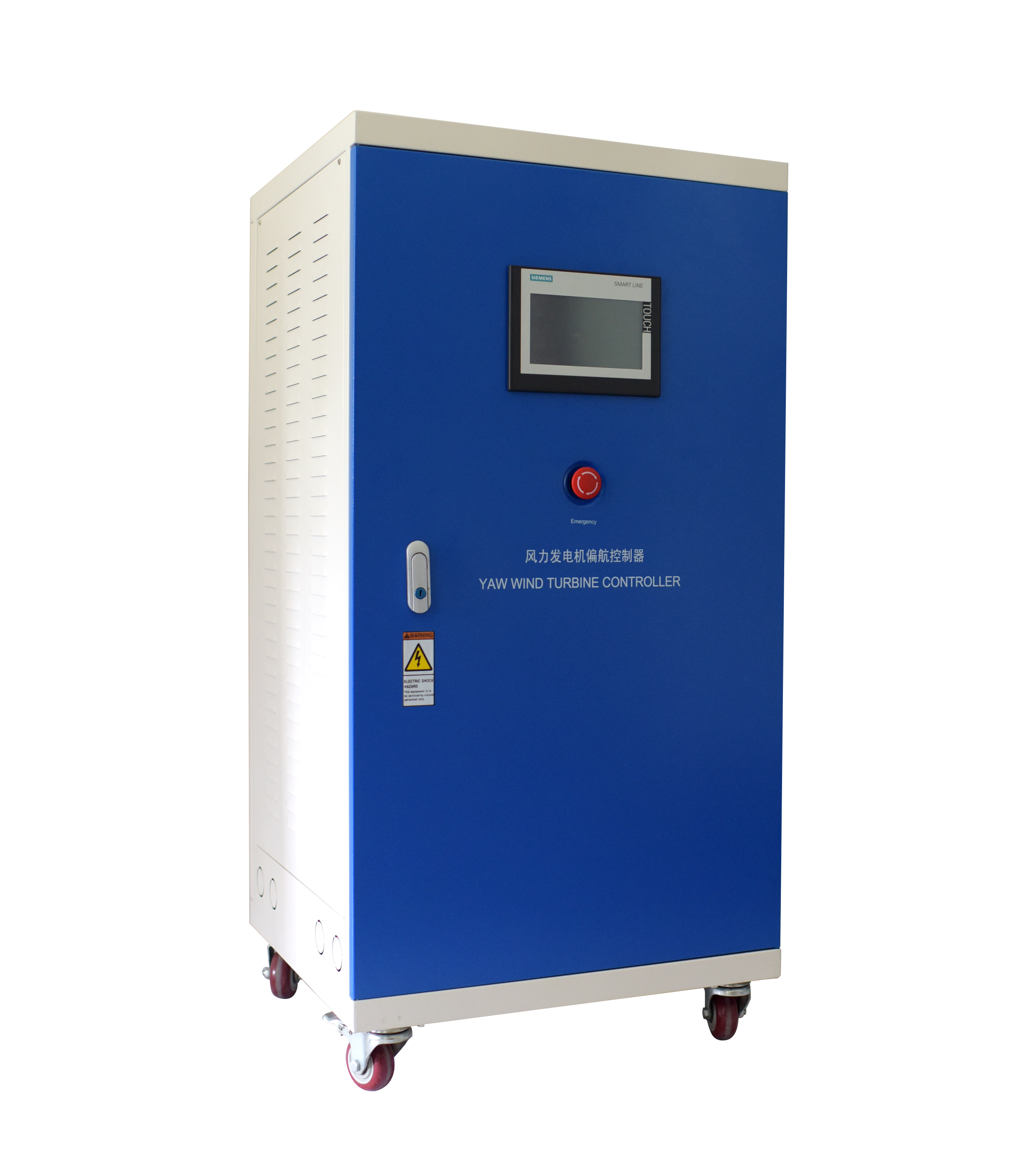

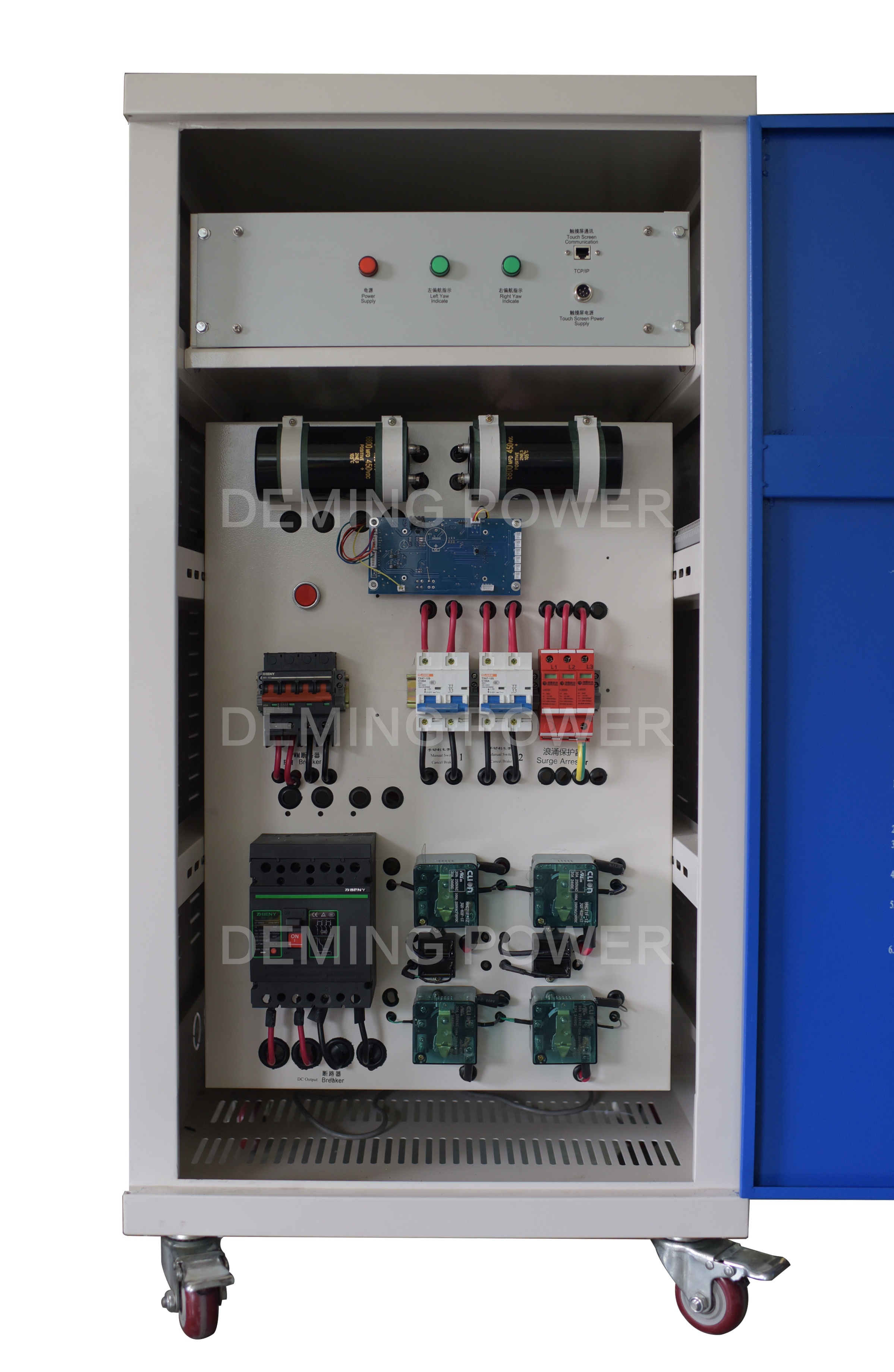

Controller Detailed View 1 Controller Detailed View 2 Controller Inside Details Product Layout

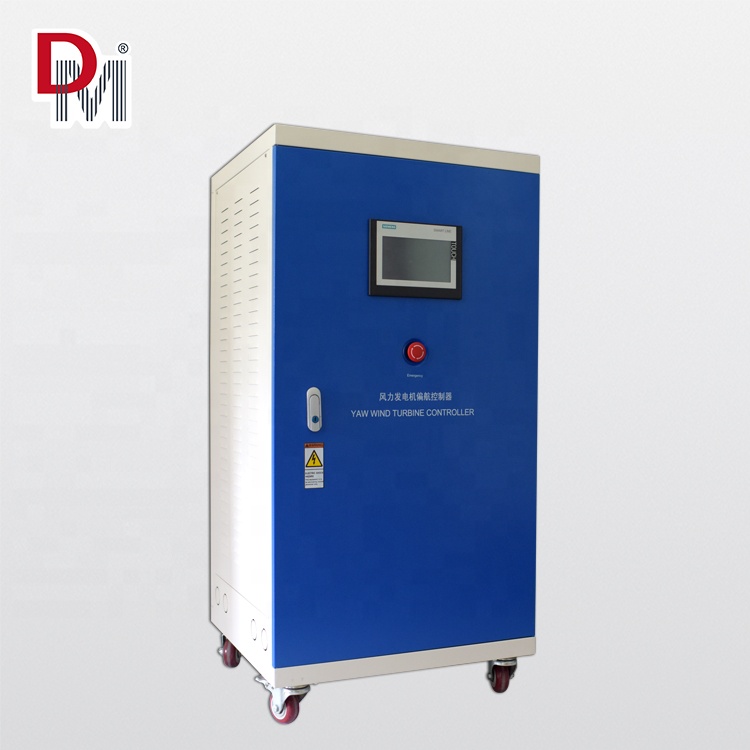

Controller Front Panel Controller Side Panel
Technical Parameters of 3KW 24V/48V/96V Controller For Wind Generator
Type 3KW-24Vdc 3KW-48Vdc 3KW-96Vdc
Wind turbine rated power 3KW 3KW 3KW
Wind turbine max. power 6KW 6KW 6KW
Solar panel 900W 900W 900W
Battery 24Vdc 48Vdc 96Vdc
Function Rectifier, charge, control
Display mode LCD
Display content Wind turbine voltage, current, power; solar panel voltage, current, power; battery voltage, charge current
PWM constant pressure voltage >28Vdc >56Vdc >110Vdc
3-phase load voltage of the wind turbine 29±1Vdc 58±1Vdc 116±2Vdc
Recovery charging voltage of the wind turbine 27±1Vdc 54±1Vdc 108±2Vdc
Stop charge voltage of solar panel 29±1Vdc 58±1Vdc 116±2Vdc
Recovery charging voltage of solar panel <28Vdc <56Vdc <110Vdc
Low-voltage of the battery 20±1Vdc 40±1Vdc 80±2Vdc
Self-provided connecting wire of the battery >30mm² >12mm² >6mm²
PWM fuse 125A 80A 32A
Charging fuse 160A 100A 50A
Work environment temperature -30-60°C
Relative humidity <90% No condensation
Noise (1m) <40dB
Degree of protection IP20 (Indoor)
Cooling method Forced air cooling
*Communication interface (optional) RS485/USB/GPRS/Ethernet
*Temperature compensation (optional) -4mv/°C/2V, -35°C~+80°C, Accuracy: ±1°C
Size of the controller (mm) 655*480*320 575*430*320 575*430*320
Weight of the controller 27 Kg 21Kg 21Kg
Size of the load (mm) 495*460*320 495*460*320 495*460*320
Weight of the load 16Kg 16 Kg 16 Kg
Technical Layout 1
Technical Layout 2
Controller Usage Showcase
Available Product Variations
Energy System Solutions
Buyers Feedback
Customer Feedback Screen
Profile
Enterprise Certificate and Office
