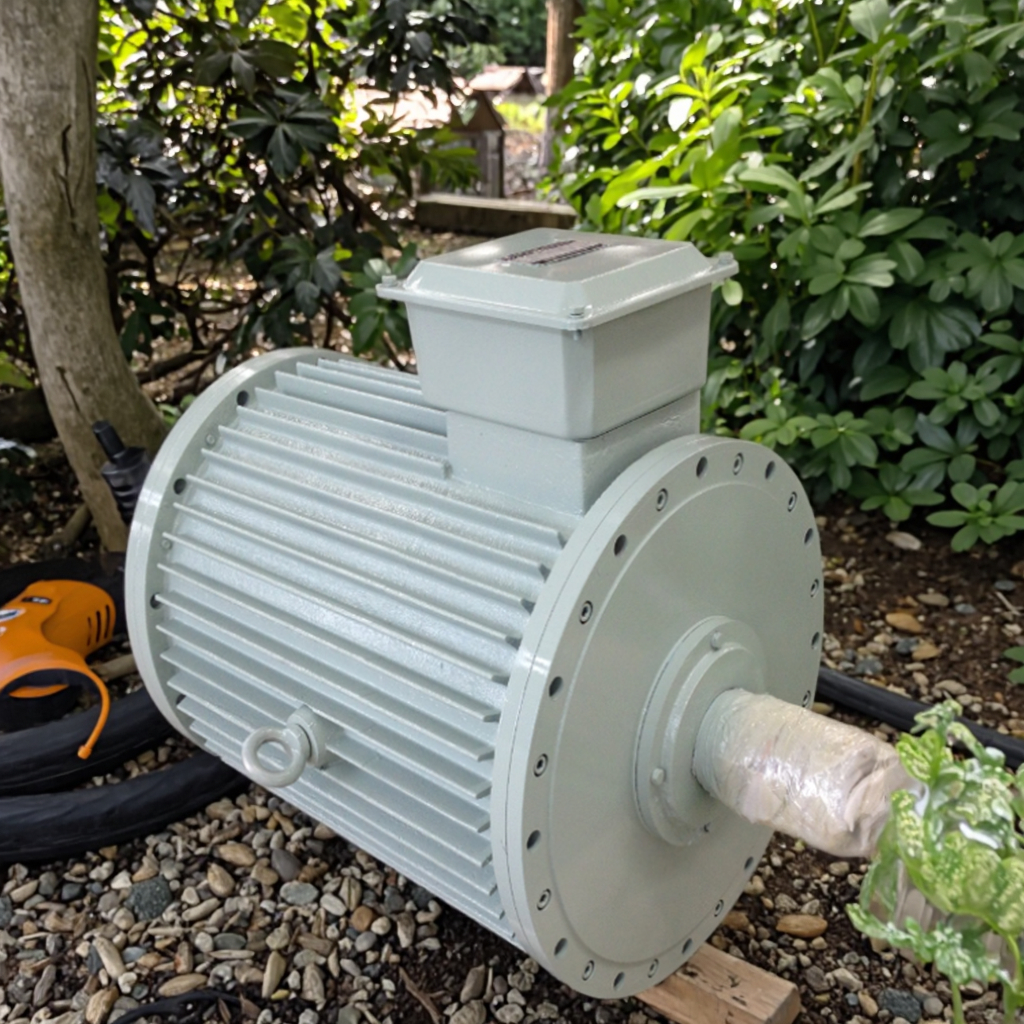

High Efficiency 15Kw PMG Horizontal Wind Turbine Generator 220V/380V AC Output for Village Electrification Renewable Energy
High Efficiency 15Kw PMG Horizontal Wind Turbine Generator 220V/380V AC Output for Village Electrification Renewable Energy
High Efficiency 15Kw PMG Horizontal Wind Turbine Generator 220V/380V AC Output for Village Electrification Renewable Energy
High Efficiency 15Kw PMG Horizontal Wind Turbine Generator 220V/380V AC Output for Village Electrification Renewable Energy
High Efficiency 15Kw PMG Horizontal Wind Turbine Generator 220V/380V AC Output for Village Electrification Renewable Energy
1 / 5
High Efficiency 15Kw PMG Horizontal Wind Turbine Generator 220V/380V AC Output for Village Electrification Renewable Energy
High Efficiency 15Kw PMG Horizontal Wind Turbine Generator 220V/380V AC Output for Village Electrification Renewable Energy
High Efficiency 15Kw PMG Horizontal Wind Turbine Generator 220V/380V AC Output for Village Electrification Renewable Energy
High Efficiency 15Kw PMG Horizontal Wind Turbine Generator 220V/380V AC Output for Village Electrification Renewable Energy
High Efficiency 15Kw PMG Horizontal Wind Turbine Generator 220V/380V AC Output for Village Electrification Renewable Energy

High Efficiency 15Kw PMG Horizontal Wind Turbine Generator 220V/380V AC Output for Village Electrification Renewable Energy

Send Inquiry

Product Description

Permanent Magnet Generator

Permanent Magnet Generator Application Areas

Our permanent magnet generators are widely utilized across various sectors including wind power, hydropower, ocean energy, marine ships, diesel generators, aviation, and hand-crank generators, etc.

Wind Power Generation Applications

  • Especially suitable for direct-drive wind turbines.
  • No gearbox required, capable of low rotor speeds and high torque.
  • Suitable for small and medium-sized wind power systems, off-grid wind power, and offshore wind power.

Hydropower Generation Applications

  • Primarily used in small and medium-sized hydropower stations and micro-hydropower generation systems.
  • Compatible with both axial-flow and Francis-flow turbines.
  • Highly compact and efficient, making them suitable for use in remote areas.
Generator Features

Key Features & Customization

Item Feature Description
1 Customized: Voltage, Speed, Power, Frequency etc.
2 Direct Drive, no gear-box
3 Rare earth Nd-Fe-B permanent magnets
4 Long life time >20years, could run at high speed 7 days 24 hours.
5 Power factor close to 1
6 Maintenance free, can be used in all environments.

Product Specifications

We have our own factory and provide customized generators according to each customer's specific requirements of Voltage, Speed, Power, Frequency, etc.

Parameter Value / Range
Rated Power 0.5-5500KW
Rated Rotate Speed 20-3000rpm
Rated Voltage 48-1140Vac
Frequency 50/60HZ
Number of Poles 24
Generator Type 3 phase AC Synchronous Generator
Magnet Type NdFeB
Winding Method Y
Magnet temperature level Max. 120℃
Winding Temperature Level Max. 180℃
Efficiency >95%
Insulate Grade H
Insulating resistance 100Mohm Min (500Vdc)
Classification of degrees IP54
Generator shell material Cast Iron
Winding material 100% Copper
Shaft material Steel
Iron Core Cold rolled silicon steel sheet
Bearing brand SKF
Cooling Method Fan Cooling
Weight (N.W /G.W ) 132kg /152kg
Installation Horizontal
Generator Variations

Various Types Available for Selection

RATED POWER RATED SPEED RATED VOLTAGE FREQUENCY
0.5KW20rpm~400rpm12V~220Vac10Hz~60Hz
1KW20rpm~600rpm12V~220Vac10Hz~60Hz
2KW20rpm~1000rpm12V~400Vac10Hz~60Hz
3KW20rpm~1500rpm48V~690Vac10Hz~60Hz
5KW20rpm~1500rpm48V~690Vac10Hz~60Hz
10KW20rpm~1500rpm120V~690Vac10Hz~60Hz
15KW20rpm~3000rpm120V~690Vac10Hz~60Hz
20KW20rpm~3000rpm120V~690Vac10Hz~60Hz
25KW20rpm~3000rpm120V~1140Vac10Hz~60Hz
30KW20rpm~3000rpm120V~1140Vac10Hz~60Hz
50KW20rpm~3000rpm220V~1140Vac10Hz~60Hz
80KW20rpm~3000rpm220V~1140Vac10Hz~60Hz
100KW20rpm~3000rpm220V~1140Vac10Hz~60Hz
150KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
200KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
250KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
300KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
500KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
700KW20rpm~3000rpm690V~1140Vac10Hz~60Hz
800KW20rpm~3000rpm690V~1140Vac10Hz~60Hz
1MW200rpm~3000rpm690V~1140Vac10Hz~60Hz
2MW200rpm~3000rpm690V~1140Vac10Hz~60Hz
3MW200rpm~3000rpm690V~1140Vac10Hz~60Hz
4MW600rpm~3000rpm690V~1140Vac10Hz~60Hz
5MW600rpm~3000rpm690V~1140Vac10Hz~60Hz

Various Generators

Various Generator models

Our Cases

Case Study 1
Case Study 2
Case Study 3
Case Study 4

Package & Delivery

Packaging and Delivery

Our Factory

Factory Workshop 1
Factory Workshop 2
Factory Equipment
Factory Processing

See What Customer Say

Customer Reviews

Frequently Asked Questions (FAQ)

1. Can you customize the specifications of the permanent magnet generator?
Yes, we can customize parameters such as Voltage, Speed, Power, Frequency, and dimensions according to specific requirements.
2. What are the key advantages of a direct-drive generator design?
Direct-drive designs eliminate the need for a gearbox, enabling operation at low rotor speeds with high torque output, reducing mechanical wear, and significantly lowering maintenance requirements.
3. What materials are used in the construction of the generator?
The generator features high-quality rare earth NdFeB permanent magnets, 100% pure copper windings, a robust cast iron shell, a high-grade steel shaft, cold-rolled silicon steel sheets for the core, and premium SKF bearings.
4. What is the expected service life of these generators?
Due to the high-quality NdFeB magnets, robust build materials, and brushless design, the generators have an expected lifespan of over 20 years and are capable of continuous 24/7 operation at high speeds.
5. What protection ratings and temperature ratings do these generators support?
Our generators feature an IP54 ingress protection rating, a magnet temperature resistance of up to Max. 120℃, and winding insulation Class H with a maximum temperature tolerance of 180℃.
6. What application systems are these generators designed for?
They are highly suitable for wind power systems (including direct-drive and offshore), small/medium hydropower systems (axial-flow and Francis turbines), marine vessels, diesel power units, and micro off-grid generation.
