High Efficiency Hydro Electric System Equipment 100kW 200kW 400kW Hydro Francis Hydro Power Electric Turbine Generator

Product Description

Permanent Magnet Generator Banner

Permanent Magnet Generator Application Areas

Wind power, hydropower, ocean energy, ships, diesel generators, aviation, hand-crank generators, etc.

Wind Power Generation Application
  • Especially suitable for direct-drive wind turbines.
  • No gearbox required, capable of low rotor speeds and high torque.
  • Suitable for small and medium-sized wind power systems, off-grid wind power, and offshore wind power.
Hydropower Generation Application
  • Primarily used in small and medium-sized hydropower stations and micro-hydropower generation systems.
  • Can be used with axial-flow and Francis-flow turbines.
  • Compact and highly efficient, making them suitable for use in remote areas.
Permanent Magnet Generator Feature
Customization Voltage, Speed, Power, Frequency etc.
Transmission Type Direct Drive, no gear-box
Material Quality Rare earth Nd-Fe-B permanent magnets
Lifespan & Reliability Long life time >20years, could run at high speed 7 days 24 hours.
Power Factor Power factor close to 1
Maintenance Maintenance free , can be used in all environments .

Specification

We have our own factory, provide customized generator according to each customer 's requirements of Voltage, Speed, Power, Frequency etc.

Technical Specifications
Rated Power 0.5-5500KW
Rated Rotate Speed 20-3000rmp
Rated Voltage 48-1140Vac
Frequency 50/60HZ
Number of Poles 24
Generator Type 3 phase AC Synchronous Generator
Magnet Type NdFeB
Winding Method Y
Magnet Temperature Level Max.120℃
Winding Temperature Level Max.180℃
Efficiency >95%
Insulate Grade H
Insulating Resistance 100Mohm Min(500Vdc)
Classification of Degrees IP54
Generator Shell Material Cast Iron
Winding Material 100% Copper
Shaft Material Steel
Iron Core Cold rolled silicon steel sheet
Bearing Brand SKF
Cooling Method Fan Cooling
Weight (N.W /G.W ) 132kg /152kg
Installation Horizontal
Various Models

Various type you can select:

RATED POWER RATED SPEED RATED VOLTAGE FREQUENCY
0.5KW 20rpm~400rpm 12V~220Vac 10Hz~60Hz
1KW 20rpm~600rpm 12V~220Vac 10Hz~60Hz
2KW 20rpm~1000rpm 12V~400Vac 10Hz~60Hz
3KW 20rpm~1500rpm 48V~690Vac 10Hz~60Hz
5KW 20rpm~1500rpm 48V~690Vac 10Hz~60Hz
10KW 20rpm~1500rpm 120V~690Vac 10Hz~60Hz
15KW 20rpm~3000rpm 120V~690Vac 10Hz~60Hz
20KW 20rpm~3000rpm 120V~690Vac 10Hz~60Hz
25KW 20rpm~3000rpm 120V~1140Vac 10Hz~60Hz
30KW 20rpm~3000rpm 120V~1140Vac 10Hz~60Hz
50KW 20rpm~3000rpm 220V~1140Vac 10Hz~60Hz
80KW 20rpm~3000rpm 220V~1140Vac 10Hz~60Hz
100KW 20rpm~3000rpm 220V~1140Vac 10Hz~60Hz
150KW 20rpm~3000rpm 380V~1140Vac 10Hz~60Hz
200KW 20rpm~3000rpm 380V~1140Vac 10Hz~60Hz
250KW 20rpm~3000rpm 380V~1140Vac 10Hz~60Hz
300KW 20rpm~3000rpm 380V~1140Vac 10Hz~60Hz
500KW 20rpm~3000rpm 380V~1140Vac 10Hz~60Hz
700KW 20rpm~3000rpm 690V~1140Vac 10Hz~60Hz
800KW 20rpm~3000rpm 690V~1140Vac 10Hz~60Hz
1MW 200rpm~3000rpm 690V~1140Vac 10Hz~60Hz
2MW 200rpm~3000rpm 690V~1140Vac 10Hz~60Hz
3MW 200rpm~3000rpm 690V~1140Vac 10Hz~60Hz
4MW 600rpm~3000rpm 690V~1140Vac 10Hz~60Hz
5MW 600rpm~3000rpm 690V~1140Vac 10Hz~60Hz

Various Generators

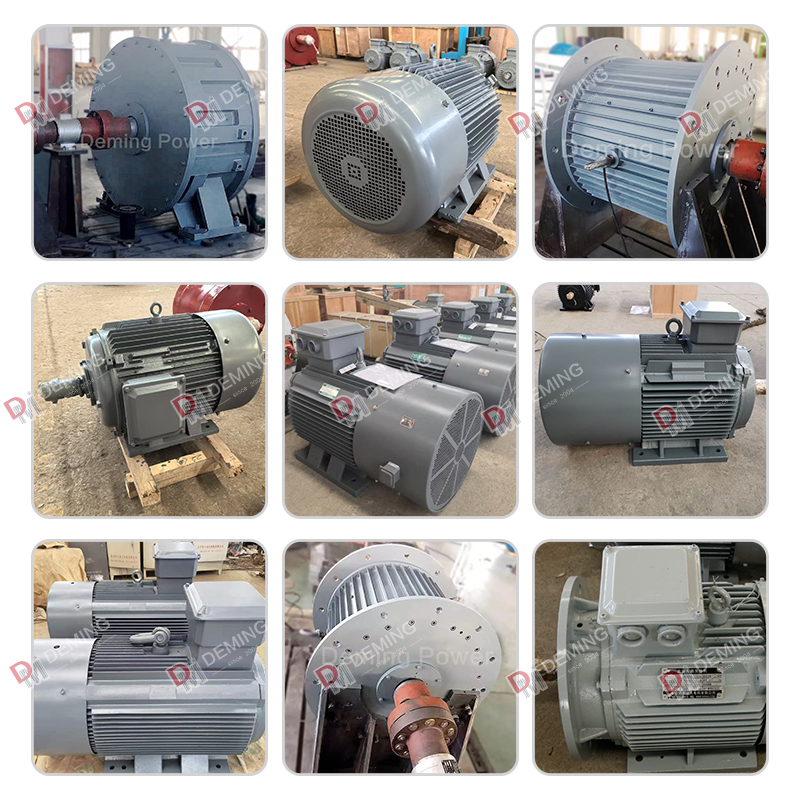

Various Generator Types Showcase

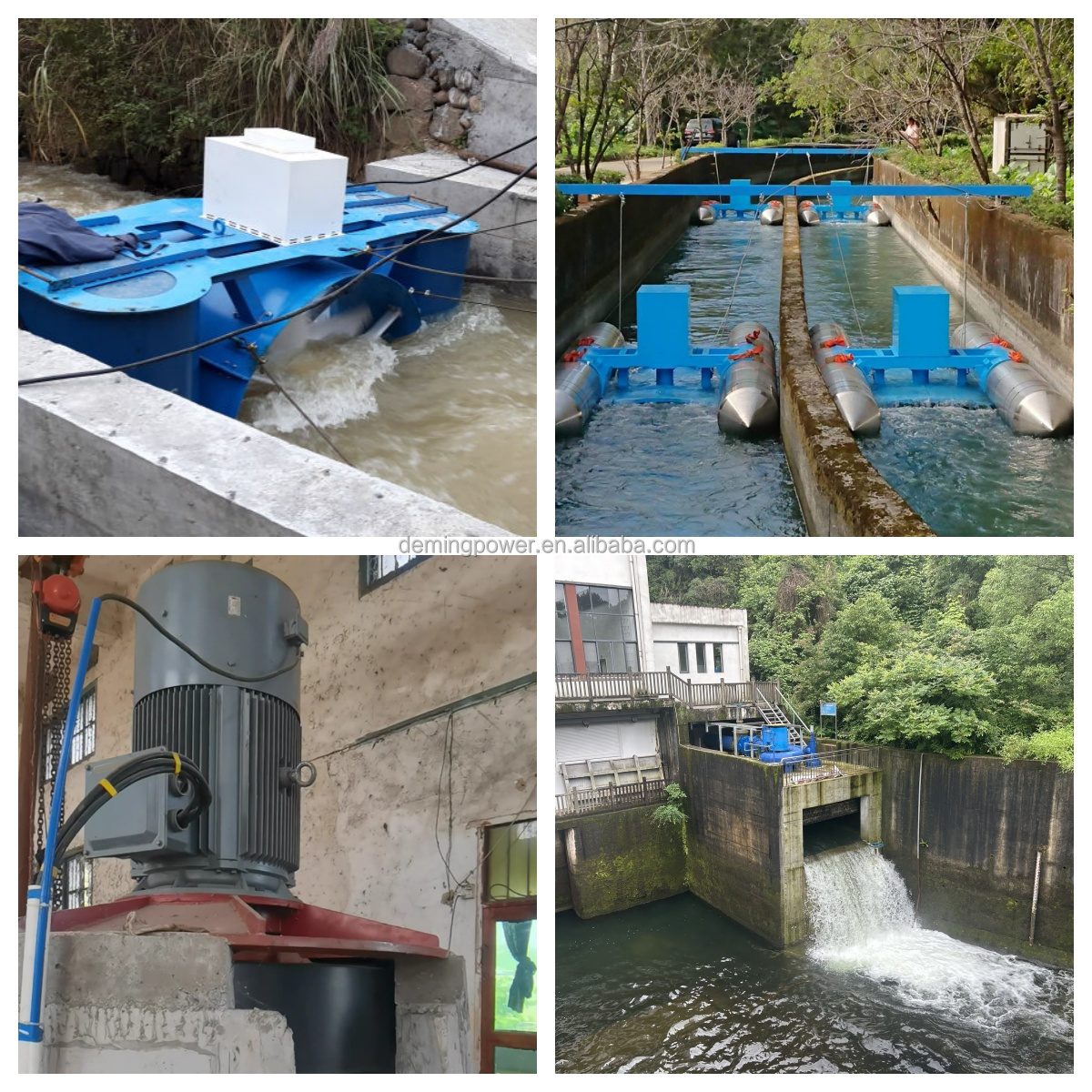

Our Cases

Generator Case Study 1 Generator Case Study 2 Generator Case Study 3 Generator Case Study 4

Package & Delivery

Packing and Delivery Process

Our Factory

Factory Manufacturing Setup 1 Factory Manufacturing Setup 2 Factory Manufacturing Setup 3 Factory Certificate or Inspection

See What Customer Say

Customer Feedback

Frequently Asked Questions (FAQ)

Q1: What are the primary application fields of your Permanent Magnet Generators?

A1: Our generators are highly versatile and widely used in wind power systems, micro-hydropower generation, ocean tidal energy, marine vessels, aviation systems, diesel generator sets, and hand-crank backup systems.

Q2: Can we customize the specifications of the permanent magnet generator?

A2: Yes. Since we operate our own manufacturing facility, we offer full customization options matching your specific requirements for output voltage, rated speed, rated power, and frequency.

Q3: What are the advantages of a direct-drive generator design?

A3: The direct-drive configuration eliminates the need for a gearbox. This enables high-torque output at lower rotor speeds, reduces mechanical failure rates, eliminates gearbox maintenance costs, and maximizes overall energy conversion efficiency.

Q4: What material is used for the magnets and windings?

A4: We use premium NdFeB (Neodymium Iron Boron) rare earth permanent magnets which can withstand temperatures up to 120℃, paired with 100% pure copper windings (class H insulation, max 180℃) for optimal electrical conductivity and lifespan.

Q5: What is the typical life expectancy and maintenance cycle of these generators?

A5: Thanks to features like SKF bearings, a robust cast iron outer shell, and direct-drive transmission, our generators are completely maintenance-free and designed for continuous 24/7 high-speed operation with a lifespan exceeding 20 years.

Q6: What is the protection rating and efficiency level of your generators?

A6: Our permanent magnet generators reach an operational efficiency of over 95%. They feature an IP54 rating, providing outstanding protection against dust entry and water splashes in harsh outdoor environments.
