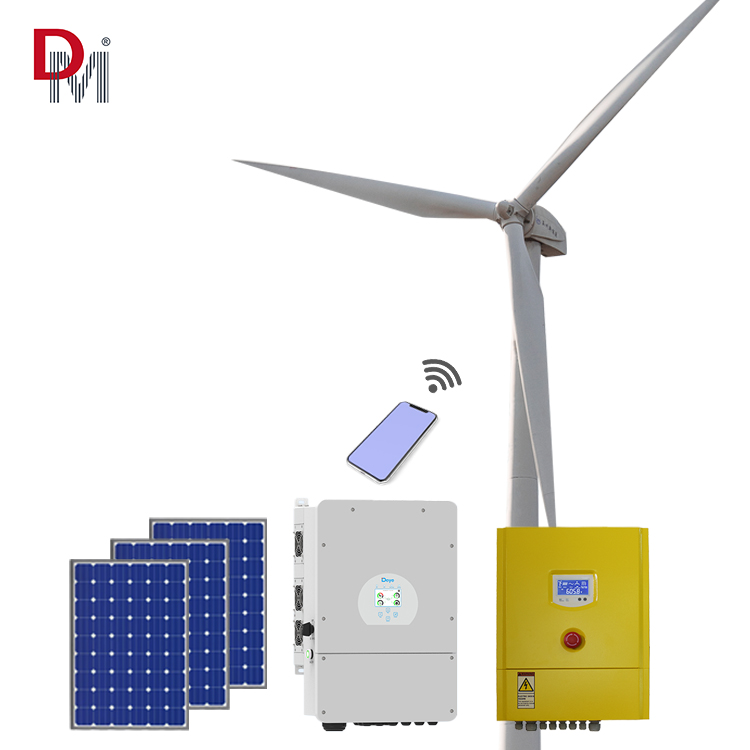

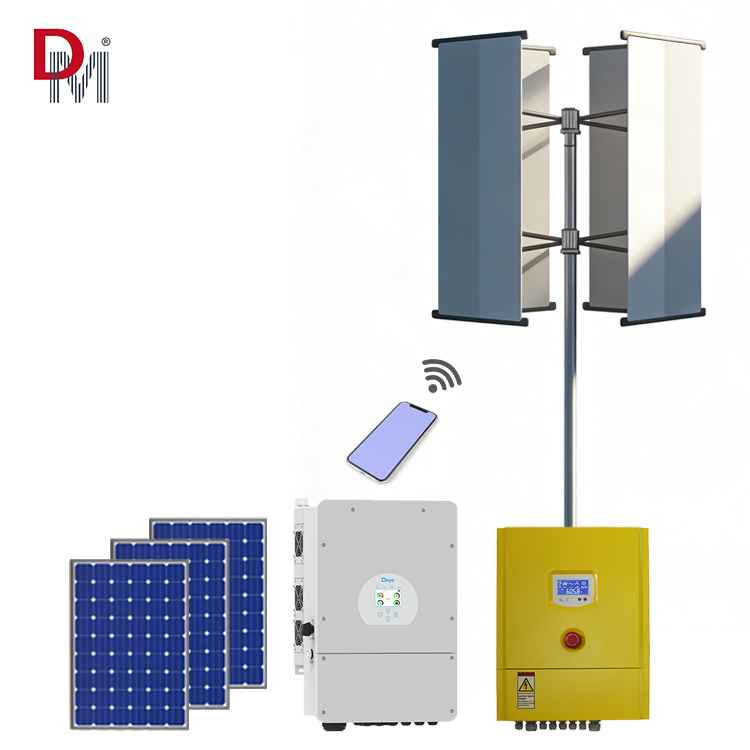

2KW 3KW 5KW 10KW MPPT Wind Turbine Solar Hybrid System

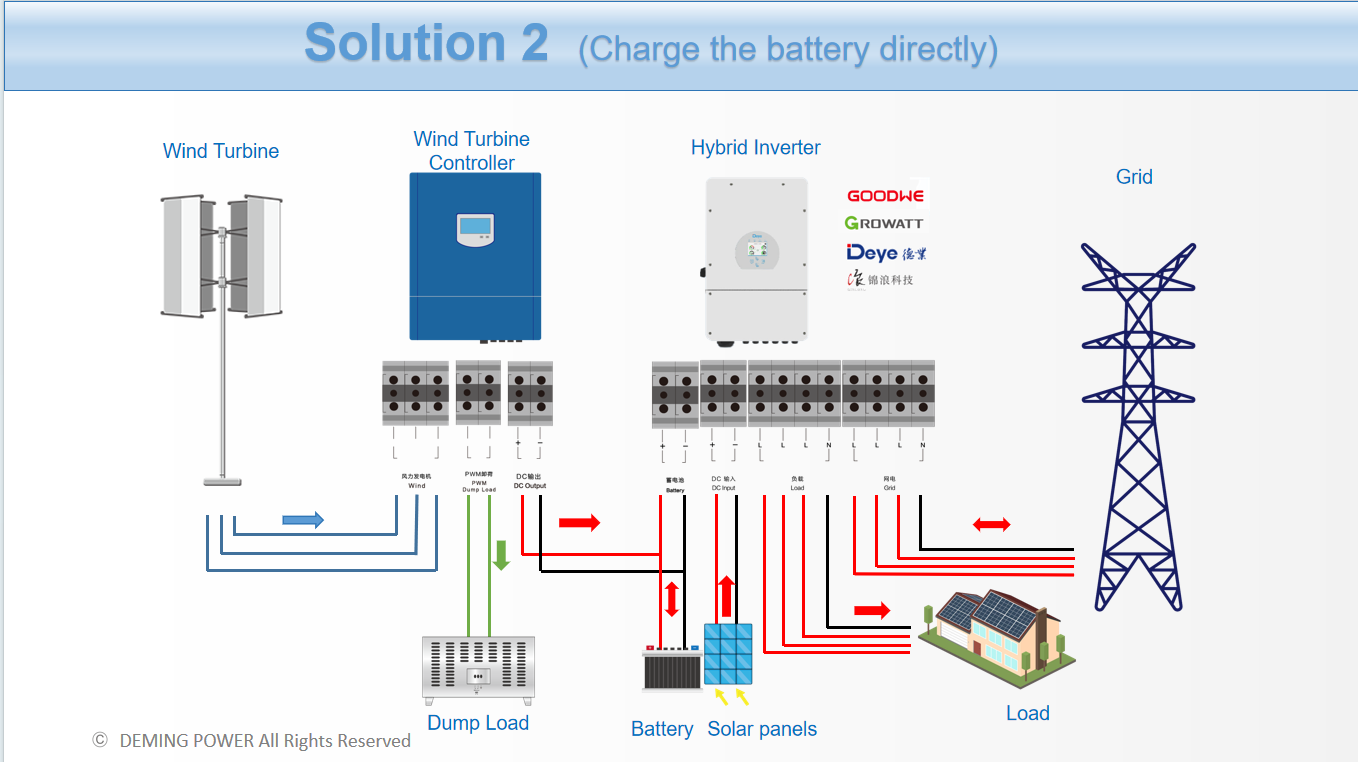

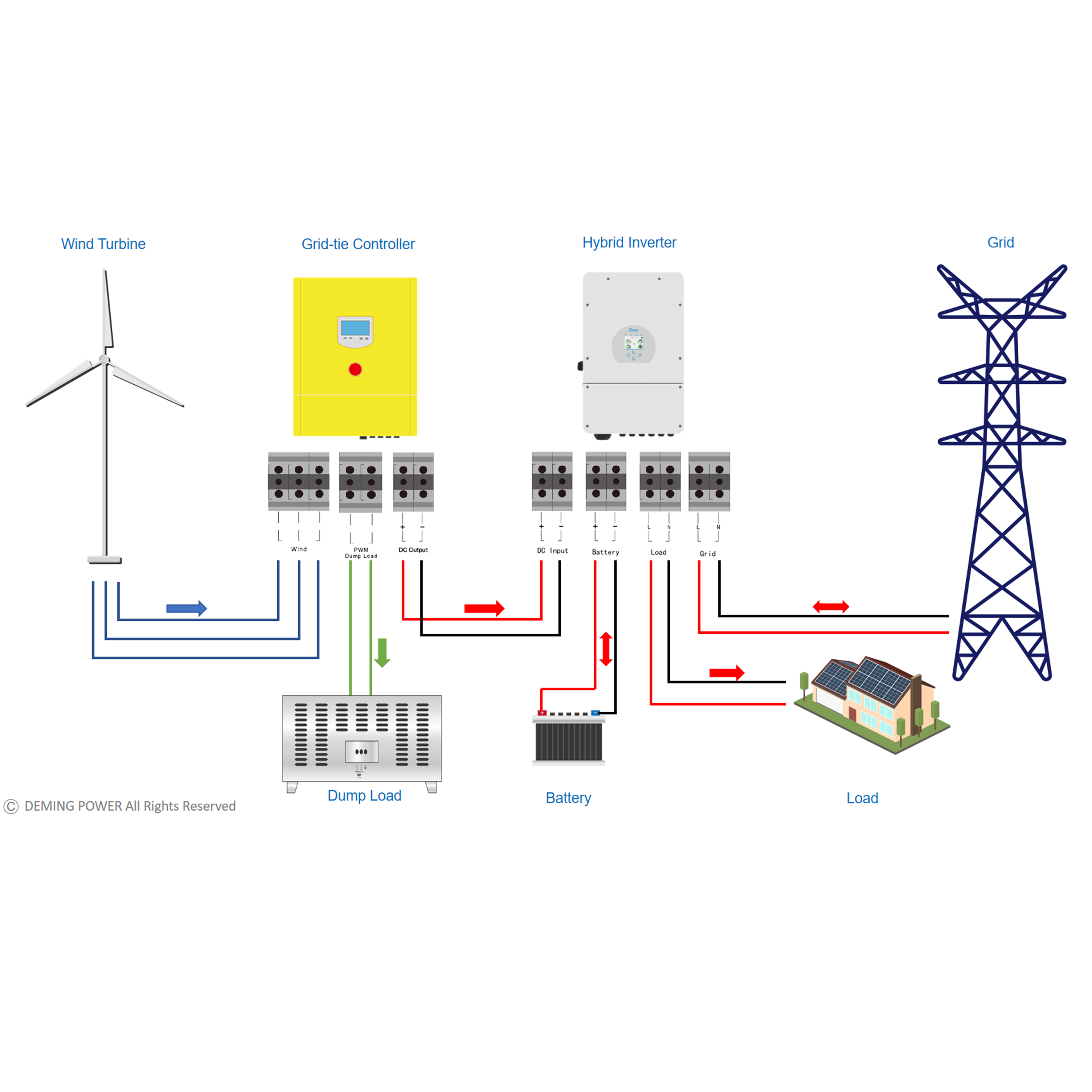

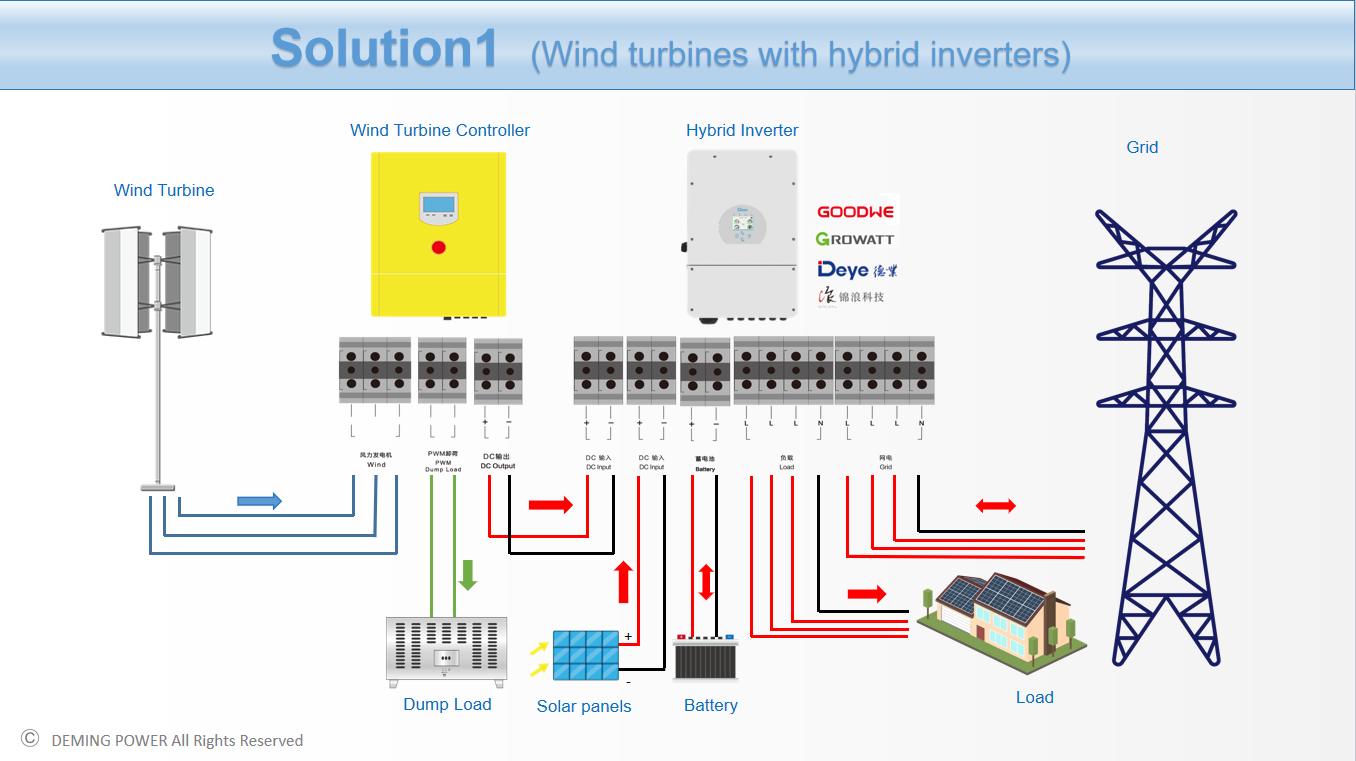

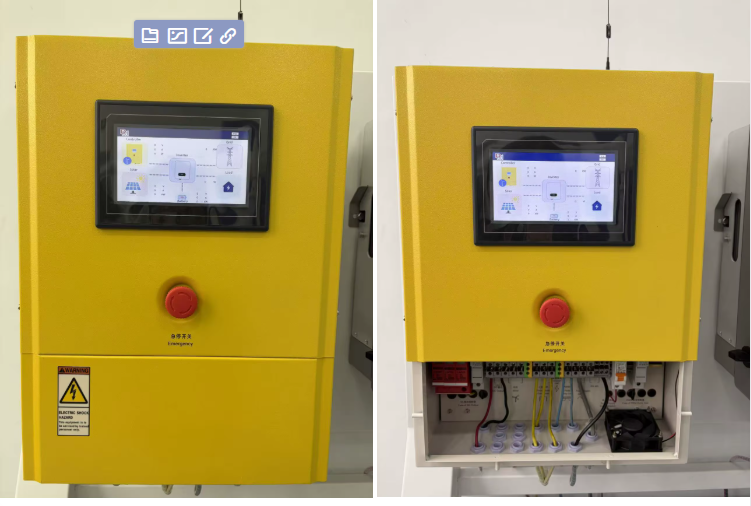

The On grid wind turbine system is composed of wind turbine, on grid controller, on grid inverter, metering device, and power distribution system. Wind energy is converted into AC electrical energy by the wind turbine, and then converted into DC electrical energy by the on grid controller, and then DC electrical energy is converted into AC electrical energy of the same frequency and phase as the grid by the on grid inverter, and part of the power is supplied to the local load. Surplus power is fed into the grid.

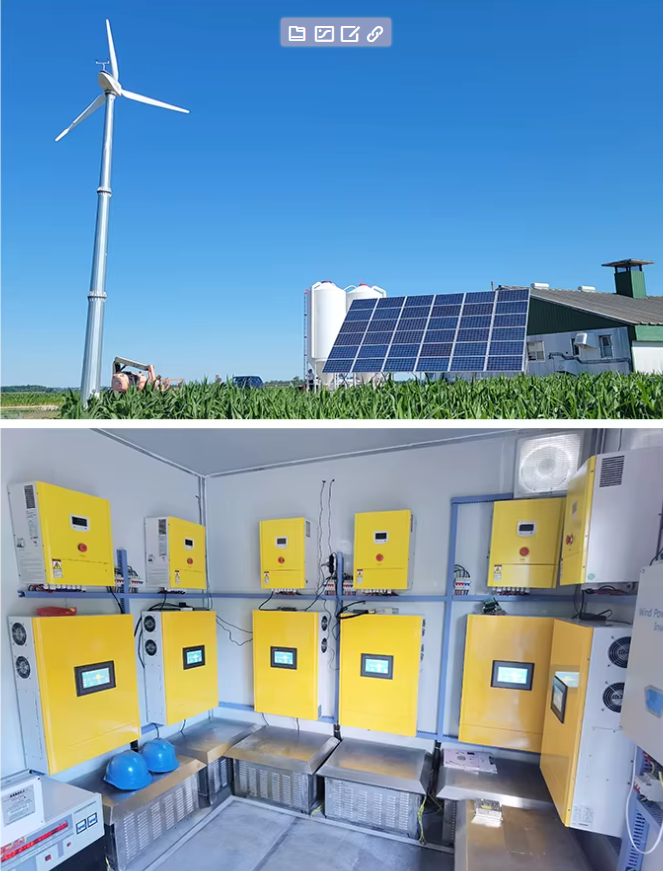

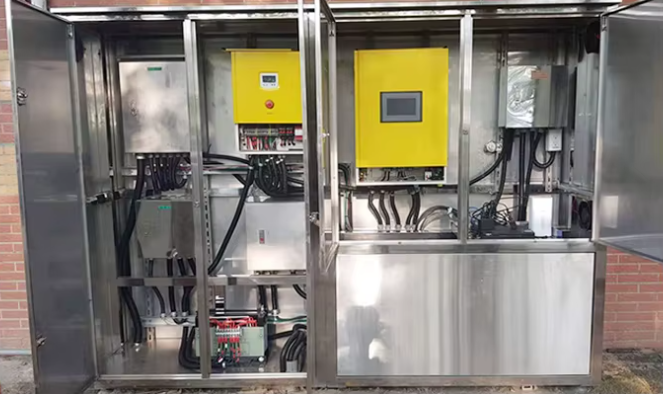

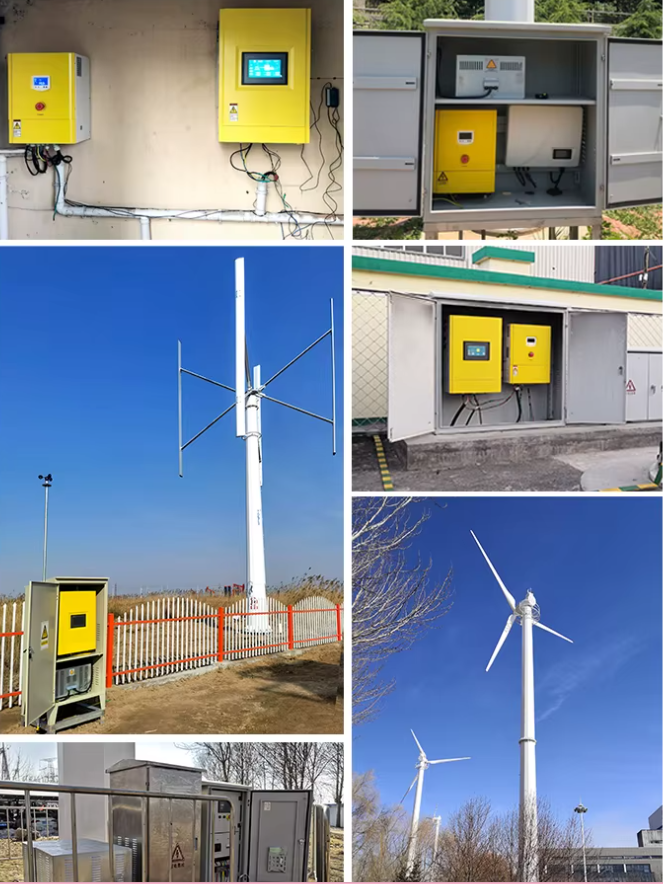

Our Case
FAQ
Q1: What is a Wind-Solar Hybrid System?
A1: It is a clean power generation system that combines both wind turbine and solar PV panel technologies to generate electricity. Working together, they provide a more stable and continuous power supply since wind and solar energy resources often complement each other.
Q2: How does the On-Grid hybrid system work?
A2: The wind turbine produces AC electricity, which is regulated into DC by the on-grid controller. Solar panels also generate DC power. This combined DC power is then converted by the on-grid inverter into synchronized AC electricity to power local appliances first. Any excess power is directly exported to the main utility grid.
Q3: What are the advantages of MPPT control?
A3: MPPT (Maximum Power Point Tracking) technology ensures the system tracks and extracts the maximum possible power from both the wind turbine and solar arrays under changing wind speeds and sunlight intensities, significantly increasing overall system efficiency.
Q4: What happens if there is no wind and no sunlight?
A4: Because this is an on-grid system, the utility grid acts as a backup power source. If the hybrid system is not producing enough energy, electricity will automatically draw from the utility grid to keep your home or facility running seamlessly.
Q5: Can I choose different capacities for my property?
A5: Yes. Systems are available in modular capacities such as 2KW, 3KW, 5KW, and 10KW to suit different power consumption levels, from small residential setups to medium sized off-grid or commercial applications.
